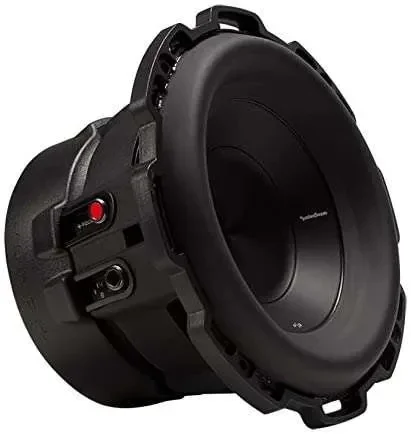

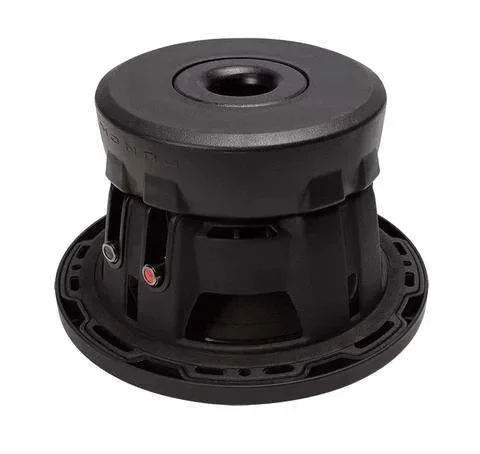

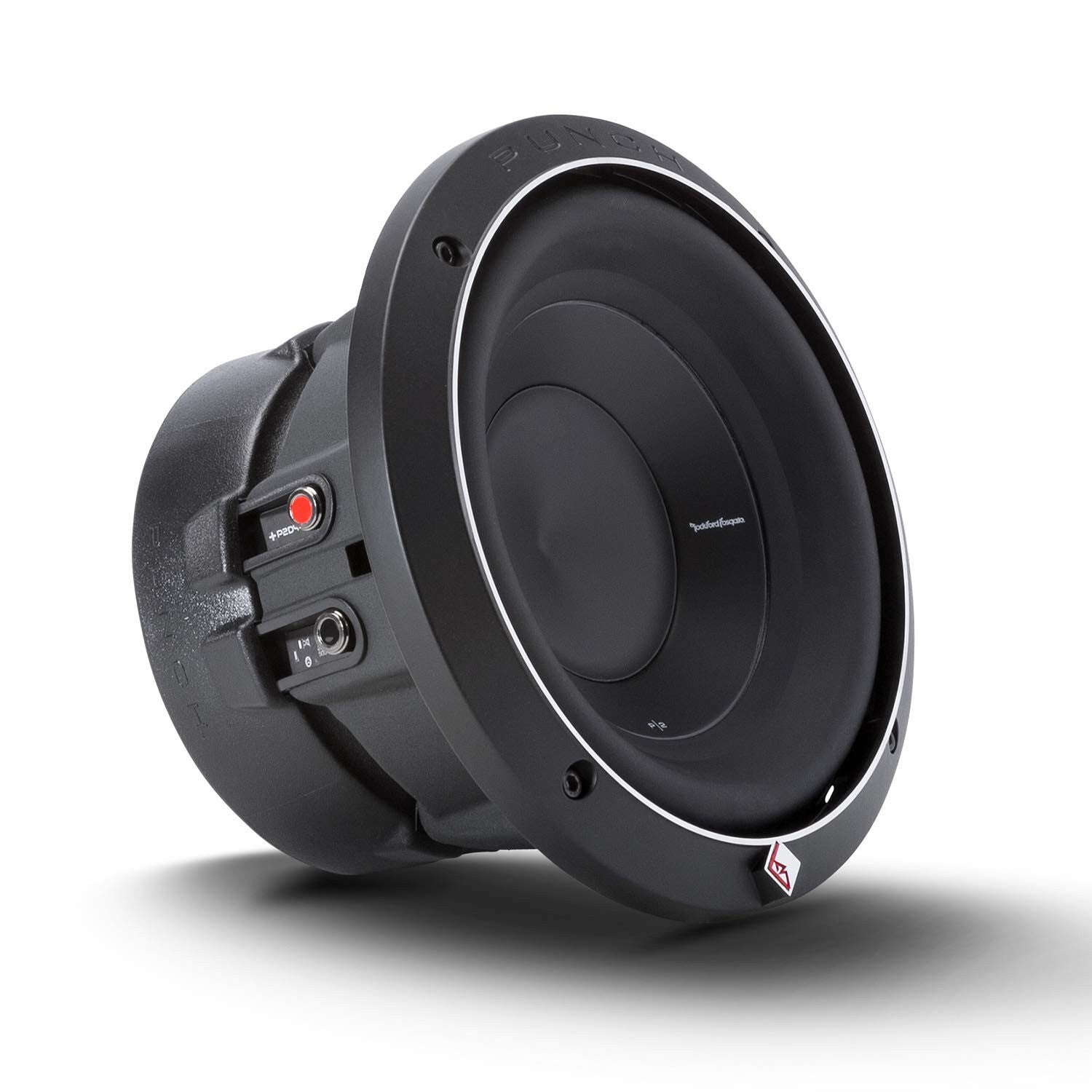

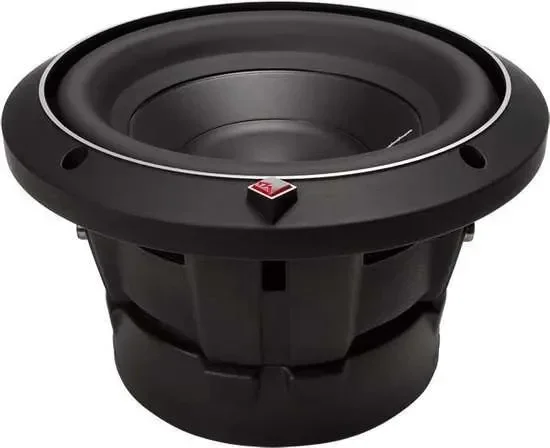

Rockford Fosgate Punch P2D2-8 / P2D4-8 8 inch subwoofer
€149.00
Rockford Fosgate Punch P2D2-8 / P2D4-8
- Condition: New
- Sale type: BTW/21%
- Warranty: Factory warranty
- Stock : 2 -4 days extra delivery time
Productinfo:
- Dual linear spider with embedded 16 AWG fin leads.
- Custom 4mm² nickel plated push terminals
- High temperature voice coil with spun Nomex®-
- Reinforcing collar
- Extended pole piece and compressed, ventilated back plate
- Protective textured PVC magnetic cover
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider ventilation
- Diamond-cut cast aluminum ring with optional grille
Specifications:
- 8" (20cm) subwoofer
- Power RMS : 250 watts
- Power Max : 500 Watt
- Installation depth : 120.8 mm
- Voice coil diameter : 57.7 mm
- Magnet weight : 2.06 kg
- Woofer displacement : 1.2 liters
- Shipping weight : 1.38 kg
- Cutout diameter : 181 mm
- Available in D2 and D4 impedance
- D2 (2x2 Ohm) variant:
- Nominal impedance : Dual 2-Ohm
- Voice coil type : Dual voice coil
- Qts : 0.46
- Qms : 5.40
- Xmax (mm) : 7.8
- SPL (dB @ 1w/1m) : 83
- Fs (Hz) : 39.6
- Qes : 0.51
- Vas (liters) : 9.9
- Re (Ohm) : 3.40
- Le (mH) : 2.9
- Sd (cm2) : 221
- Closed case volume (Vb) : 6.5 liters
- Bass reflex cabinet volume (Vb) : 18.4 liters
- D4 (2x4 Ohm) variant:
- Nominal impedance : Dual 4-Ohm
- Voice coil type : Dual voice coil
- SPL (dB @ 1w/1m) 83
- Fs (Hz) 43
- Re (Ohm) 6.90
- Sd (cm2) 221
- Qts 0.52
- Qes 0.58
- Qms 5.40
- Vas (liters) 9.9
- Xmax (mm) 7.7
- Le (mH) 4.3
- Closed housing volume (Vb) : 6.5 liters
- Bass reflex cabinet volume (Vb) : 18.4 liters
