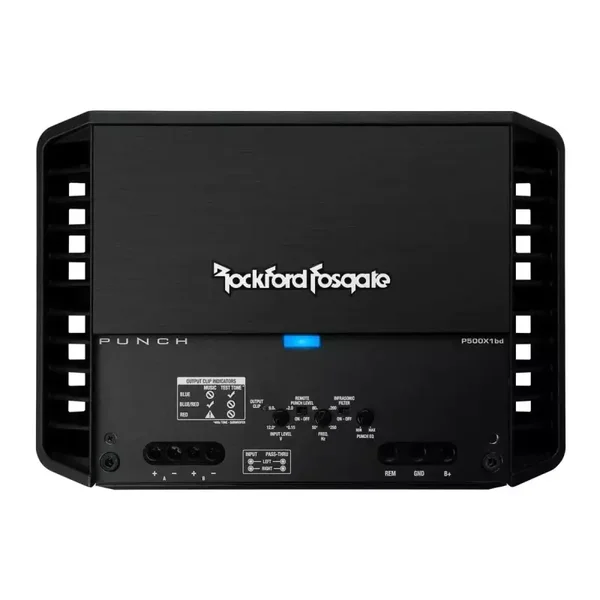

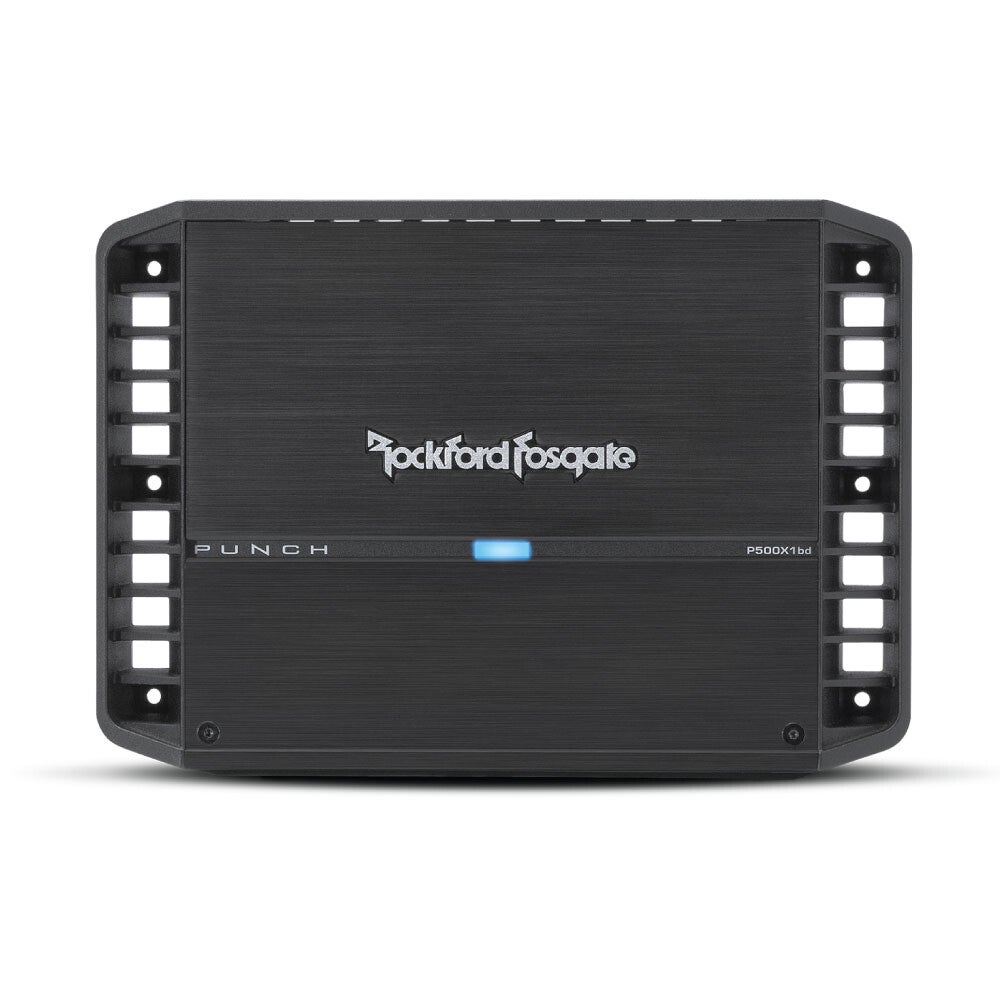

Rockford Fosgate Punch P500X1bd monoblock amplifier
€399.00
Rockford Fosgate Punch P500X1bd
- Condition: New
- Sale type: BTW/21%
- Warranty: Factory warranty
- Stock : 2 -4 days extra delivery time
Productinfo:
- High level input with auto turn-on circuit.
- With C.L.E.A.N. facility
- RCA pass-thru outputs
- 12dB/Octave Butterworth Crossover
- Optional remote Punch Level Control (PLC2) (with input clip-
- display)
- Built-in punch EQ with +18 dB boost at 45 Hz
- Mute on power up
- Stealth control panel on the top side
- Cast aluminum heat sink
- Short circuit protection
- Overcurrent protection
- Infrasonic filter
Specifications:
- 1-channel amplifier
- RMS power:
- 150 Watt x 1 @ 4-Ohm
- 300 Watt x 1 @ 2-Ohm
- 500 Watt x 1 @ 1-Ohm
- Dynamic power
- 224 Watt x 1 @ 4-Ohm
- 410 Watt x 1 @ 2-Ohm
- 787 Watt x 1 @ 1-Ohm
- Frequency response: 20 Hz to 250 Hz +/- 1.0 dB
- Input sensitivity: 150 mV - 12 V
- Circuit topology class : Class BD
- Efficiency (average) : 86% @ 4-Ohm
- Signal input : High/low level : 1 RCA pair
- Signal output: Low level: 1 RCA pair
- Tone control : Punch EQ2 Bass: 0dB to +18dB @ 45Hz
- Crossover control : Low Pass (LP): 50-250Hz @ 12dB/octave Butterworth
- Infrasonic filter (IF): 28Hz @ 12dB/octave
- Remote controls : Optional punch level control (PLC2) ready
- Visual indicators : Power/Protection/Thermal LED
- Cable diameter : 20mm²
- Speaker cable diameter : 8mm²
- Cooling : convection
- Operating voltage : 9 - 16 VDC
- Recommended fuse 80 A
- Average current consumption (13.8 V music) : 35 A
- Max. Current consumption (13.8 V sine) : 70 A
- Dimensions (H x W x D) : 6.05 x 19.71 x 28.02 cm
