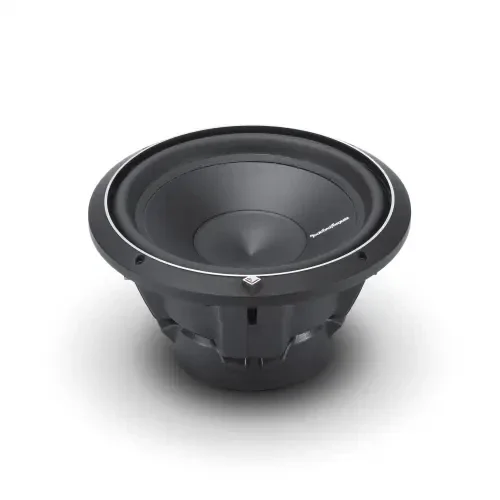

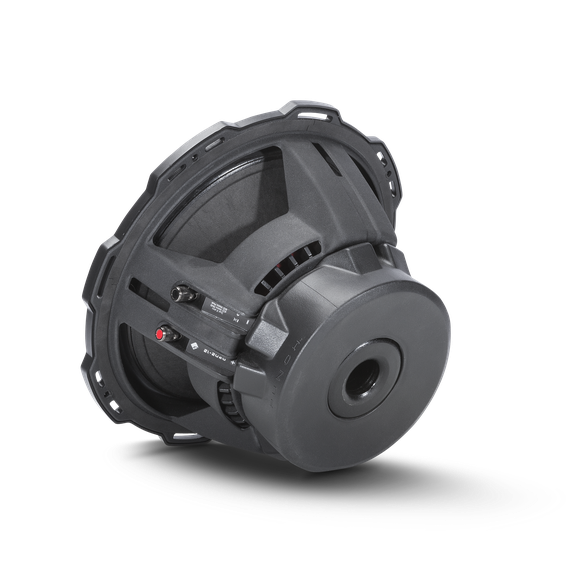

Rockford Fosgate Punch P2D2-12/P2D4-12 12 inch subwoofer
€199.00
Rockford Fosgate Punch P2D2-12/P2D4-12
- Condition: New
- Sale type: BTW/21%
- Warranty: Factory warranty
- Stock : 2 -4 days extra delivery time
Productinfo:
- Dual linear spider with embedded 16 AWG fin leads.
- Custom 4mm² nickel plated push terminals
- High temperature voice coil with spun Nomex®-
- Reinforcing collar
- Extended pole piece and compressed, vented back plate
- Protective textured PVC magnetic cover
- Kevlar fiber reinforced paper cone
- StampCast basket with integrated spider ventilation
- Diamond-cut cast aluminum ring with optional grille
Specifications:
- 12" (30cm) subwoofer
- Power RMS : 400 watts
- Power Max : 800 Watt
- Installation depth : 162 mm
- Voice coil diameter : 57.15 mm
- Magnet weight : 2.06 kg
- Woofer displacement : 2.4 liters
- Shipping weight : 7.07 kg
- Cutout diameter : 285 mm
- Available in D2 and D4 impedance
- D2 (2x2 Ohm) variant:
- Nominal impedance : Dual 2-Ohm
- Voice coil type : Dual voice coil
- SPL (dB @ 1w/1m) : 86
- Fs (Hz) : 26
- Xmax (mm) : 13.3
- Le (mH) : 3.7
- Size : 12"
- Qts : 0.52
- Qes : 0.56
- Qms : 6.50
- Re (Ohm) : 3.30
- Vas (Liter) : 81.5
- Sd (cm2) : 570
- Closed case volume (Vb) : 28.8 liters
- Bass reflex cabinet volume (Vb) : 50.6 liters
- D4 (2x4 Ohm) variant:
- Nominal impedance : Dual 4-Ohm
- Voice coil type : Dual voice coil
- Qes 0.59
- Qms 6.30
- Re (Ohm) 6.40
- SPL (dB @ 1w/1m) 86
- Fs (Hz) 27.2
- Qts 0.54
- Vas (liters) 81.5
- Xmax (mm) 13.3
- Le (mH) 5.5
- Sd (cm2) 570
- Closed case volume (Vb) : 28.8 liters
- Bass reflex cabinet volume (Vb) : 50.6 liters
