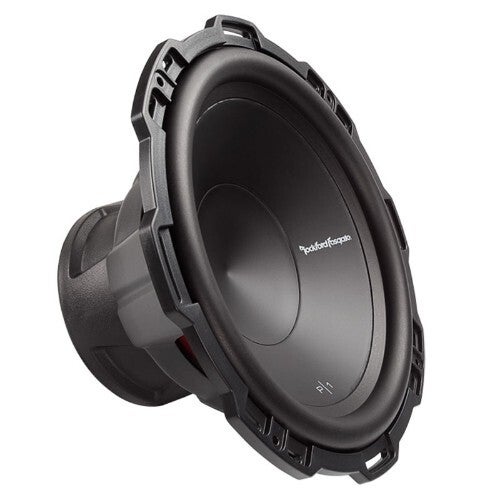

Rockford Fosgate Punch P1S2-12/P1S4-12 12 inch subwoofer

Rockford Fosgate Punch P1S2-12/P1S4-12

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 2 -4 days extra delivery time

Productinfo:

• Linear spider with embedded 4mm² ribbed cables.
• High temperature voice coil with spun Nomex®-
• Reinforcing collar
• Kevlar fiber reinforced paper cone
• StampCast basket with integrated spider ventilation
• Rubberized ABS trim ring with optional grille
• Custom 10-AWG nickel-plated compression fittings
• Extended pole piece and swaged, vented backplate
• Protective, textured PVC solenoid cover

Specifications:

• 12" (30cm) subwoofer
• Power handling RMS 250 watts
• Power handling Max 500 Watt
• Voice coil diameter: 51.6 mm
• Magnet weight : 1.28 kg
• Cutout diameter : 285 mm
• Installation depth : 152.4 mm
• Woofer displacement : 2.3 liters
• Shipping weight : 5.66 Kg
• Available in single 2 ohm and single 4 ohm impedance
• 2 Ohm variant:
  • Nominal impedance : 2-Ohm
  • Voice coil type : Single voice coil
  • Re (Ohm) : 1.8
  • Sd (cm2) : 548
  • Vas (liter) : 88.3
  • Qts : 0.55
  • Qes : 0.84
  • Qms : 3.39
  • Le (mH) : 1.17
  • Fs (Hz) : 25
  • Xmax (mm) : 9.0
  • SPL (dB @ 1w/1m) : 86
  • SPL (dB @ 2.8v/1m) : 89
  • Closed cabinet volume (Vb) : 28.8 liters
  • Bass reflex cabinet volume (Vb) : 50.6 liters
• 4 Ohm variant:
  • Voice coil type single voice coil
  • Nominal impedance 4-Ohm
  • Le (mH)3.01
  • Fs (Hz) 25
  • Qts 0.55
  • Qes 0.56
  • Qms 3.40
  • Xmax (mm) 9.0
  • Vas (liter) 88.3
  • Re (Ohm) 3.6
  • Sd (cm2) 548
  • SPL (dB @ 1w/1m) 86
  • SPL (dB @ 2.8v/1m) 89
  • Closed cabinet volume (Vb) : 28.8 liters
  • Bass reflex cabinet volume (Vb) : 50.6 Liter
