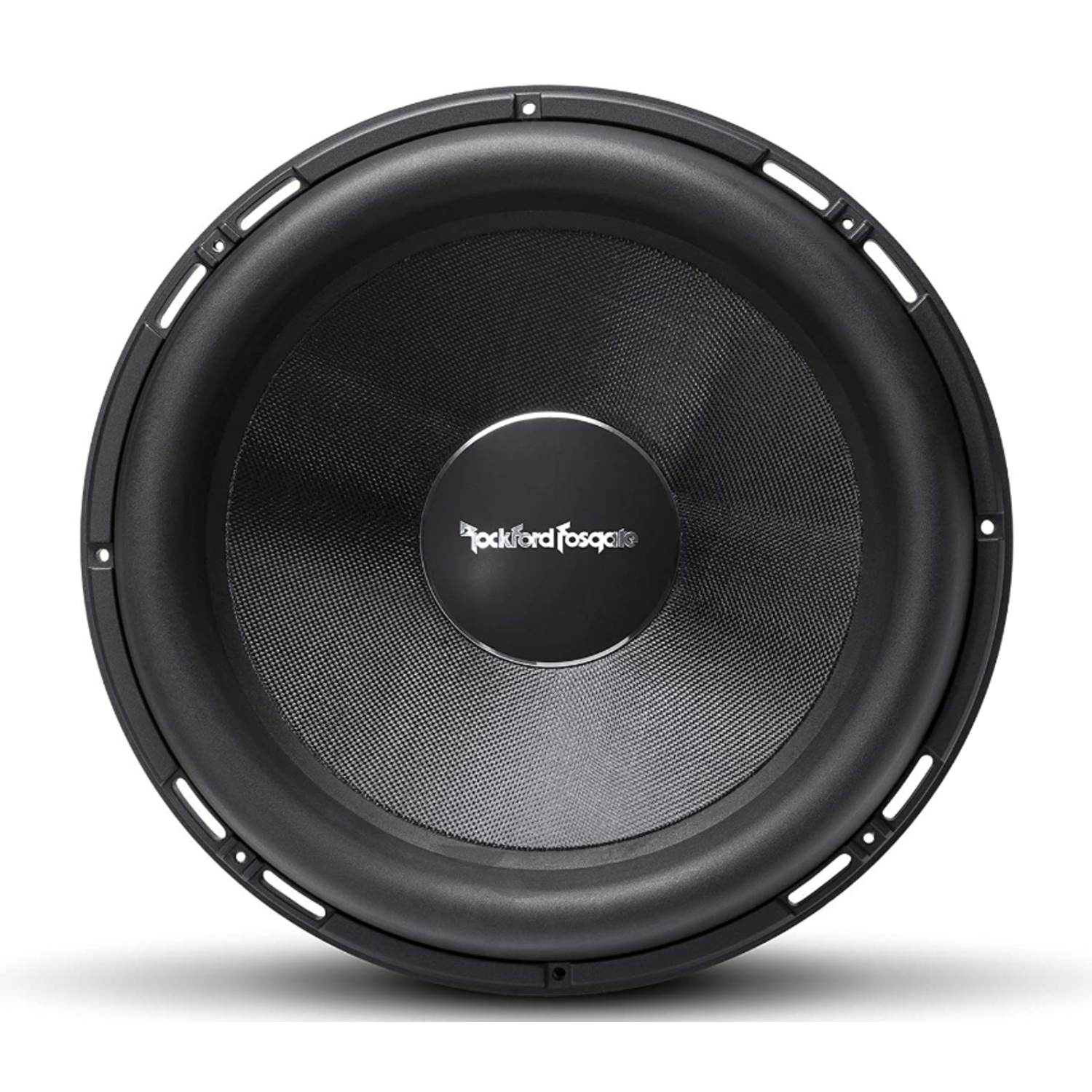

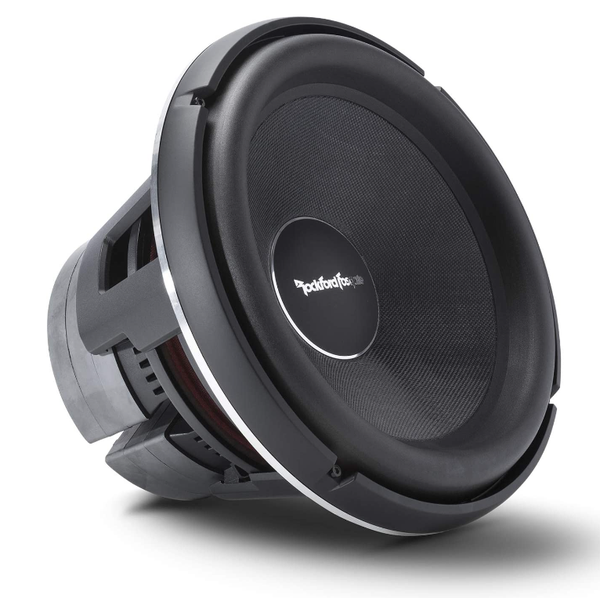

Rockford Fosgate Power T2S2-16 / T2S1-16 Subwoofer 16''

Rockford Fosgate Power T2S2-16 / T2S1-16

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 3 - 5 days extra delivery time ( pallet )

• Shipping note: only possible per pallet or pick up ( add to cart for delivery prices )

Productinfo:

• Three-layer fiberglass/aramid honeycomb/fiberglass cone.
• Aluminum dust cap
• Injection molded foam surround with VAST™
• Two progressive Nomex sprockets with integrated lead wires
• Proprietary mechanical clamping ring for the surround
• Die-cast aluminum frame with integrated cooling fins
• Insulated 8 mm² terminals with compression spring
• Removable die-cast aluminum cover ring
• Single layer, edge wound 4" aluminum voice coil
• Vented pole piece
• Triple stacked segmented ferrite motor structure
• Integrated aluminum shorting ring (IDHS)

Specifications:

• 16" (40.5cm) subwoofer
• Power handling RMS : 2500 Watt
• Power handling Max : 5000 Watt
• Voice coil diameter : 100 mm
• Magnet weight : 15 kg
• Installation depth : 266 mm
• Cutout diameter : 382 mm
• Woofer volume : 8.2 liters
• Shipping weight : 45.7 Kg
• Available in single 1 ohm and single 2 ohm impedance
• 2 Ohm variant:
  • Nominal impedance : 2-Ohm
  • Voice coil type single voice coil
  • Fs (Hz) : 28.5
  • Qes : 0.56
  • Qms : 3.76
  • Vas (liters) : 90.1
  • Le (mH) : 0.91
  • Size : 16"
  • Qts :0.49
  • Sd (cm2) : 1034
  • Xmax (mm) : 34
  • Re (Ohm) : 1.6
  • SPL (dB @ 1w/1m) : 90
  • SPL (dB @ 2.8v/1m) : 93
  • Voice coil type : Single voice coil
  • Enclosed cabinet volume (Vb) : 67.9 liters
  • Bass reflex cabinet volume (Vb) : 155 liters
• 1 Ohm Variant
  • Nominal impedance1-Ohm
  • Voice coil type single voice coil
  • Fs (Hz) 28.5
  • Qes 0.57
  • Qms 3.73
  • Qts 0.49
  • Re (Ohm) 0.9
  • Le (mH) 0.53
  • Sd (cm2) 1034
  • Xmax (mm) 34
  • SPL (dB @ 1w/1m) 89
  • Vas (liter) 84.5
  • SPL (dB @ 2.8v/1m) 92
  • Closed cabinet volume (Vb) : 67.9 liters
  • Bass reflex cabinet volume (Vb) : 155 liters
