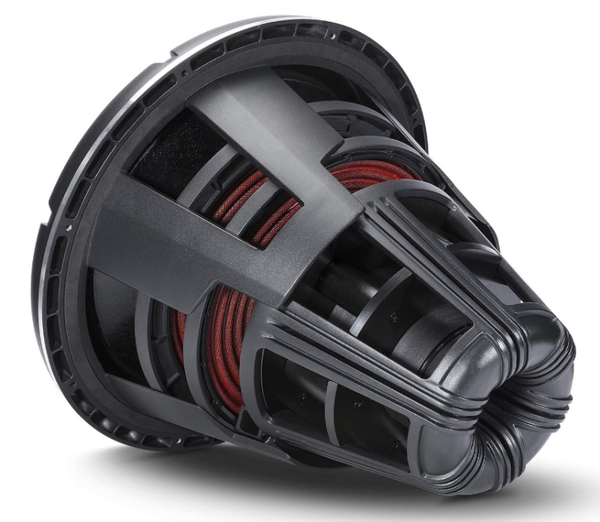

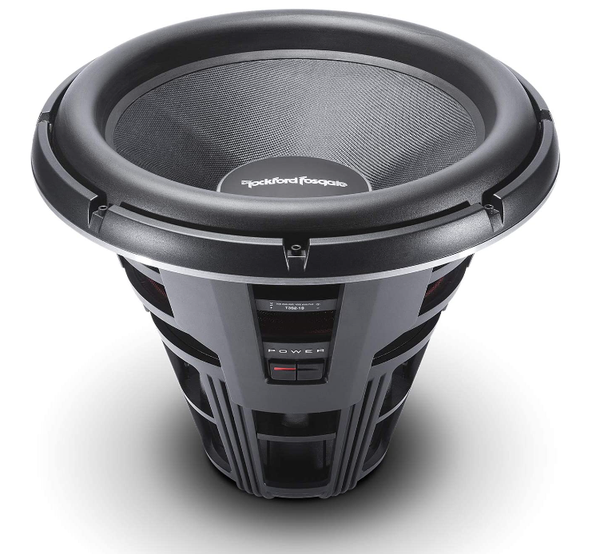

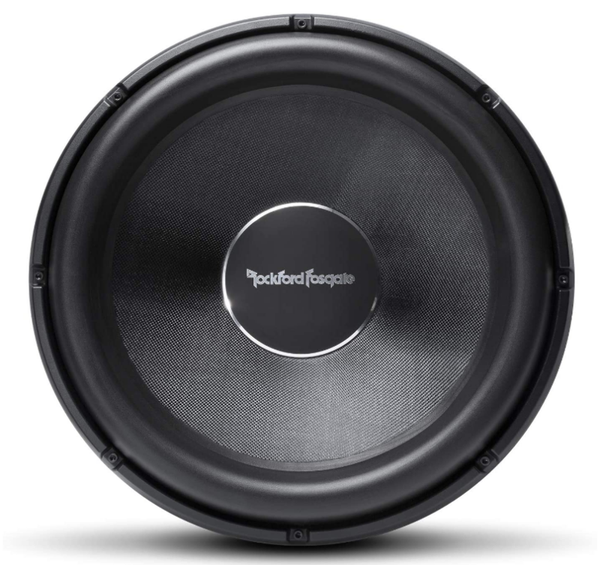

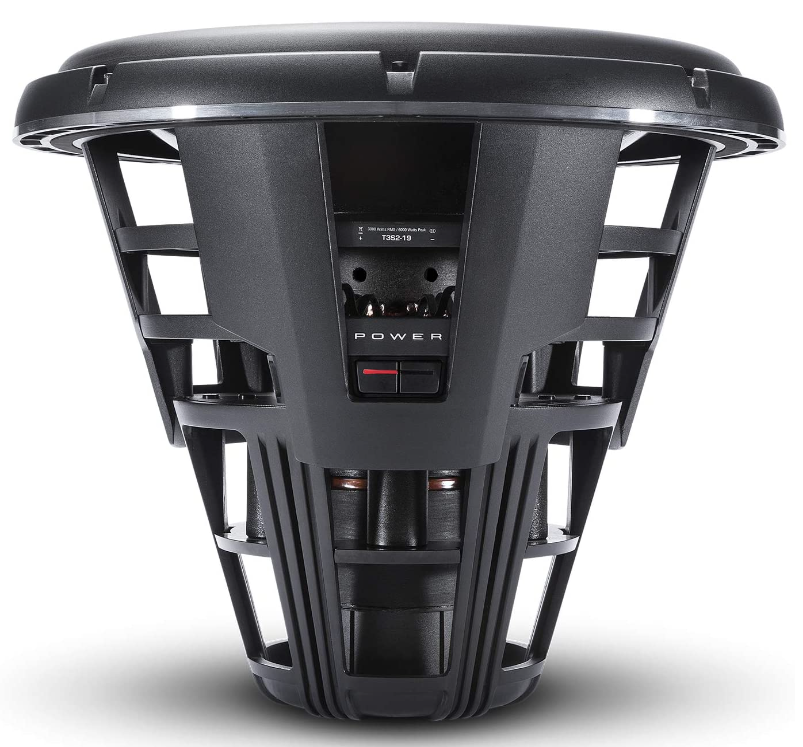

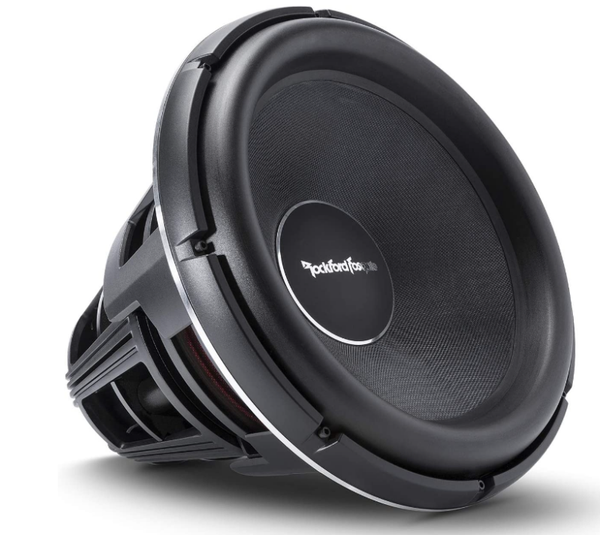

Rockford Fosgate Power T3S2-19 / T3S1-19 Subwoofer 19''

Rockford Fosgate Power T3S2-19 / T3S1-19

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 3 - 5 days extra delivery time ( pallet )

• Shipping note: only possible per pallet or pick up ( add to cart for delivery prices )

Productinfo:

• Three-layer fiberglass/aramid honeycomb/fiberglass cone.
• Aluminum dust cap
• Injection molded foam surround with VAST™
• Two progressive Nomex sprockets with integrated lead wires
• Proprietary mechanical clamping ring for the surround
• Die-cast aluminum frame with integrated cooling fins and ventilation
• Insulated 10mm² terminals with compression spring
• Side voice coil design with double (push/pull) windings
• Single layer, edge-wound 5" aluminum voice coil
• Integrated die-cast aluminum end ring
• Dual column multi-pole neodymium push/pull motor structure

Specifications:

• 19" (48.5cm) subwoofer
• Power handling RMS 3000 watts
• Power handling Max 6000 Watt
• Shipping weight : 48.2 Kg
• Cutout diameter : 440 mm
• Installation depth : 396 mm
• Voice coil diameter : 127 mm
• Woofer displacement : 9.6 liters
• Magnet weight 3.26 Kg
• Available in single 1 ohm or single 2 ohm impedance
• 2 Ohm variant:
  • Nominal impedance : 2-Ohm
  • Voice coil type : Single voice coil
  • Fs (Hz) : 27
  • Le (mH) : 0.96
  • Re (Ohm) : 1.7
  • Qms : 1.92
  • Qts : 0.31
  • Qes : 0.37
  • Vas (liters) : 103.4
  • Sd (cm2) :1472
  • SPL (dB @ 1w/1m) : 90
  • Xmax (mm) : 34
  • bass reflex cabinet volume (Vb) : 226.5 liter
• 1 Ohm variant:
  • Nominal impedance 1 ohm
  • Voice coil type : Single voice coil
  • Fs (Hz)27
  • Re (Ohm)0.8
  • Le (mH)0.45
  • Qms1.93
  • Qts0.32
  • Qes0.38
  • Vas (liters)104.9
  • Sd (cm2)1472
  • SPL (dB @ 1w/1m)91
  • Xmax (mm)34
  • Bass reflex cabinet volume (Vb) : 226.5 liters
