ESX Quantum QL812SP 12 channel DSP

ESX Quantum QL812SP 12 channel DSP
€999.00

ESX Quantum QL812SP



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -3 days extra delivery time

Productinfo:

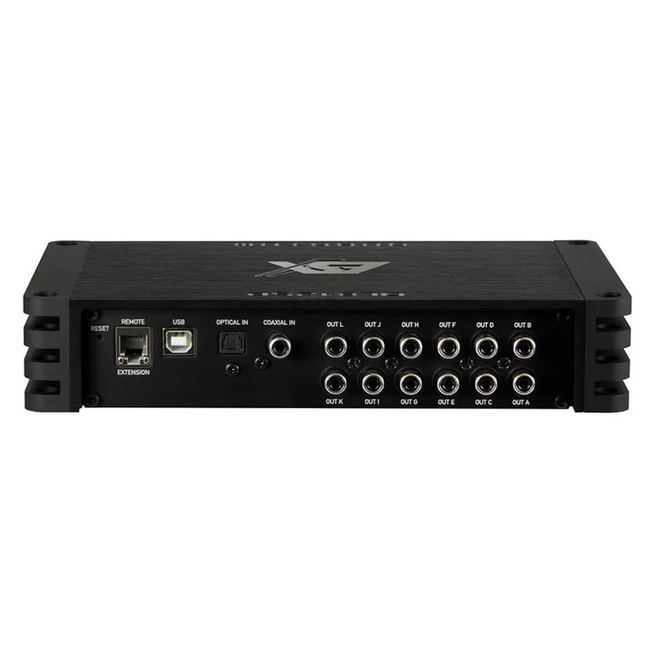

  • 8 x RCA/RCA input
  • 8 x high level input with EPS PRO up to 40 V/RMS (via Molex connector)
  • 1 x Optical stereo, S/PDIF 192 kHz, 24 bit
  • 1 x coaxial stereo, S/PDIF 192 kHz, 24 bit
  • 1 x Bluetooth® stereo
  • 1 x USB type B for PC software
  • 1 x RJ45 for remote control/extension
  • 1 x power input incl. REM OUT and MODE switch input
  • 12 x RCA/RCA @ 6 V RMS (THD+N <0.0004%) each with 31 band EQ, PEQ / Highshelf / Lowshelf
  • 226 x 43 x 120 mm
  • Analog Devices™ ADAU1452 Dual 2 x 32 bit processor, 294 MHz, Full HD Audio 96 kHz.
  • AKM Velvet Sound™ Series 5 signal converter, A/D 32 bit, D/A 32 bit
  • HP/LP/BP @ 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps
  • Input mixer, subwoofer control
  • Input sensitivity: low level 1~6 V/RMS, high level 1~15 or 15~45 V/RMS
  • Signal-to-noise ratio (A-weighted): Analog input 111 dB, Digital input 117 dB
  • Distortion factor: analog input <0.001%, digital input <0.0004%
  • Integrated Bluetooth® Receiver incl. antenna for controlling the DSP via app and full HD audio streaming
    Bluetooth version 5.0, profiles: A2DP/AVRCP, Codecs: aptX, aptx LL, aptX HD, AAC, SBC
  • Optional RC-DQ (LCD remote control)
