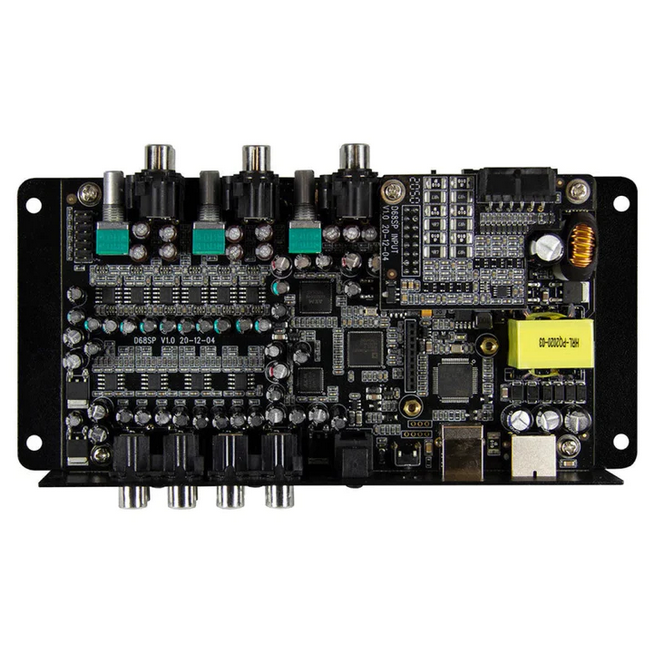

ESX Direction D68SP 8 channel DSP

ESX Direction D68SP

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock (1x) : shipped within 24 hours

Productinfo:

• 6 x RCA/ RCA input, balanced
• 6 x high level input (via Molex connector)
• 1 x Optical stereo, S/PDIF 192 kHz, 24 bit
• 1 x USB type B for PC software
• 1 x RJ45 for remote control/extension
• 1 x power input incl. REM OUT and MODE switch input
• 8 x RCA/RCA @ 6 V RMS
• 105 x 40 x 185 mm
• DSP chip from Analog Devices™ 32 bit, 294 MHz, Full HD Audio 96 kHz.
• Signal converter from AKM Velvet Sound™ A/D 32 bit, D/A 32 bit
• HP/LP/BP @ 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps.
• Up to 248 output EQs, 120 input EQs (PEQ/HSLF/LSLF) +/- 12 dB, 0.5 dB steps)
• Input mixer, subwoofer control, preset auto switch, priority input mode
• Input sensitivity: low level 1~6 V/RMS, high level 1~15 or 15~45 V/RMS
• Signal to Noise Ratio (A-weighted): Analog Input 106 dB, Digital Input 111 dB
• Optical S/PDIF input S/PDIF 192 kHz, 24 bit
• Distortion factor: Analog input < 0.0015%, digital input < 0.0009%
• Optional accessories: BT-D (Bluetooth® module), RC-DQ (LCD remote control)
