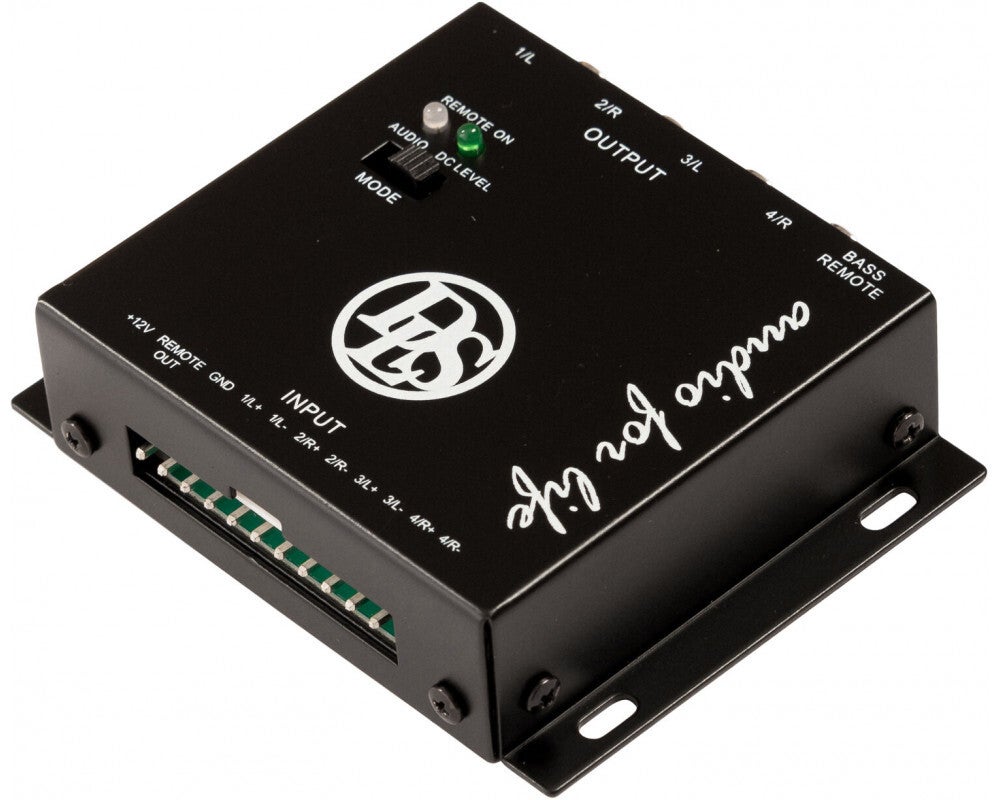

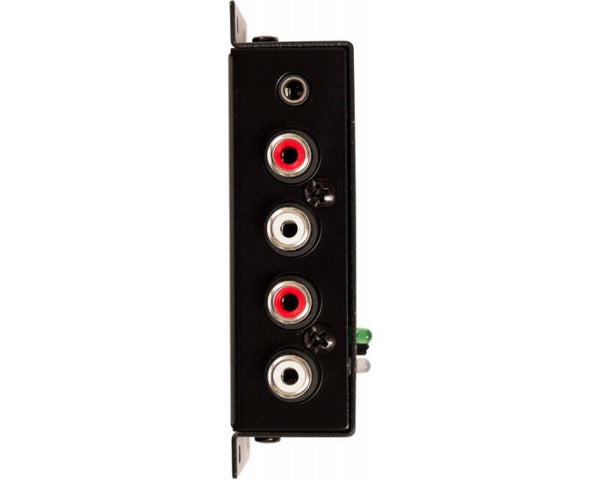

DLS 610HLC42 High Level Converter v.2 HLC4.2

DLS 610HLC42 High Level Converter v.2 HLC4.2

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Productinfo:

• Number of channels: 4

  Power supply: 12 V DC (min 10.8, max 15.6V)
  Current consumption, no signal: 4 mA
  Current consumption, operational: Typical 25 mA
  Output voltage: 3 V RMS
  Distortion: 0.002% THD @ 3V output, 10 kohm load
  Cut point: 3.7 V RMS @ 14.4 V power supply
  Output impedance: 200 ohm nominal
  Input impedance: Ch. 1: 44 ohm, Ch. 2-4: 100 ohm, all channels are fully balanced
  Detection modes: DC level or Audio, both operate only on Ch. 1.
  Remote output: 12 volts, max. 100 mA, short-circuit protected.

  Indicators: Green = remote control on, Blue = audio detection active. Reverse polarity protected. Summing output channel 3 + 4 for subwoofer amplifier when used with optional EBC.
