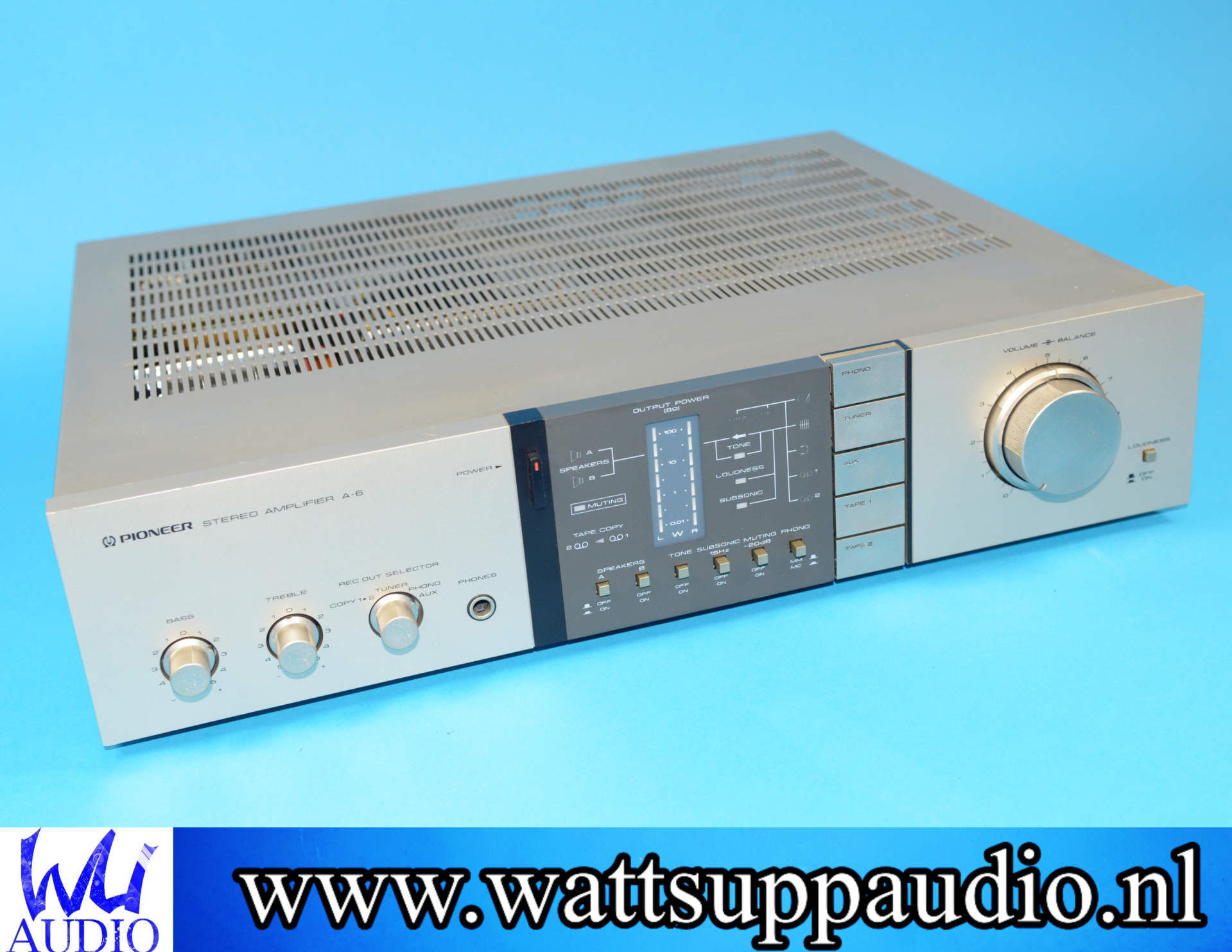

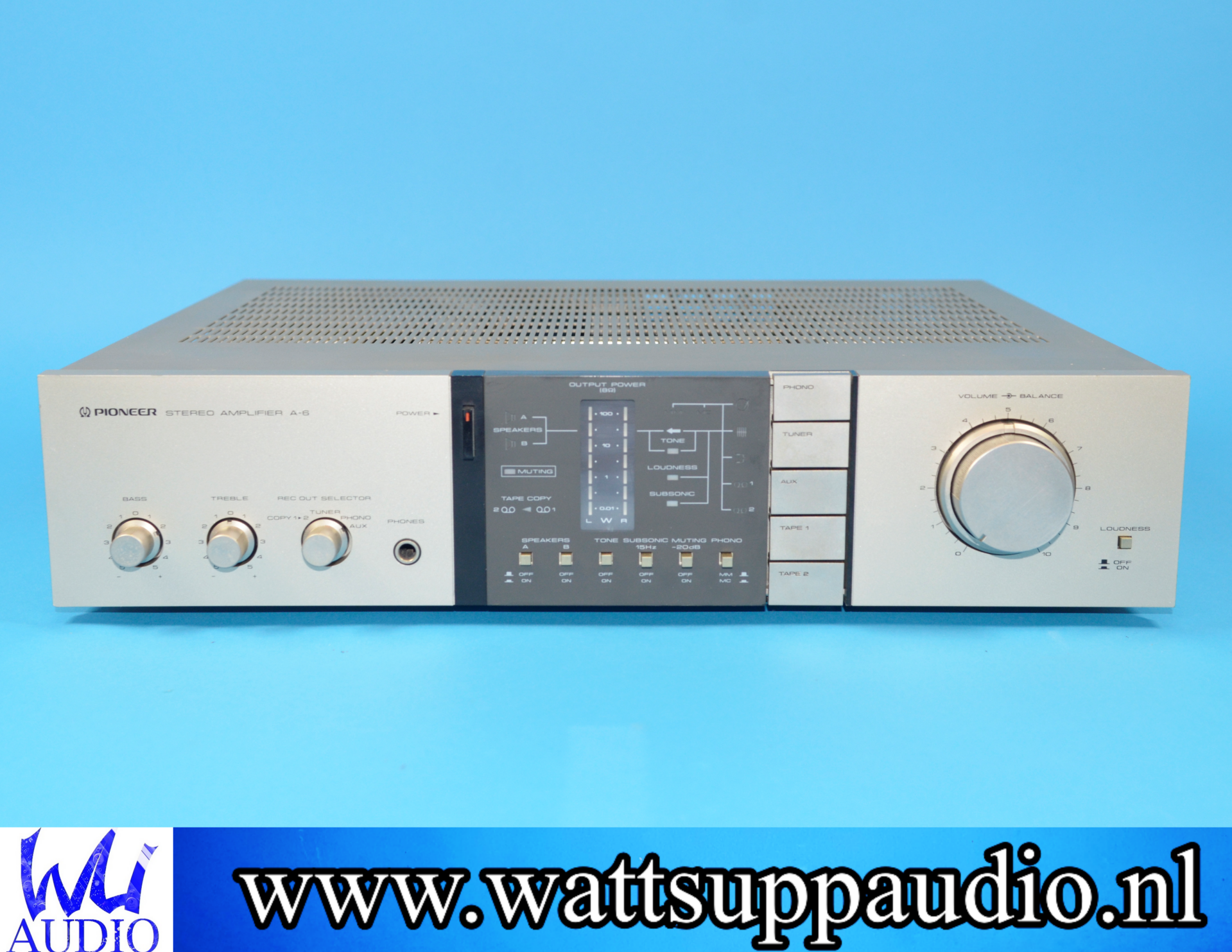

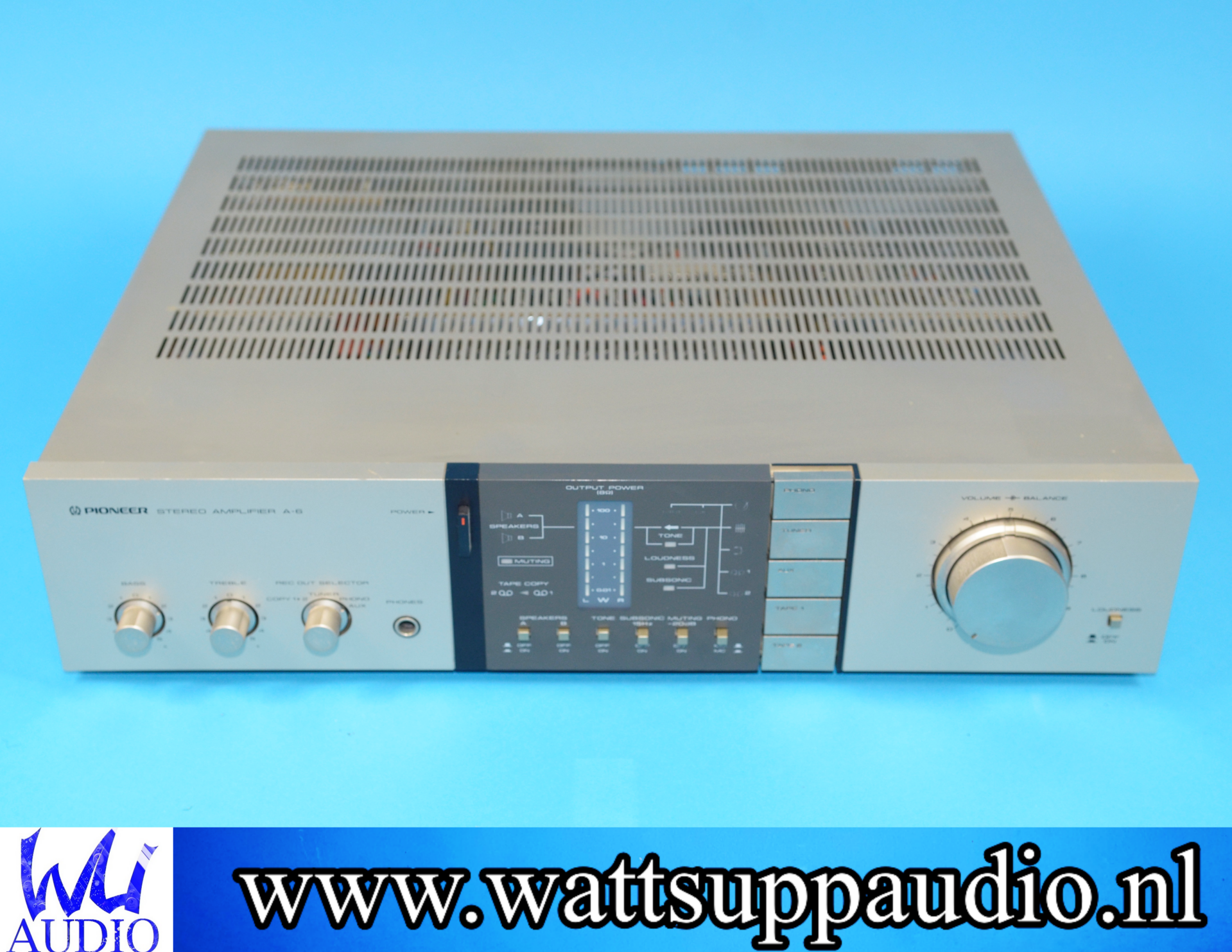

Pioneer A-6 Stereo Amplifier

Pioneer A-6 Amplifier

Sale info

• Condition: used ( inspected / tested )
• sale type: margin
• Stock: shipped within 24 hours

Productinfo:

• 420 x 98 x 367 mm
• Vintage 1981 - 1983
• 230V
• Made in Japan

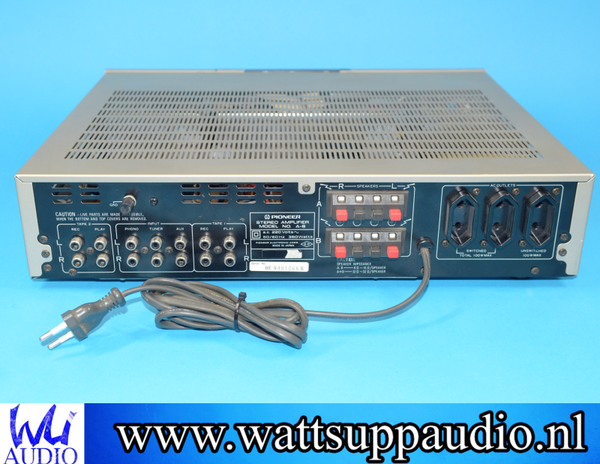

Connections

• Number of inputs:
  • Phono MM: 2.5 mV / 50 kOhm, 150 mV max.

Phono MC: 0.25 mV / 100 Ohm, 15 mV max.

• • Tuner: 150 mV / 50 kOhm
  • Aux / Video: 150 mV / 50 kOhm
  • Tape Play 1, 2: 150 mV / 50 kOhm
• Number of outputs:
  • Tape Rec 1, 2: 150 mV / 2.7 kOhm
  • Headphones: 4 - 16 Ohm
  • 2 pairs of speakers

Technical Data

• Continuous power
  • 8 Ohm: 2x 60 W (RMS, 20 - 20'000 Hz)
  • 4 Ohm:
• Total harmonic distortion: < 0.003 %
• Attenuation factor: 60 (8 Ohm)
• Frequency response:
  • Phono, RIAA: 20 - 20'000 Hz, ± 0,2 dB
  • High level: 5 - 200'000 Hz, + 0 dB, -3 dB
• Signal-to-noise ratio:
  • Phono MM: 86 dB

Phono MC: 70 dB

• • High level: 100 dB
• Tone control:
  • Bass: ± 8 dB at 100 Hz

Treble: ± 8 dB at 10 kHz

• Loudness: + 6 dB at 100 Hz, + 3 dB at 10 kHz
• High Filter:
• Low Filter (Subsonic): - 6 dB / octave at 15 Hz
• Mute: - 20 dB
• Line Straight:

Special Features

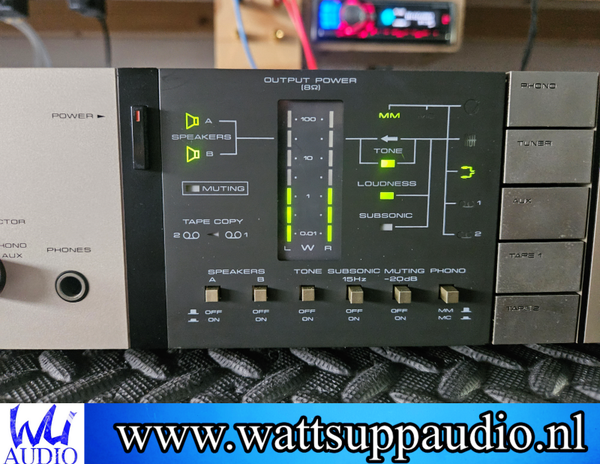

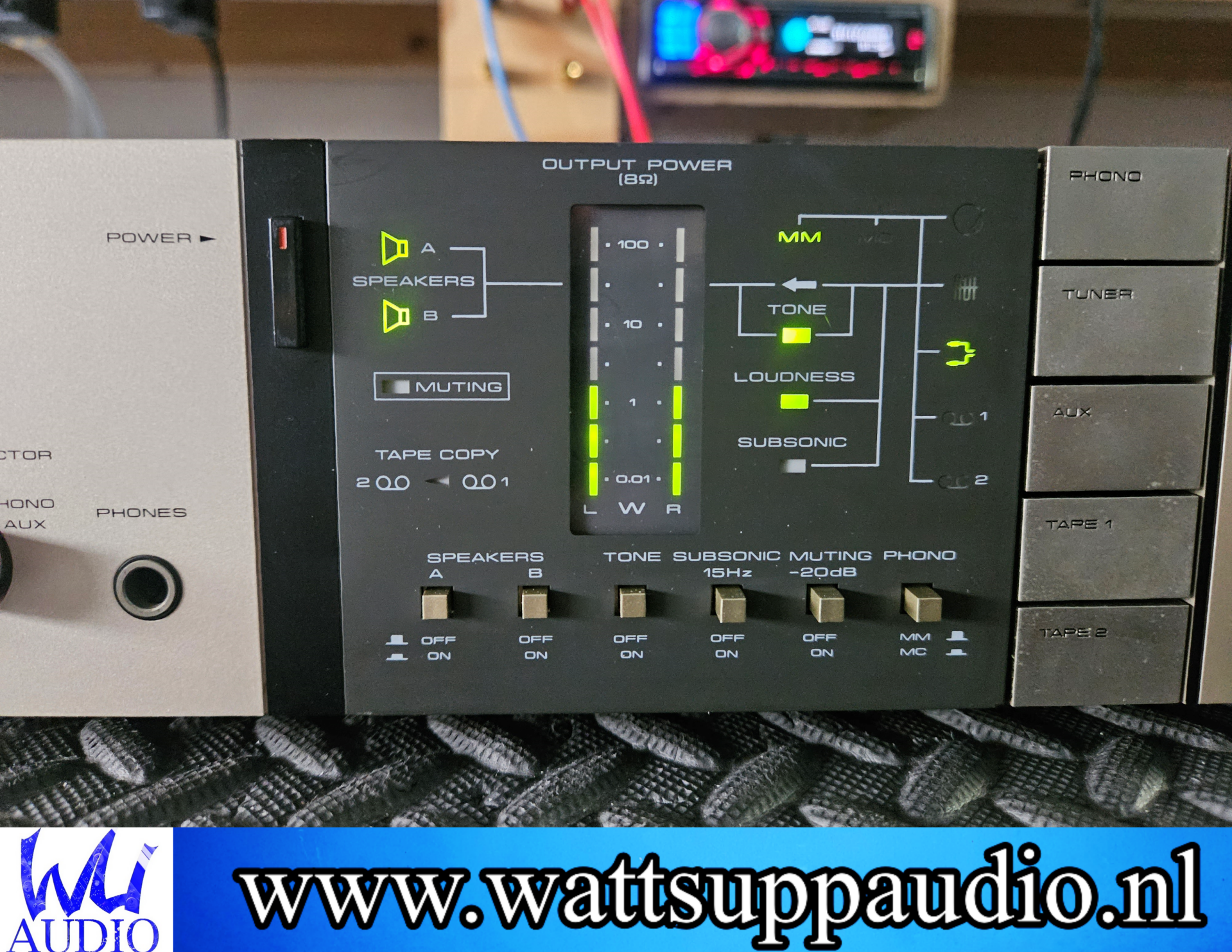

• LED peak indicator
