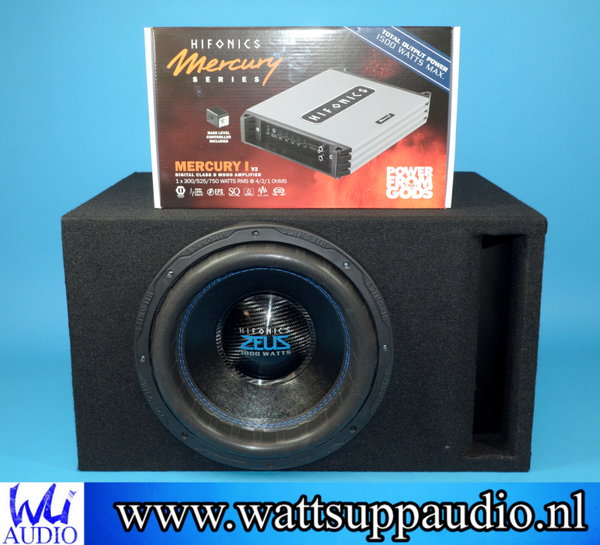

Hifonics Zeus ZSPL-12D2 Subwoofer + Monoblock amplifier

Hifonics Zeus ZSPL-12D2 Subwoofer + Monoblock amplifier

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock: shipped within 24 hours

Productinfo:

• 12" (30cm) subwoofer
• Dual magnet drive with 120 ounces (3.4 kg)
• 64 mm voice coil with X-Max. +/- 26 mm
• Double-stitched bead
• Robust steel basket
• Carbon composite dust cap
• Ultra-stiff RSA surround
• Handmade, impregnated paper membrane
• Blue magnet protector

Technical data

• Power handling RMS 600 watts
• Load capacity MAX 1200 watts
• Load capacity peak 1800 watts
• Impedance D2 2x2 Ohm
• SPL 89dB (2.83V/1m)
• Basket size 30 cm (12")
• Outer diameter Ø 320 mm
• Installation opening Ø 276 mm
• Installation depth 166 mm
• Double voice coil Ø 64 mm, ‡38 mm
• Double magnet Y35, 2 x 60 oz. (3.4 kg)
• Frequency range 30 - 300 Hz
• Recommended amplifier power4 600 - 900 Watt/RMS

TSP

• Xmax Maximum deflection ± 26 mm
• SPL 2.83 V/1m 89 dB
• SD 512 cm2
• Mms 188 g
• Re 2 x 1.8 Ω
• Fs 34 Hz
• Qms 4.24
• Qes 0.61
• QTS 0,53
• VAS 42,7 L

Housing recommendation

• Closed housing Compact
• Volume Vb 40 - 50 L
• Cut-off frequency F3 45 Hz

Bass reflex enclosure Low bass

• Volume Vb 55 L
• Frequency - 3dB F3 31 Hz
• Tuning frequency Fb 36 Hz
• Duct diameter Ø 12 cm
• Channel area 113 cm2
• Channel length 34 cm

Productinfo Amplifier MERCURY I V2

• Class D Digital Mono Compact Amplifier
• 1 x 300 W/RMS @ 4 Ω
• 1 x 525 W/RMS @ 2 Ω
• 1 x 750 W/RMS @ 1 Ω
• LPF 40 - 150 Hz
• Subsonic 10 - 35 Hz
• Phase 0 - 180°
• Bass Boost 0 - 12dB
• RCA Inputs
• Dimensions: 205 x 46 x 278 mm

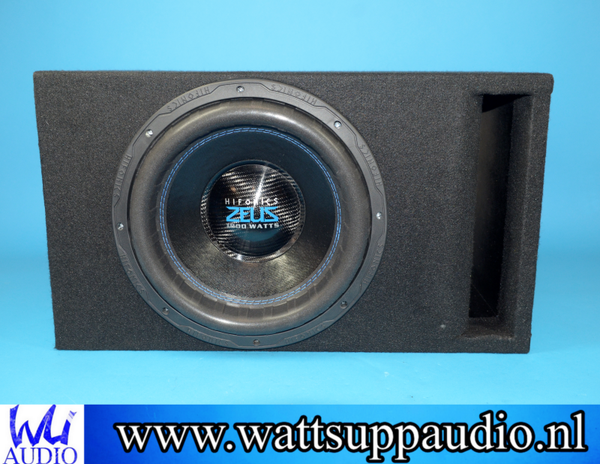

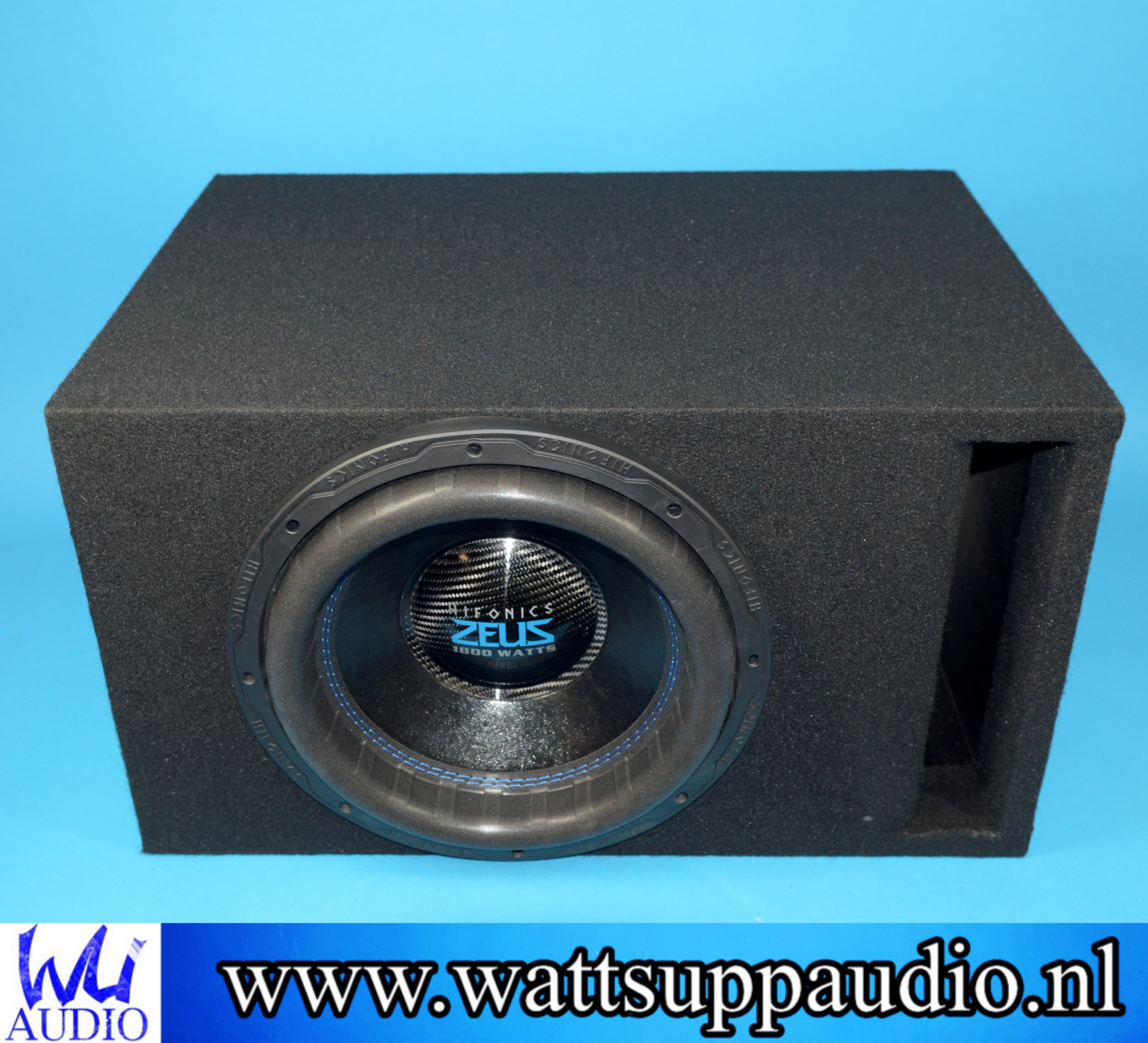

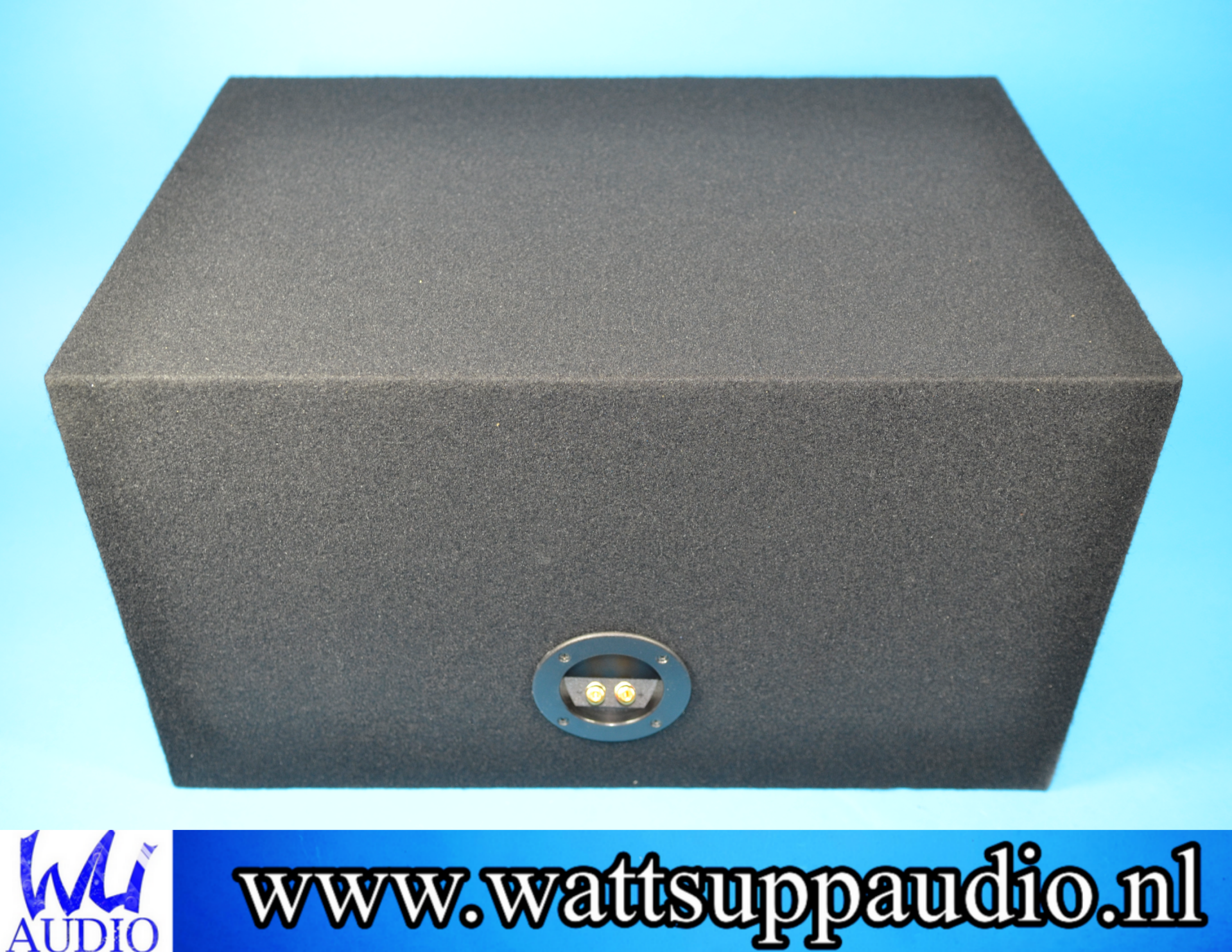

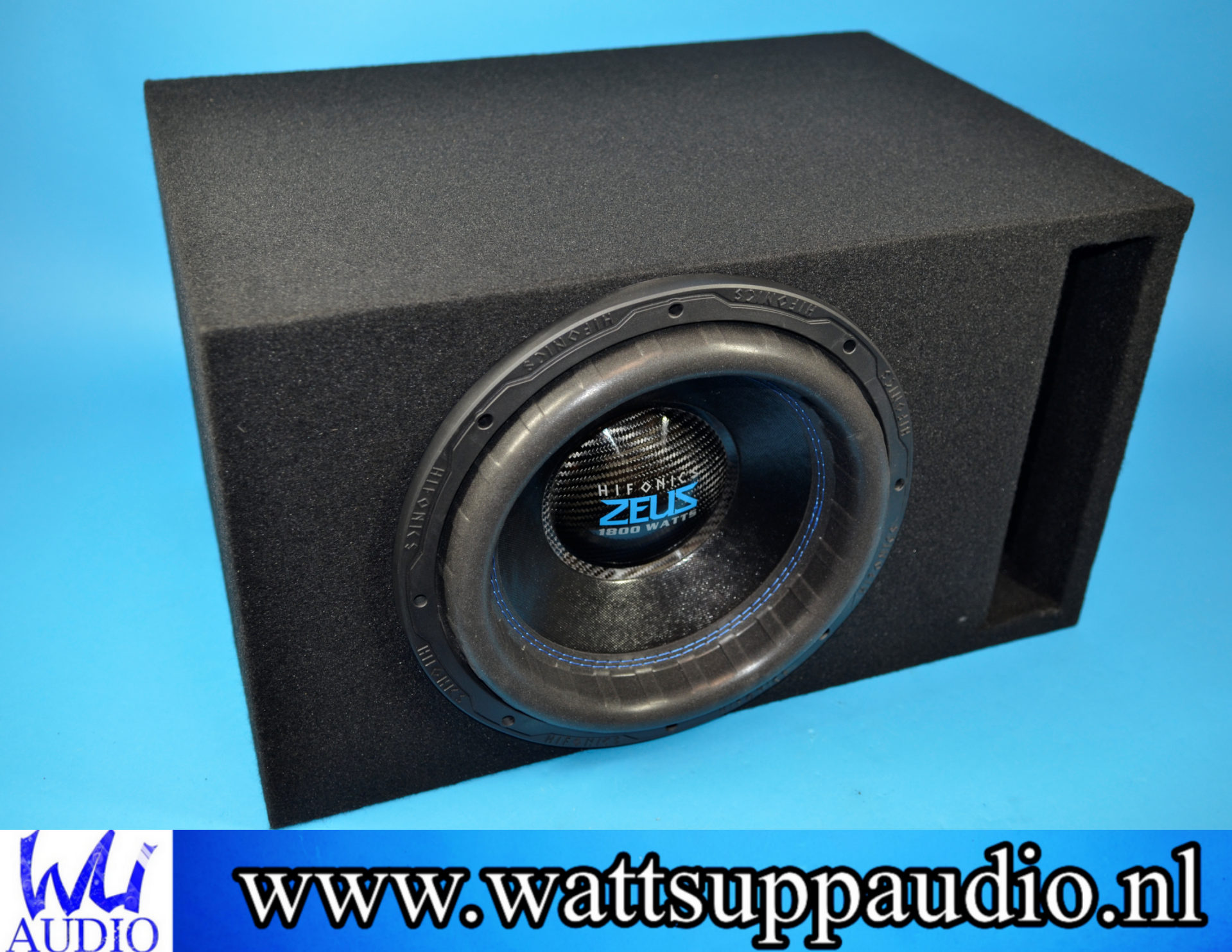

Incl ported box 40.5 x 34 x 59.5cm
