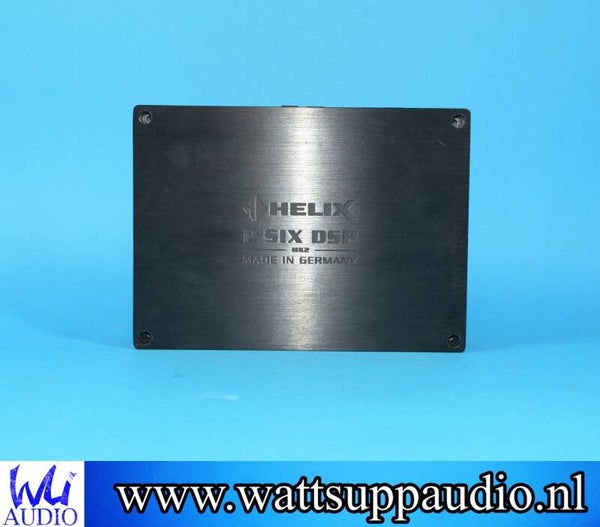

Helix PSIX MK2 6 channel amplifier incl 8 ch DSP

Helix PSIX MK2 6 channel amplifier incl 8 ch DSP

Sale info

• Condition: used ( tested / inspected )
• sale type: margin
• Stock: shipped within 24 hours

Product info

• Helix PSIX MK2 6 channel amplifier incl 8 ch DSP
• - @ 4 Ohms Channel A - F: 120 Watts per channel - @ 2 Ohms Channel C - F: 230 Watts per channel - @ 1 Ohm -  - bridged @ 4 Ohms -  - bridged @ 2 Ohms -  Max. output power per channel* Channel A - F: up to 140 Watts RMS @ 4 Ohms
  Channel C - F: up to 260 Watts RMS @ 2 Ohms Amplifier technology Ultra HD Class D Inputs 6 x RCA / Cinch
  6 x Highlevel speaker input
  1 x Optical SPDIF (12 - 96 kHz)
  1 x Remote In Input sensitivity RCA / Cinch 2 - 4 Volts or 4 - 8 Volts
  Highlevel 5 - 10 Volts or 10 - 20 Volts Input impedance RCA / Cinch 64 kOhms Input impedance highlevel 13 Ohms oder 64 kOhms Outputs 6 x Speaker output
  2 x RCA / Cinch
  2 x Remote Out Output voltage RCA / Cinch 3 Volts RMS Frequency response 20 Hz - 44,000 Hz DSP resolution 64 Bit DSP power 295 MHz (1.2 billion MAC operations/second) Sampling rate 96 kHz DSP type Audio signal processor Signal converters A/D: BurrBrown
  D/A: BurrBrown Signal-to-noise ratio digital input 105 dB (A-weighted) Signal-to-noise ration analog input 100 dB (A-weighted) Distortion (THD) < 0,008 % Damping factor > 100 Operating voltage 10.5 - 32 Volts (max. 5 sec.down to 6 Volts) Idle current 2200 mA Max. remote output current 500 mA Operating temperature range -40° C to +70° C Fuse 3 x 20 A LP-Mini-fuse (APS) Additional features HEC slot, ADEP circuit, Auto Remote switch, Control Input Dimensions (H x W x D) 50 x 260 x 190 mm /
  1.97 x 10.24 x 7.48“

1. Every used product is tested again before shipment. ( send a whatsapp message if you want to receive a test video)

2. Do you have questions ? use the whatsapp chatbox for your audio advice  or send e-mail (Contact info page)

3. Info page > Shipping /  Payment / Warranty info<
