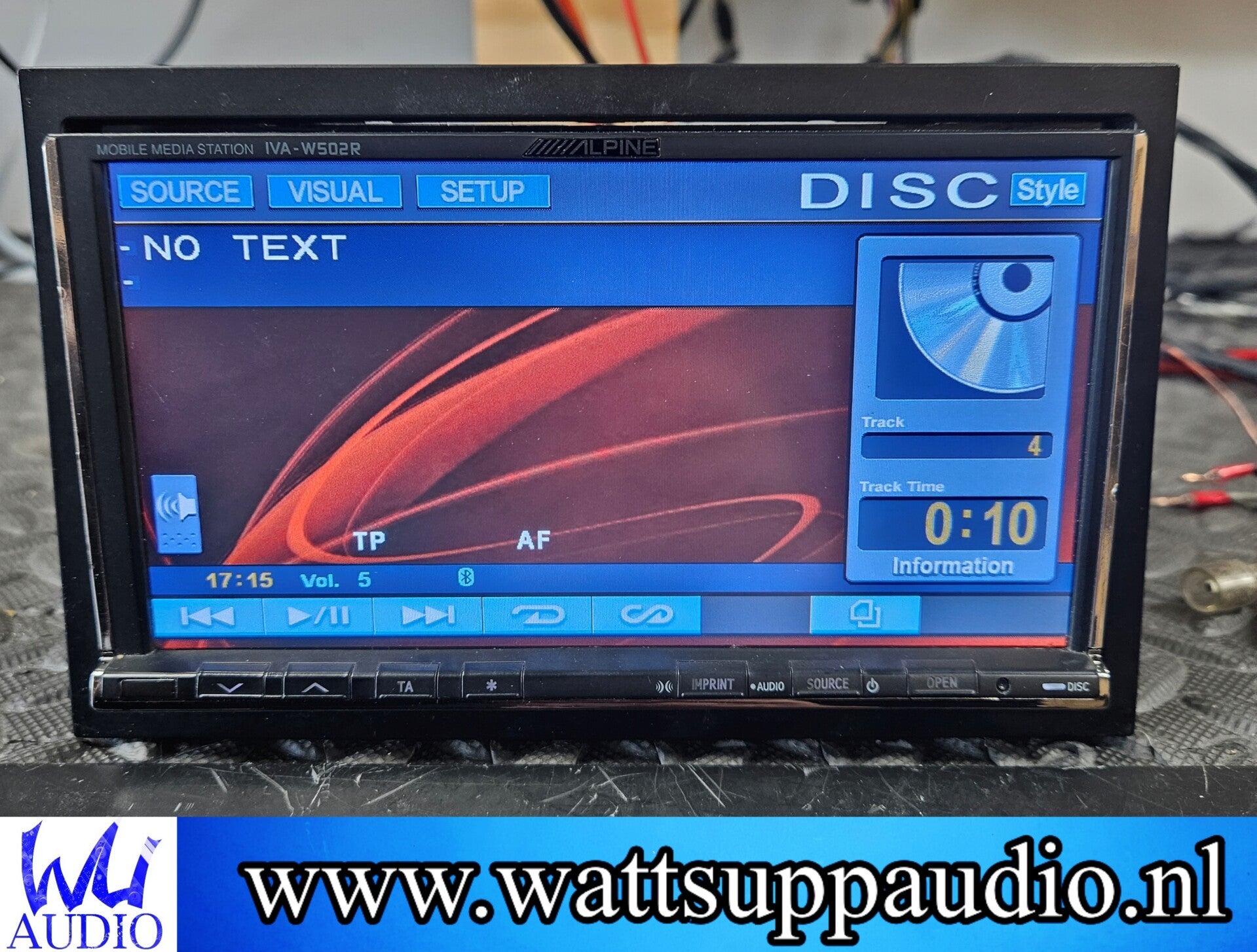

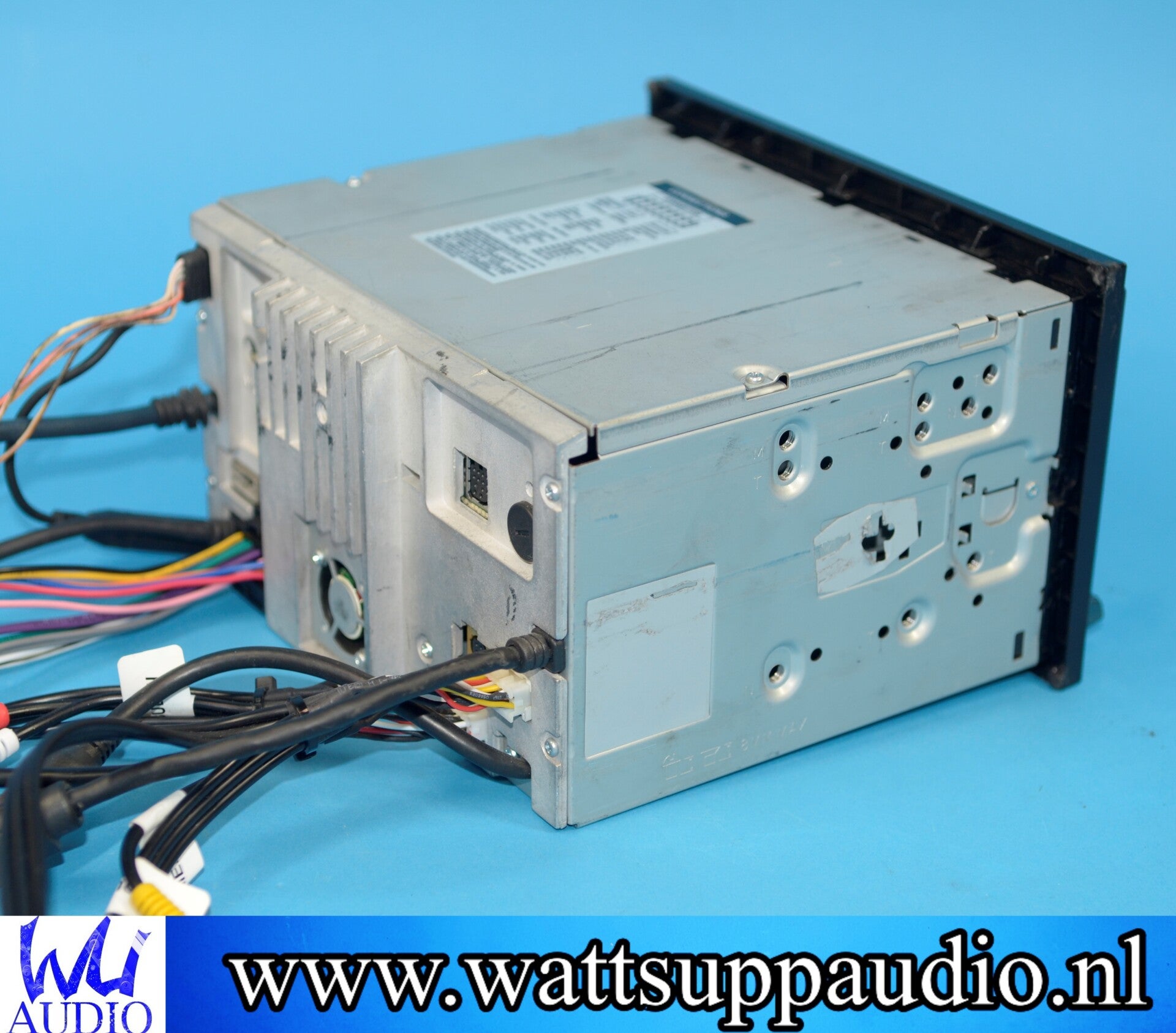

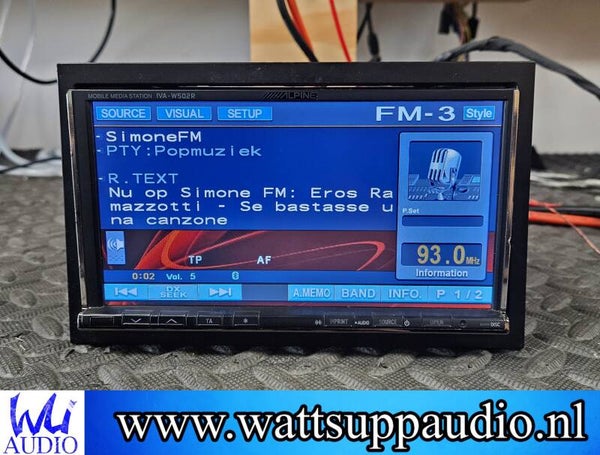

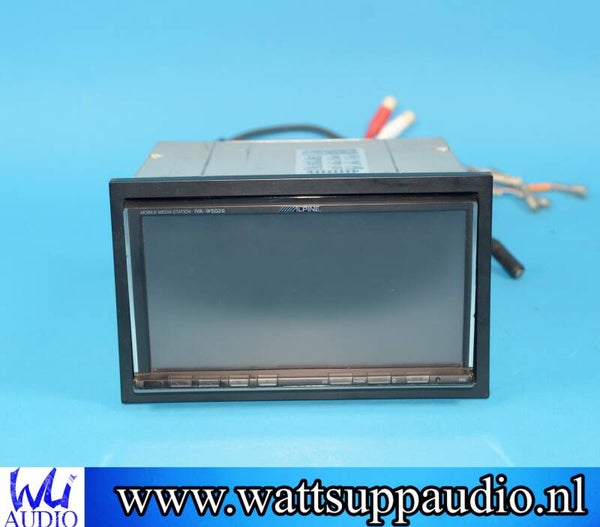

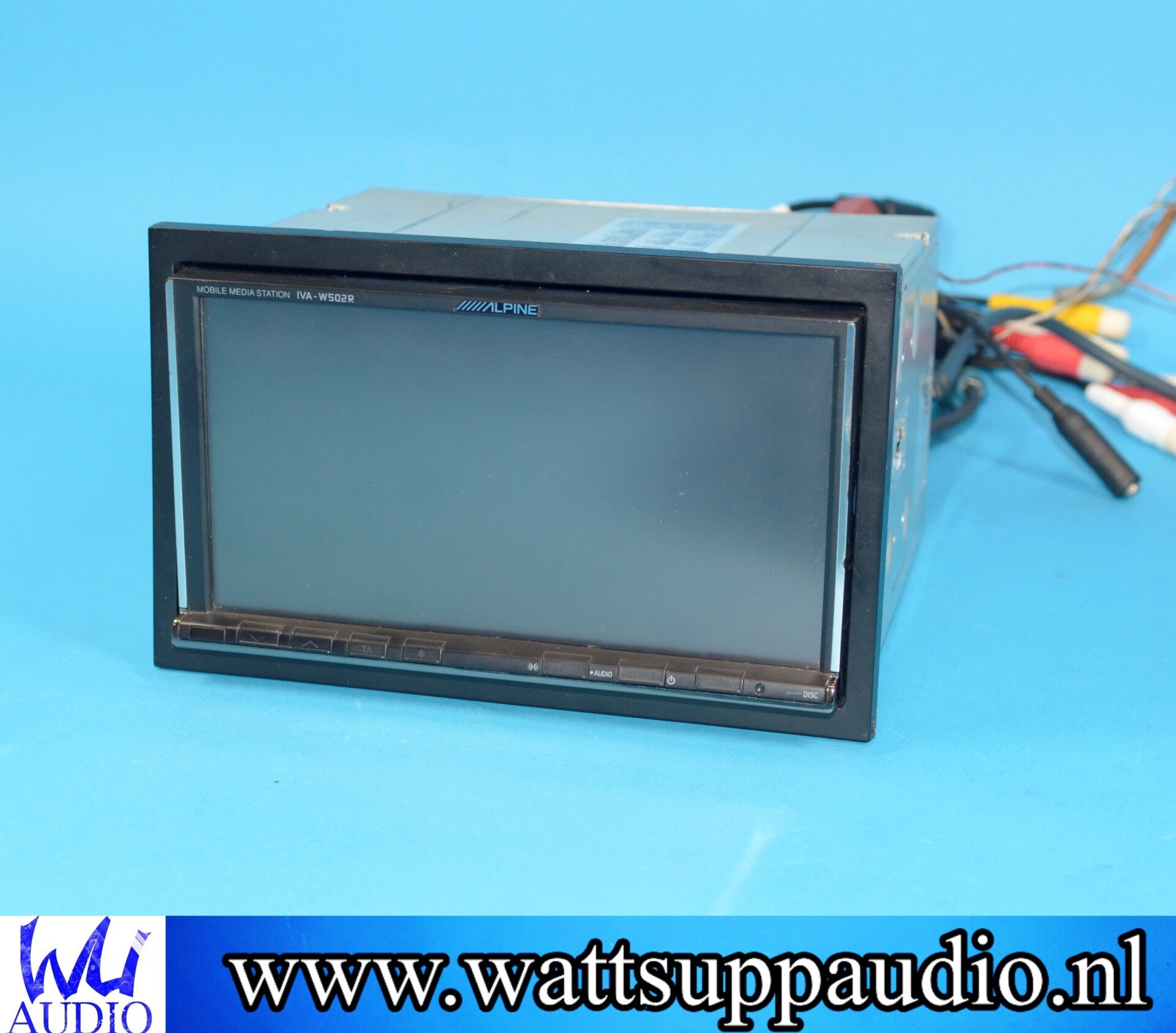

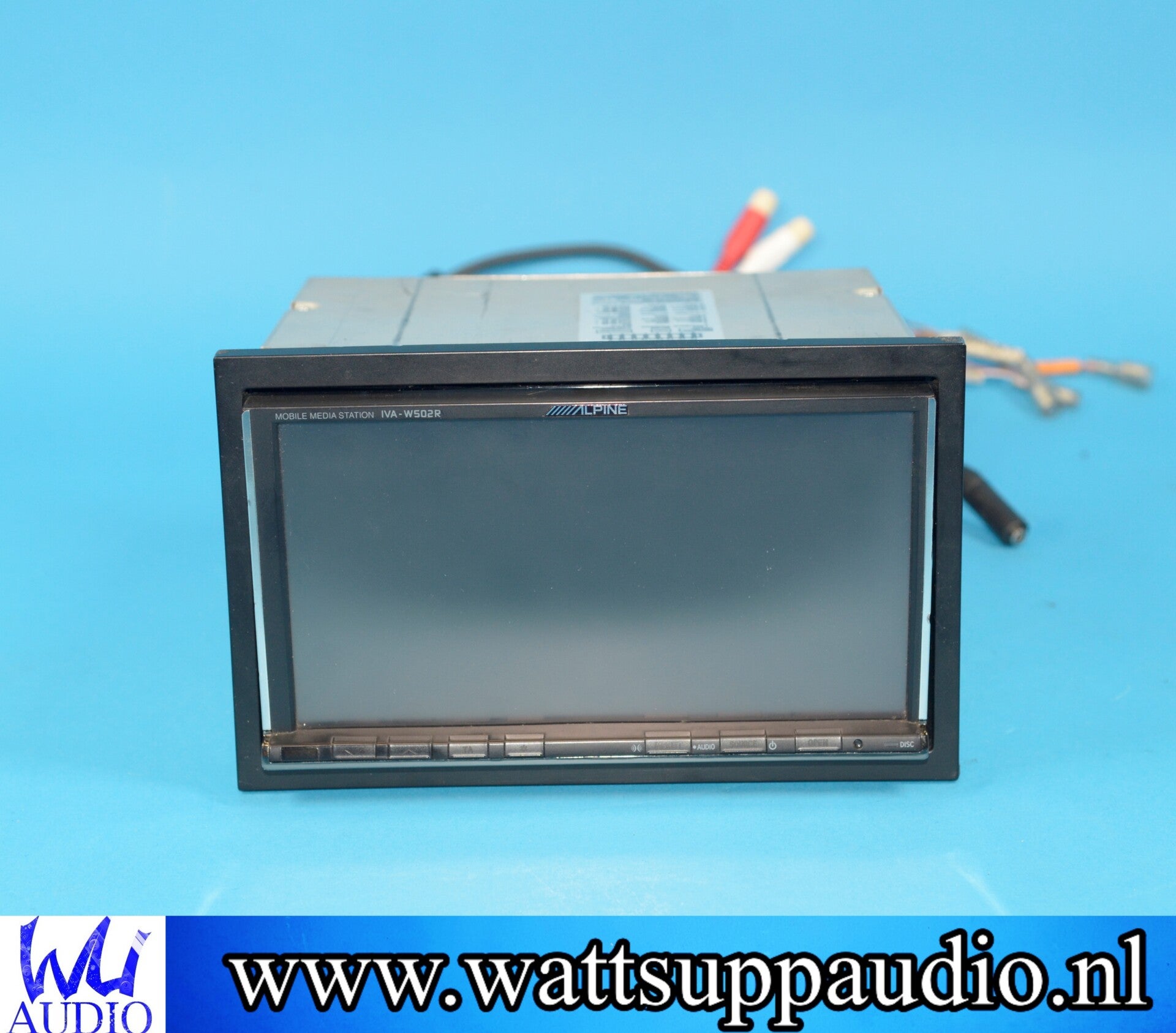

Alpine IVA-W502R 2-DIN MOBILE MEDIA STATION / Headunit

Alpine IVA-W502R

Sale info

• Condition: used ( inspected / tested )
• sale type: margin
• Stock: shipped within 24 hours

Info:

• Bluetooth Ready Requires the Alpine KCE-300BT. Features may vary from phone to phone Hands-Free Calling, Voice Dial Function Phone Book Transfer Streaming Music PlaybackStreaming Music Control

• USB and Full Speed ​​Connection for iPod®
  Connection: Full Speed: KCE-422i optional
  iPod Compatibility
  Full Speed: All iPods with Dock Connector
  USB: iPod 5G/6G/touch, all iPod nano
  Selection Options: Playlist, Artist, Album, Song, Podcast, Genre, Composer, Video
  Video Capability: Video Playlist, Movie, Music Video, Video Podcast
  Percentage Search: Percentage Search
  Information Display: Artist, Song, Album, Album Artwork, Next 5 Song List
• Disc Type: DVD Player
• Disc Playback Type: DVD-Video/ DVD-Audio/ DVD-R/ DVD-RW/ DVD+R/ DVD+RW/ DVD-VR/ VCD/ CD/ CD-R/ CD-RW
• File Playback: MP3/ AAC/ WMA/ DivX Playback
• DAC: 24-Bit DAC
• Subwoofer Level Adjustment
  Bass Center Frequency Adjustment
  EQ Width Adjustment
  Bass Level Adjustment
  Treble Center Frequency Adjustment
  Treble Level Adjustment
  High Pass Filter Adjustment
  MediaXpander: ready
  Time Correction: done
  Equalizer: ready
  Crossover: ready
  MultEQ: IMPRINT ready

CD-Changer Control

• M.I.X.: One/All (Shuffle)
• Music Text Information: CD: Text Scroll Display, MP3: Text Information Display (ID3 Tag)

USB section

• USB requirements: USB 1.1/2.0
  Max. current consumption: 500mA
  File system: FAT12/16/32
  MP3 decoding: MPEG-1/2 audio layer-3
  WMA decoding: Windows Media™ Audio
  AAC decoding: AAC-LC format ".m4a" file
  Number of channels: 2 channels (stereo)
  Frequency response*: 5-20,000 Hz (±1 dB)
  Total harmonic distortion: 0.008% (at 1 kHz)
  Dynamic range: 95 dB (at 1 kHz)
  Signal-to-noise ratio: 105 dB
  Channel separation: 85 dB (at 1 kHz)

CD/DVD section

• Frequency Response: 5 – 20,000 Hz
  Wow & Flutter (% WRMS): Not measurable
  Total Harmonic Distortion: 0.02% (at 1 kHz)
  Dynamic Range: 95 dB (at 1 kHz)
  Channel Separation: 65 dB (at 1 kHz)
  Signal system: NTSC/PAL
  Horizontal resolution: 500 lines or more
  Video output level: 1Vp-p (75 ohms)
  Video S/N ratio DVD: 60 dB
  Audio S/N ratio: More than 95 dB

General

• Power requirements: 14.4 V DC (11–16 V allowable)
  Operating temperature: +0°C to +45°C
  Max. output power: 50 W × 4
  Output voltage: 2V/10k ohms
  Bass: ±14 dB at 60 Hz
  Treble: ±14 dB at 10 kHz
  Weight: 3.2 kg
  Audio output level:
  Preout(Front, Rear): 2V/10k ohms (max.)
  Preout(Subwoofer): 2V/10k ohms (max.)
  AUX OUT: 1.2V/10k ohms
  Ai-NET: 850 mV

Chassis size: (monitor part)

• Width: 178mm
  Height: 100mm
  Depth: 165mm

1. Every used product is tested again before shipment. ( send a whatsapp message if you want to receive a test video)

2. Do you have questions ? use the whatsapp chatbox for your audio advice  or send e-mail (Contact info page)
3. Info page > Shipping /  Payment / Warranty<
