Phoenix Gold ZR12005 5 channel amplifier compact
€399.00
Phoenix Gold ZR12005 5 channel amplifier compact
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Productinfo
- High-Level Auto-Turn On – powers on the amp when the audio signal is supplied
- OEM Connection Ready – compatible with aftermarket/original source units
- Remote Ready – control bass/gain with included ZRBC
- Fanless Design – regulates temperature internally for quiet operation
- High & Low-Level Inputs – versatile connectivity to suit any vehicle

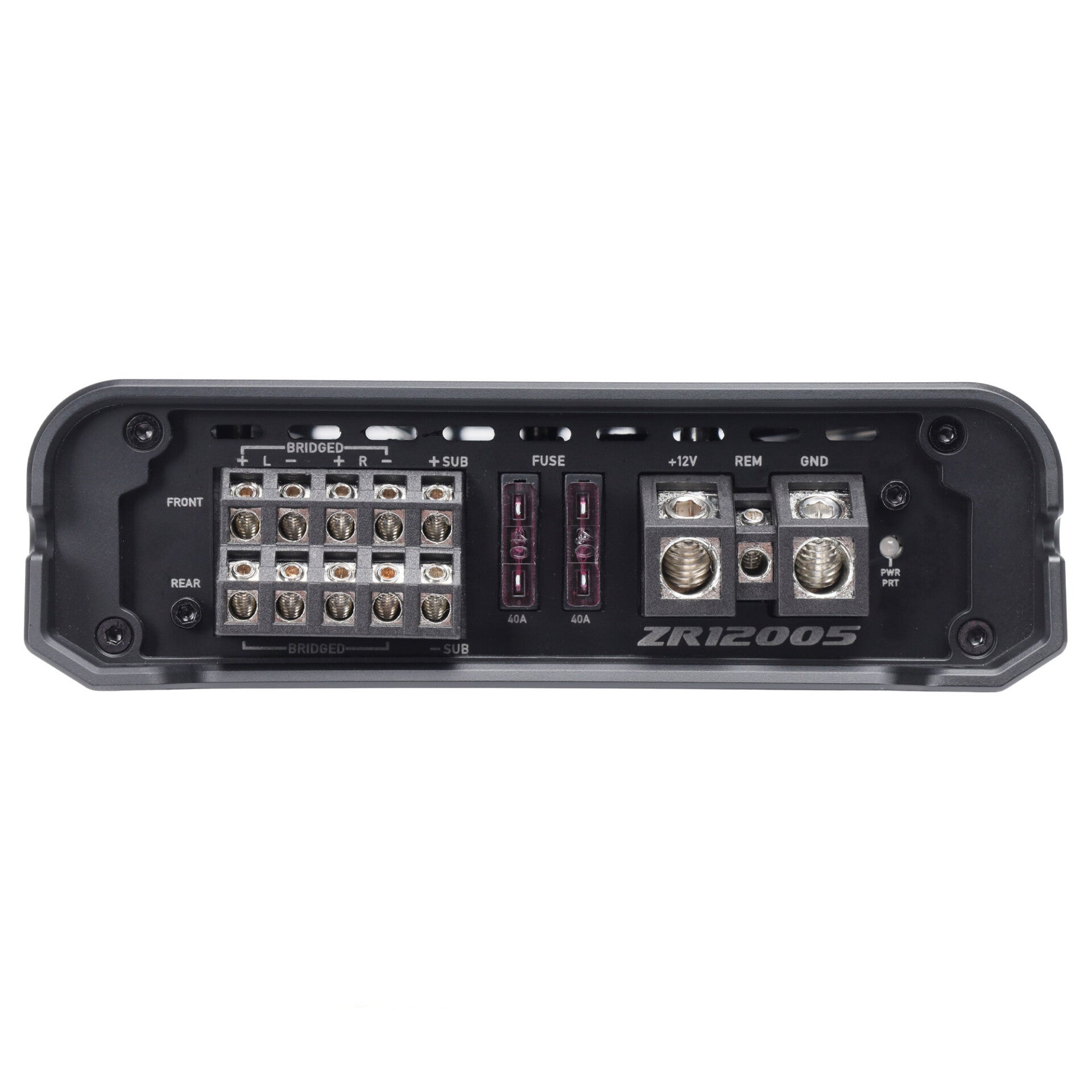

- Heavy Duty Connector Block – enables maximum current supply
- 4-Way Protected Circuit – protection against thermal damage, reversed power, speaker polarity and low voltage
ZR12005 Product Specifications:
- Class Class D
- Channels 5
- Frequency Response: CH 1-4: 10Hz 25kHz CH 5: 10Hz 500Hz
- RMS Power Rating (1?): N/A
- RMS Power Rating (2?): 4 x 175W + 1 x 500W
- RMS Power Rating (4?): 4 x 100W + 1 x 275W
- Signal to Noise Ratio (SNR) (Full Power): F/R: – 87dB Sub: -92dB
- Total Harmonic Distortion (THD): <1%
- Low Pass Filter (LPF): 50Hz 5kHz (12dB/Oct)
- High Pass Filter (HPF): 50Hz 5kHz (12dB/Oct)
- Subsonic: 10Hz 55Hz (24dB/Oct)
- Bass Boost @ 45Hz: 0 +15dB
- Crosstalk: -55dB
- Input Sensitivity: 0.25V 10V
- Fuses: 3 x 40A
- Remote: Yes (Included)
- High-level Input Via RCA: Yes
- Auto Turn-on: Yes
- Phase Control: N/A
- Operating Voltage: 9V 16V
- Idle Current: 1.4A
- Current Draw (Max): 108A
- Total Efficiency (4?): 84%
- Power Terminal: 20mm
- Speaker Terminal: 4mm
- Dimensions (LxWxH) 323 x 160 x 48.3mm
