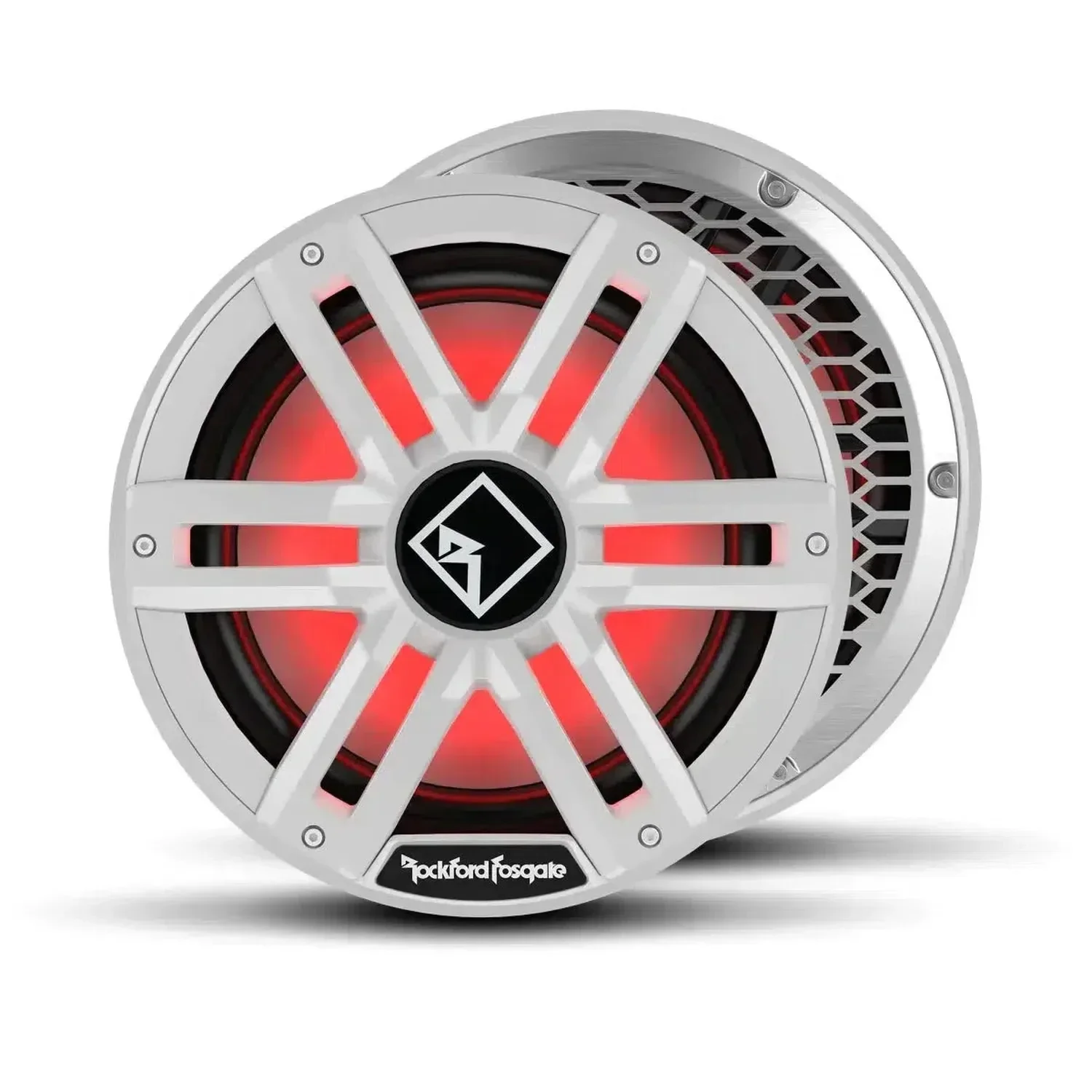

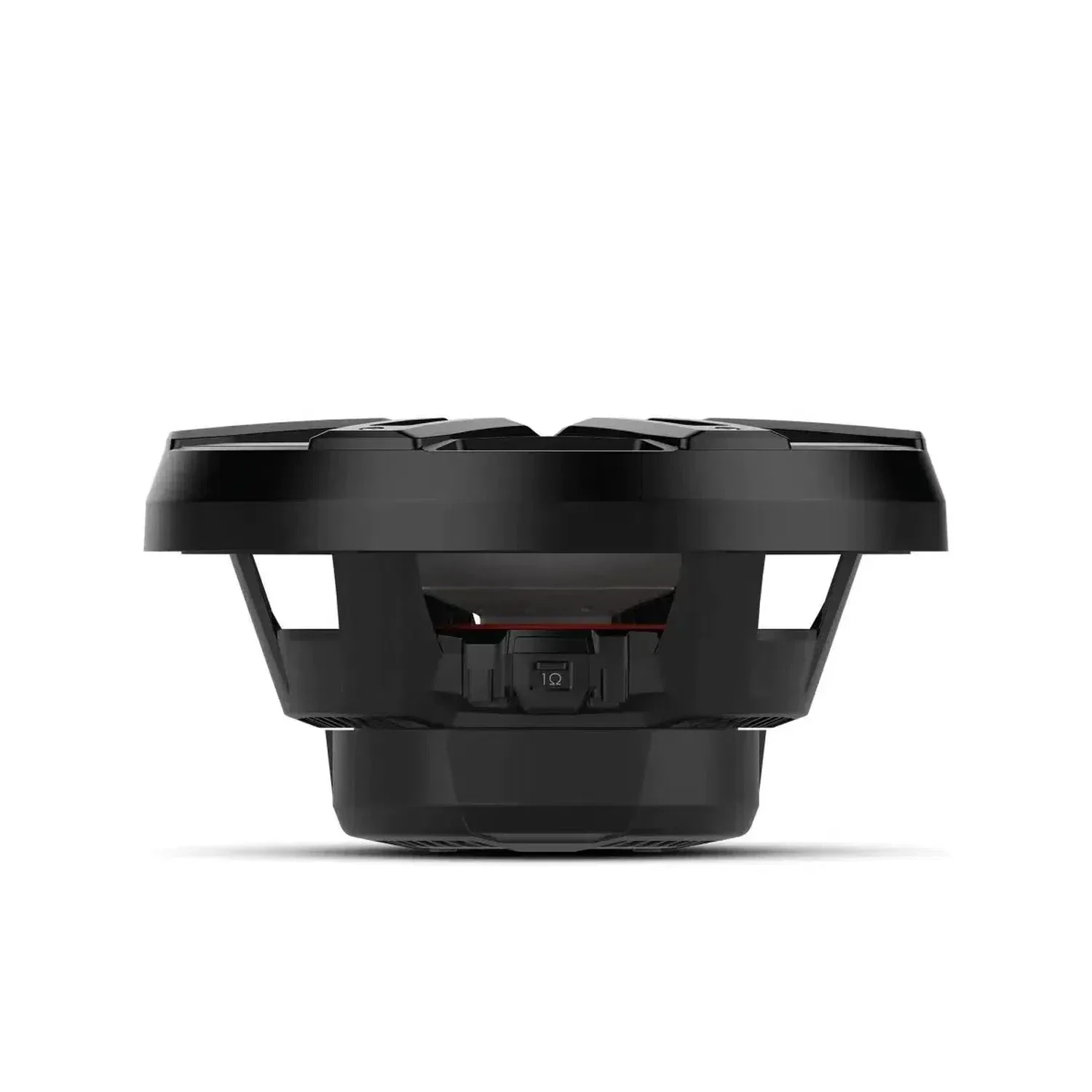

Rockford Fosgate Color Optix Subwoofer 30 cm / 12'' M2D4-12D / M2D2-12D / M2D4-12SB

Rockford Fosgate Color Optix Subwoofer 30 cm / 12'' M2D4-12D / M2D2-12D / M2D4-12SB
€549.00

Rockford Fosgate Color Optix Subwoofer 30 cm / 12'' M2D4-12D / M2D2-10D / M2D4-12SB



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • Customize the color experience with the Rockford Fosgate® Color Optix™ Controller to your taste (optional)
  • Element Ready™ Design protects against external influences
  • Integrated German™/Amphenol™ connectors make wiring simple and error-free.
  • Optimized for small sealed enclosures when there is only limited space for a housing.
  • IPX6 Marine Grade to prevent the ingress of water

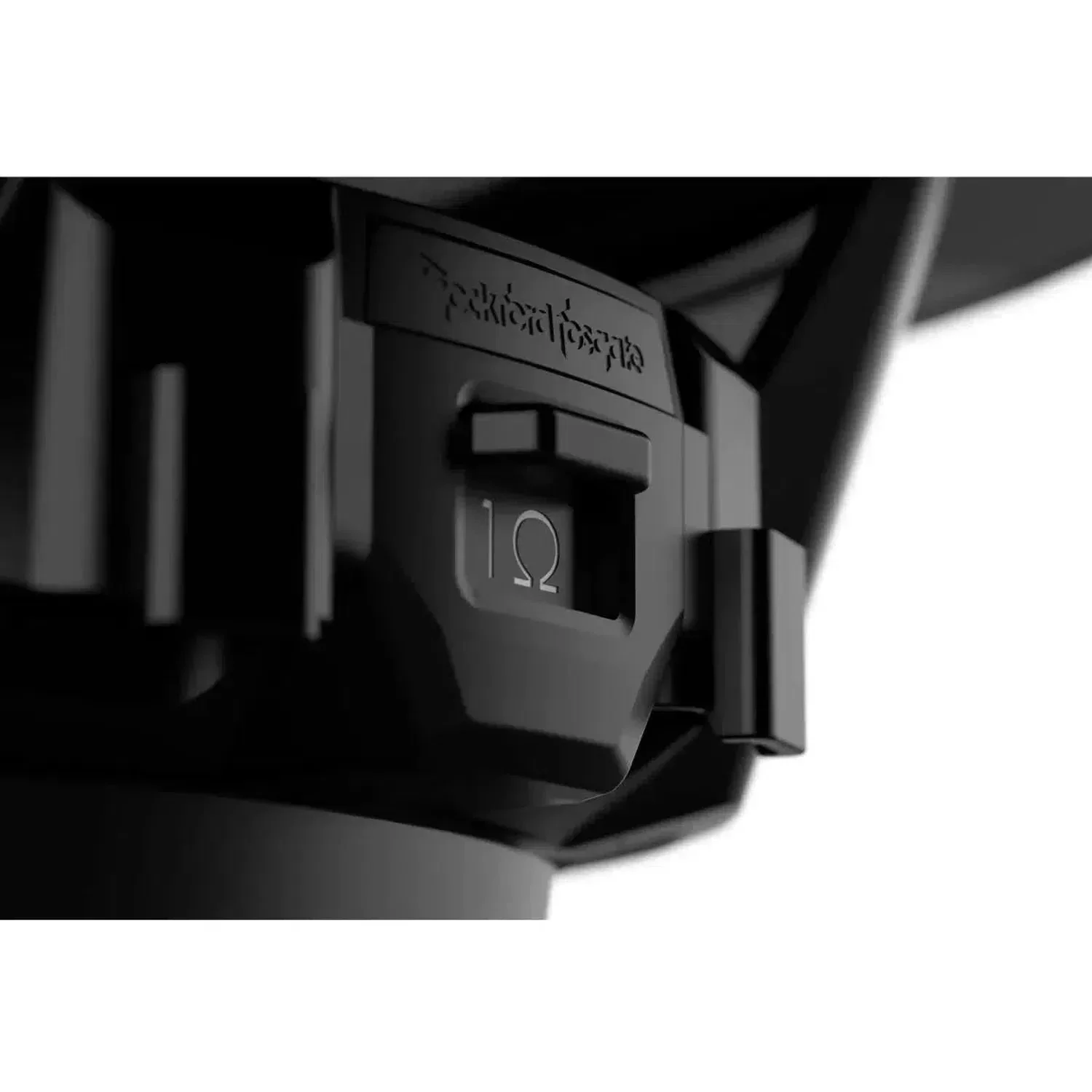

  • The VERSA impedance switch enables quick series or parallel configuration without additional wiring.
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable lighting.
  • The industry's first cast in-frame connectors for simple connections in addition to conventional cable lugs.
  • Deutsch™ silicone seal on the front and back of the connector protects against penetrating water.
  • The vertical VAST framing technique increases the effective radiation area by up to 25.
  • 100% UV-stabilized ASA plastic frame and grid withstand the harsh marine environment.
  • Injection-molded conical body made of mineral-filled polypropylene with UV inhibitors
  • Gold-plated brass clamps in marine quality ensure a corrosion-resistant connection.

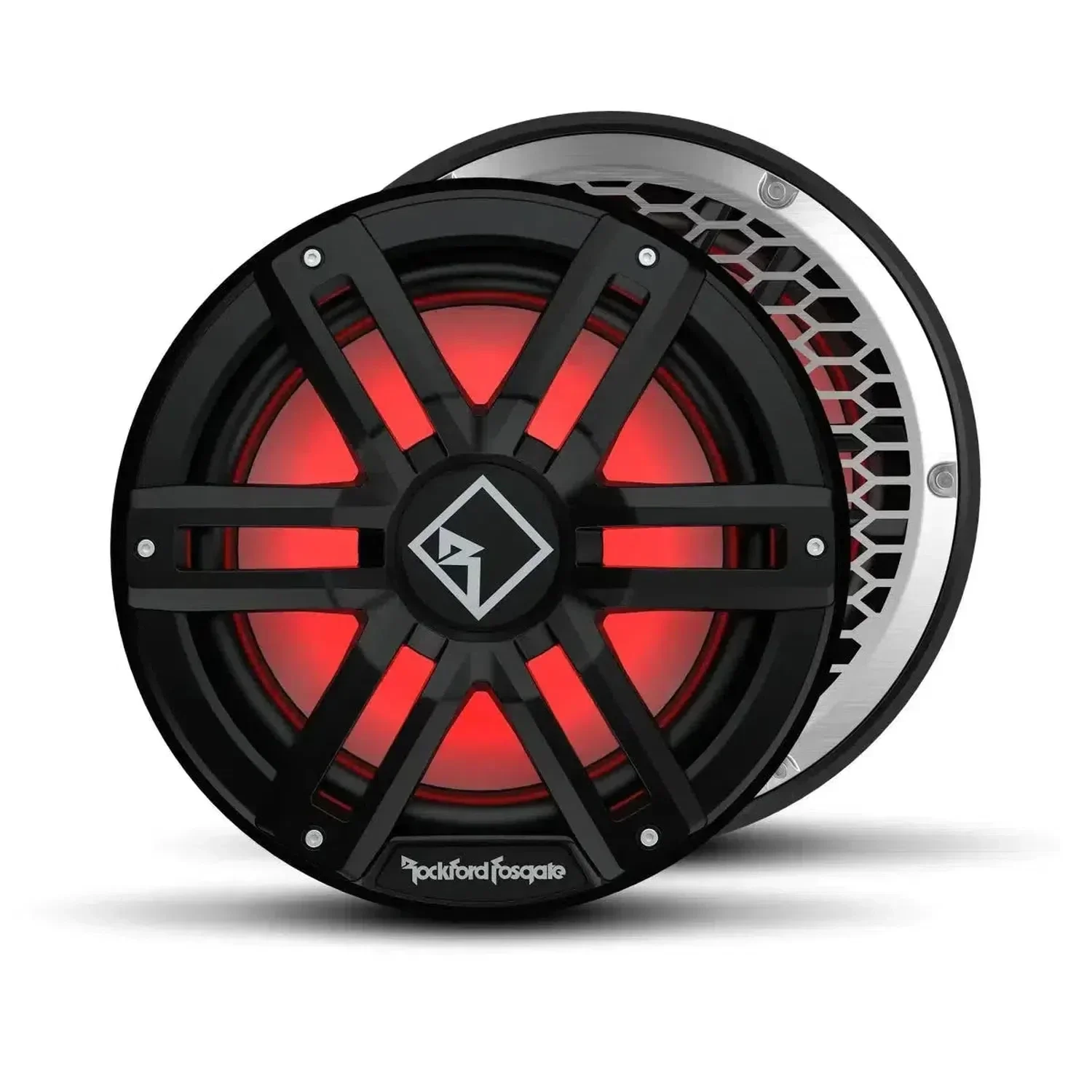

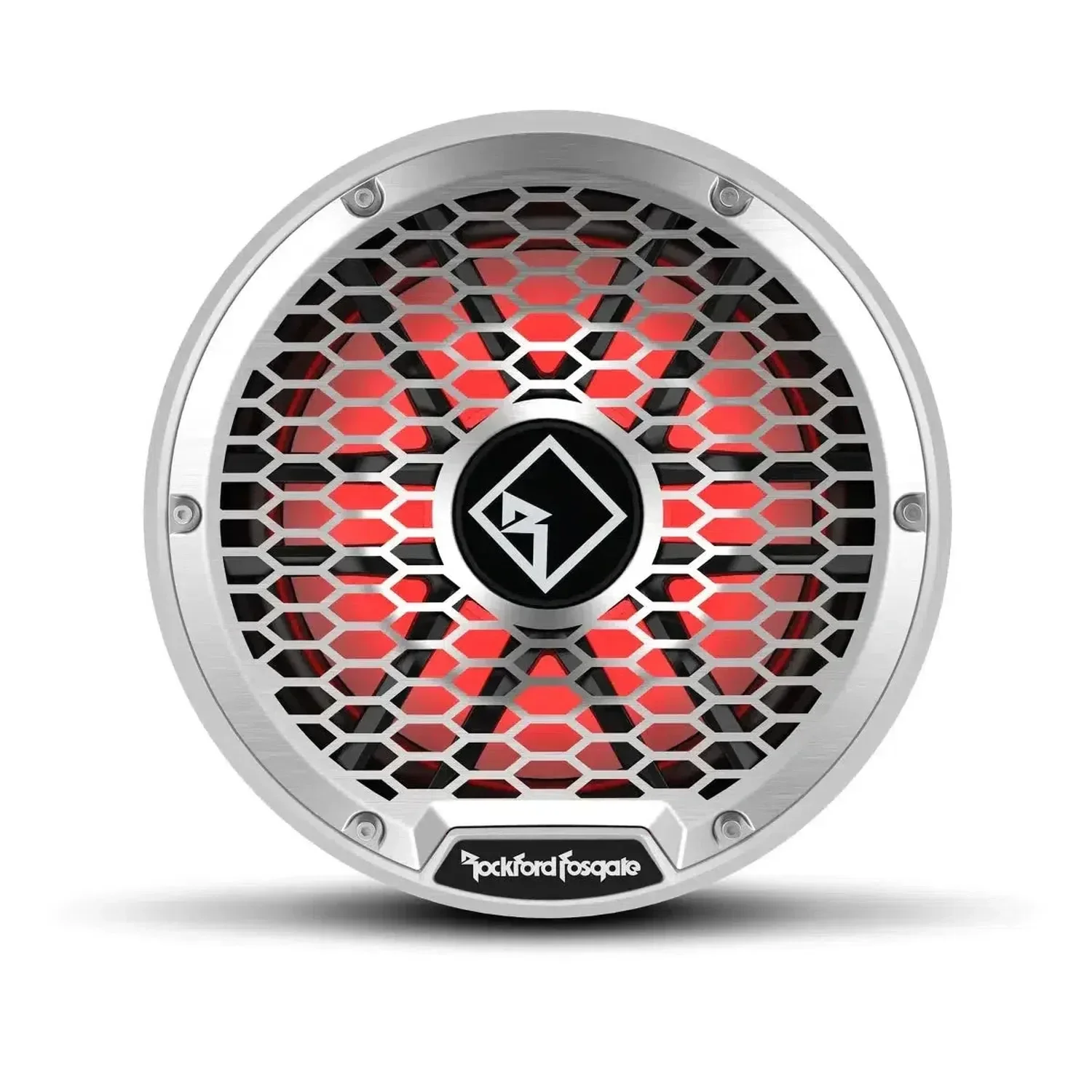

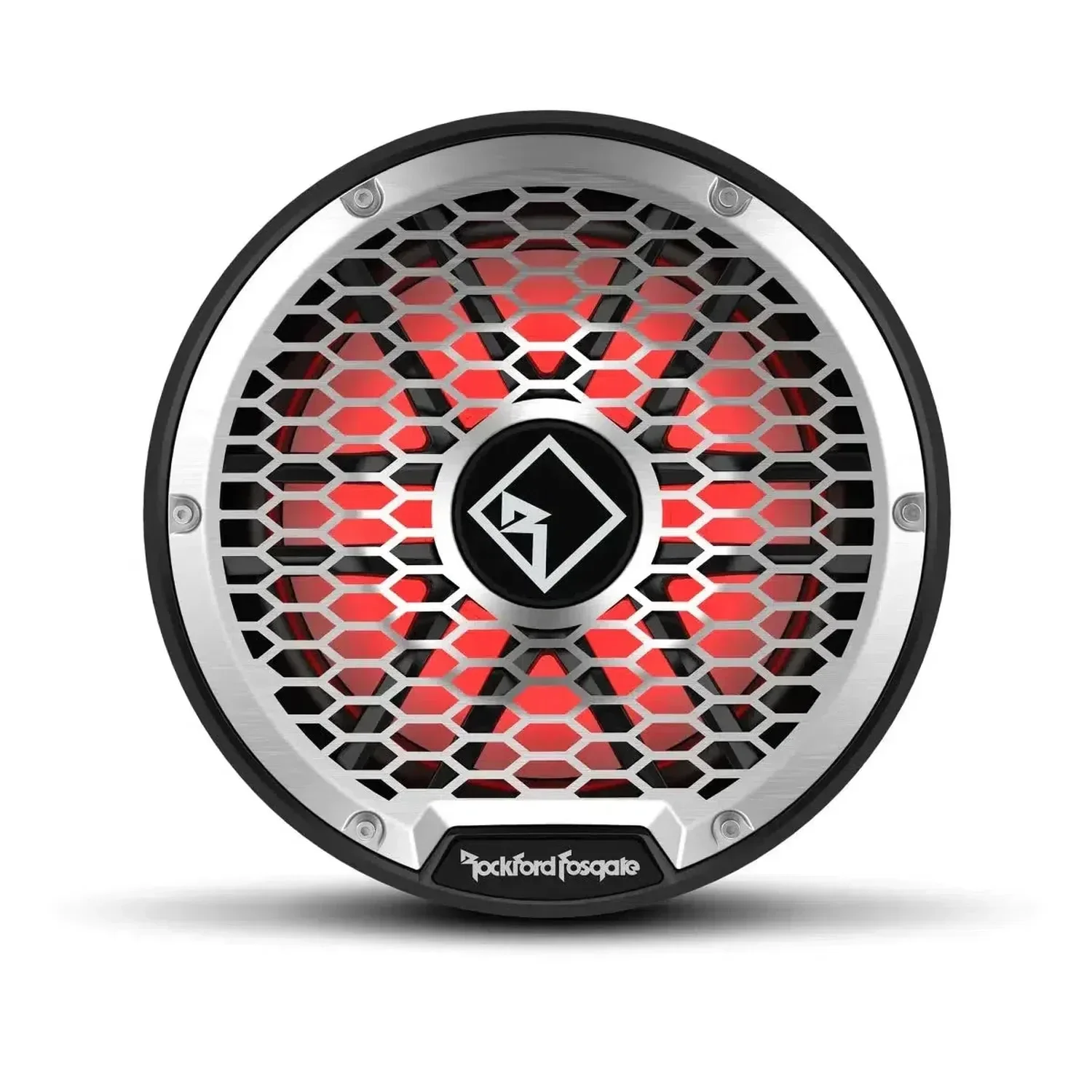

  • 2-piece grid allows interchangeable stainless steel or "sport" option
  • Excellent reproduction of low and mid frequencies with a gentle roll-off of the high frequencies.
  • The Klippel Verified Certification Program delivers the best possible loudspeakers.

Technical Data

  • Size 12"
  • Impedance D2 (Ohm): 1 Ohm or 4 Ohm, switchable
  • Impedance D4 (Ohm): 2 Ohm or 8 Ohm, switchable
  • Power consumption (RMS) 400 Watts
  • Power consumption (MAX) 1600 Watts
  • Swing coil type double swing coil
  • "Swaging coil diameter 1.95" (49.53 mm)"
  • Magnet weight 1.7 Kg
  • Frequency response (Hz) 20 Hz - 750 Hz
  • Fs (Hz) 32
  • Re (Ohm) 3.3
  • The (mH) 3.43
  • Sd (cm2) 539
  • Qms 4.437
  • Low 0.91
  • Qts 0.76
  • You 72
  • SPL (dB @ 1w/1m) 88
  • SPL (dB @ 2.8v) 89
  • Xmax (mm) 15
  • Displacement of the subwoofer 3.43 liters
  • Speaker connection 2-pole Deutsch™ and 1/8" terminal
  • Cut-out diameter 279.4 mm
  • Installation depth 123.8 mm
  • Volume of the sealed box (Vb) 0.75 21 liters
