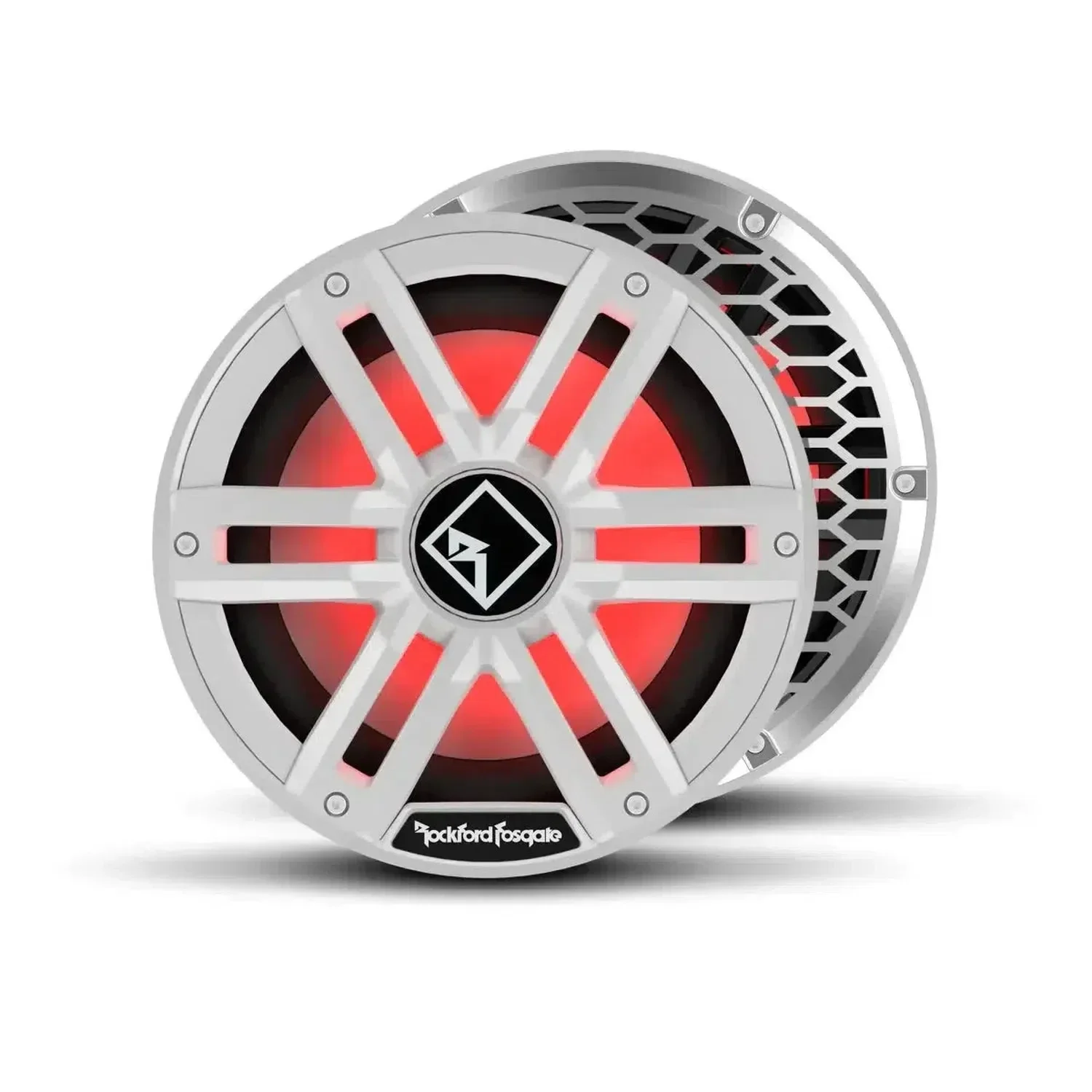

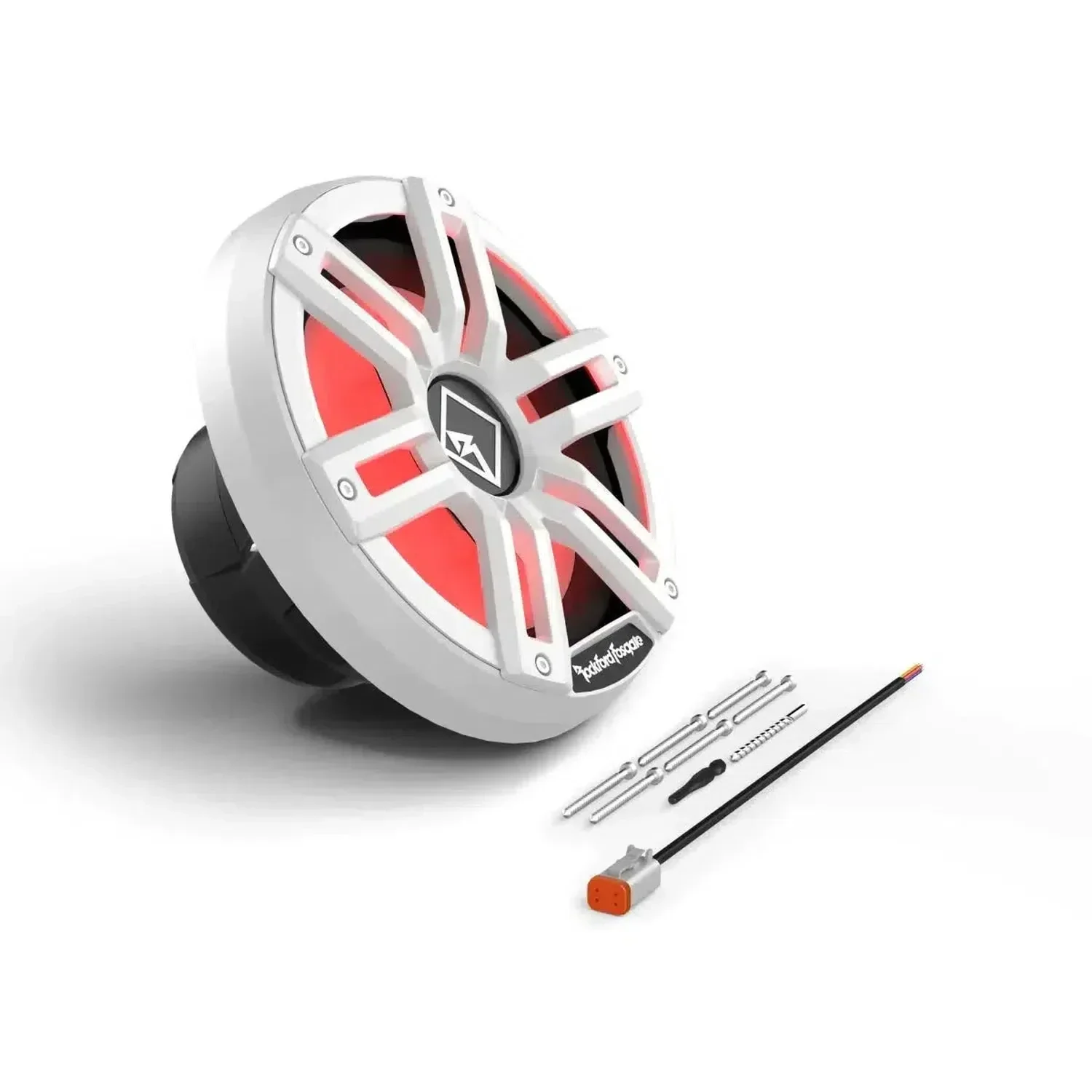

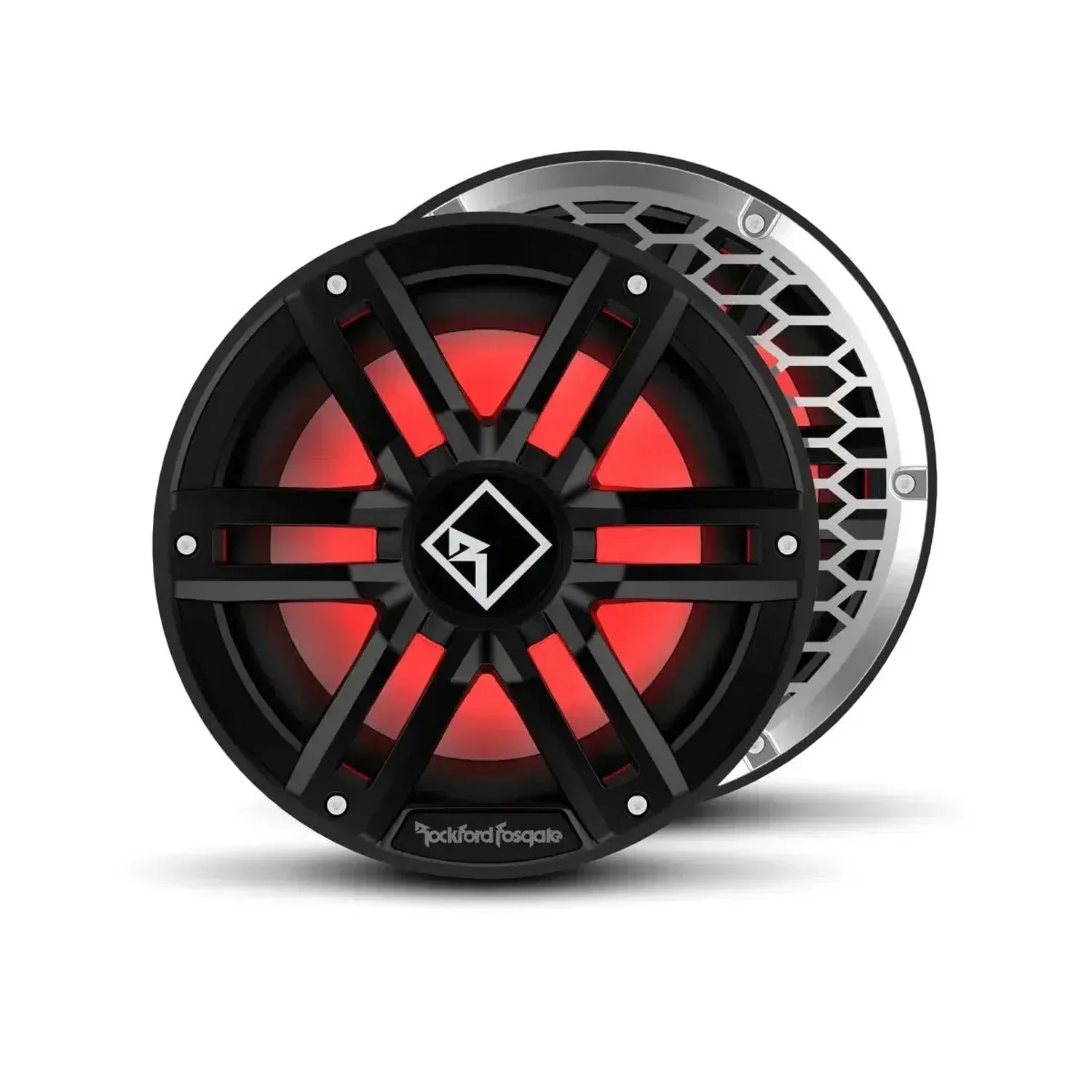

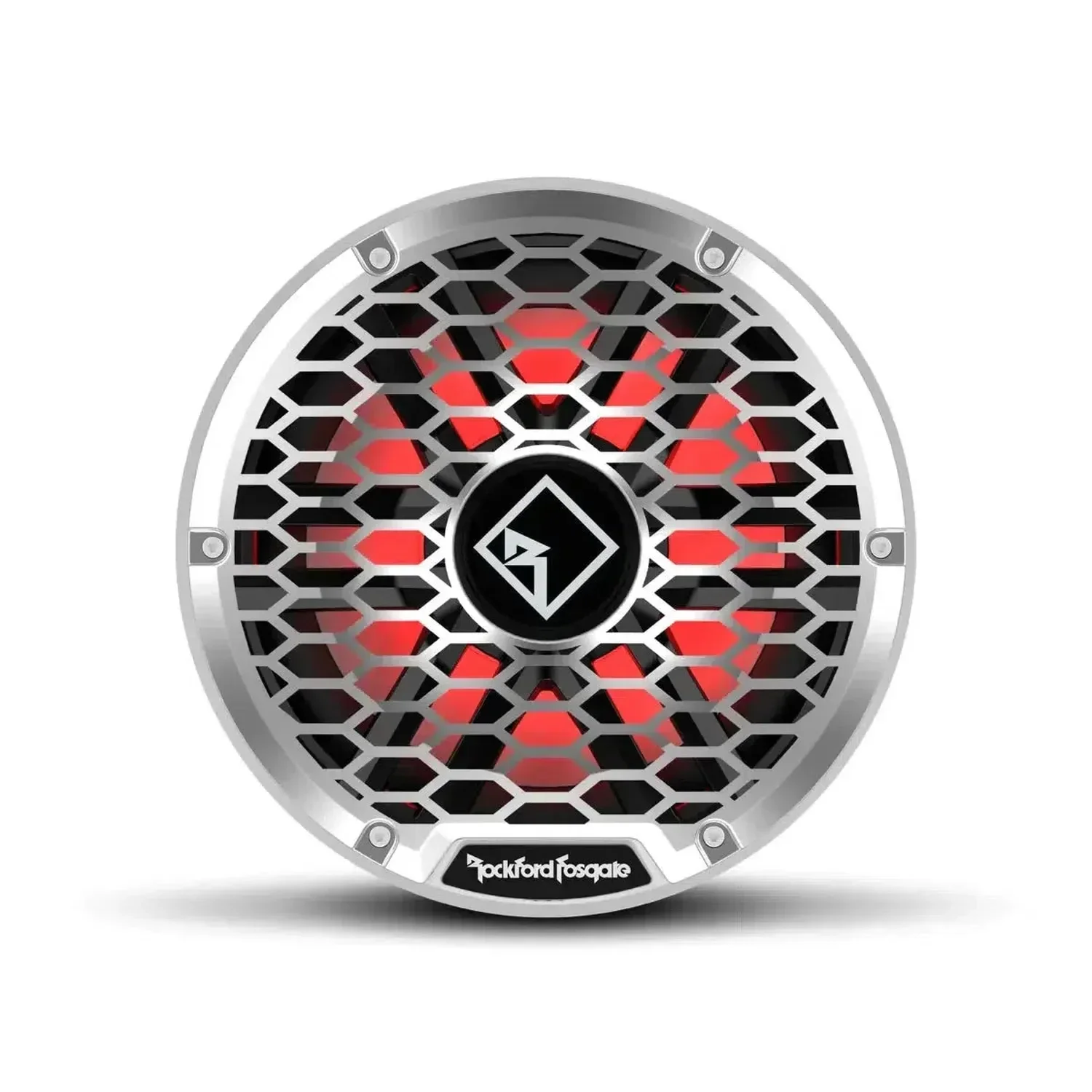

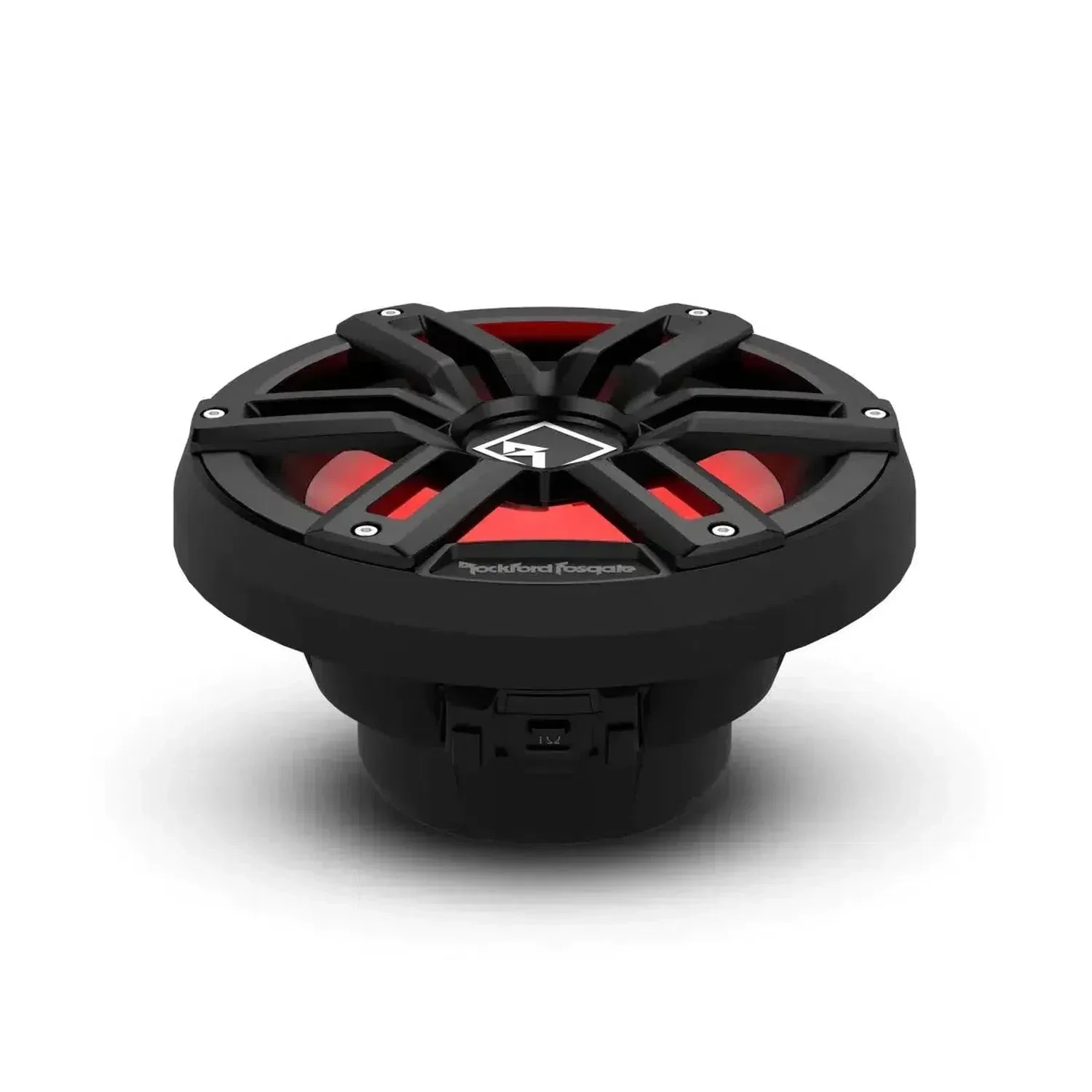

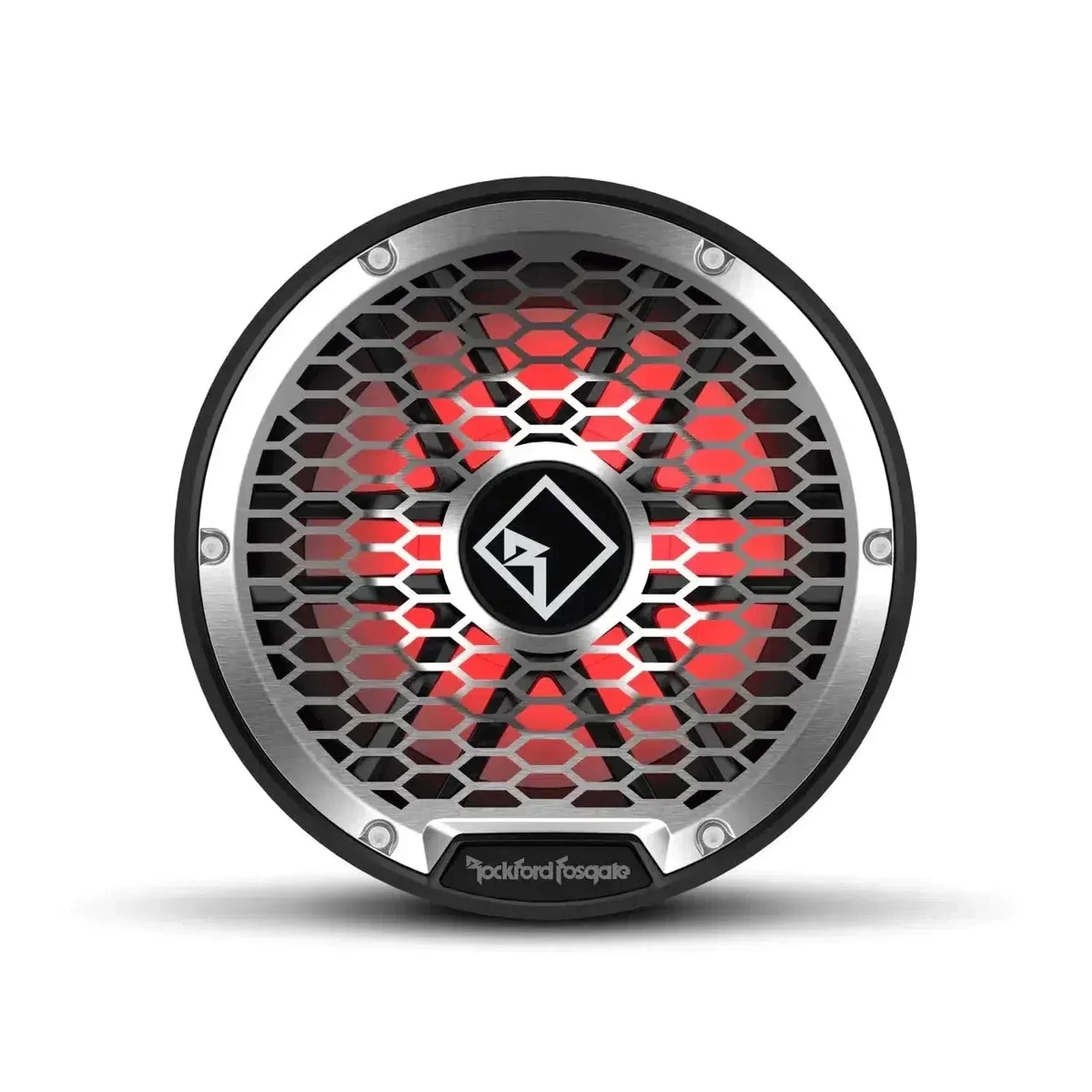

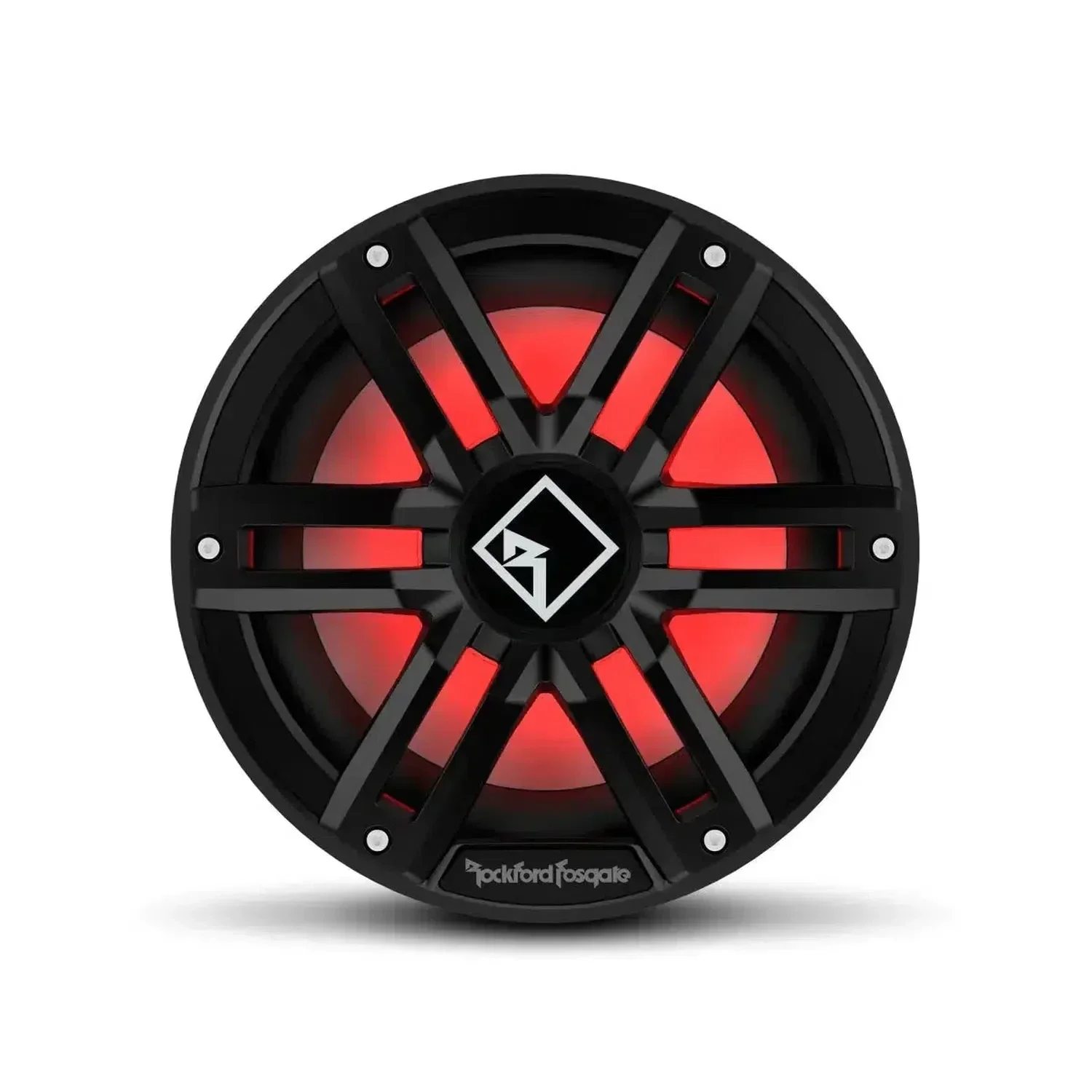

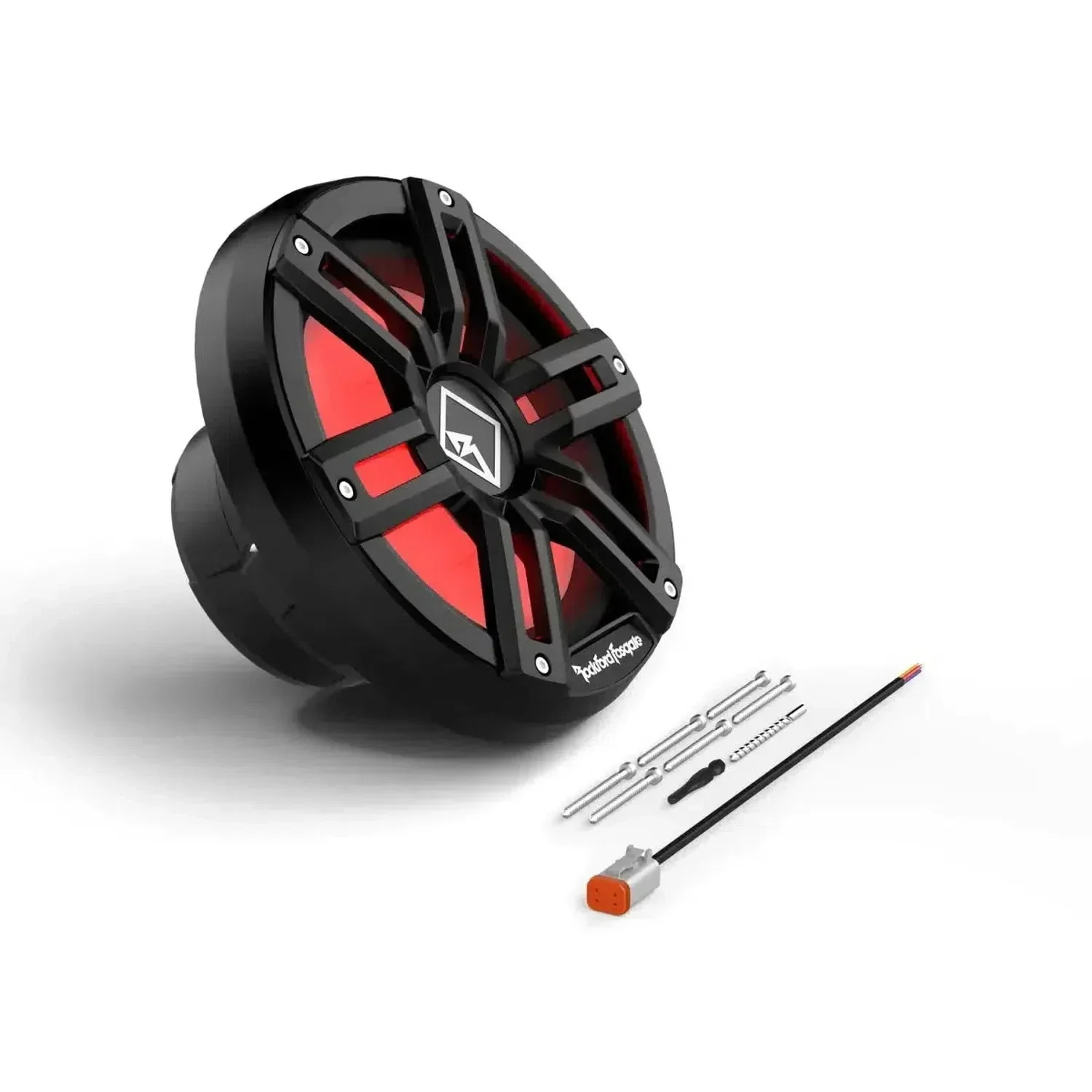

Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M2D4-10I / M2D2-10I

Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M2D4-10I / M2D2-10I
€429.00

Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M2D4-10I / M2D2-10I



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • Customize the color experience with the Rockford Fosgate® Color Optix™ Controller to your taste (optional)
  • Element Ready™ Design protects against external influences
  • Integrated German™/Amphenol™ connectors make wiring simple and error-free.
  • Optimized for small sealed enclosures when there is little space available for a housing.
  • IPX6 Marine Grade to prevent water ingress
  • The VERSA impedance switch enables quick series or parallel configuration without additional wiring.
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable lighting.
  • The industry's first cast in-frame connectors for simple connections in addition to conventional cable lugs.
  • Deutsch™ silicone seal on the front and back of the connector protects against penetrating water.
  • The vertical VAST framing technique increases the effective radiation area by up to 25.
  • 100 % UV-stabilized ASA plastic frame and grid withstand the harsh marine environment.
  • Injection-molded conical body made of mineral-filled polypropylene with UV inhibitors
  • Gold-plated brass clamps in marine quality ensure a corrosion-resistant connection.
  • 2-piece grid allows interchangeable stainless steel or "sport" option
  • Excellent reproduction of low and mid frequencies with a gentle roll-off of the high frequencies.
  • The Klippel Verified Certification Program delivers the best possible loudspeakers.

Technical Data

  • Size 10"
  • Impedance D2 (Ohm): 1 Ohm or 4 Ohm, switchable
  • Impedance D4 (Ohm): 2 Ohm or 8 Ohm, switchable
  • Power consumption (RMS) 400 Watts
  • Power consumption (MAX) 1600 Watts
  • Winding coil diameter 2.0" (50.8 mm)
  • Magnet Weight 1.56 Kg
  • Swing coil type double swing coil
  • Frequency response 20 Hz - 750 Hz
  • Fs (Hz) 43
  • Re (Ohm) 3.3
  • The (mH) 1.17
  • Qms 5.69
  • Low 0.86
  • Sd (cm2) 363
  • Qts 0.74
  • You 30.5
  • SPL (dB @ 1w/1m) 90.3
  • Xmax (mm) 11.0
  • Own volume 1.74 liters
  • Speaker connection German™
  • Cut-out diameter (225.3 mm)
  • Mounting depth (112.7 mm)
