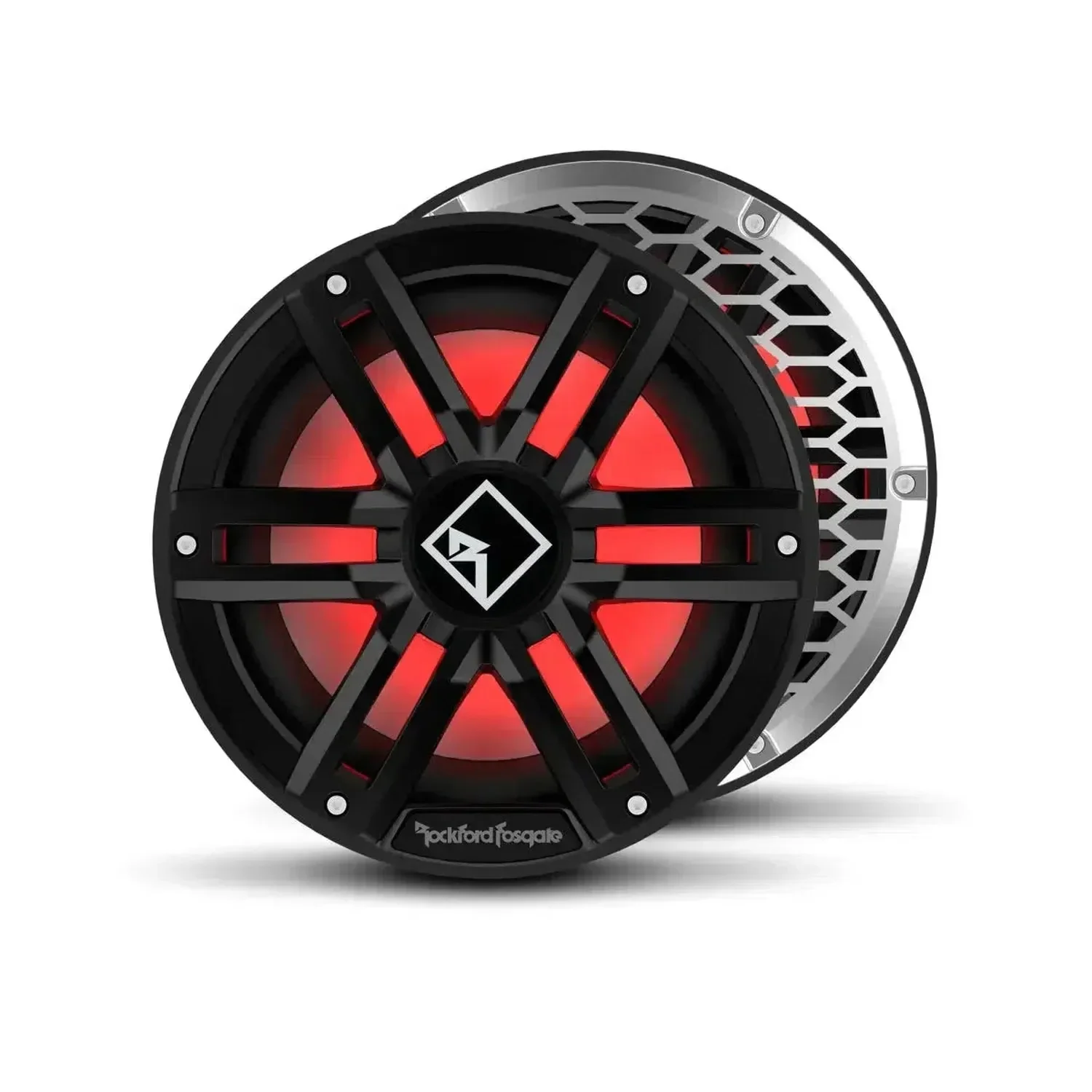

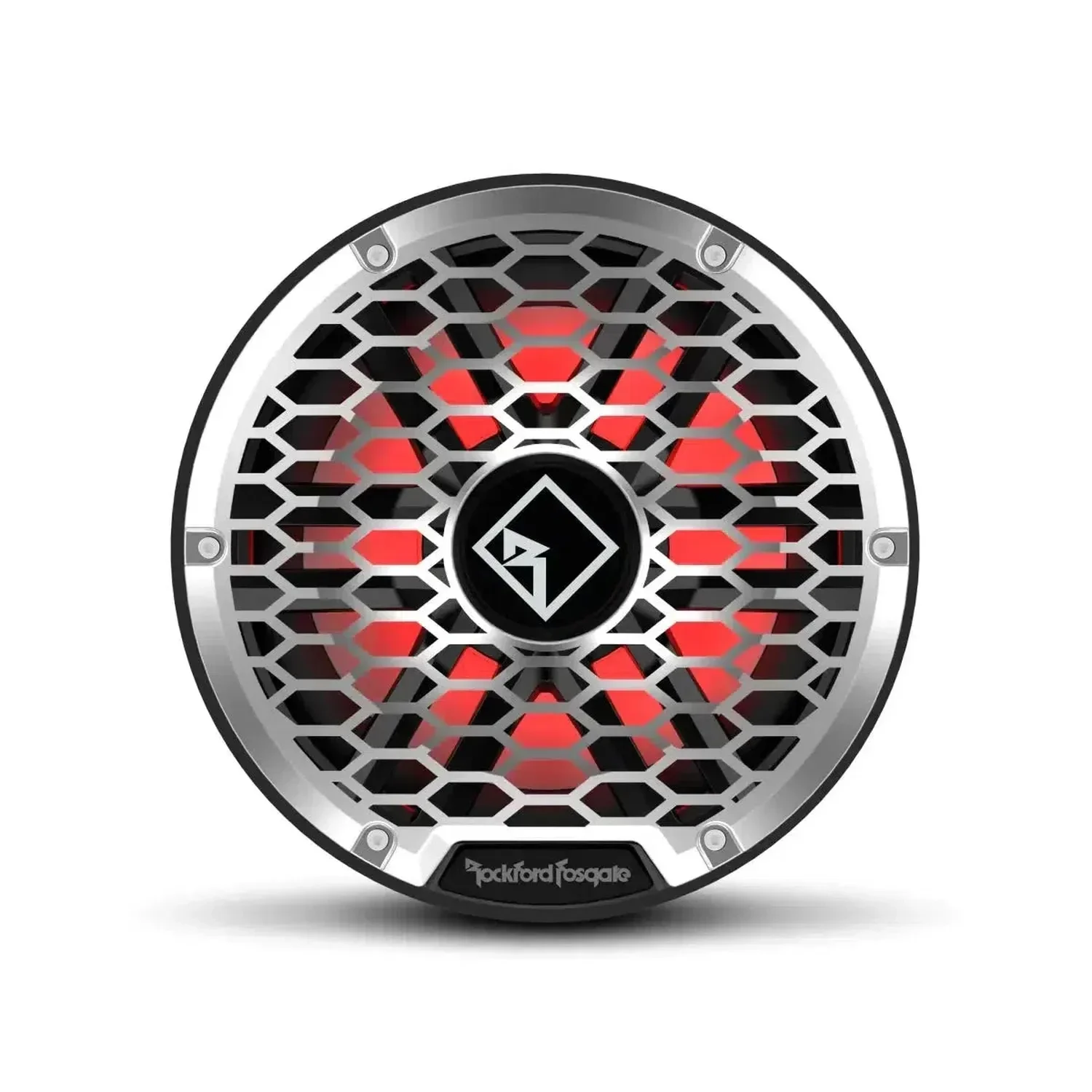

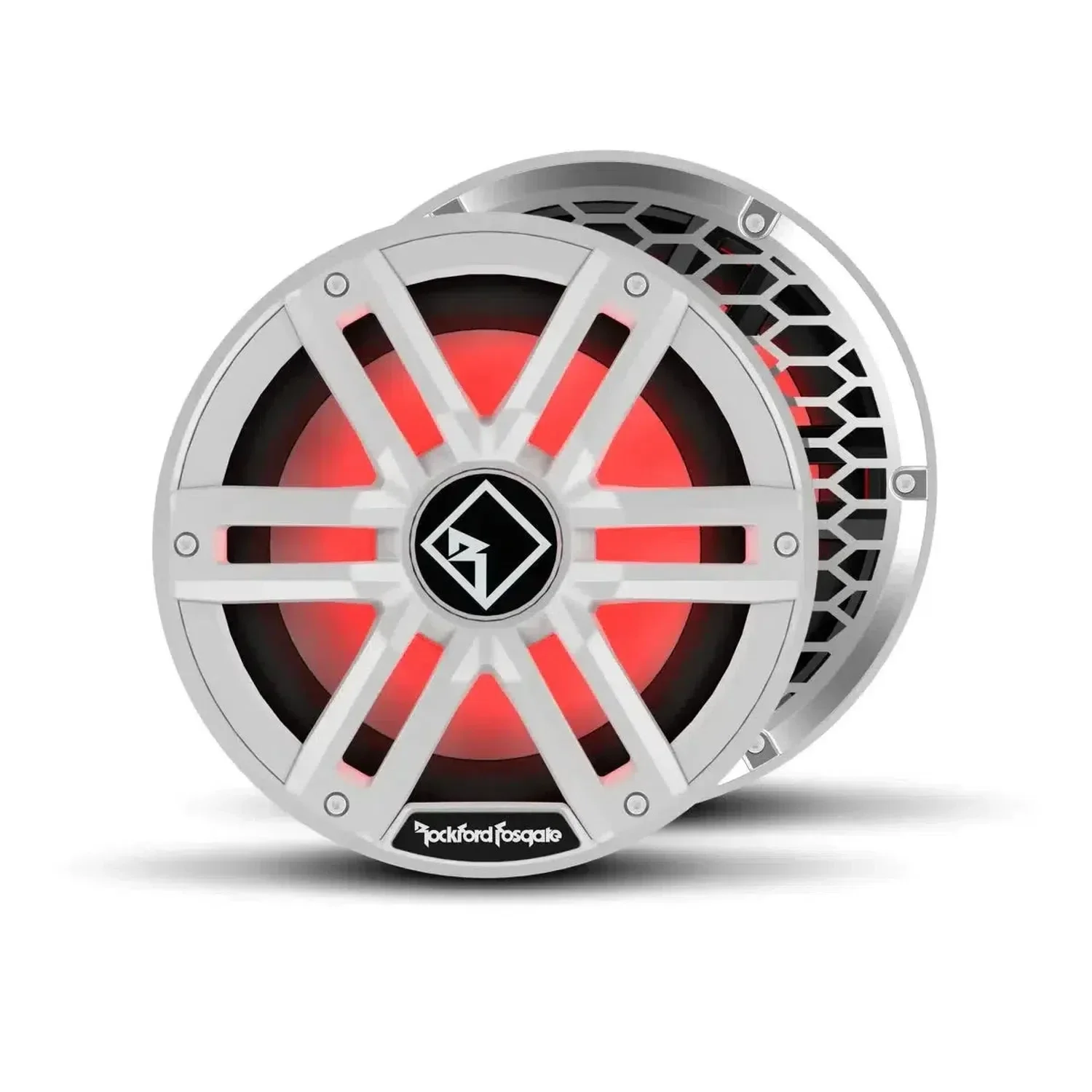

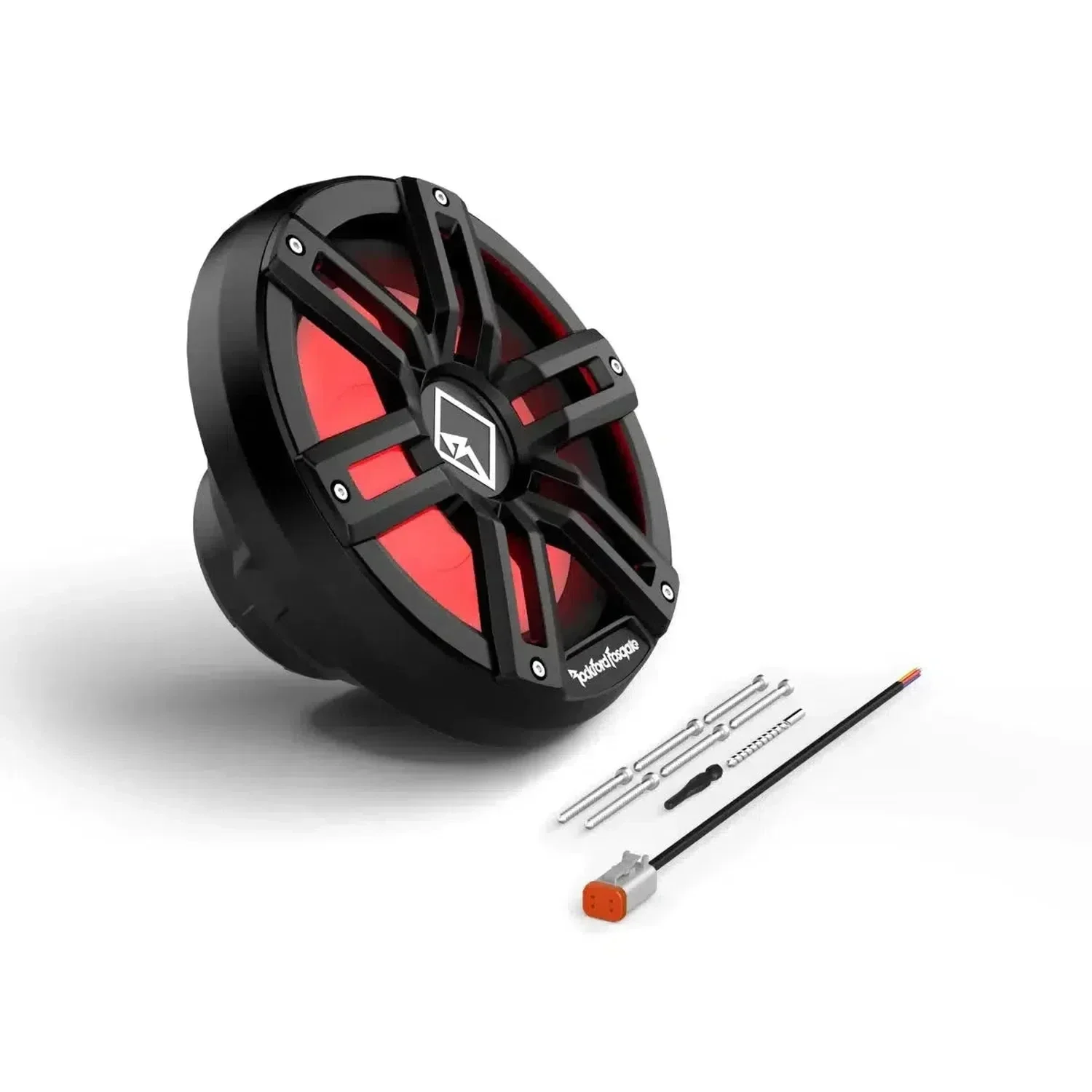

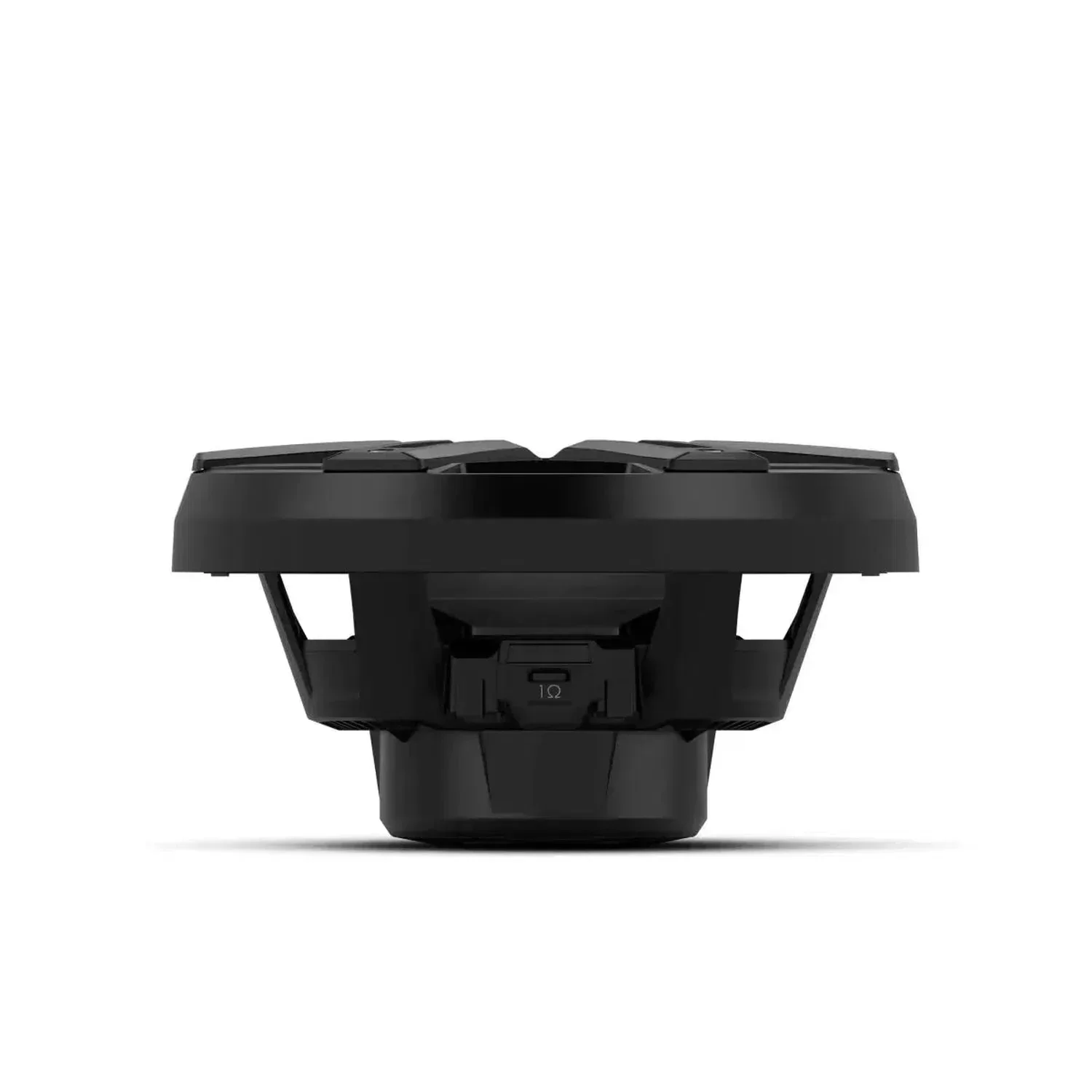

Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M2D4-10S / M2D2-10SB

Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M2D4-10S / M2D2-10SB
€399.00

Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M2D4-10S / M2D2-10SB



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • Customize the color experience with the Rockford Fosgate® Color Optix™ Controller to your taste (optional)
  • Element Ready™ Design protects against external influences
  • Integrated German™/Amphenol™ connectors make wiring simple and error-free.
  • Optimized for small sealed enclosures when there is little space available for a housing.
  • IPX6 Marine Grade to prevent water ingress
  • The VERSA impedance switch enables quick series or parallel configuration without additional wiring.
  • Ultra-bright wide-angle RGB LEDs provide rich, reliable lighting.
  • "The industry's first cast in-frame connectors for simple connections in addition to conventional cable lugs."
  • Deutsch™ silicone seal on the front and back of the connector protects against penetrating water.
  • The vertical VAST framing technique increases the effective radiation area by up to 25.
  • 100% UV-stabilized ASA plastic frame and grid withstand the harsh marine environment.
  • Injection-molded conical body made of mineral-filled polypropylene with UV inhibitors
  • Gold-plated brass clamps in marine quality ensure a corrosion-resistant connection.
  • 2-piece grid allows interchangeable stainless steel or "sport" option
  • Excellent reproduction of low and mid frequencies with a gentle roll-off of the high frequencies.
  • The Klippel Verified Certification Program delivers the best possible loudspeakers.

Technical Data

  • Size 10" (25cm) Marine Subwoofer
  • Power consumption (RMS) 400 Watts
  • Power consumption (MAX) 1600 Watts
  • Impedance D2 (Ohm): 1 Ohm or 4 Ohm, switchable
  • Impedance D4 (Ohm): 2 Ohm or 8 Ohm, switchable
  • "Swaging coil diameter 1.95" (49.53 mm)"
  • Swing coil type double swing coil
  • Magnet weight 0.9 Kg
  • Fs (Hz) 28
  • Re (Ohm) 3.3
  • Sd (cm2) 363
  • The (mH) 3.43
  • Qms 4.48
  • Volume of the sealed box (Vb) 14 liters
  • Low 0.91
  • Qts 0.75
  • You 36.4
  • SPL (dB @ 1w/1m) 86
  • Xmax (mm) 12.0
  • Displacement of the subwoofer 2.03 liters
  • Speaker connection German™ and 1/8" cable lug
  • Cut-out diameter 225.3 mm
  • Installation depth 107.7 mm
