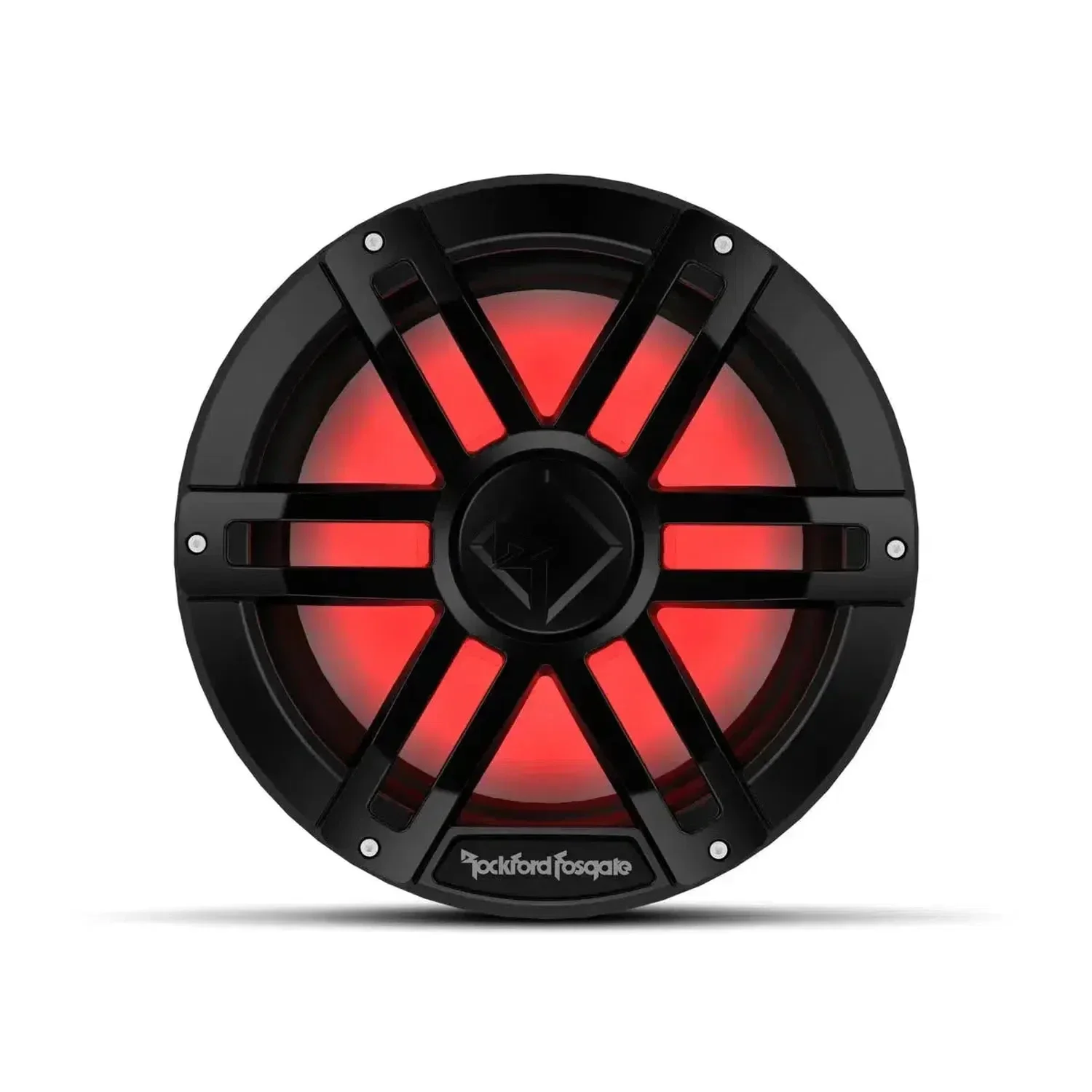

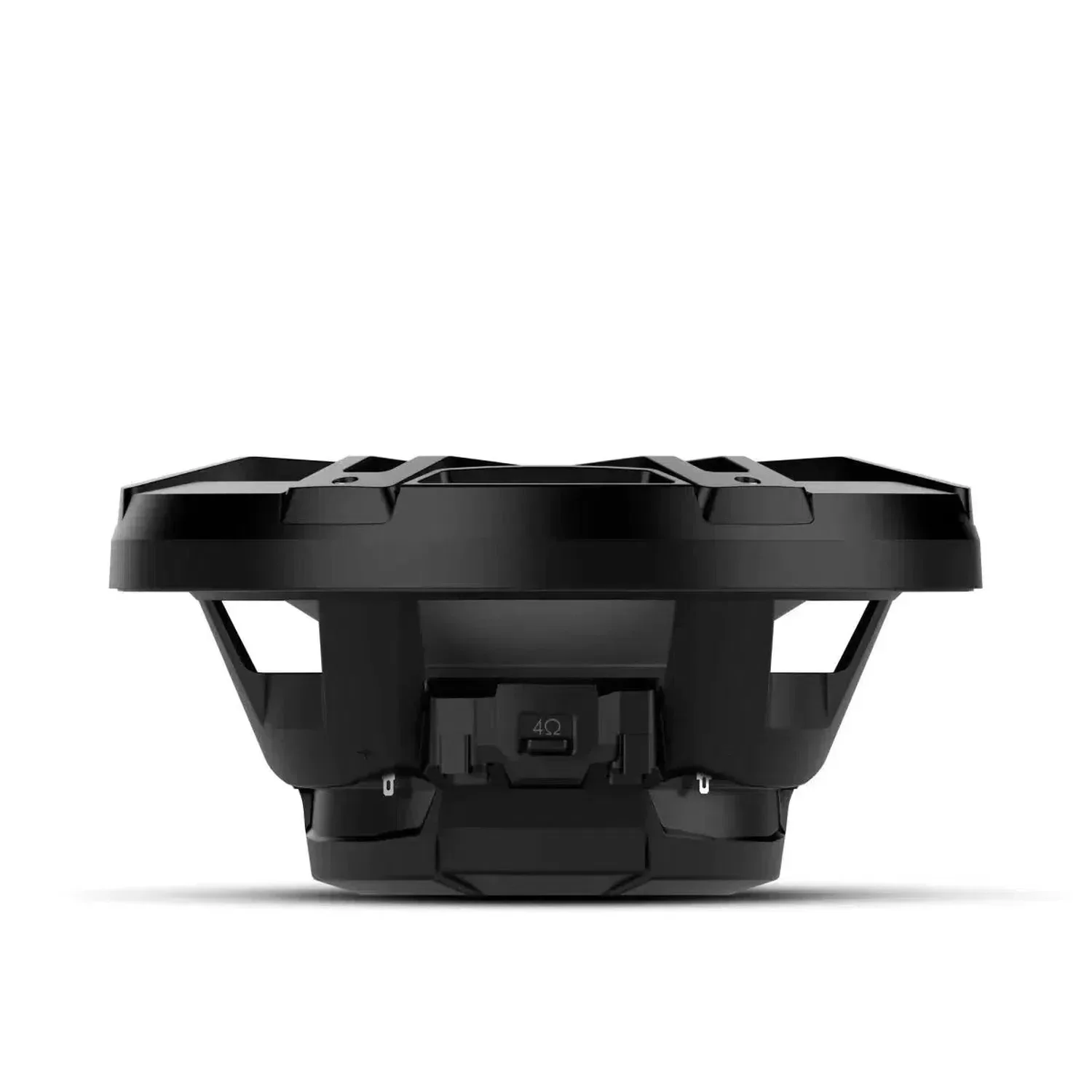

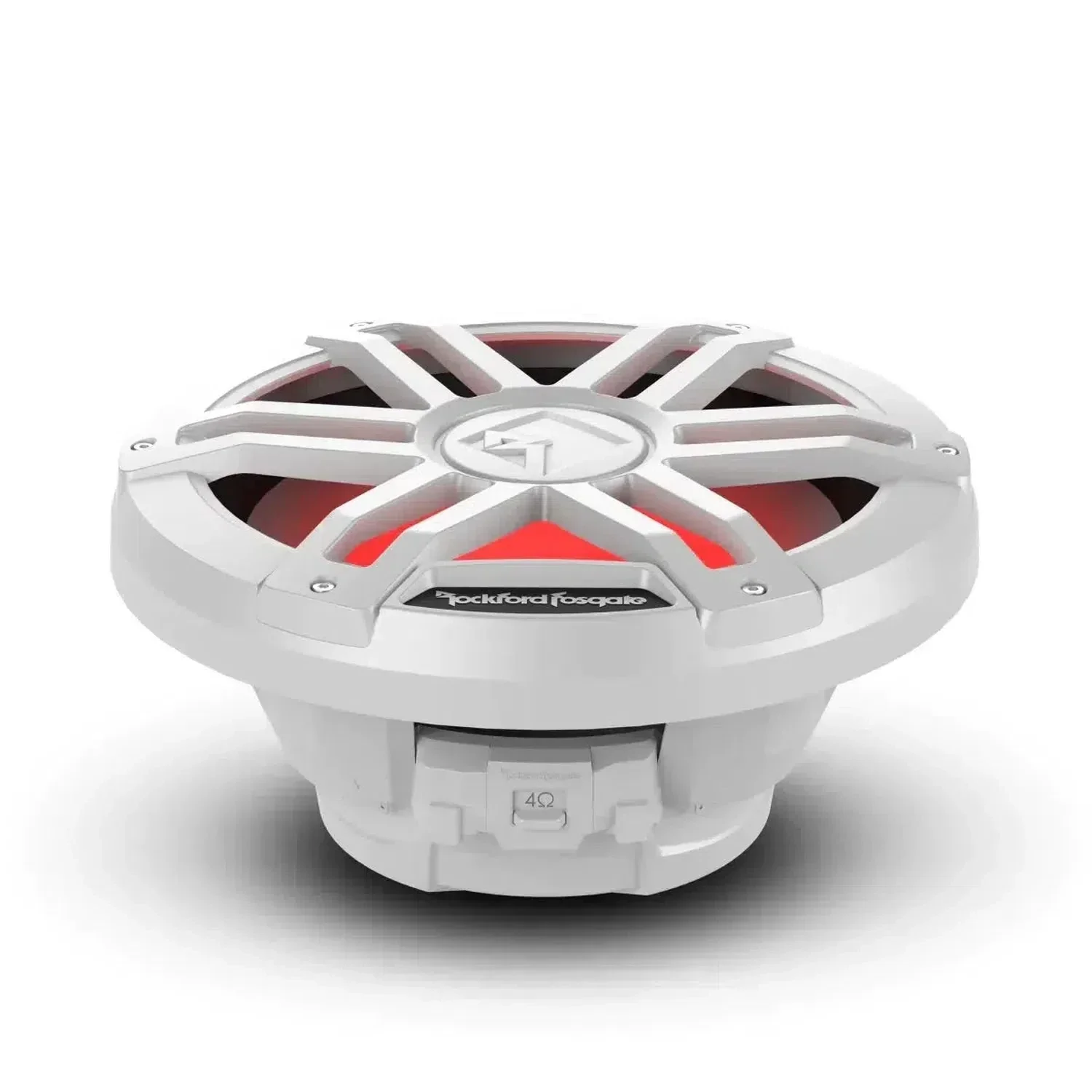

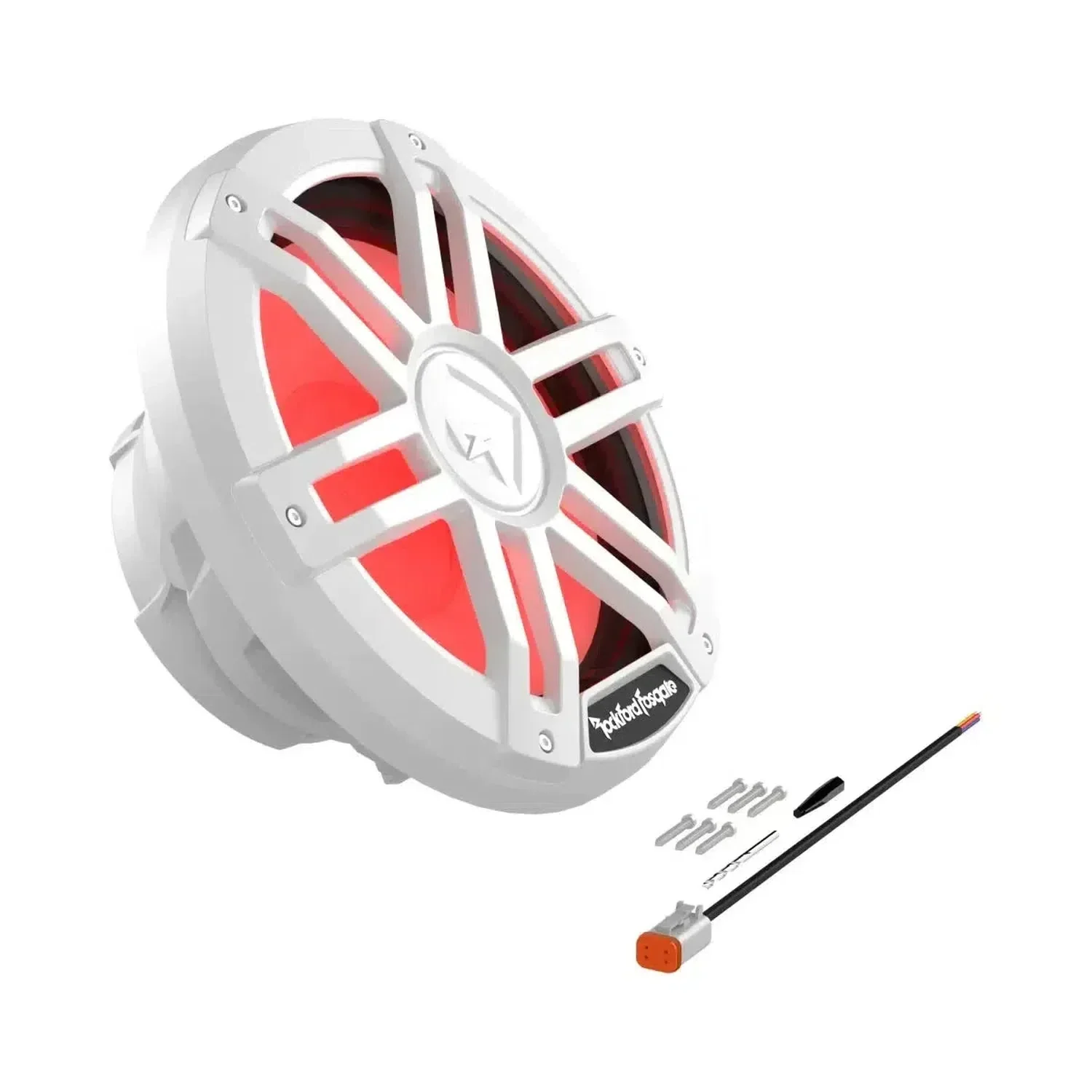

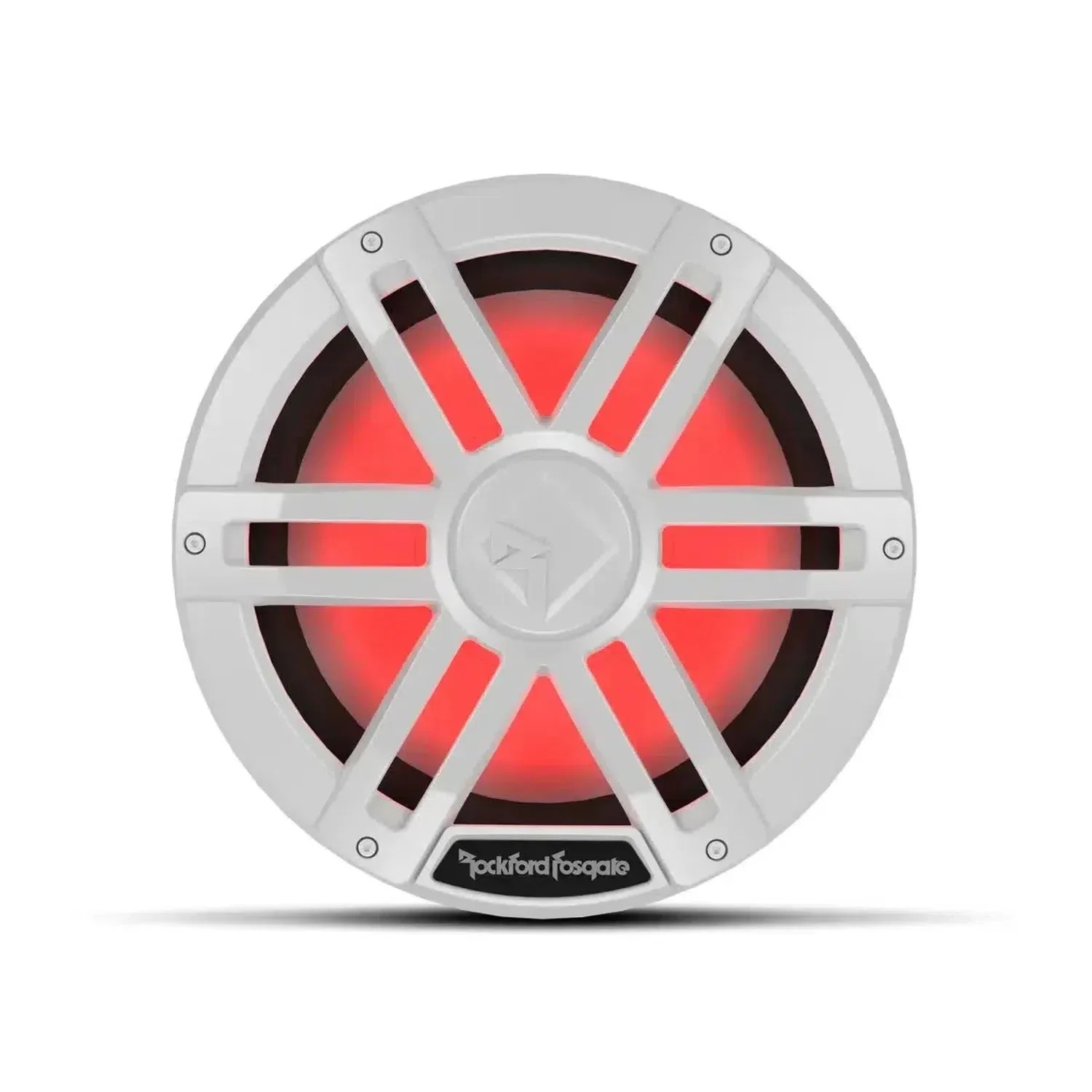

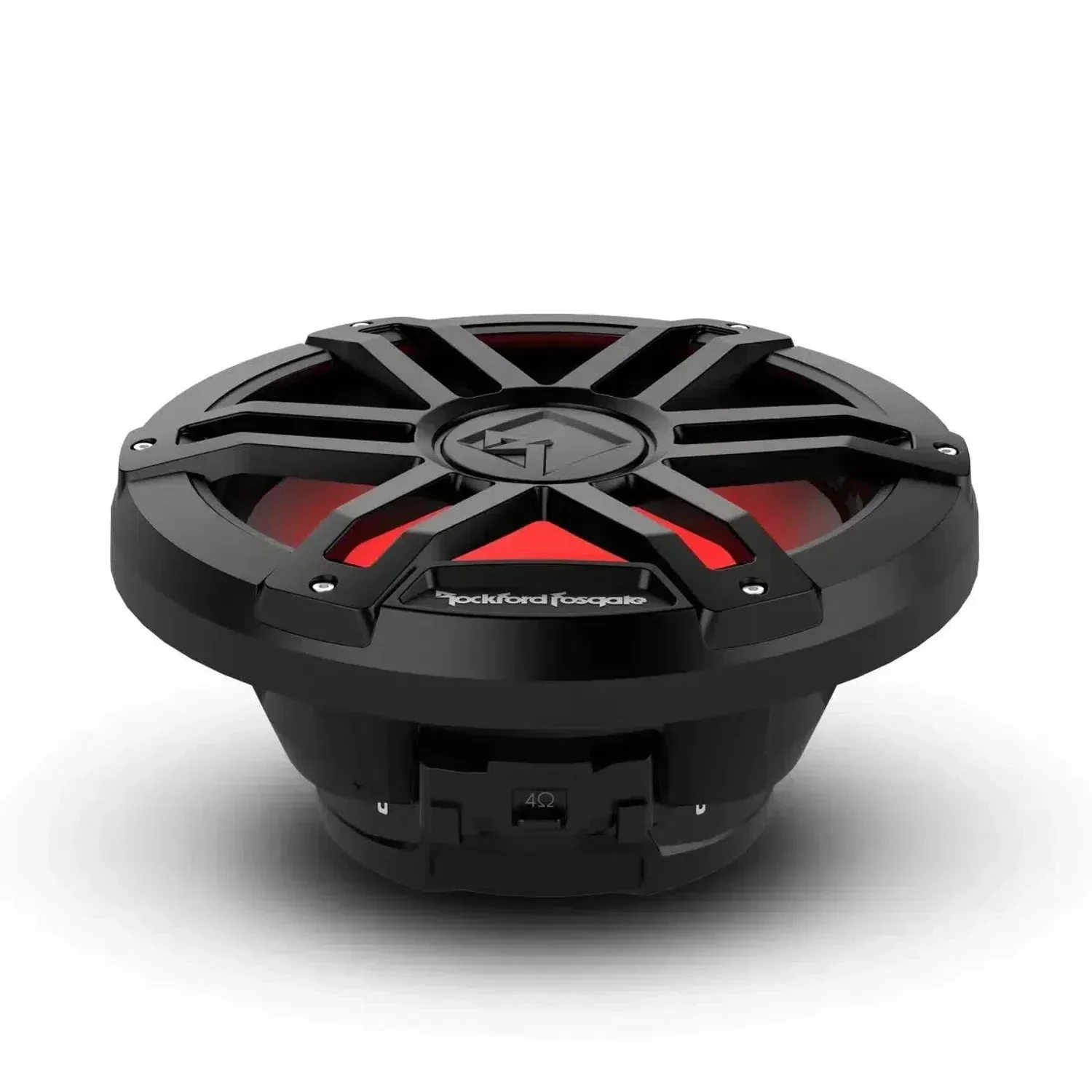

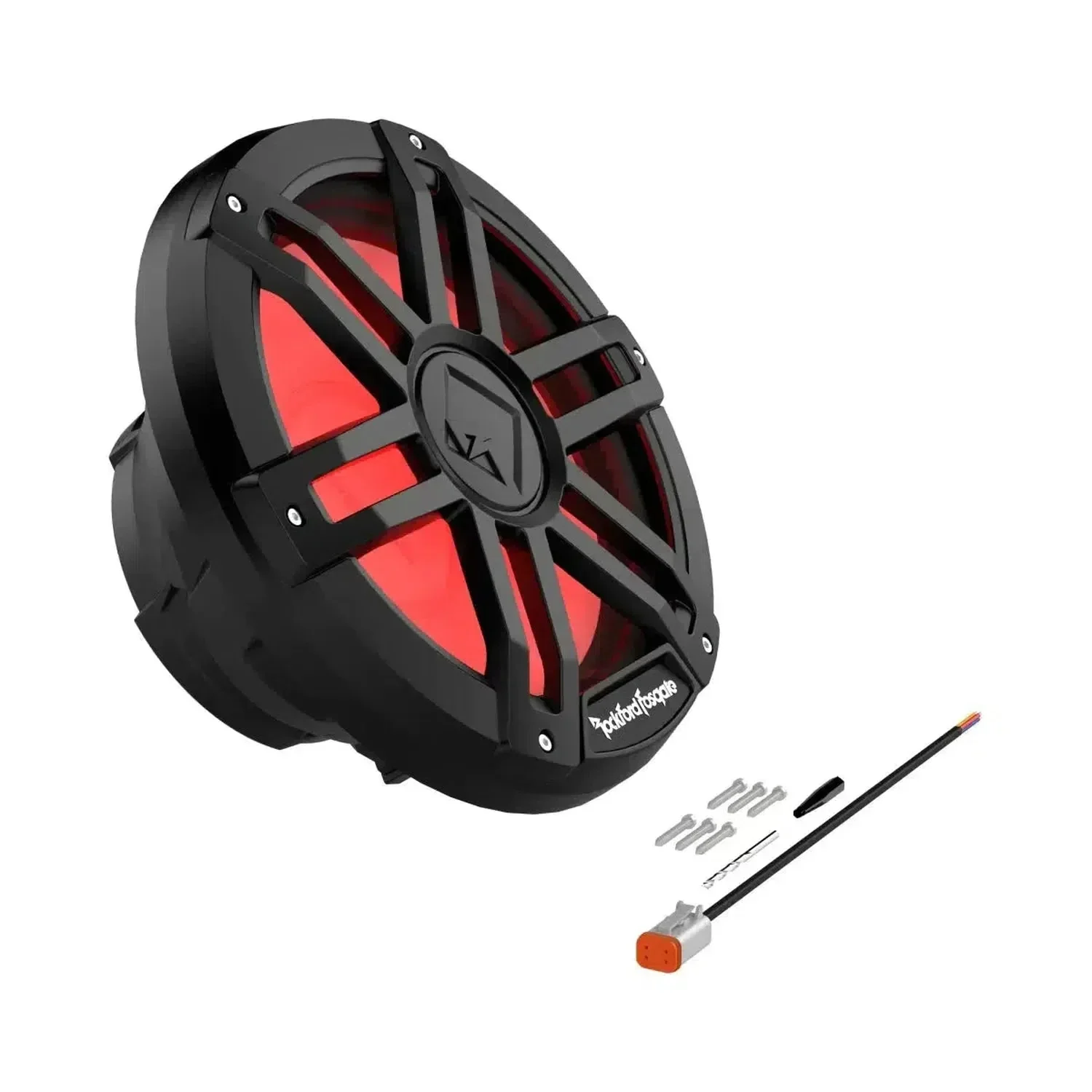

Rockford Fosgate Color Optix Subwoofer 30cm / 12'' M1D4-12 / M1D2-12B
€319.00
Rockford Fosgate Color Optix Subwoofer 30cm / 12'' M1D4-12 / M1D2-12B
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Technical Features
- Optically clear, UV-stable RGB lighting encapsulation
- Ultra-bright RGB wide-angle LEDs provide rich, reliable lighting.
- High Temp Kapton™ Swing Coil
- 100% UV-stabilized ASA plastic frame and grid design withstands the harsh marine environment.
- Ventilated motor design with water-repellent, nano-coated mesh screen
- Completely insulated silicone supply lines
- "The industry's first in-frame connectors for simple connections in addition to conventional cable lugs."
- Linear spiders made of synthetic fiber blend
- Zinc-nickel coated brass connection terminals in marine quality
- Integrated German™/Amphenol™ connectors make wiring connections simple and error-free.
- Santoprene VAST Sick
- Shaped bead and mineral-filled polypropylene membrane body
- The VAST technique for vertical attachment of the bead increases the effectively radiating membrane area by up to 25%.

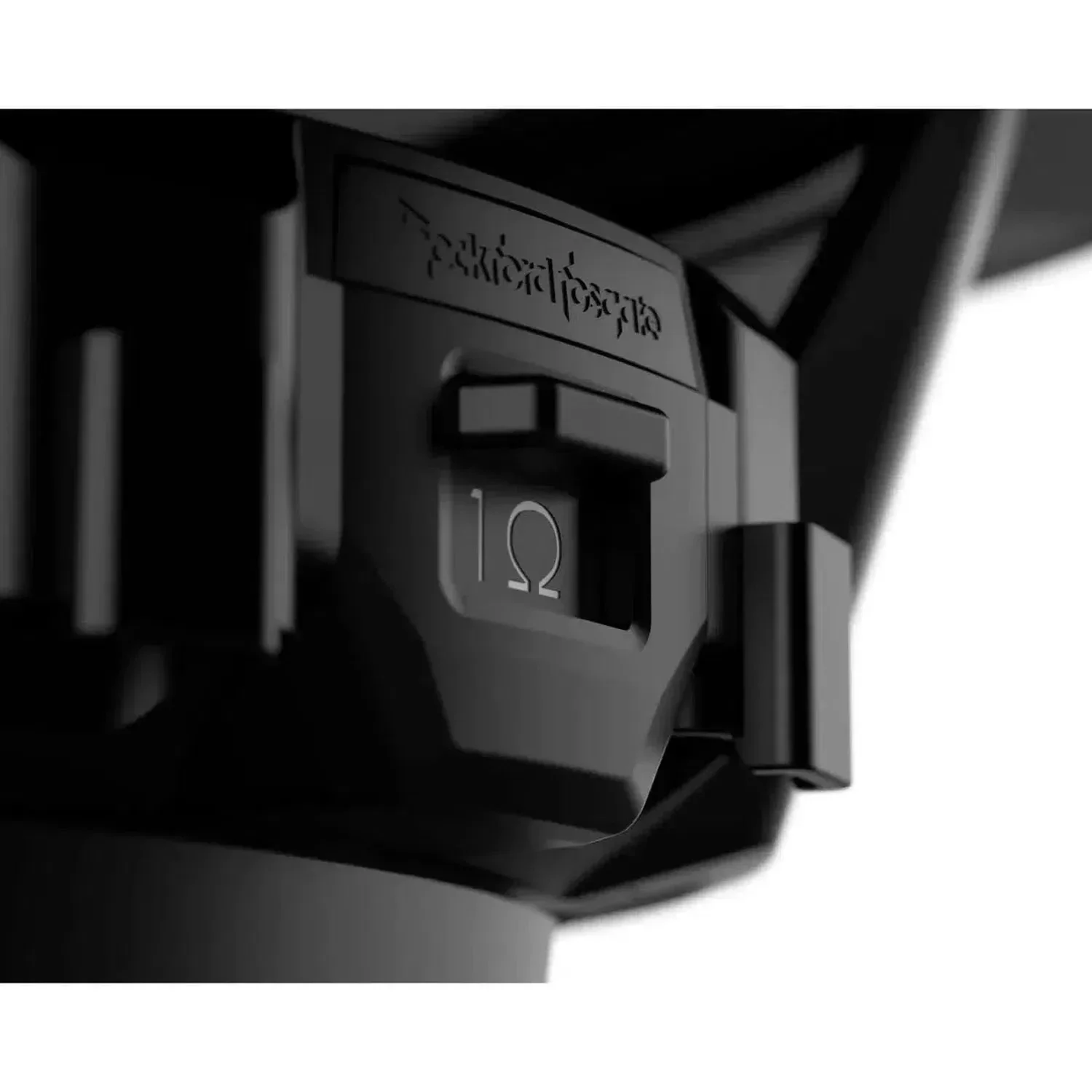

- VERSA-Impedance switch enables quick series or parallel configuration without additional wiring.
Technical Data
- Swing coil type double swing coil
- Nenn impedance (D2) switchable between 1-Ohm or 4-Ohm
- Nominal impedance (D4) switchable between 2 Ohm or 8 Ohm
- Size 12"
- Power consumption (RMS) 300 Watts
- Power consumption (MAX) 1200 Watts
- Swing coil diameter 2" (50 mm)
- Magnet Weight (1.13 Kg)
- Frequency response 20 Hz - 750 Hz
- Fs (Hz) 26
- Re (Ohm) 3.8
- The (mH) 2.02
- Sd (cm²) 585.4
- Qms 7.47
- Low 0.57
- Qts 0.53
- You 114.2
- SPL (dB @ 1w/1m) 92
- Xmax (mm) 6.0
- Displacement of the subwoofer (0.12 liters)
- Speaker connection German™
- Cut-out diameter 275.6 mm
- Installation depth 169.1 mm
