Rockford Fosgate Color Optix Subwoofer 25 cm / 10'' M1D4-10 / M1D2-10B
€239.00
Rockford Fosgate M1D4-10 / M1D2-10B
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Technical Features
- Optically clear, UV-stable RGB lighting encapsulation
- Ultra-bright RGB wide-angle LEDs provide rich, reliable lighting.
- High Temp Kapton™ Swing Coil
- 100% UV-stabilized ASA plastic frame and grid design withstands the harsh marine environment.
- Ventilated motor design with water-repellent, nano-coated mesh screen
- Completely insulated silicone supply lines
- "The industry's first in-frame connections for simple connections in addition to conventional cable lugs."
- Linear spiders made of synthetic fiber blend
- Zinc-nickel coated brass terminal blocks in marine quality
- Integrated German™/Amphenol™ connectors make wiring connections simple and error-free.
- Santoprene VAST Sick
- Shaped bead and mineral-filled polypropylene membrane body
- The VAST technique for vertical fastening of the bead increases the effectively radiating membrane area by up to 25%.

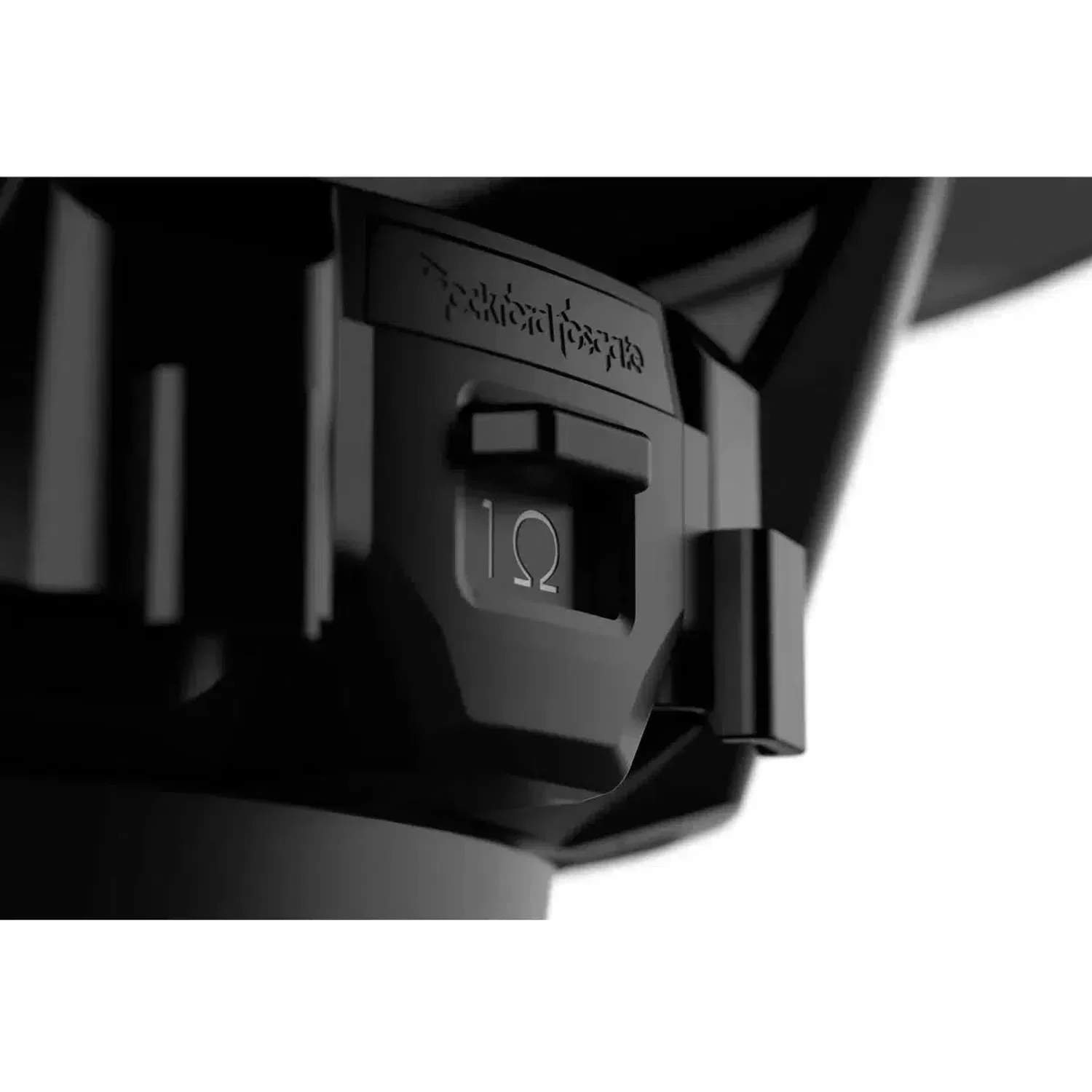

- VERSA-Impedance switch enables quick series or parallel configuration without additional wiring.
Technical Data
- Size 10" (25cm) Marine Subwoofer
- Impedance D2: switchable between 1-Ohm or 4-Ohm
- Impedance D4: switchable between 2-ohm or 8-ohm
- Load capacity (RMS): 300 Watts
- Load capacity (MAX): 1200 Watts
- Winding coil diameter 2.0" (50 mm)
- Magnet Weight: 1.35 Kg
- double swing coil
- Frequency response 20 Hz - 750 Hz
- Fs (Hz) 34
- Re (Ohm) 3.7
- The (mH) 2.22
- Sd (cm2) 394.1
- Qms 7.80
- Low 0.47
- Qts 0.44
- You 44.2
- SPL (dB @ 1w/1m) 91.5
- Displacement of the subwoofer 2.80 liters
- Xmax (mm) 7.0
- Speaker connection German™
- Cut-out diameter 226 mm
- Installation depth 107.4 mm
