Rockford Fosgate POWER M5-800X4 4 channel amplifier Marine
€649.00
Rockford Fosgate POWER M5-800X4
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Technical Features
- Element Ready™ design with integrated wiring harness and control cabinet seals
- "PRESET makes setting up and tuning the amplifier unnecessary when used with Rockford Fosgate UTV audio kits."
- Constant Power delivers immediate output power at different impedance loads.
- Plays all day, is easy to integrate, and lets the music run for a longer period of time.
- Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.
- C.L.E.A.N. Input/Output Clip Detection and Display LEDs
- "Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
- Inputs for OEM and aftermarket radio integration

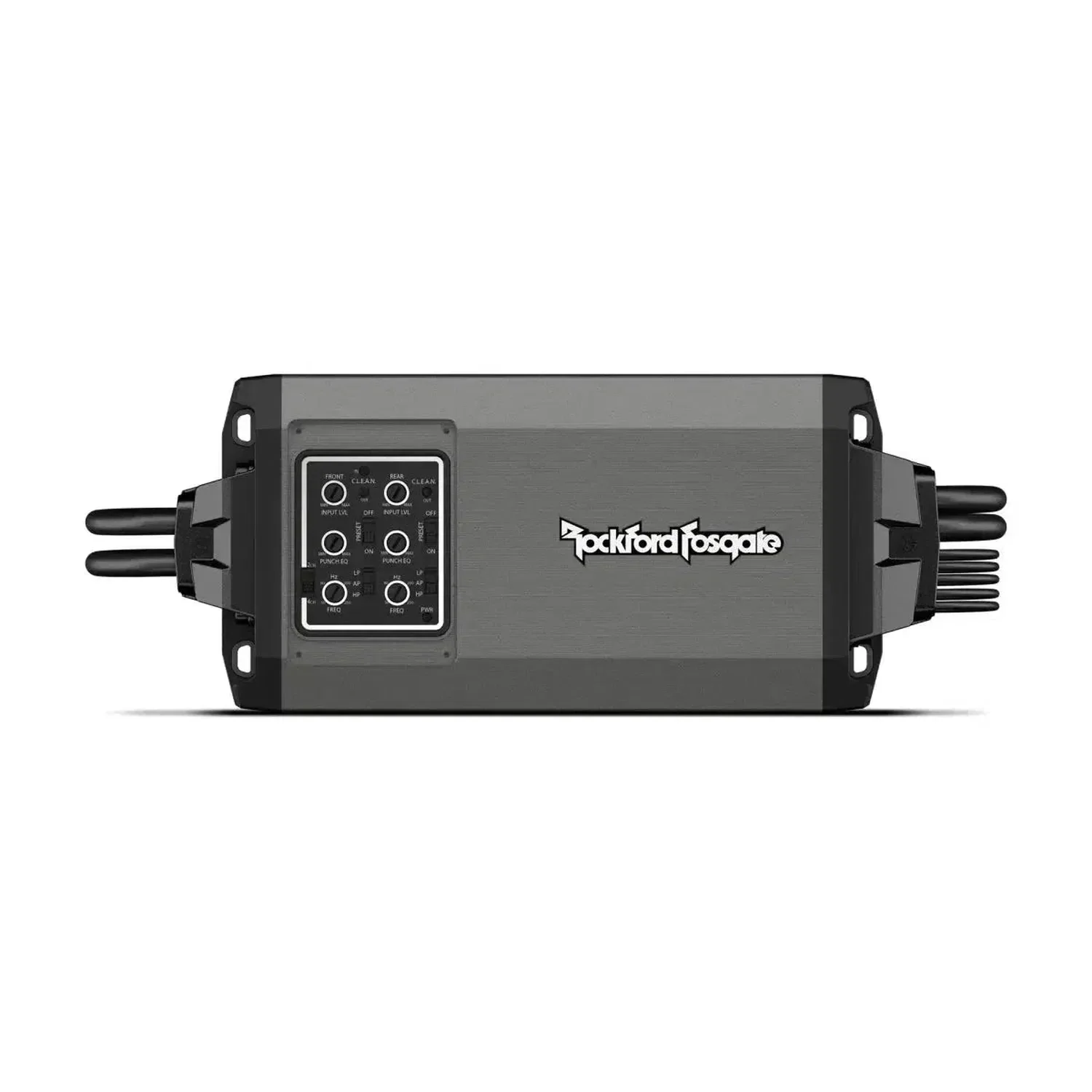

- Top-mounted control panel with Element Ready™ smoked glass cover
- Low impedance stability
- Proprietary Class-AD technology enables the amplifier to deliver more power with lower power consumption.
- Discrete surface mounting technology with 1% tight tolerances for high efficiency and reduced crosstalk
- "MESHA 4 reduces MOSFET temperatures, lowers distortions, increases durability, and extends the lifespan of devices."
- The insulation of the housing from the mounting points significantly reduces the potential introduction of vehicle noise.
- Symmetrical differential inputs eliminate noise that is picked up by signal cables.
- Remote-out function when using high-level inputs
Technical Data
- Cta-2006-compliant
- Number of channels 4
- Total power (sum of rated power) 800 watts
- Rated power (RMS) CTA-2006 guidelines ≤1.0% THD+N
- 100 Watt x 4 @ 4Ω
- 100 Watts x 4 @ 2Ω
- 200 Watts x 2 @ 4Ω Bridged/Mono
- Dynamic Performance (PVC/PowerCube®) CTA-2006 Guidelines
- 125 Watt x 4 @ 4Ω
- 200 Watts x 4 @ 2Ω
- 400 Watt x 2 @ 4Ω Bridging/Mono
- Bridgable Yes
- Frequency response 10 Hz - 50 kHz
- Input sensitivity 150mVrms - 12Vrms
- Class-AD Circuit Topology
- Efficiency (Average) >75%
- Total Harmonic Distortion (THD+Noise)<0.25% THD+N @ 1 Watt
- Signal input Low-Level: 4 RCA
- High level: (2) 4-Pin Molex
- Signal output-
- Sound control front/rear: 0-14dB @ 12.5kHz
- Front/Rear: 0-18dB @ 45Hz
- High-pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Low pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- All-Pass: Yes
- Remote controls No
- Optical Displays: Blue
- Protection: Red
- Input terminal: Red
- Output Clip: Blue/Red
- Power supply wire, thickness 10mm²
- Power input connection replacement 1040-57997
- Speaker cable cross-section 1.5mm²
- Heat sink extruded aluminum
- Operating voltage 9 - 16 VDC
- Max. current consumption (13.8 V sine wave)
- 55A @ 4Ω
- 85A @ 2Ω
- 90 A @ 4Ω bridged
- Dimensions (H x W x D) 42.8 mm x 108 mm x 213 mm
- Shipping weight 1.9 Kg

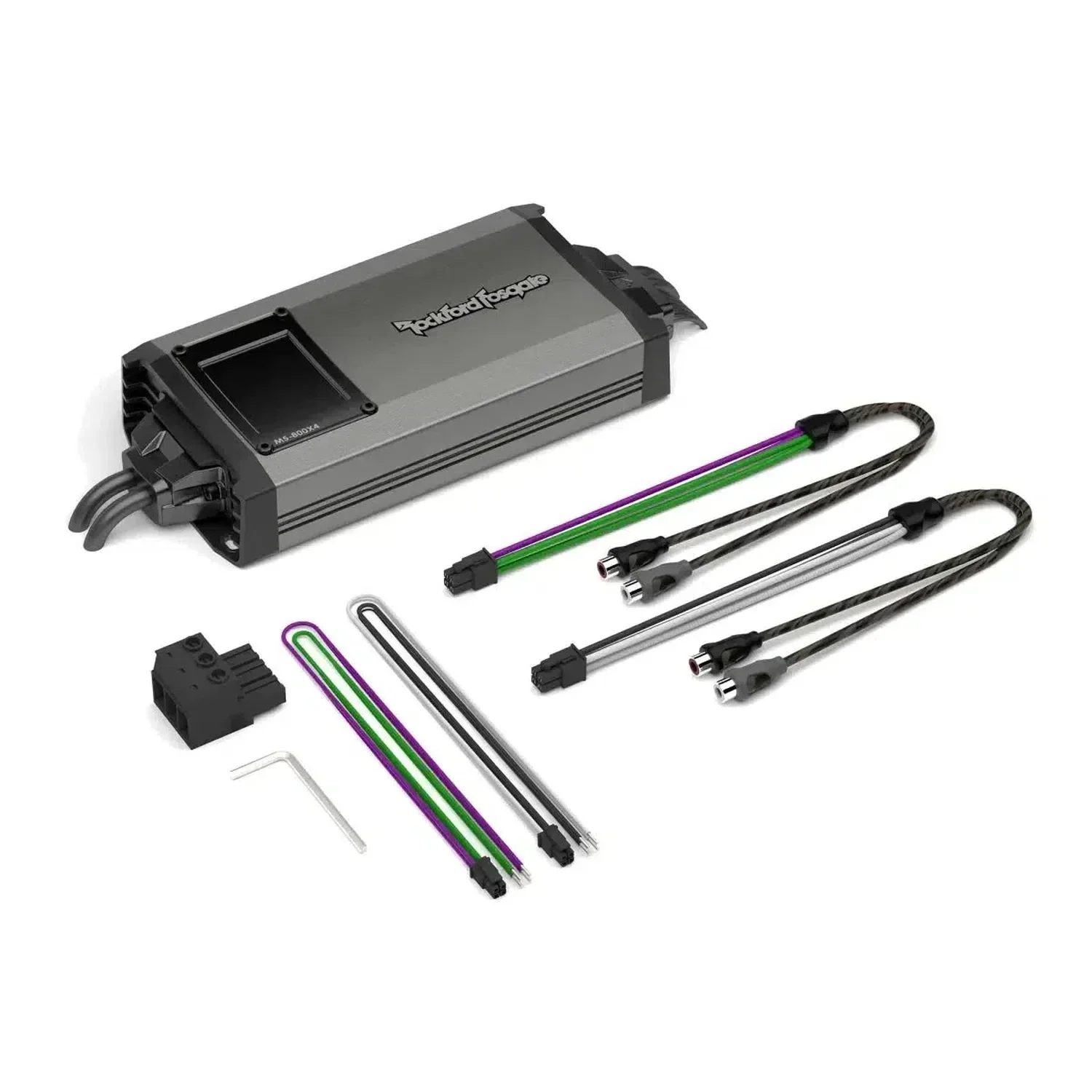

Scope of delivery
- (1) Tax coverage (1130-75511-01)
- (1) Extension cable (1130-75503-01)
- (1) Pwr/Gnd/Rem connection (1040-61932-01)
- (1) RCA input cable harness front (1560-56458-02)
- (1) Rear RCA input cable harness (1560-56727-02)
- (1) Front Spk Output Housing (1560-56568-01)
- (1) Rear Spk Out Wiring Harness (1560-56544-01)
- (1) Allen key
- (1) RF sticker
- (1) PRESET-Warning sticker
- (1) Performance Testing Certificate
