Rockford Fosgate POWER M5-1000X1 Monoblock amplifier Marine

Rockford Fosgate POWER M5-1000X1 Monoblock amplifier Marine
€649.00

Rockford Fosgate POWER M5-1000X1



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • Element Ready™ design with integrated wiring harness and control cabinet seals
  • PRESET makes setting up and tuning the amplifier in conjunction with Rockford Fosgate UTV audio kits unnecessary.
  • Plays all day, is easy to integrate, and lets the music run for a longer time.
  • C.L.E.A.N. Input/Output Clip Detection and Display LEDs
  • Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.
  • Constant Power delivers immediate output power at different impedance loads.
  • "Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
  • Inputs for the integration of OEM and aftermarket radios

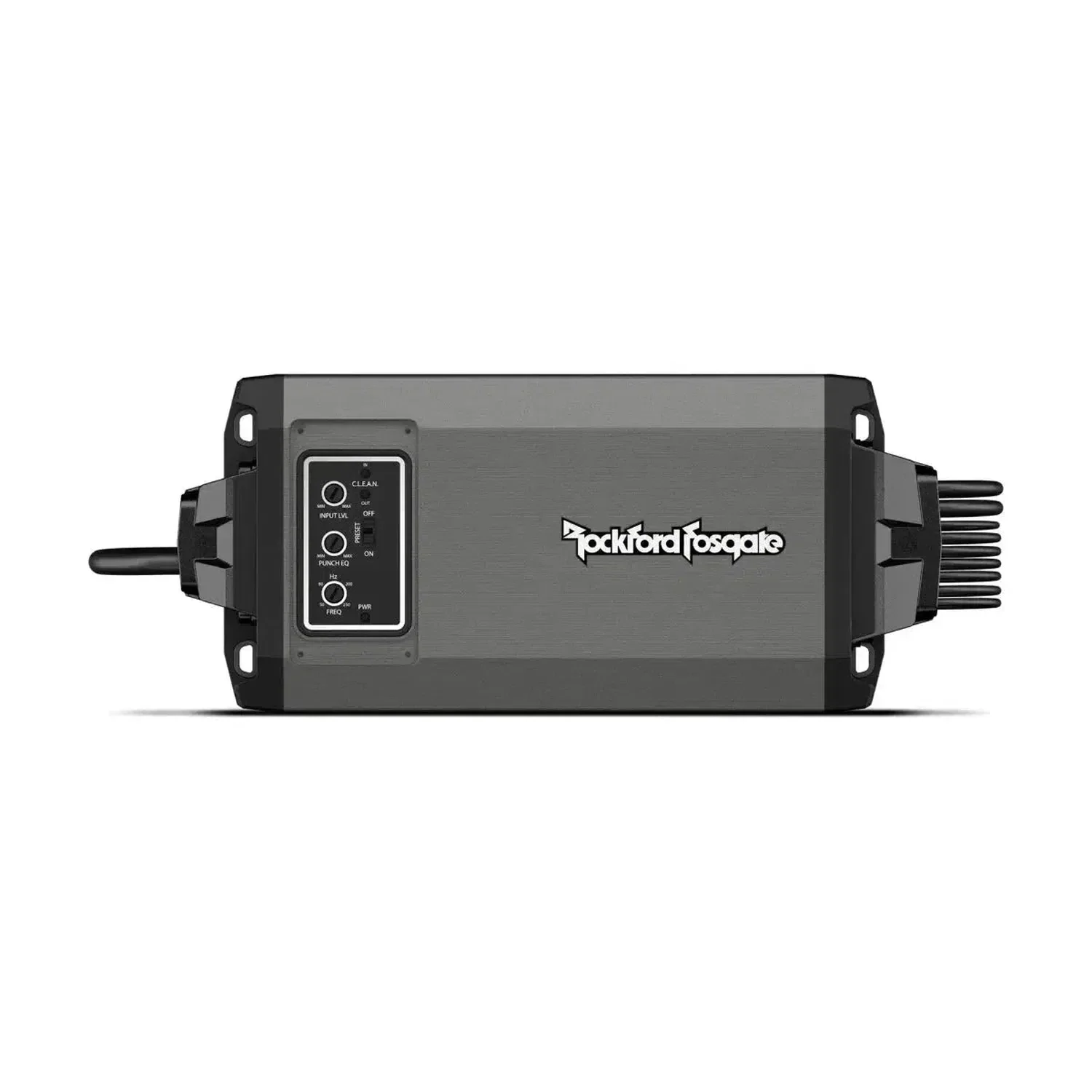

  • Top-mounted control panel with Element Ready™ smoked glass cover
  • Low impedance stability
  • The Class-BD technology offers an efficiency of 75-80% compared to conventional Class-A/B designs.
  • Discrete surface mounting technology with 1% tight tolerances for high efficiency and reduced crosstalk
  • "MESHA 4 reduces MOSFET temperatures, lowers distortions, increases durability, and extends the lifespan of devices."
  • The insulation of the housing from the mounting points significantly reduces the potential introduction of vehicle noise.
  • Symmetrical differential inputs eliminate noise picked up by signal cables.
  • Remote-out function when using high-level inputs

Technical Data

  • Cta-2006-compliant
  • Number of channels 1
  • Total power (sum of rated power) 1000 watts
  • ≤1.0% THD+N
  • 500 Watt x 1 @ 4Ω
  • 750 Watts x 1 @ 2Ω
  • 750 Watt x 1 @ 1Ω
  • Dynamic Performance (PVC/PowerCube®)
  • 525 Watt x 1 @ 4Ω
  • 900 Watts x 1 @ 2Ω
  • 1000 Watt x 1 @ 1Ω
  • Frequency response 30Hz - 245Hz
  • Input sensitivity 150mVrms - 12Vrms
  • Class-BD Circuit Topology
  • Efficiency (Average) >80%
  • Total Harmonic Distortion (THD+Noise) <0.1% THD+N @ 1 Watt
  • Signal input Low-Level: 2 RCA
  • High level: 4-Pin Molex
  • BassBoost: 0-18dB @ 45Hz
  • Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Infrasound: 30 Hz @ 12dB/Octave Butterworth
  • No remote controls
  • Optical Displays: Blue
  • Protection: Red
  • Input Clip: Red
  • Output Clip: Blue/Red
  • Power supply, strength 10mm²
  • Power input connection replacement 1040-57997
  • Speaker cable cross-section 1.5mm²
  • Speaker output connection 4-Pin Molex
  • Heat sink extruded aluminum
  • Operating voltage 9 - 16 VDC
  • Max. current consumption (13.8 V sine wave)
  • 45A @ 4Ω
  • 75A @ 2Ω
  • 100A @ 1Ω
  • Dimensions (H x W x D) 42.8 mm x 108 mm x 213 mm
  • Shipping weight 2.7 kg

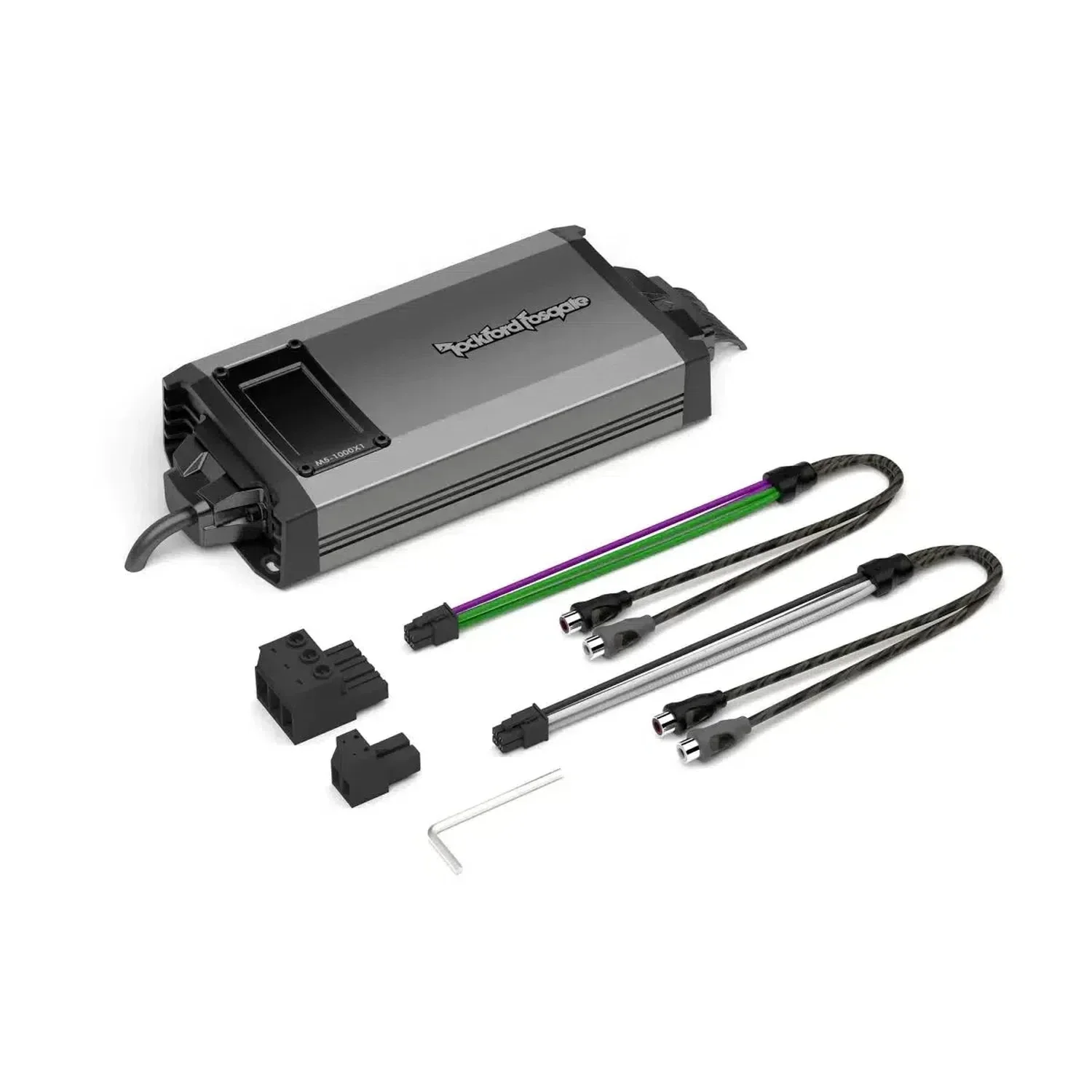

Scope of delivery

  • (1) Tax coverage (1130-75511-01)
  • (1) Extension cable (1130-75505-01)
  • (1) Pwr/Gnd/Rem-Input (1040-61932-01)
  • (1) RCA input cable harness (1560-56458-02)
  • (1) Speaker output connector (1040-56811)
  • (1) Allen key
  • (1) RF sticker
  • (1) PRESET-Warning sticker
  • (1) Performance Testing Certificate
