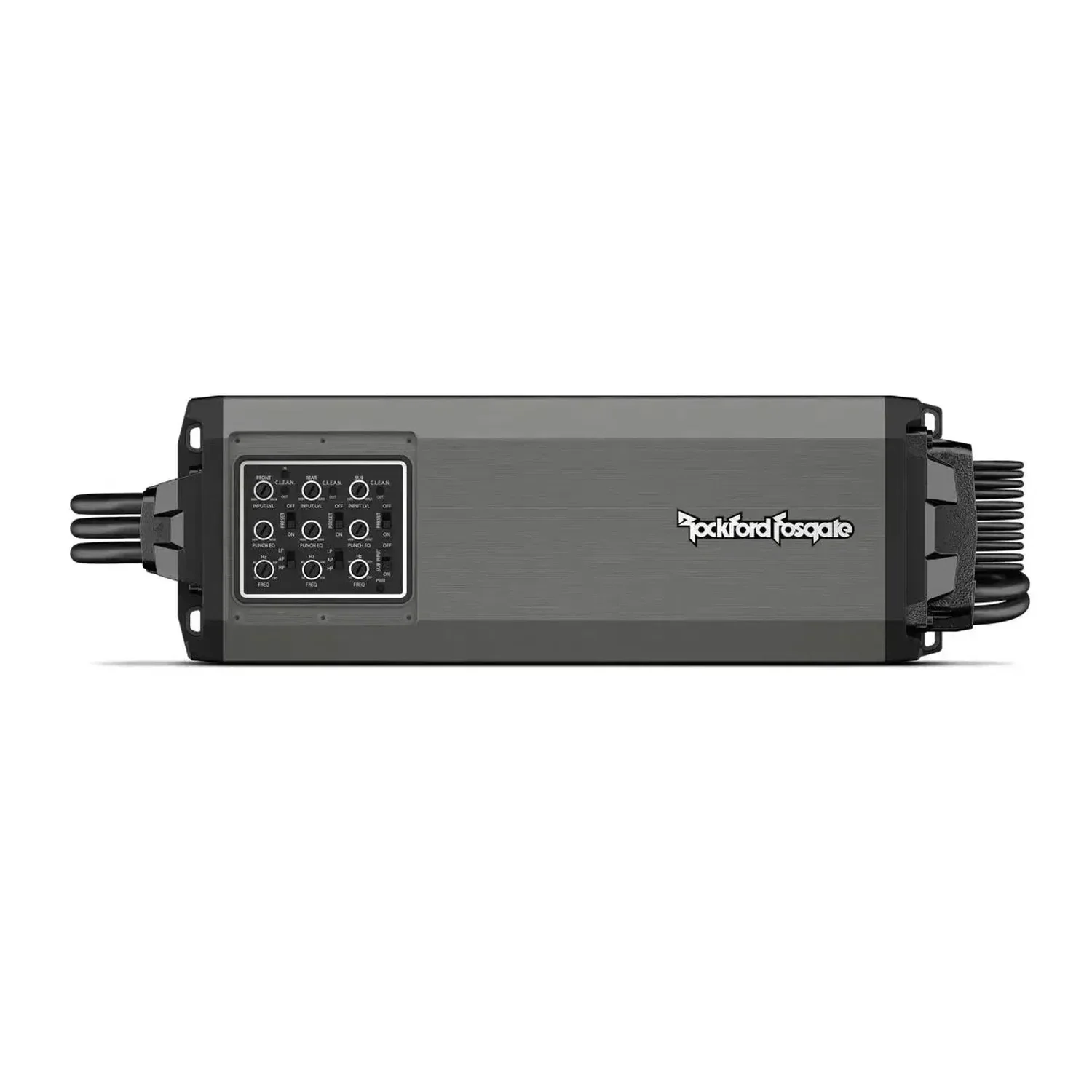

Rockford Fosgate POWER M5-1500X5 5 channel amplifier Marine

€949.00

Quantity

Rockford Fosgate POWER M5-1500X5

Sale info

Technical Features

Element Ready™ design with integrated wiring harness and control cabinet seals
PRESET makes setting up and tuning the amplifier in conjunction with Rockford Fosgate UTV audio kits unnecessary.
Plays all day, is easy to integrate, and lets the music run for a longer time.
C.L.E.A.N. Input/Output Clip Detection and Display LEDs
Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.
Constant Power delivers immediate output power at different impedance loads.
"Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
Inputs for the integration of OEM and aftermarket radios
Top-mounted control panel with Element Ready™ smoked glass cover
Low impedance stability
Proprietary Class-AD technology enables the amplifier to deliver more power with lower power consumption.
Class-BD technology offers 75-80% efficiency compared to conventional Class A/B designs.
Discrete surface mounting technology with 1% tight tolerances for high efficiency and reduced crosstalk
'MESHA 4 reduces MOSFET temperatures, lowers distortion, increases durability, and extends the lifespan of devices.'
The insulation of the housing from the mounting points significantly reduces the potential introduction of vehicle noise.
Symmetrical differential inputs eliminate noise picked up by signal cables.
Remote Out Function when using high-level inputs

Technical Data

Cta-2006-compliant
Number of channels: 5
Total power (sum of rated power): 1500 watts
Rated power (RMS continuous power): CTA-2006 guidelines, ≤1.0% THD+N
100W x 4 + 400W x 1 @ 4Ω
100 W x 4 + 600 W x 1 @ 2Ω
N/A x 4 + 600W x 1 @ 1Ω
200W x 2 + N/A x 1 @ 4Ω Bridged
Dynamic Performance (PVC/PowerCube®) CTA-2006 Guidelines
125W x 4 + 400W x 1 @ 4Ω
200W x 4 + 700W x 1 @ 2Ω
N/A x 4 + 700W x 1 @ 1Ω
400W x 2 + N/A x 1 @ 4Ω Bridged
Bridgable: Yes
Frequency response: 10Hz - 50kHz
Input sensitivity: 150mVrms - 12Vrms
Circuit topology: Class-AD (front/rear channels), Class-BD (sub-channel)
Efficiency (Average): >75%
Total Harmonic Distortion (THD+Noise): <0.2% THD+N @ 1 Watt
Signal input: Low level: 2 RCA, High level: 4-pin Molex
Sound control: Front/Back: 0-14dB @ 12.5kHz, Front/Rear: 0-18dB at 45Hz, Sub: 0-18dB at 45Hz
Crossover Controller: High-pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, Low-pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth, Infrasound: 30 Hz @ 12dB/Octave Butterworth
Remote controls: None
Optical indicators: Blue, Protection: Red, Input clip: Red, Output clip: Blue/Red
Power cable cross-section: 25mm²
Current input connection: Compression terminal block
Speaker cable cross-section: 1.5mm²
Speaker output connection: 4-Pin Molex
Heat sink: Extruded aluminum
Operating voltage: 9 - 16 VDC
Max. current draw (13.8 V sine wave): 90 A @ 4Ω/4Ω, 140 A @ 2Ω/2Ω, 170 A @ 2Ω/1Ω, 150 A @ 4Ω bridged
Dimensions (H x W x D): 42.8 mm x 108 mm x 311.4 mm
Does not include wiring harnesses

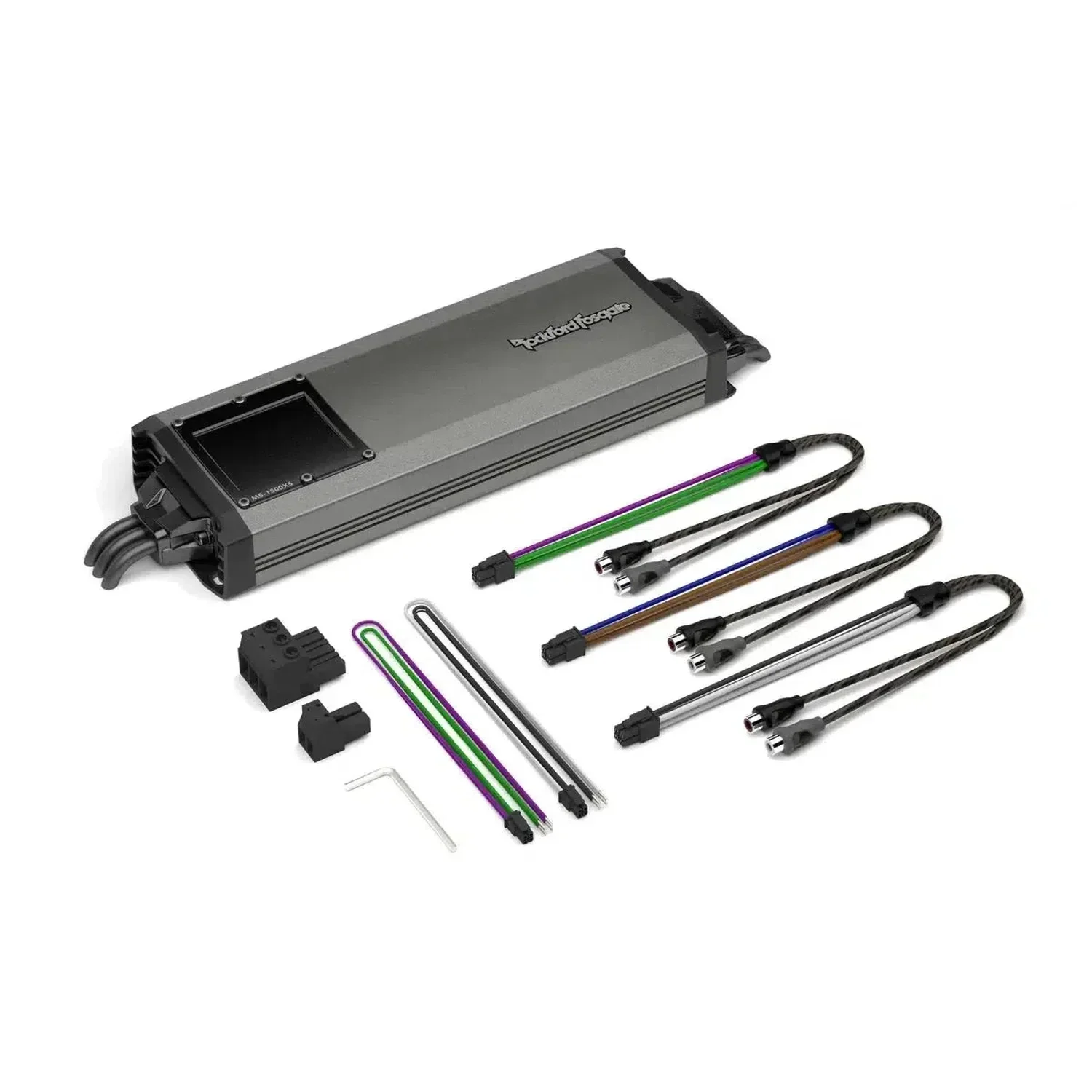

Scope of delivery
