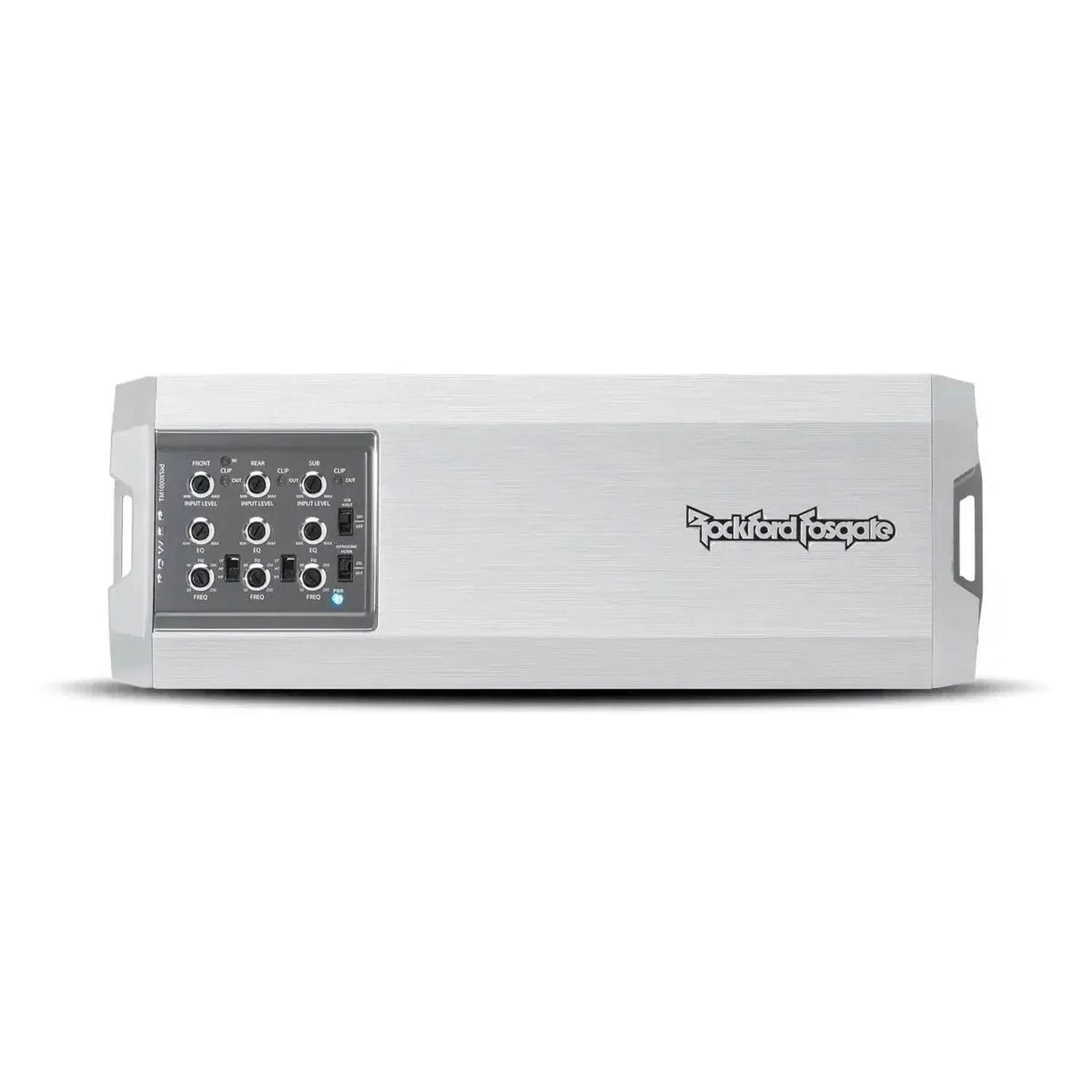

Rockford Fosgate POWER TM1000X5AD Marine

Rockford Fosgate POWER TM1000X5AD Marine
€899.00

Rockford Fosgate POWER TM1000X5AD Marine



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • Rockford Fosgate's own Class AD technology
  • AP remote out function when using high-level inputs
  • Class-BD-Technology
  • 4/2 Ohm Multi-impedance Constant Current
  • 2013 PLC2 remote controllable
  • Differential inputs with automatic switch-on function for high levels
  • Top-mounted controls
  • C.L.E.A.N. Input/Output Clip Detection and Display LEDs
  • Double fan-cooled
  • Real-time thermal monitoring
  • Two extruded heat sinks
  • All other Rockford protection systems
  • CEA-2006 and CE compliant
  • Discrete Surface Mount Technology
  • Marine-grade, two-part epoxy coating for printed circuit boards

Technical Data

  • Cta-2006-compliant
  • Number of channels: 5
  • Total power (sum of rated power): 1000 watts
  • Rated power (RMS continuous power): 100 Watts x 4 + 400 Watts x 1 @ 4Ω
  • 100 Watts x 4 + 600 Watts x 1 @ 2Ω
  • N/A Watt x 4 + 600 Watt x 1 @ 1Ω
  • 200 Watts x 2 + N/A Watts x 1 @ 4Ω bridged
  • Dynamic power (PVC/PowerCube®): 138 Watts x 4 + 487 Watts x 1 @ 4Ω
  • 118 Watts x 4 + 748 Watts x 1 @ 2Ω
  • N/A Watt x 4 + 663 Watt x 1 @ 1Ω
  • 225 Watt x 2 + N/A Watt x 1 @ 4Ω Bridged
  • Bridgable: Yes
  • Front connections: Left (+) Right (-)
  • Rear connections: Left (+) Right (-)
  • Frequency response: 20Hz - 20kHz
  • Input sensitivity: 150 mV to 12 V
  • Circuit topology: Class AD + Class BD (Sub)
  • Efficiency (Average): >85%
  • Total Harmonic Distortion (Thd+Noise)
  • Signal input Front High/Low input: 4-pole wiring harness
  • Rear High/Low Input: 4-Pin Wiring Harness
  • Entrance switch: 2CH/4CH
  • (2CH: Sub-signal derived from the front left input)
  • Sound control Front/Rear Treble: 0 to +14 dB at 12.5 kHz (HP mode)
  • Bass front/rear: 0 to +18 dB at 45 Hz (LP mode)
  • Sub: 0 to +18 dB at 45 Hz
  • High-pass: 50Hz - 250Hz @ 12dB/Octave
  • Low-pass: 50Hz - 250Hz @ 12dB/Octave
  • Subwoofer: 50Hz - 250Hz @ 12dB/Octave
  • Infrasound: 28Hz @ 12dB/Octave
  • Butterworth adjustment for all filters
  • "Remote controls: Optional PLC2 offers punch-level control"
  • Optical Indicators: Blue LED
  • Protection: Red LED
  • Input Clip: Red LED
  • Output Clip: Blue/Purple/Red LED
  • LED Color Legend:
  • 1BLAU: <0.5% THD
  • 2VIOLETT: 1% THD
  • 3ROT: 10%+ THD
  • Power cable cross-section: 25mm²
  • Current input connection: Removable compression clamp
  • Speaker cable cross-section:
  • Front/Back: 1.5mm²
  • Subwoofer: 6mm²
  • Speaker output connection front: 4-pin cable harness
  • Back: 4-pole wiring harness
  • Subject: Removable Compression Clamp
  • Double fan-cooled
  • Heat sink: Extruded aluminum
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse (not included): 100 A
  • Max. current consumption (13.8 V sine wave): 108 A
  • Dimensions (H x W x D): 4.1 x 10.8 x 30.5 (cm)
