Rockford Fosgate Punch Amplifier-Set PM100X1K Marine

Rockford Fosgate Punch Amplifier-Set PM100X1K Marine
€279.00

Rockford Fosgate Punch Amplifier-Set PM100X1K



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • Patented BTL-operated "FreeLoad" technology
  • Current limiting to protect the main unit for both 4-ohm and 2-ohm configurations.
  • "Takes both B+ and audio signal from the standard speaker outputs of the main device."
  • Utilizes the stored energy of the BTL amplifier to generate a dynamic power of over 100 W.
  • Optional B+ connection for non-standard speaker outputs
  • High-Level Activation
  • Small, unobtrusive housing that allows installation in any location.
  • Selectable 4 and 2 Ohm playback
  • 60, 80 and 100 Hz selectable 12dB/oct HP Butterworth crossover

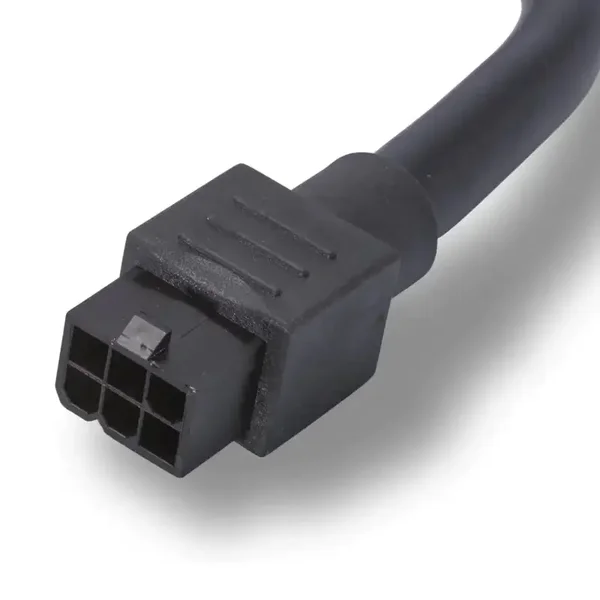

  • Pig Tail connection option for easy installation
  • Extruded aluminum heat sink
  • Soft start
  • Thermal protection
  • Short-circuit and overvoltage protection
  • Discrete Surface Mount Technology

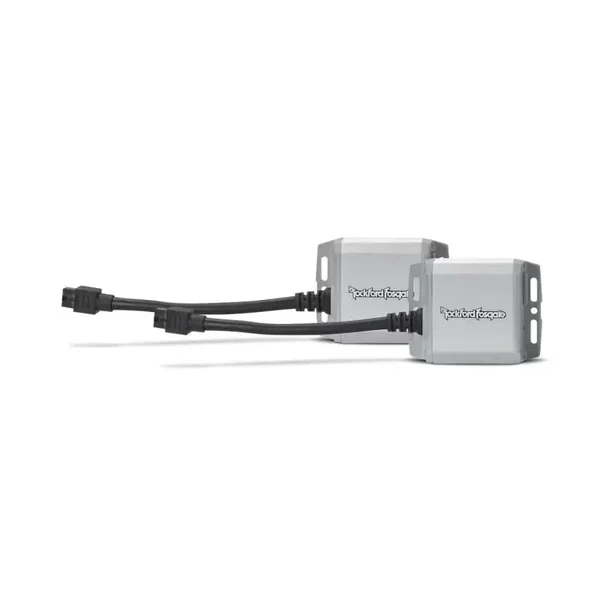

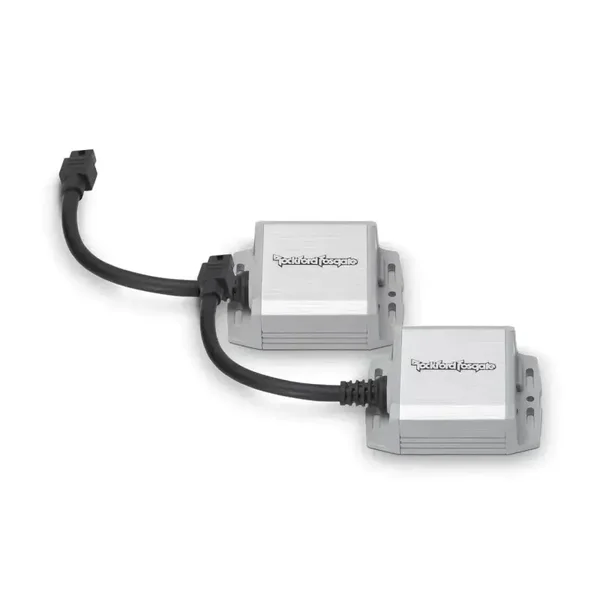

  • Sold in pairs (left/right)

Technical Data

  • Number of channels: 1
  • Total power (sum of rated power): 100 watts
  • Rated power (RMS continuous power):
  • 60 Watt x 1 @ 4-Ohm
  • 100 Watt x 1 @ 2-Ohm
  • Dynamic performance (PVC/PowerCube®):
  • 61 Watt x 1 @ 4-Ohm
  • 109 Watt x 1 @ 2-Ohm
  • Bridgable: No
  • Frequency response: 60Hz to 20kHz +/- 1.0dB
  • Total Harmonic Distortion (THD+Noise):
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
  • Frequency crossover controller High-Pass:
  • Selectable 60Hz, 80Hz, 100Hz @ 12dB/Octave Butterworth
  • Operating voltage: 9 - 16 VDC
  • Average current consumption (13.8 V music)
  • Max. current consumption (13.8 V sine wave)
  • Dimensions (H x W x D): 3.3 x 7.62 x 9.91 (cm)
