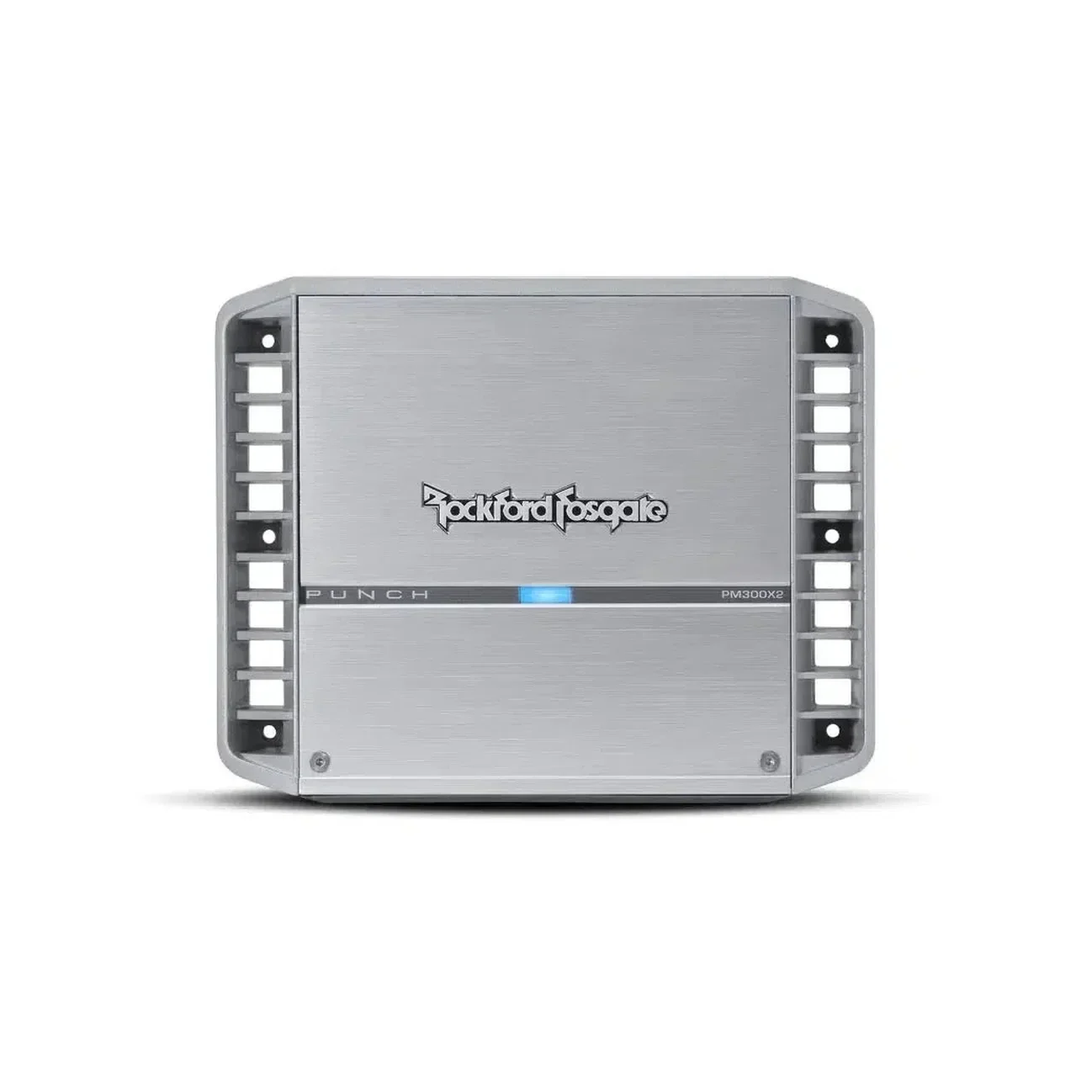

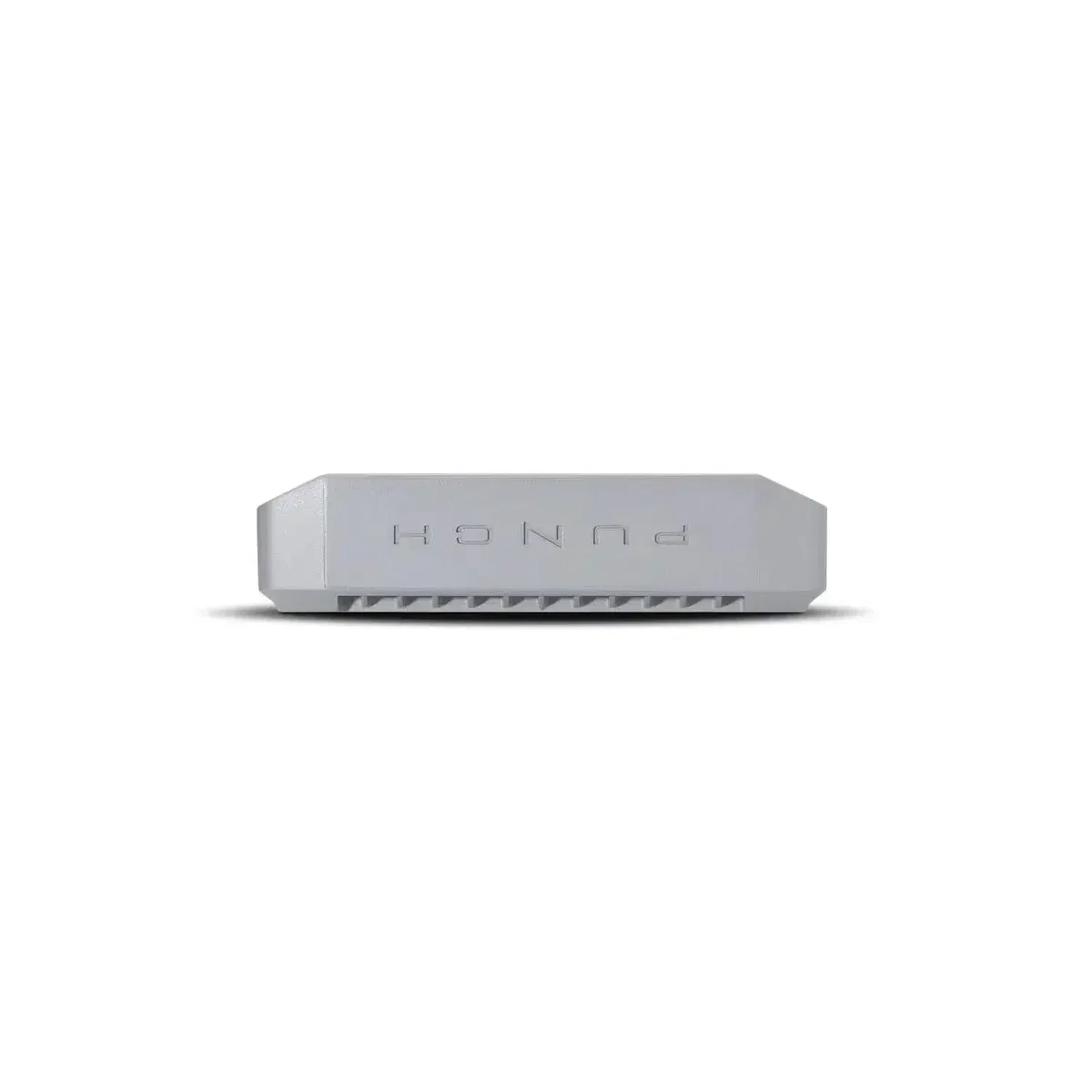

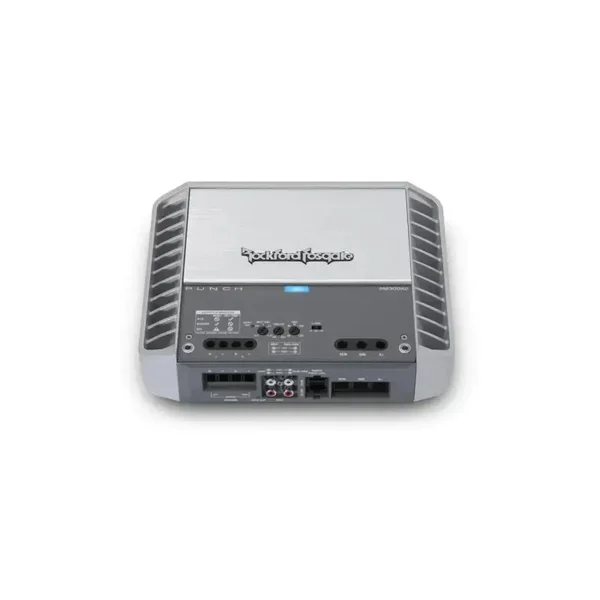

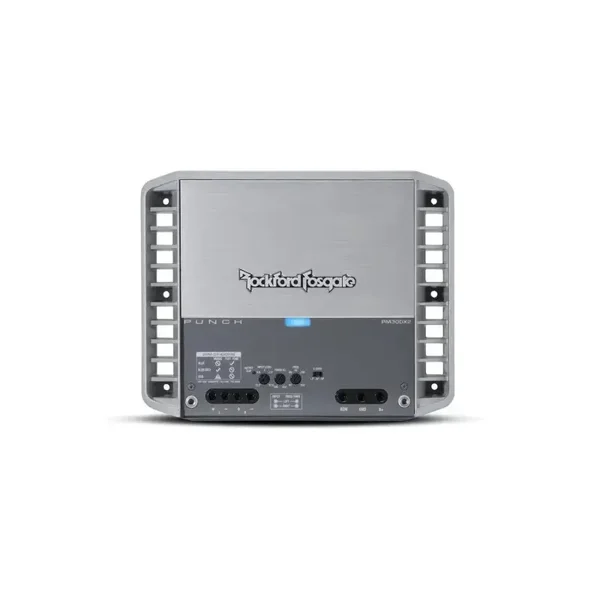

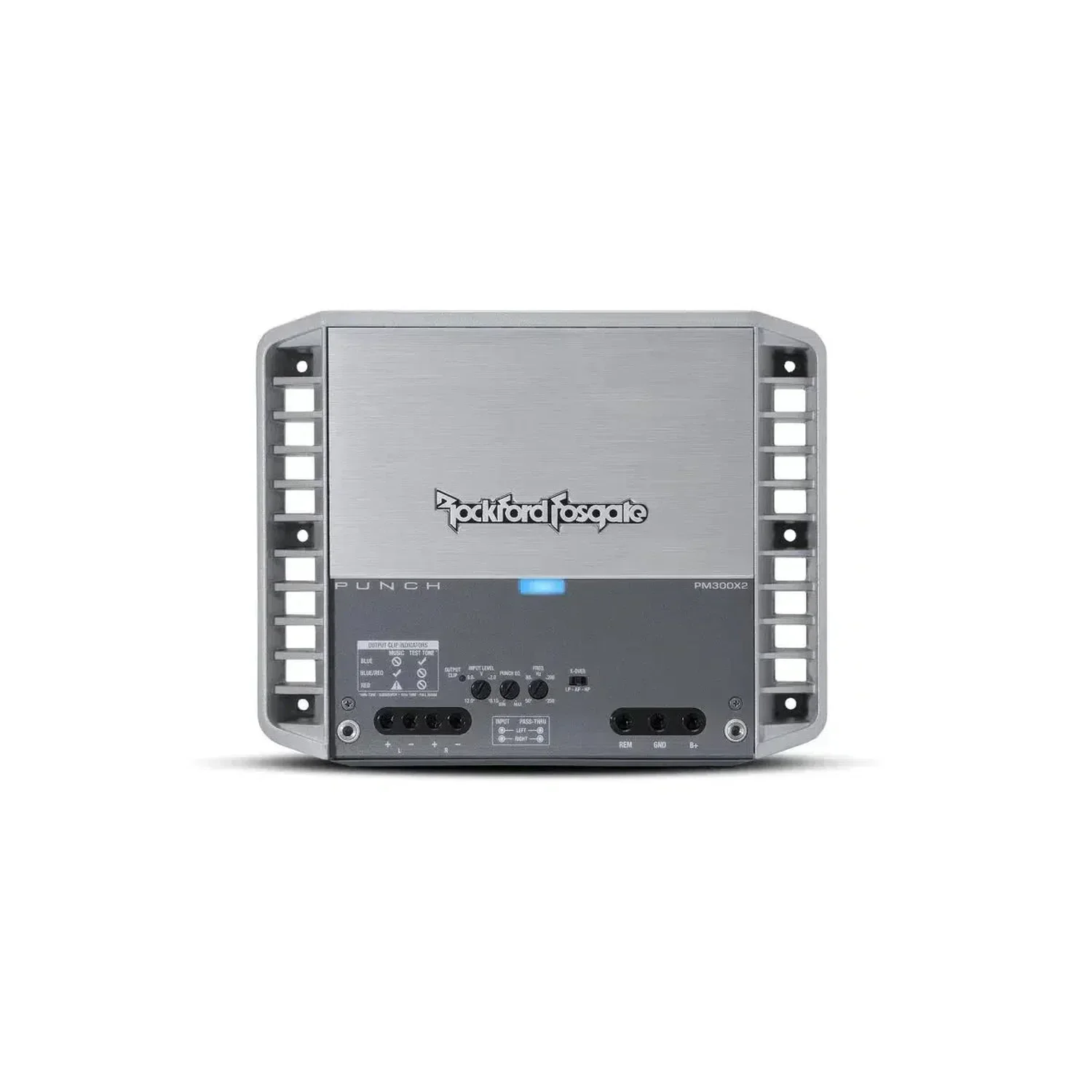

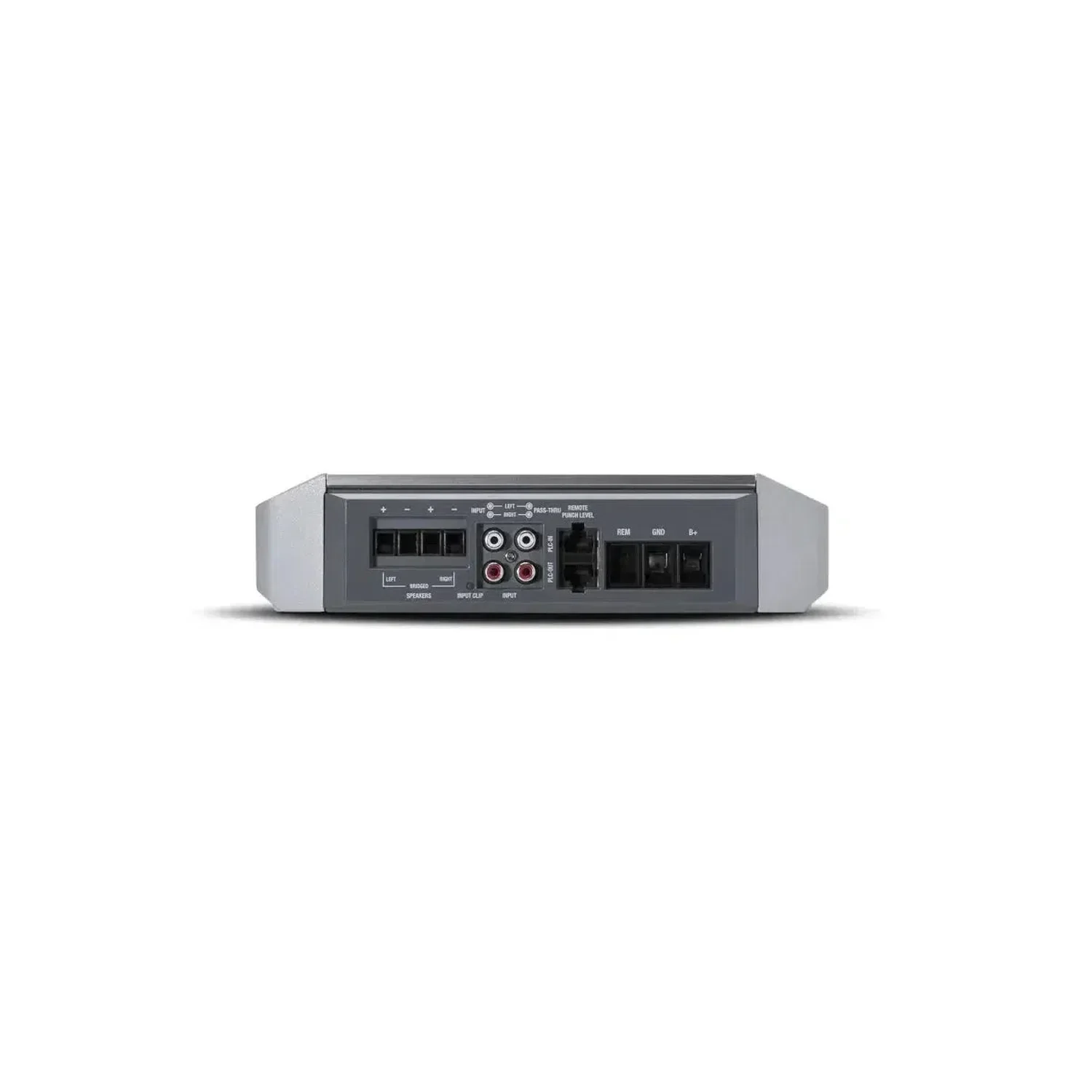

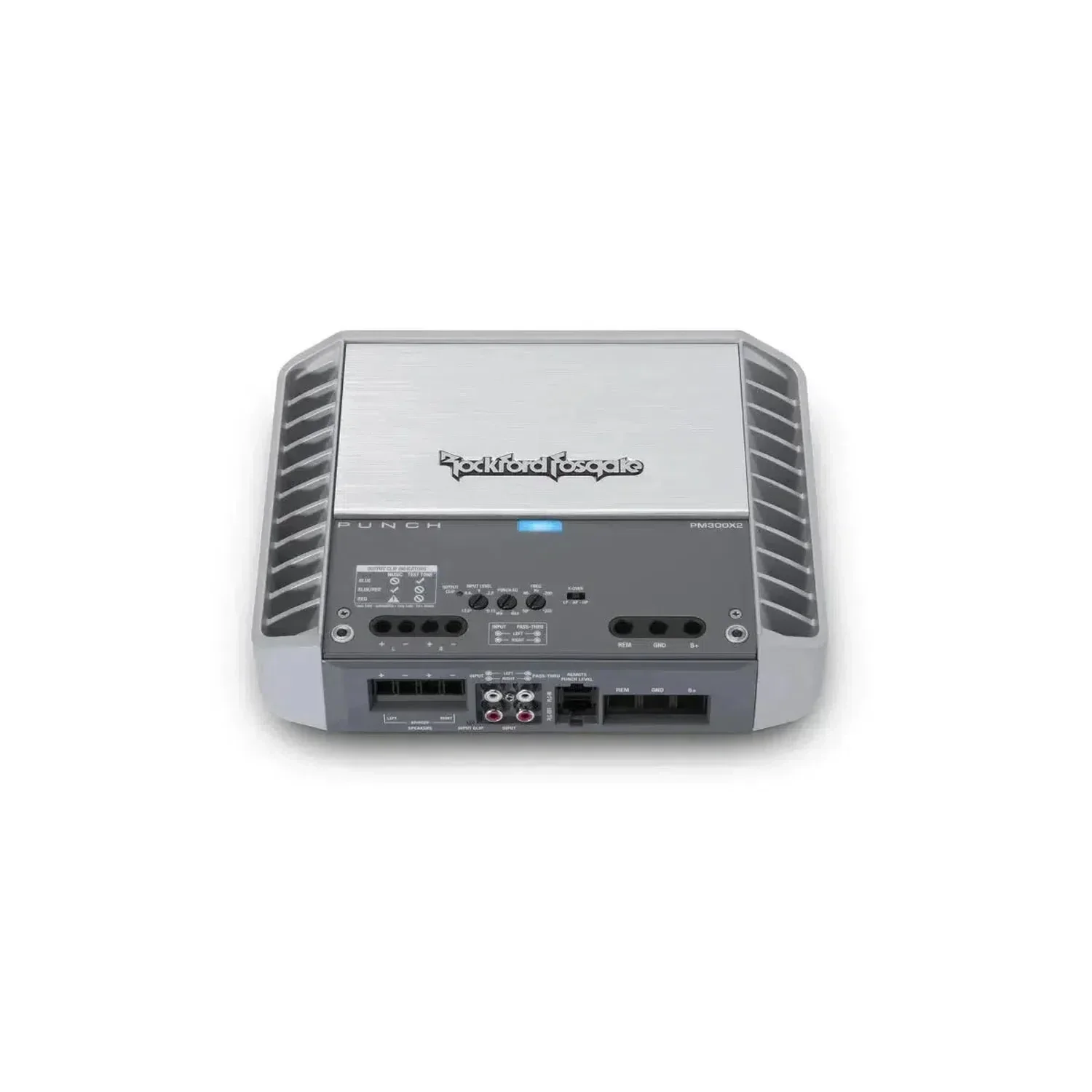

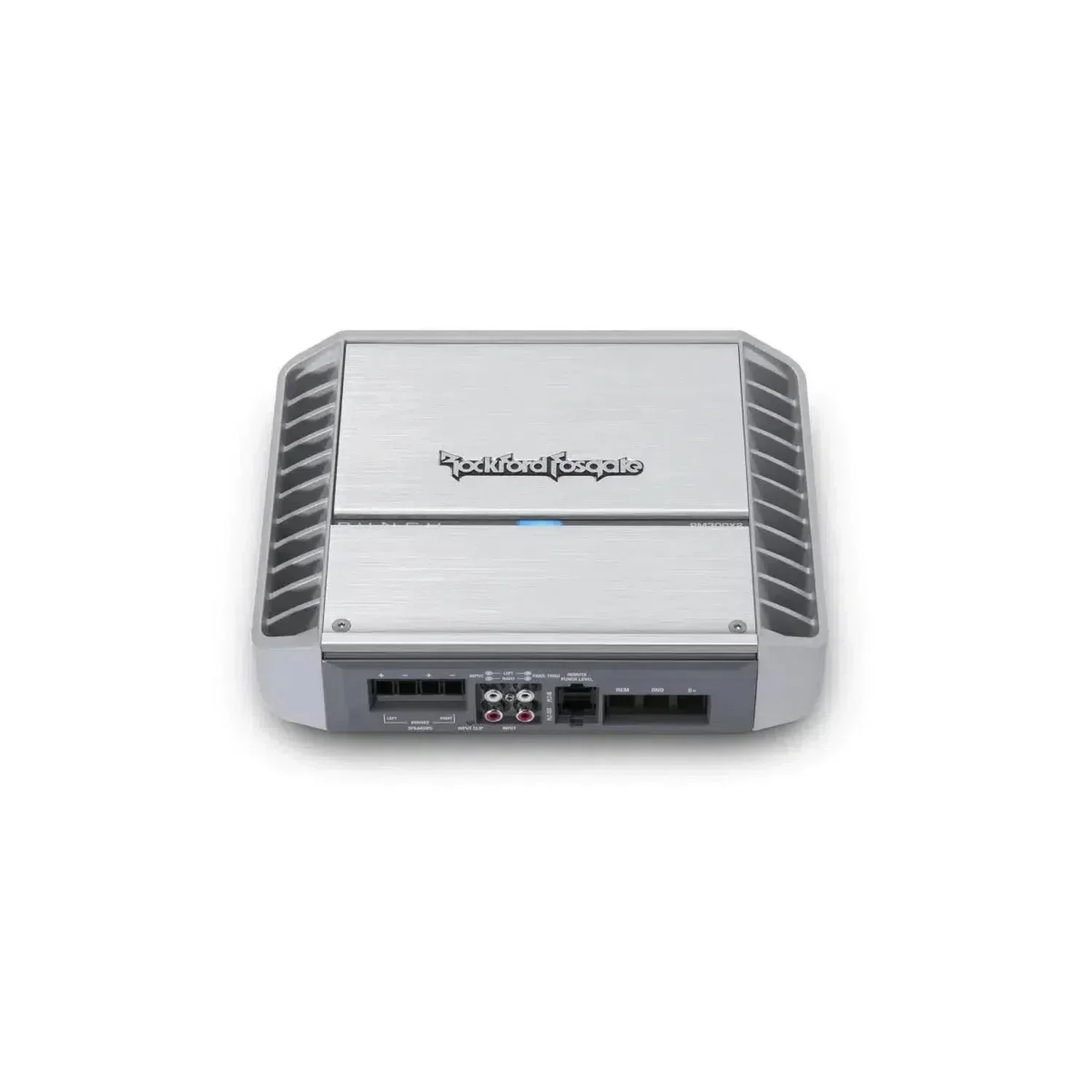

Rockford Fosgate PM300x2 2 channel / mono amplifier Marine

Rockford Fosgate PM300x2 Marine

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Technical Features

• High-level capable input with auto turn-on circuit
• RCA Pass-Through Outputs
• Characteristics of C.L.E.A.N. Attitude
• 12dB/Octave Butterworth Crossover
• Optional remote-controlled Punch Level Control (PLC2) (with input clip display)
• Built-in punch EQ with +18 dB boost at 45 Hz
• Die-Cast Aluminum Heat Sink
• Stealth control panel on the top
• Mute when turning on
• short-circuit protection
• Hardware made of marine-grade stainless steel
• Overcurrent protection
• Two-component epoxy coating of circuit boards in marine quality

Specifications

• Number of channels: 2
• Total power (sum of rated power): 300 Watts
• Rated power (RMS continuous power):
• 100 Watt x 2 @ 4-Ohm
• 150 Watt x 2 @ 2-Ohm
• 300 Watt x 1 @ 4-Ohm bridged
• Dynamic performance (PVC/PowerCube®):
• 120 Watt x 2 @ 4-Ohm 0° Res
• 203 Watt x 2 @ 2-Ohm 0° Res
• Bridgable: Yes
• Frequency response: 20Hz-20kHz
• Input sensitivity: 150 mV - 12 V
• Circuit topology: Class A/B
• Efficiency (average): 69% @ 4-Ohm
• Total Harmonic Distortion (THD + Noise):
• 4-Ohm: <1.0%
• 2-Ohm: <1.0%
• Signal input high/low level: 1 RCA pair
• Signal output Low Level: 1 RCA pair
• Sound control: 0dB to +14dB @ 12.5kHz
• 0dB to +18dB at 45Hz
• Crossover Controller:
• High-pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
• Low-pass: 50Hz - 250Hz @ 12dB/Octave Butterworth
• All-Pass: Yes
• Remote controls: Optional Punch Level Control (PLC2) ready
• Optical Indicators: Power/Protect/Thermal LED
• Input Clip LED: 3
• Output clip LED: 1,2,3
• LED Color Legend:
• 1 BLUE: <0.5% THD
• 2 VIOLET: 1% THD
• 3 ROT: 10%+ THD
• Power connections: 10mm² - 25mm²
• Network input connection: Fixed C-terminal
• Speaker cable cross-section: 1mm² - 10mm²
• Speaker output connection: captive C-clamp
• heat sink
• Operating voltage: 9 - 16 VDC
• Recommended fuse (not included): 50 A
• Average current consumption (13.8 V music): 23 A
• Max. current consumption (13.8 V sine wave): 45 A
• Recommended alternator: 75 A
• Dimensions (H x W x D): 6.05 x 19.71 x 25.04 (cm)
