Rockford Fosgate PM500x2 2 channel / mono amplifier Marine

Rockford Fosgate PM500x2 Marine

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Technical Features

• High-level capable input with auto turn-on circuit
• 12dB/Octave Butterworth Crossover
• RCA Pass-Through Outputs
• With C.L.E.A.N. setup
• Optional punch level control remote control (PLC2) possible (with input clip display)
• Built-in punch EQ with +18 dB boost at 45 Hz
• Cast aluminum heat sink
• Mute function when turning on

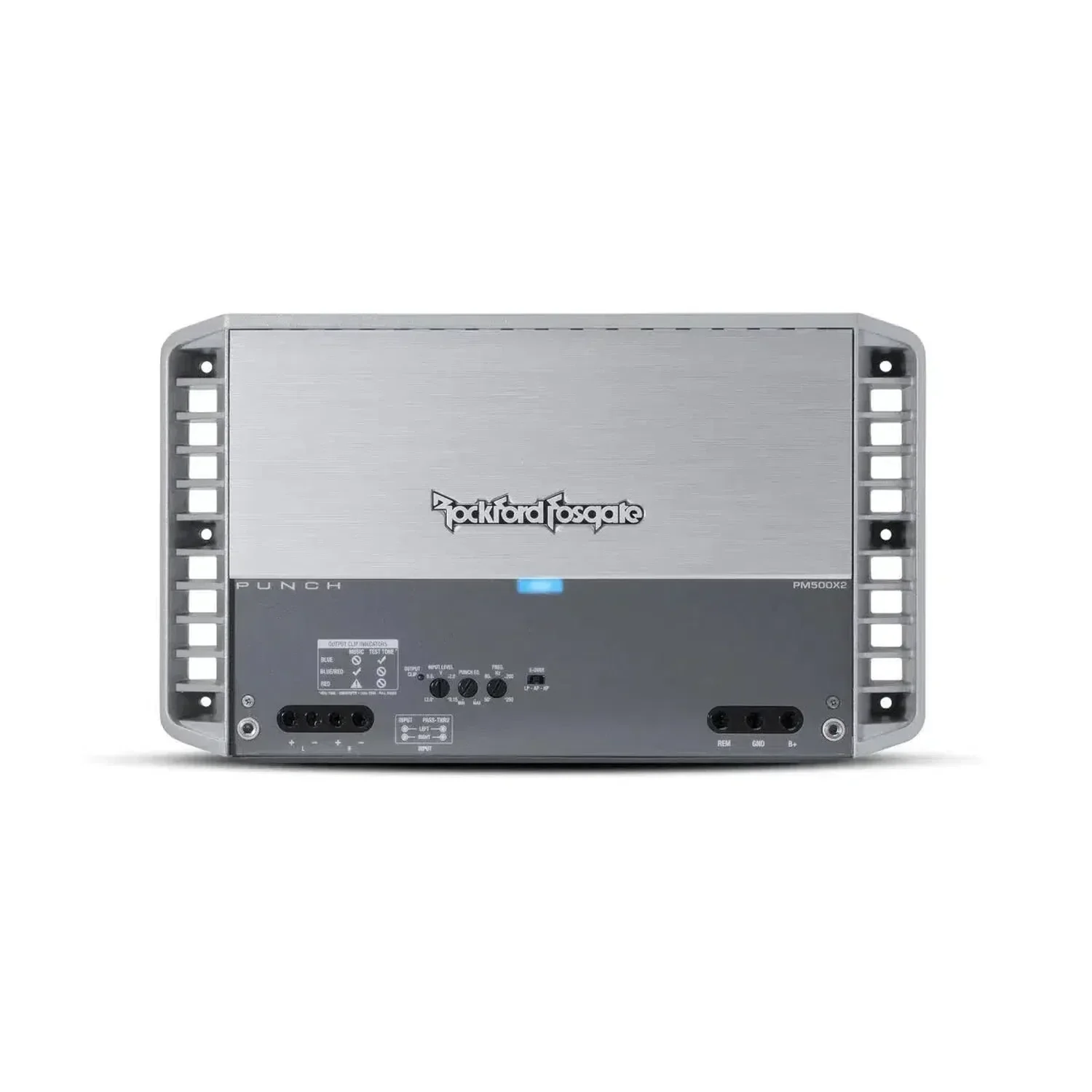

• Stealth control panel on the top
• short-circuit protection
• Hardware made of marine-grade stainless steel
• overcurrent protection
• 2-component PCB with epoxy coating in marine quality

Specifications

• Number of channels: 2
• Total power (sum of rated power): 500 watts
• Rated power (RMS continuous power):
• 150 Watt x 2 @ 4-Ohm
• 250 Watt x 2 @ 2-Ohm
• 500 Watt x 1 @ 4-Ohm bridged
• Dynamic performance (PVC/PowerCube®):
• 223 Watt x 2 @ 4-Ohm 0° Res
• 365 Watt x 2 @ 2-Ohm 0° Res
• Bridgable: Yes
• Frequency response: 20Hz to 20kHz +/- 1.0dB
• Input sensitivity: 150 mV - 12 V
• Circuit topology: Class A/B
• Efficiency (Average): 73% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise):
• 4-Ohm: < 1.0%
• 2-Ohm: < 1.0%
• Signal input high/low level: 1 RCA pair
• Signal output low level: 1 RCA pair
• Sound control Punch EQ2 Bass: 0dB to +18dB at 45Hz and/or
• Punch EQ2 Treble: 0dB to +12dB @ 12kHz
• Function depends on the position of the LP/AP/HP switch.
• Crossover Controller High Pass: 50Hz-250Hz @ 12dB/Octave Butterworth
• Low-pass: 50Hz-250Hz @ 12dB/Octave Butterworth
• All-Pass: Yes
• Remote controls: Optional Punch Level Control (PLC2) ready
• Optical Indicators: LED for Power Supply/Protection/Thermal Management
• Input Clip LED: 3
• Output clip LED: 1,2,3
• LED Color Legend:
• Blue: < 0.5% THD
• Violet: 1% THD
• Root: 10%+ THD
• Power connections: 25mm²
• Network input connection: Fixed C-terminal
• Speaker cable cross-section: 1mm²-10mm
• Speaker output connection: captive C-clamp
• heat sink
• Operating voltage: 9 - 16 VDC
• Recommended fuse (not included): 80 A
• Average current consumption (13.8 V music): 40 A
• Max. current consumption (13.8 V sine wave): 80 A
• Recommended alternator: 75 A
• Dimensions (H x W x D): 6.05 x 19.71 x 33.73 cm
