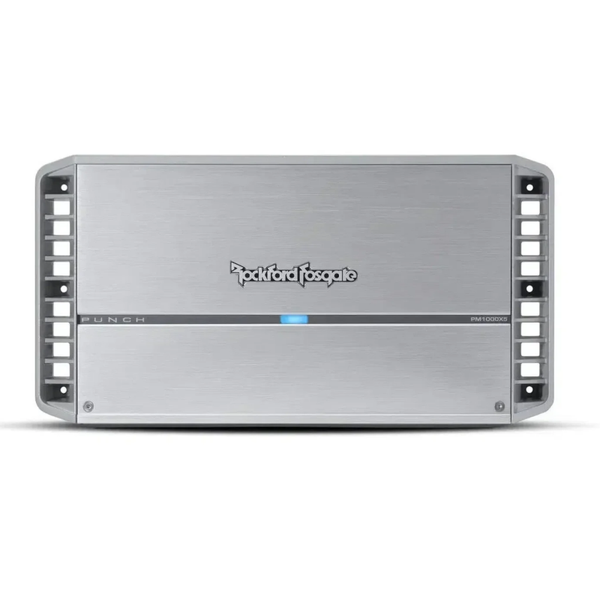

Rockford Fosgate Punch PM1000X5 5 channel amplifier Marine

Rockford Fosgate Punch PM1000X5 5 channel amplifier Marine
€749.00

Rockford Fosgate Punch PM1000X5



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • High-level capable input with auto turn-on circuit
  • Butterworth crossover with 12 dB/octave
  • Integrated punch EQ with +18dB boost at 45Hz
  • Characteristics of C.L.E.A.N. Attitude
  • Optional punch level control remote control (PLC2) ready (with input clip display)
  • Mute on power on

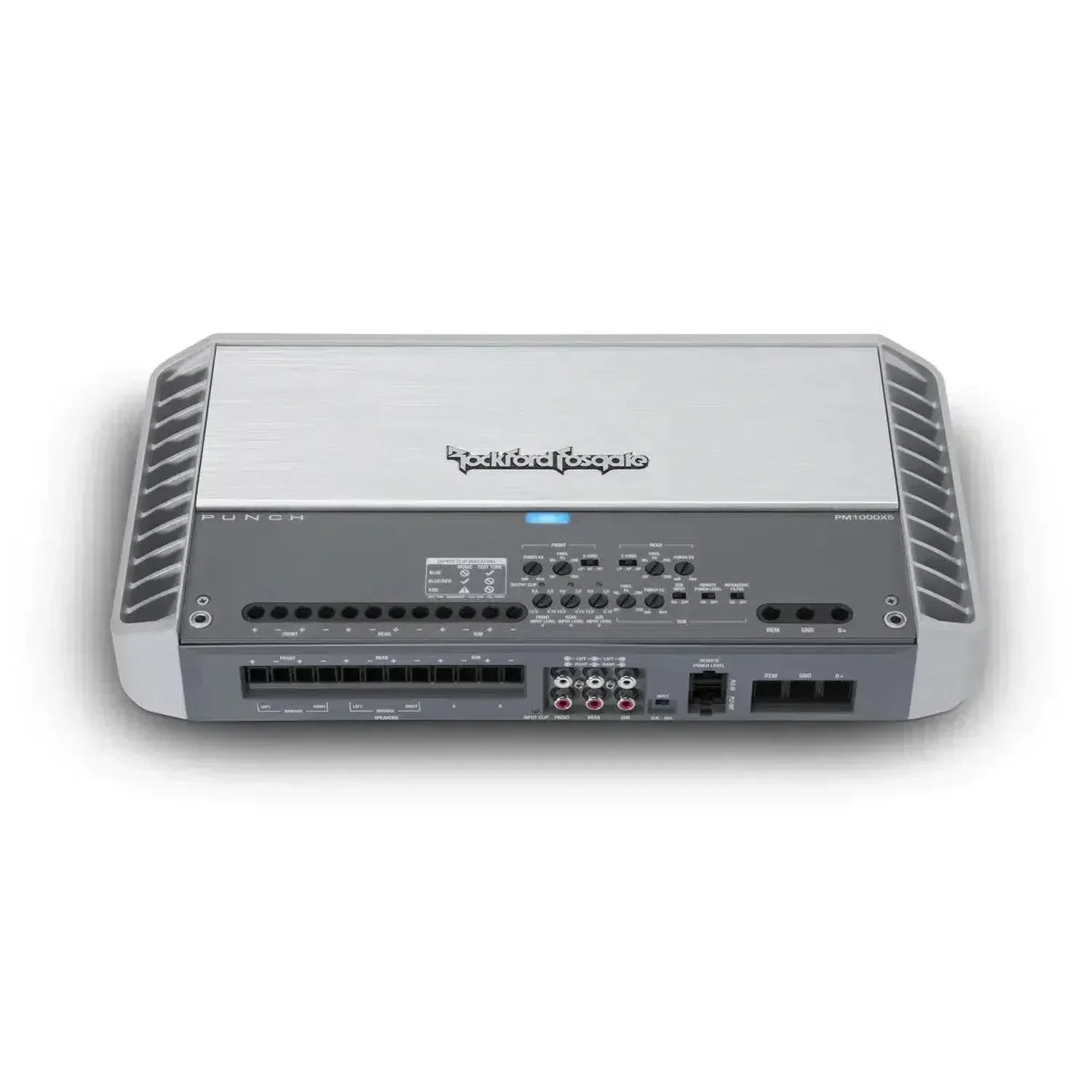

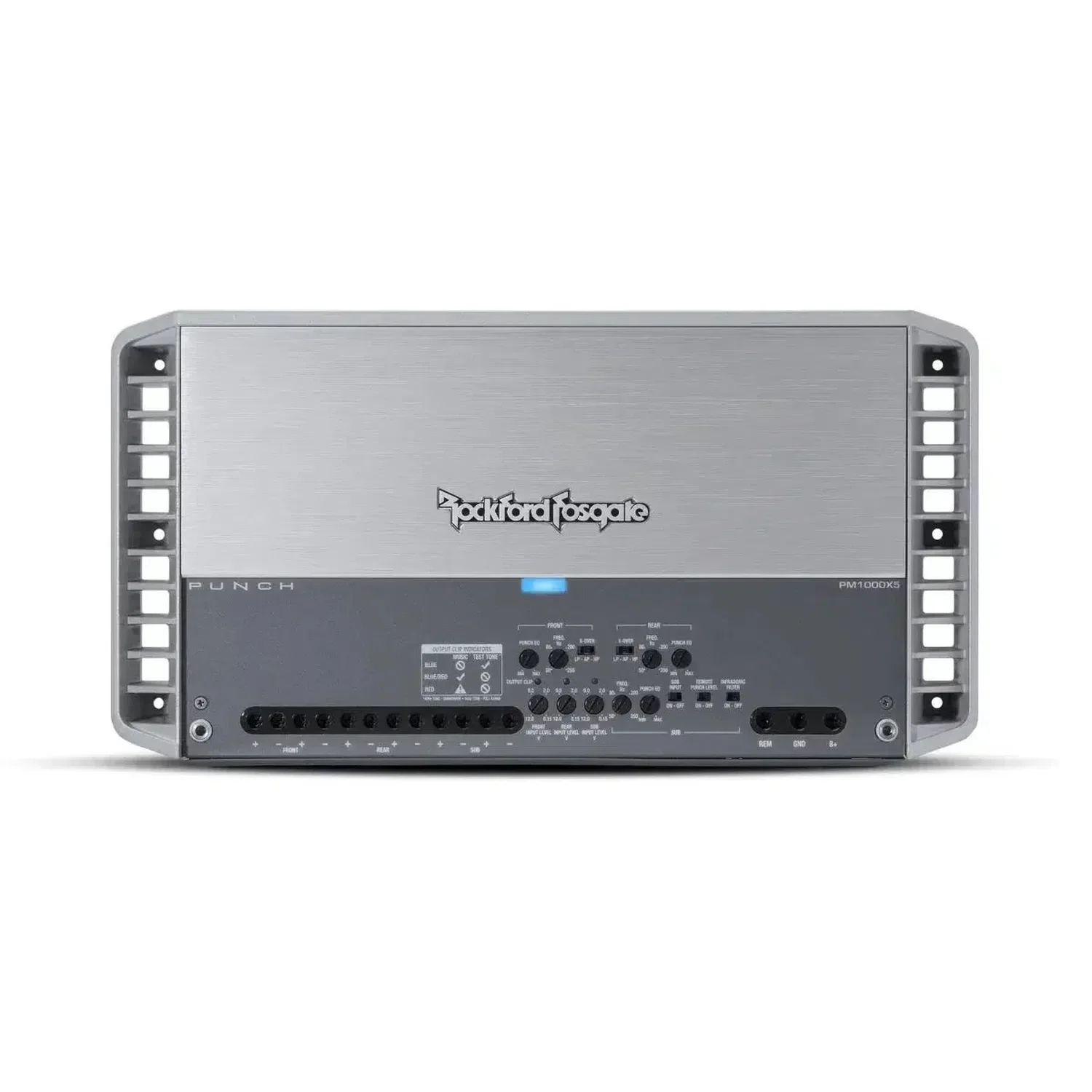

  • Stealth control panel on the top
  • Overcurrent protection
  • Die-Cast Aluminum Heat Sink
  • short-circuit protection
  • Two-component epoxy coating of circuit boards in marine quality
  • Hardware made of marine-grade stainless steel
  • Infrasound filter
  • 2/4 Kanal Entrance Switch

Technical Data

  • Number of channels: 5
  • Total power (sum of rated power): 1000 watts
  • Rated power (RMS continuous power):
  • 75 Watt x 4 + 150 Watt x 1 @ 4-Ohm
  • 125 Watt x 4 + 300 Watt x 1 @ 2-Ohm
  • 500 Watt @ 1-Ohm
  • Dynamic power:
  • (PVC/PowerCube®) 115 Watt x 4 + 299 Watt x 1 @ 4-Ohm 0° Res
  • 190 Watt x 4 + 540 Watt x 1 @ 2-Ohm 0° Res
  • 863 Watt x 1 @ 1-Ohm 0° Res
  • Bridgable: Yes (front/rear channels)
  • Frequency response Front/Rear: 20Hz - 20kHz +/-3dB
  • Subwoofer: 20Hz - 500Hz +/-3dB
  • Input sensitivity: 150 mV - 12 V
  • Circuit topology: Class A/B + Class BD (Sub)
  • Efficiency (Average) Front/Rear: 66% @ 4-Ohm
  • Sub-channel: 80% at 4-Ohm
  • Total Harmonic Distortion (THD+Noise) <1.0%
  • Signal input: Hi/Low-Level input
  • Input switch: 2/4-channel input
  • High/Low Level: 3 RCA Pairs
  • Sub: Front/Sub Entrance Switch
  • Tone control Sub: 0dB to +18dB @ 45Hz
  • Crossover front: 50Hz - 250Hz high-pass at 12dB/octave
  • Back: 50Hz - 250Hz High-pass @ 12dB/Octave
  • Sub Low-Pass: 50 Hz - 250 Hz
  • Subject: 28Hz Infrasound Filter @ 12dB/Octave
  • Remote controls: Optional Punch Level Control (PLC2) ready
  • Optical Indicators: Power/Protect/Thermal LED
  • Input Clip LED: 3
  • Output clip LED: 1,2,3
  • LED Color Legend:
  • 1 BLUE: <0.5% THD
  • 2 VIOLET: 1% THD
  • 3 ROT: 10%+ THD
  • Power connection: 25mm²
  • Power input connection: Block
  • Speaker cable: cross-section 4mm²
  • Speaker output: Connector Block
  • heat sink
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse (not included): 150 A
  • Average current consumption (13.8 V music): 75 A
  • Max. current consumption (13.8 V sine wave): 150 A
  • Recommended alternator: 100 A
  • Dimensions (H x W x D): 6.05 x 19.71 x 38.18 (cm)
