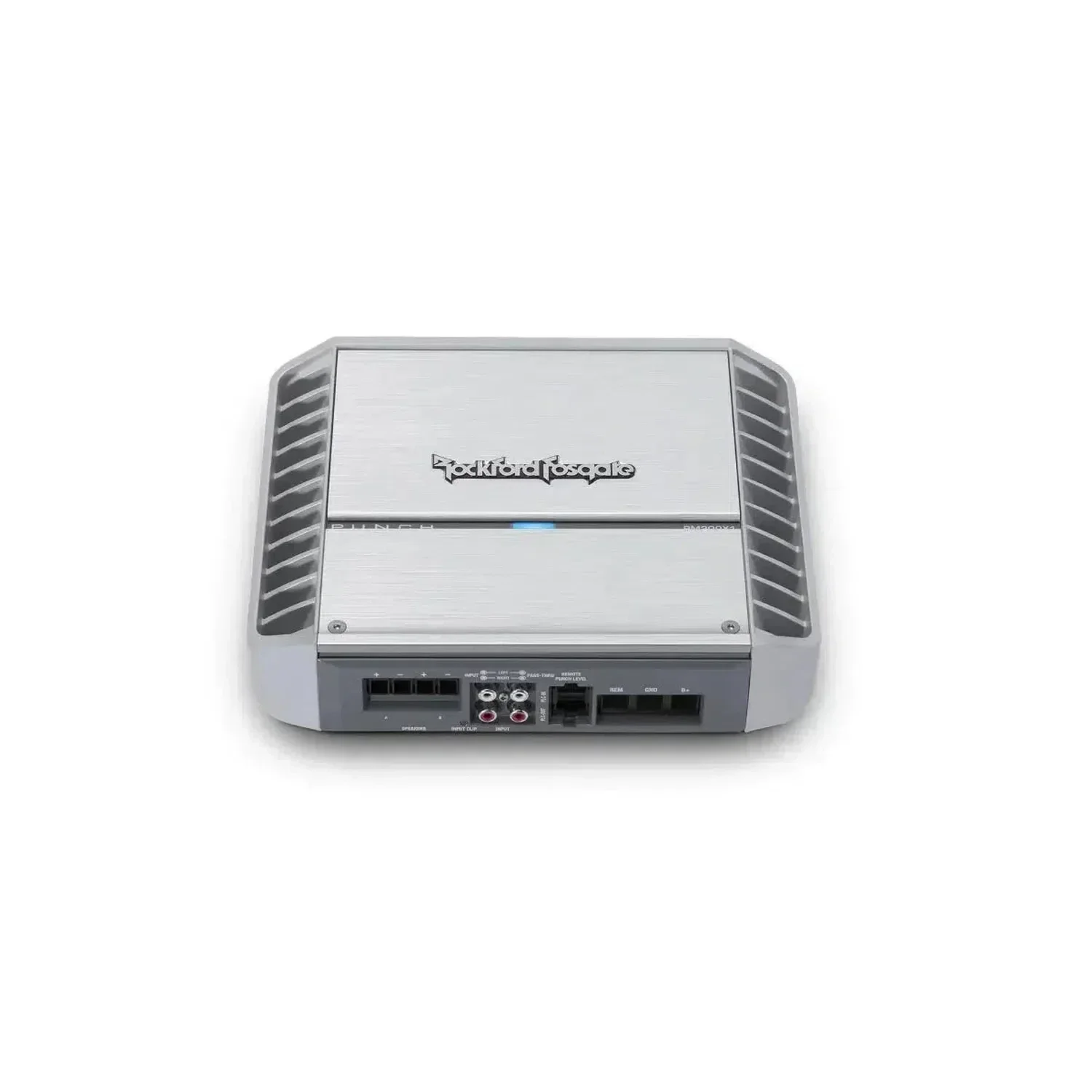

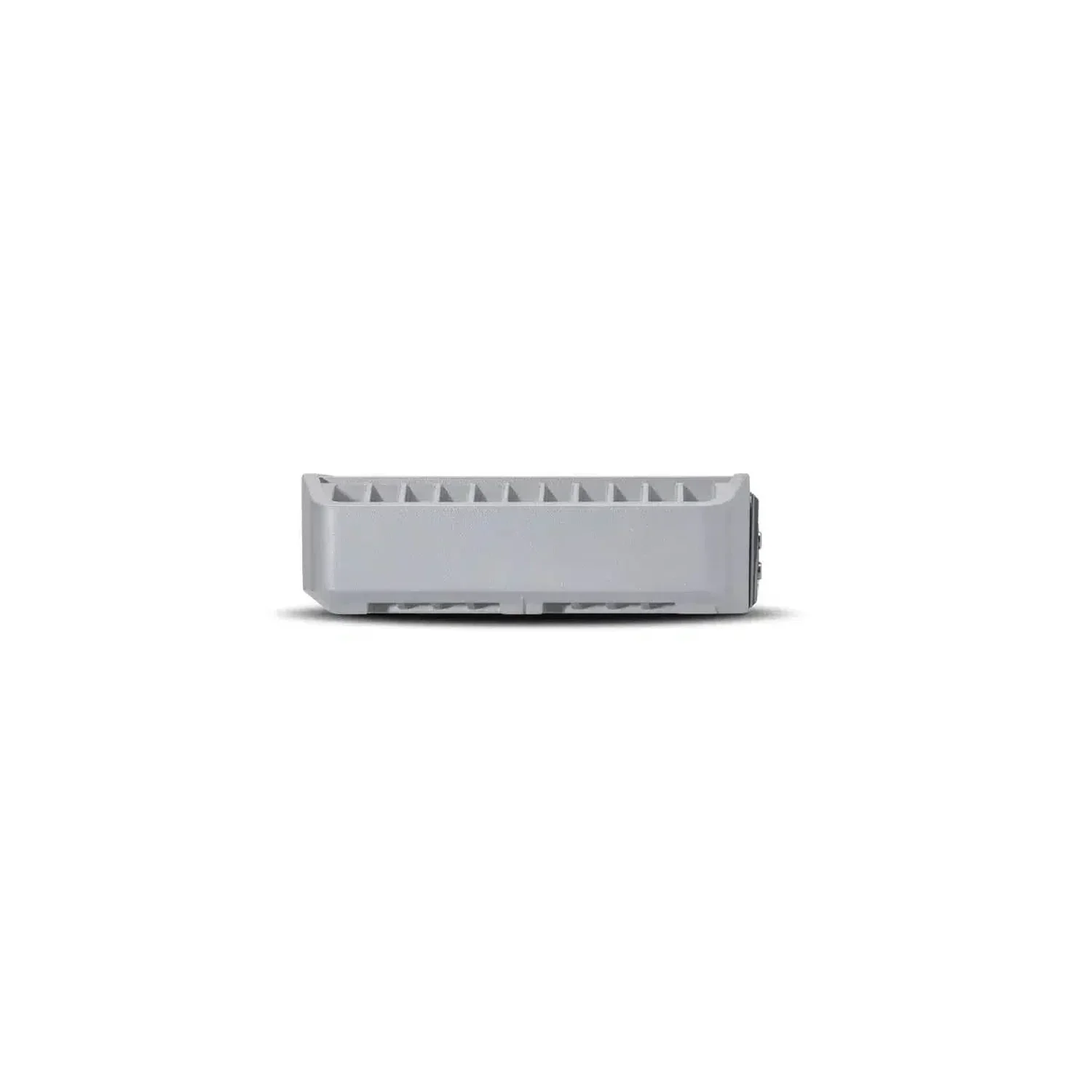

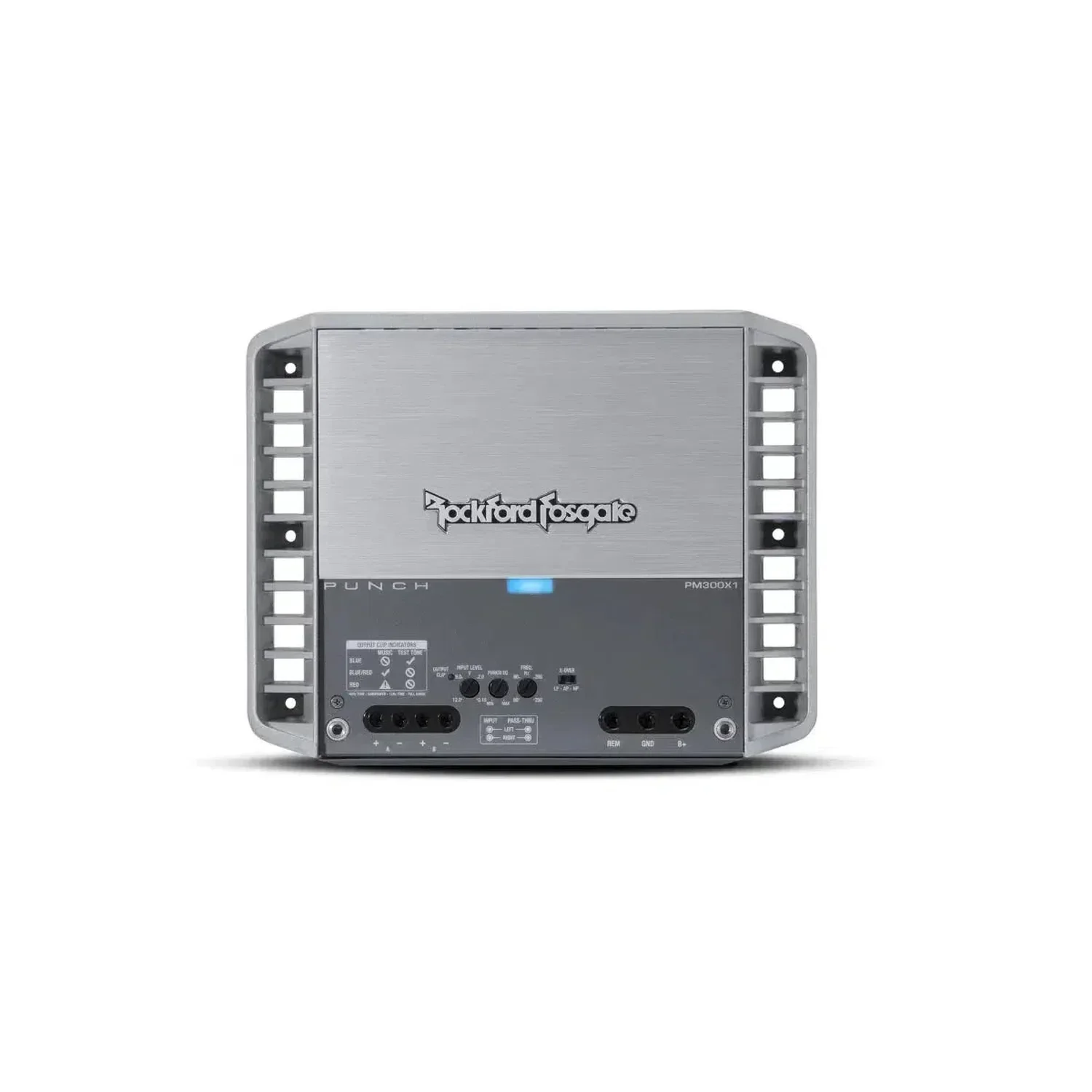

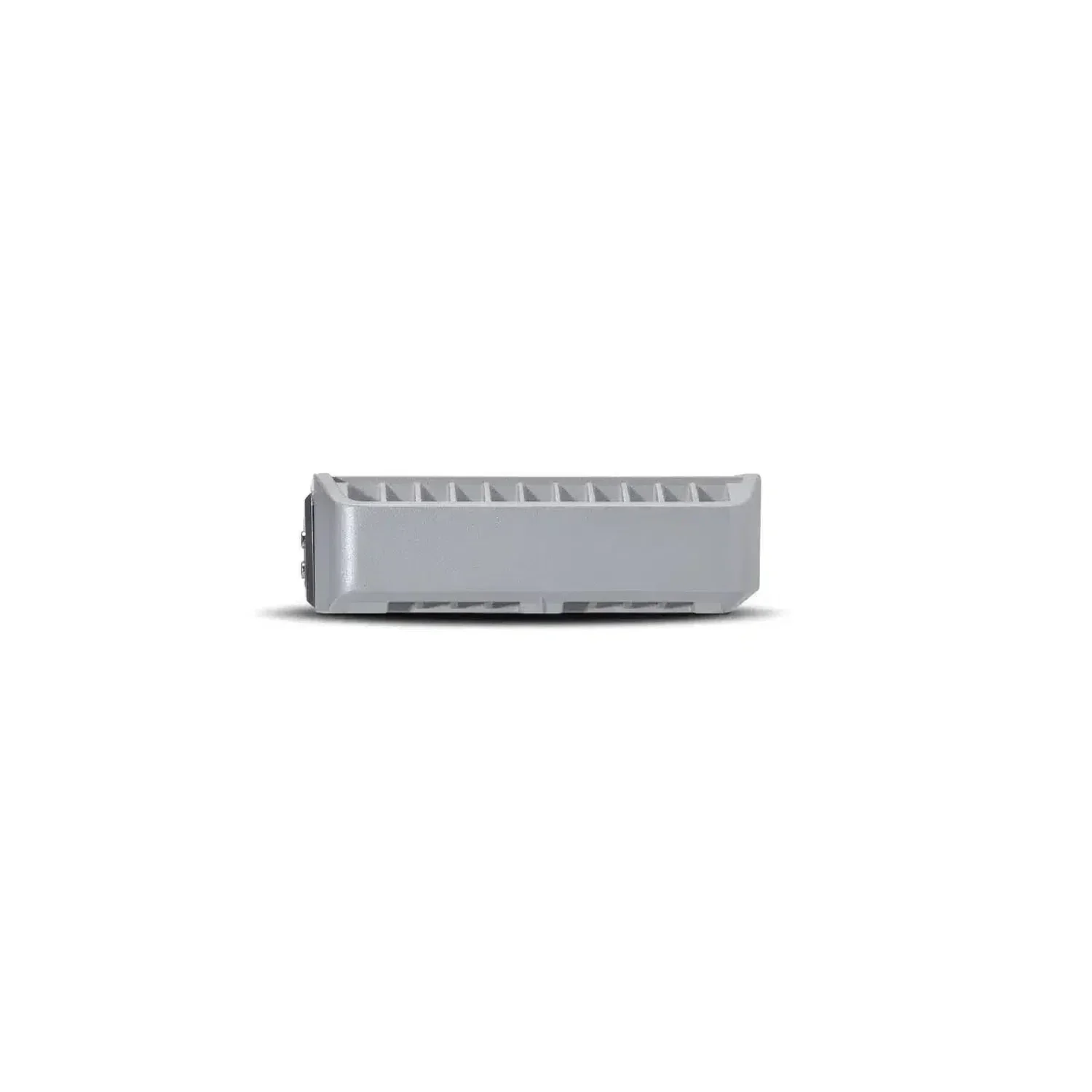

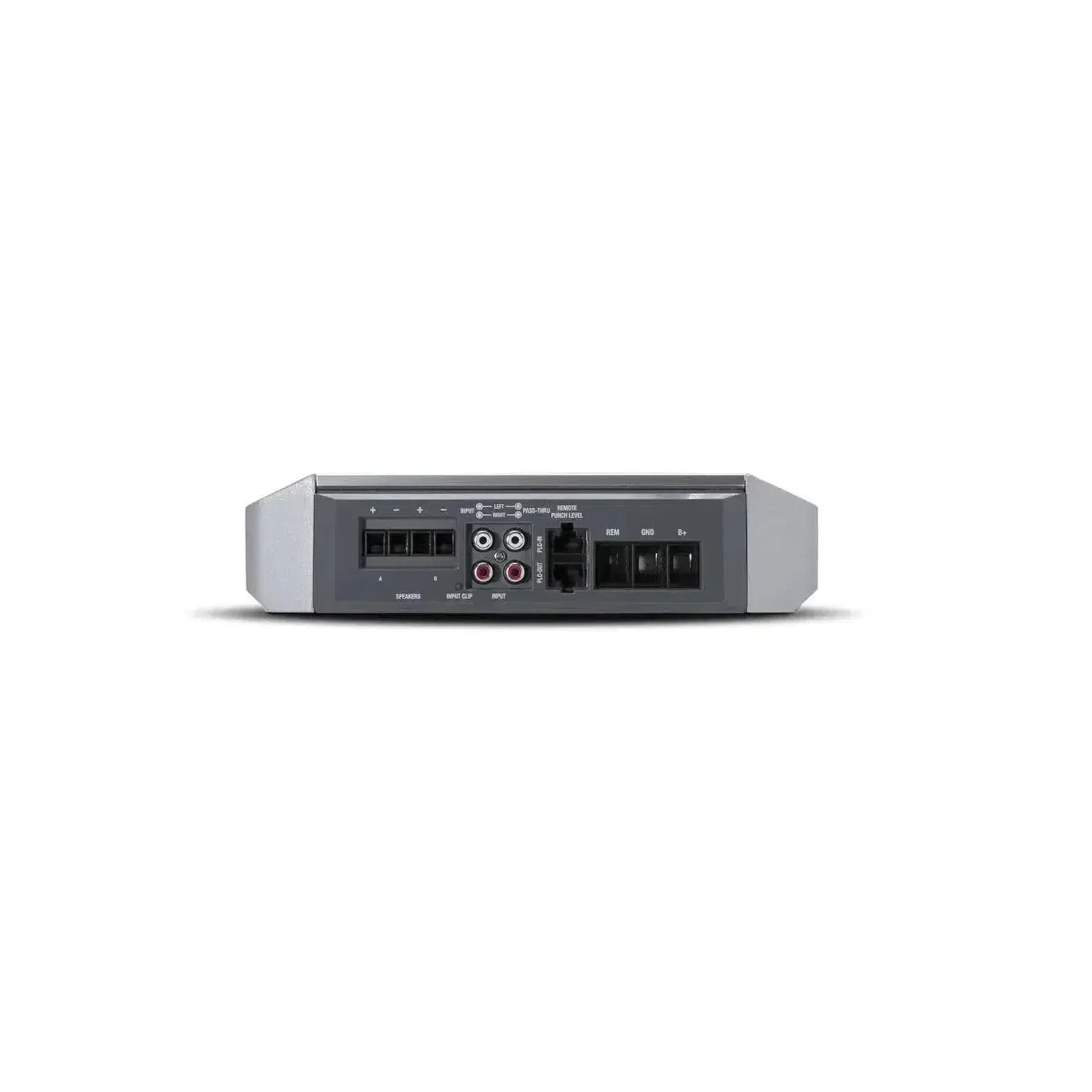

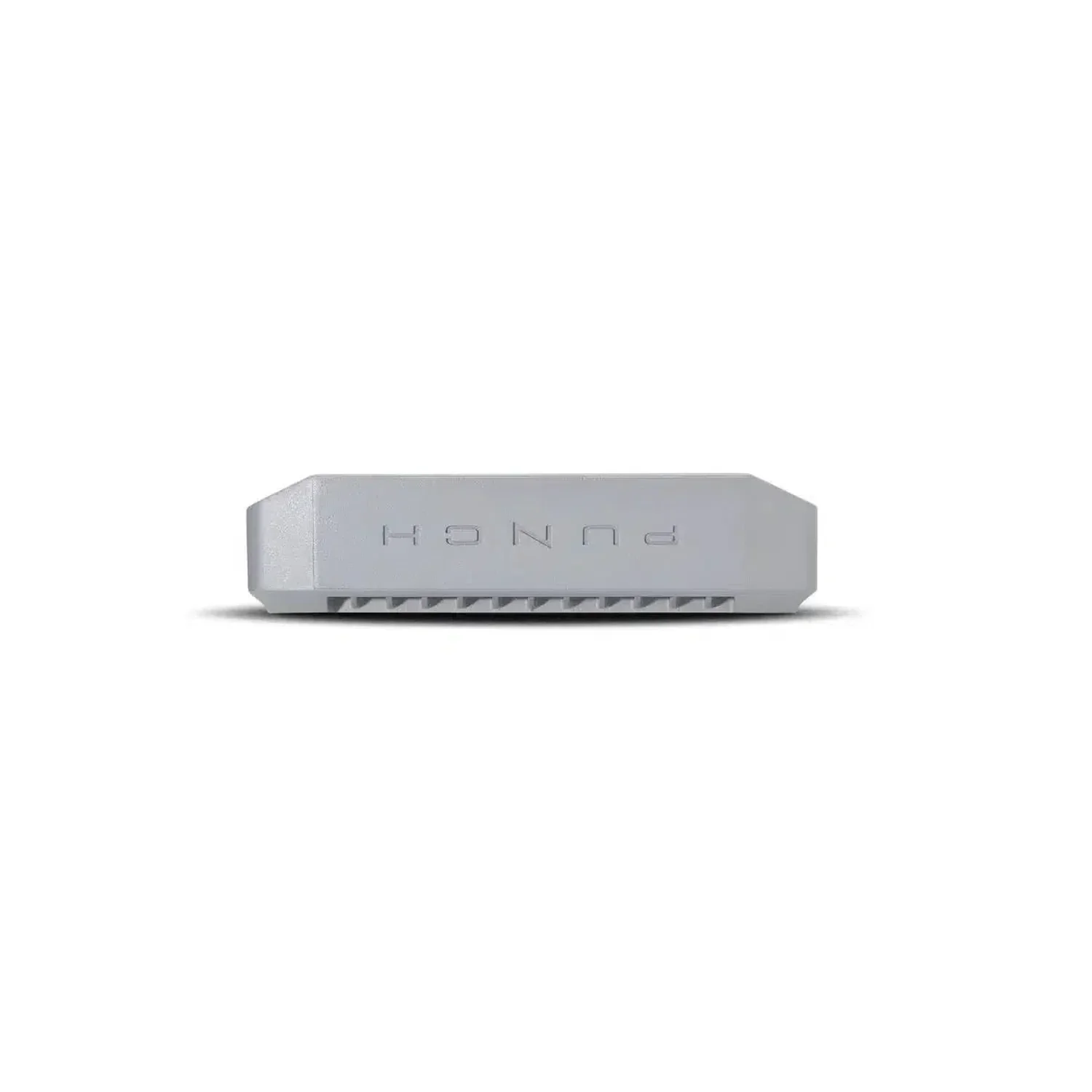

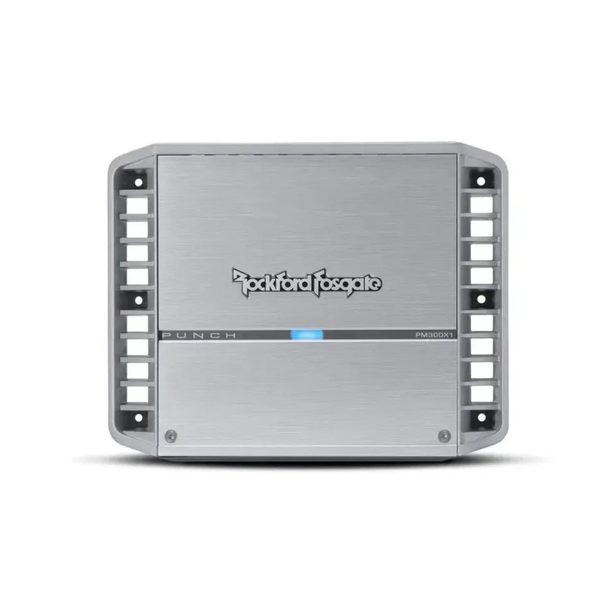

Rockford Fosgate Punch PM300X1 Monoblock amplifier Marine

Rockford Fosgate Punch PM300X1 Monoblock amplifier Marine
€279.00

Rockford Fosgate Punch PM300X1 Marine



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • High-level capable input with auto turn-on circuit
  • RCA Pass-Through Outputs
  • Optional remote-controlled punch level control (PLC2) ready (with input clip display)
  • 12dB/Octave Butterworth Crossover
  • Characteristics of C.L.E.A.N. Attitude
  • Built-in punch EQ with +18dB boost at 45Hz
  • Soft Start
  • Stealth control panel on the top
  • Cast aluminum heat sink
  • short-circuit protection
  • Hardware made of marine-grade stainless steel
  • Two-component epoxy coating of circuit boards in marine quality
  • Overcurrent protection

Specifications

  • Number of channels: 1
  • Total power (sum of rated power): 300 Watts
  • Rated power (RMS continuous power):
  • 200 Watt x 1 @ 4-Ohm
  • 300 Watt x 1 @ 2-Ohm
  • Dynamic power:
  • 260 Watt x 1 @ 4-Ohm 0° Res
  • 444 Watt x 1 @ 2-Ohm 0° Res
  • Bridgable: None
  • Frequency response: 20Hz to 20kHz +/- 1.0dB
  • Input sensitivity: 150 mV - 12 V
  • Circuit topology: Class A/B
  • Efficiency (average): 74% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise):
  • 4-Ohm: <1.0%
  • 2-Ohm: <1.0%
  • Signal input high/low level: 1 RCA pair
  • Signal output low level: 1 RCA pair
  • Equalizer Punch EQ2 Bass: 0dB to +18dB at 45Hz and/or Punch EQ 2 Treble: 0dB to +12.5dB @ 12kHz
  • Crossover Controller High Pass: 50Hz-250Hz @ 12dB/Octave Butterworth
  • Low-pass: 50Hz-250Hz @ 12dB/Octave Butterworth
  • All-Pass: Yes
  • Remote controls: Optional Punch Level Control (PLC2) ready
  • Optical Indicators: LED for Power Supply/Protection/Thermal Management
  • Input Clip LED: 3
  • Output clip LED: 1,2,3
  • LED Color Legend:
  • 1 BLUE: <0.5% THD
  • 2 VIOLET: 1% THD
  • 3 ROT: 10%+ THD
  • Power connections: 10mm² - 25mm²
  • Network input connection: Fixed C-terminal
  • Speaker cable cross-section: 1mm² - 10mm²
  • Speaker output connection: captive C-clamp
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse (not included): 50 A
  • Average current consumption (13.8 V music): 23 A
  • Max. current consumption (13.8 V sine wave): 45 A
  • Recommended alternator: 75 A
  • Dimensions (H x W x D): 6.05 x 19.71 x 25.04 (cm)
