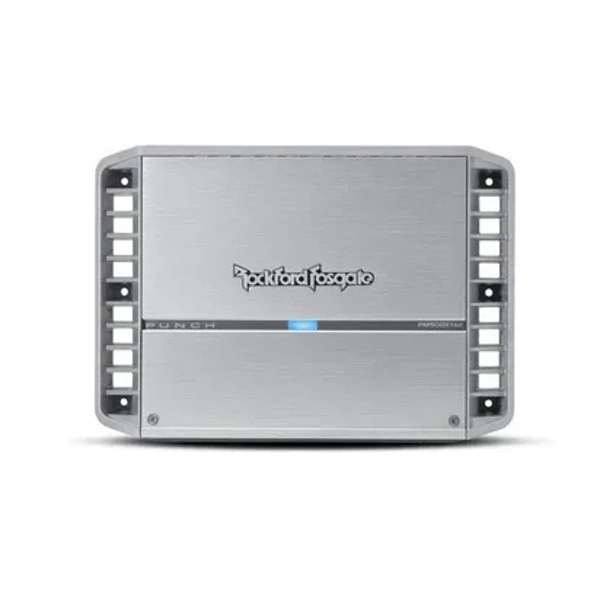

Rockford Fosgate Punch PM500x1bd monoblock amplifier Marine

Rockford Fosgate Punch PM500x1bd

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Technical Features

• High-level capable input with auto turn-on circuit
• RCA Pass-Through Outputs
• Optional remote-controlled Punch Level Control (PLC2) ready (with input clip display)
• Features of C.L.E.A.N. Attitude
• 12dB/Octave Butterworth Crossover
• Built-in punch EQ with +18 dB boost at 45 Hz

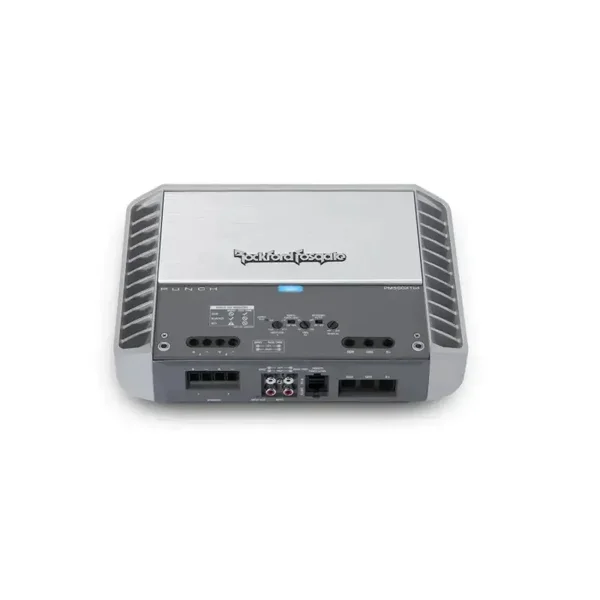

• Stealth control panel on the top
• Soft Start
• Cast aluminum heat sink
• short-circuit protection
• Overcurrent protection
• Hardware made of marine-grade stainless steel
• Two-component epoxy coating of circuit boards in marine quality
• infrasound filter

Specifications

• Number of channels: 1
• Total output (sum of rated power): 500 watts
• Rated power (RMS continuous power):
• 150 Watt x 1 @ 4-Ohm
• 300 Watt x 1 @ 2-Ohm
• 500 Watt x 1 @ 1-Ohm
• Dynamic performance (PVC/PowerCube®):
• 224 Watt x 1 @ 4 Ohm
• 410 Watt x 1 @ 2-Ohm
• 787 Watt x 1 @ 1-Ohm
• Bridgable: No
• Frequency response: 20Hz to 250Hz +/- 1.0dB
• Input sensitivity: 150 mV - 12 V
• Circuit topology: Class BD
• Efficiency (Average): 86% @ 4-Ohm
• Total Harmonic Distortion (THD+Noise):
• 4-Ohm: <1.0%
• 2-Ohm: <1.0%
• 1-Ohm: <1.0%

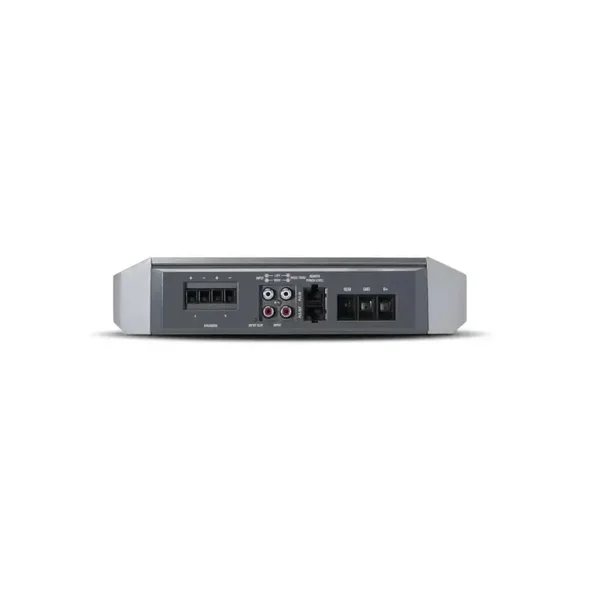

• Signal input Hi/Low level: 1 RCA pair
• Signal output low level: 1 RCA pair
• Sound control: Punch EQ2 Bass: 0dB to +18dB @ 45Hz
• Crossover Controller Low-Pass (LP): 50-250Hz @ 12dB/Octave Butterworth
• Infrasound filter (IF): 28Hz @ 12dB/octave
• All-Pass (AP): No
• Remote controls: Optional Punch Level Control (PLC2) ready
• Optical Indicators: Power/Protect/Thermal LED
• Input Clip LED: 3
• Output clip LED: 1,2,3
• LED Color Legend:
• 1 BLUE: <0.5% THD
• 2 VIOLET: 1% THD
• 3 ROT: 10%+ THD
• Power connections: 25mm²
• Network input connection: Fixed C-terminal
• Speaker cable cross-section: 1mm²-10mm
• Speaker output connection: captive C-clamp
• heat sink
• Operating voltage: 9 - 16 VDC
• Recommended fuse (not included): 80 A
• Average current consumption (13.8 V music): 35 A
• Max. current consumption (13.8 V sine wave): 70 A
• Recommended alternator: 75 A
• Dimensions (H x W x D): 6.05 x 19.71 x 28.02 (cm)
