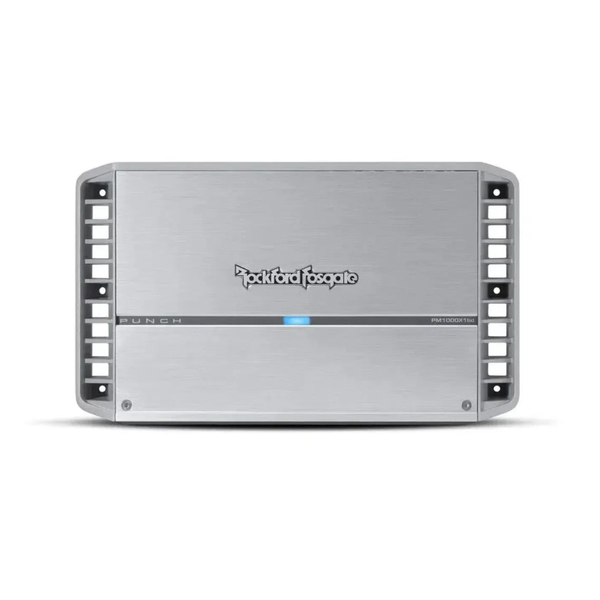

Rockford Fosgate Punch PM1000x1bd monoblock amplifier Marine

Rockford Fosgate Punch PM1000x1bd monoblock amplifier Marine
€649.00

Rockford Fosgate Punch PM1000x1bd Marine



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

  • High-level capable input with auto turn-on circuit
  • With C.L.E.A.N. setup
  • RCA Pass-Thru Outputs
  • Optional punch level control remote control (PLC2) ready (with input clip display)
  • 12dB/Octave Butterworth Crossover
  • Built-in punch EQ with +18 dB boost at 45 Hz

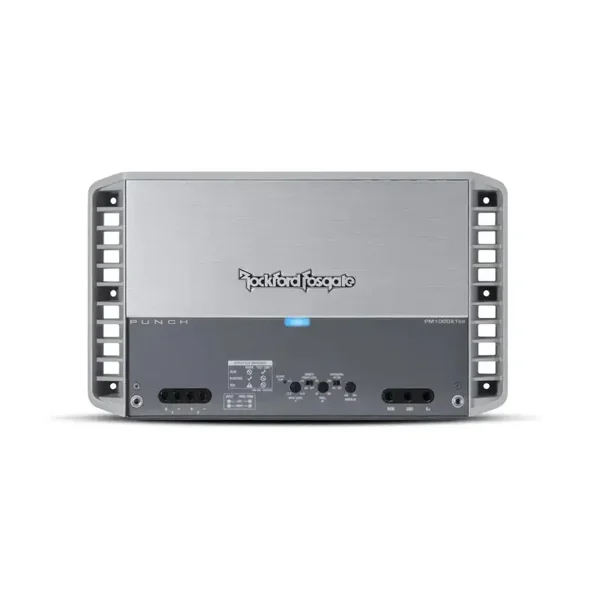

  • Stealth control panel on the top
  • short-circuit protection
  • Cast aluminum heat sink
  • Soft Start
  • overcurrent protection
  • Hardware made of marine-grade stainless steel
  • Two-component epoxy coating of circuit boards in marine quality
  • Infrasound filter

Technical Data

  • Number of channels: 1
  • Total power (sum of rated power): 1000 watts
  • Rated power (RMS continuous power): 300 Watts x 1 @ 4-Ohm, 500 Watts x 1 @ 2-Ohm, 1000 Watts x 1 @ 1-Ohm
  • Dynamic power (PVC/PowerCube®): 491 Watts x 1 @ 4-Ohm, 874 Watts x 1 @ 2-Ohm, 1,430 Watts x 1 @ 1-Ohm
  • Frequency response: 20Hz to 250Hz +/- 1.0dB
  • Input sensitivity: 150 mV - 12 V
  • Circuit topology: Class BD
  • Efficiency (average): 86% @ 4-Ohm
  • Total Harmonic Distortion (THD+Noise): 4-Ohm: <1.0%, 2-Ohm: <1.0%, 1-Ohm: <1.0%
  • Signal input: Hi/Low level, 1 RCA pair
  • Signal output: Hi/Low level, 1 RCA pair
  • Sound control: Punch EQ2 Bass: 0dB to +18dB @ 45Hz
  • Low-Pass (LP): 50-250Hz @ 12dB/Octave Butterworth
  • Infrasound filter (IF): 28Hz @ 12dB/octave Butterworth
  • All-Pass: No
  • Remote controls: Optional Punch Level Control (PLC2) ready
  • Optical Indicators: Power/Protect/Thermal LED
  • Input Clip LED: 3
  • Output clip LED: 1,2,3
  • LED Color Legend: 1BLUE: <0.5% THD, 2VIOLET: 1% THD, 3RED: 10%+ THD
  • Power connections: 25mm²
  • Network input connection: Fixed C-terminal
  • Speaker wire gauge: 1mm²-10mm²
  • Speaker output connection: captive C-clamp
  • Cooling: Convection
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse (not included): 140 A
  • Average current consumption (13.8 V music): 65 A
  • Max. current consumption (13.8 V sine wave): 130 A
  • Recommended alternator: 100 A
  • Dimensions (H x W x D): 6.05 x 19.71 x 33.73 (cm)
