Rockford Fosgate M2-200X2 2 channel / mono amplifier Marine

Rockford Fosgate M2-200X2 Marine

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 2 -4 days extra delivery time

Technical Features

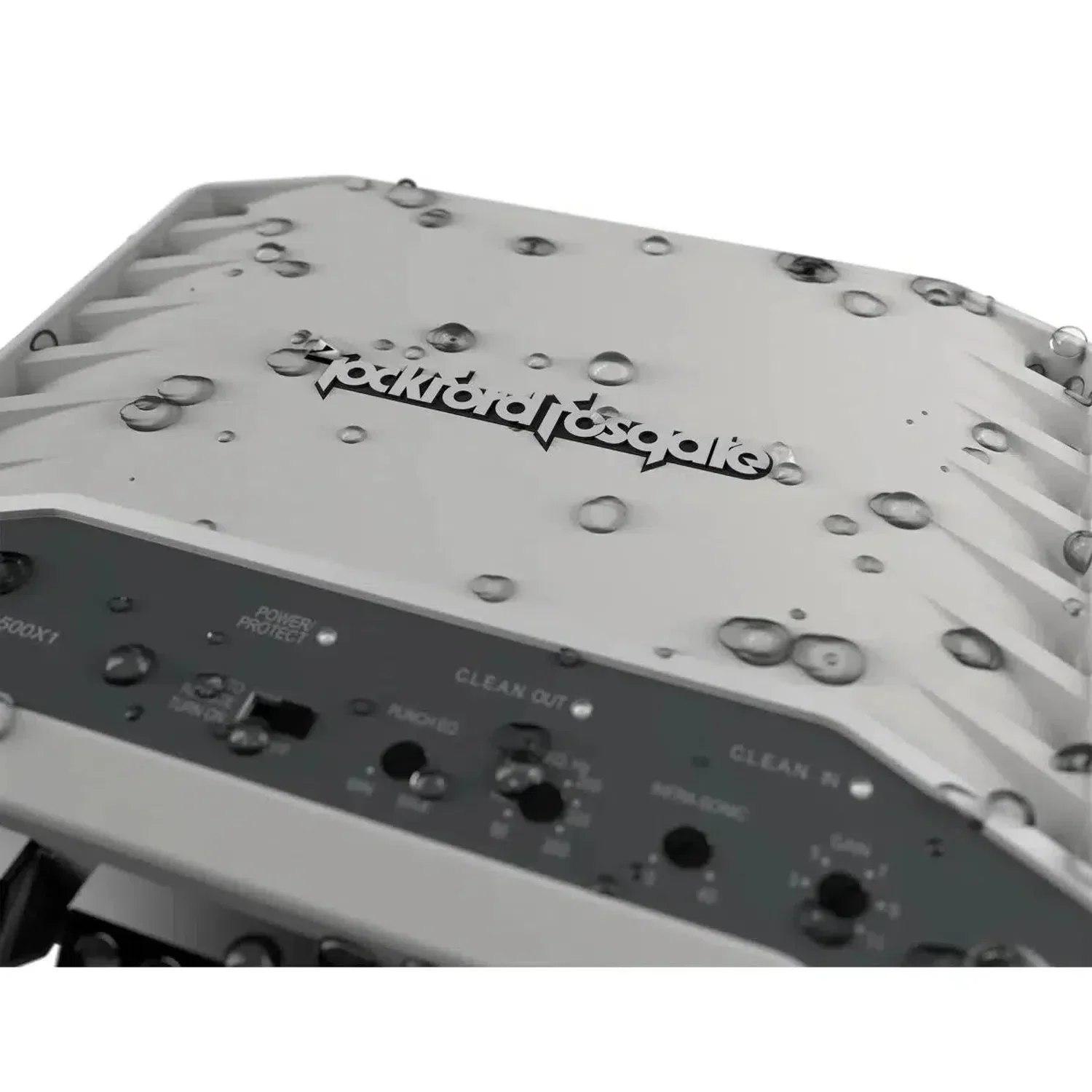

• Element Ready™ Design protects against external influences
• Zinc-nickel coated brass terminal blocks in marine quality
• UV-resistant powder-coated aluminum die-cast heat sink
• Conformal coated circuit board protects against dust and water
• C.L.E.A.N. Input/Output Clip Detection and Display LEDs
• Optimized with the AudioGraph PowerCube measurement tool

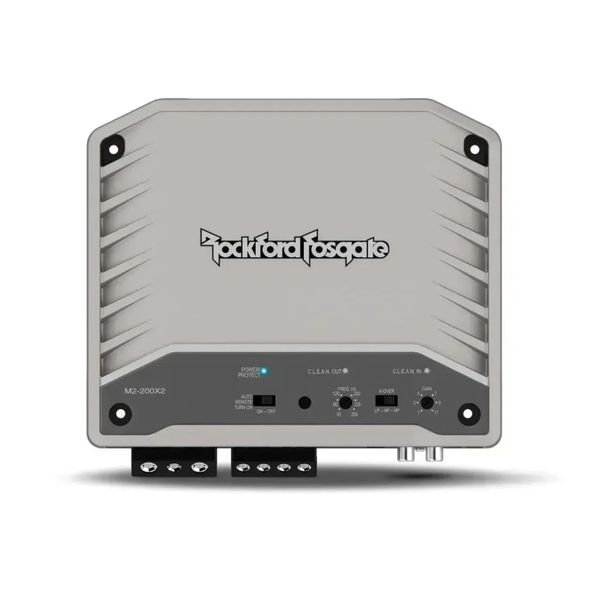

• Top-mounted control panel

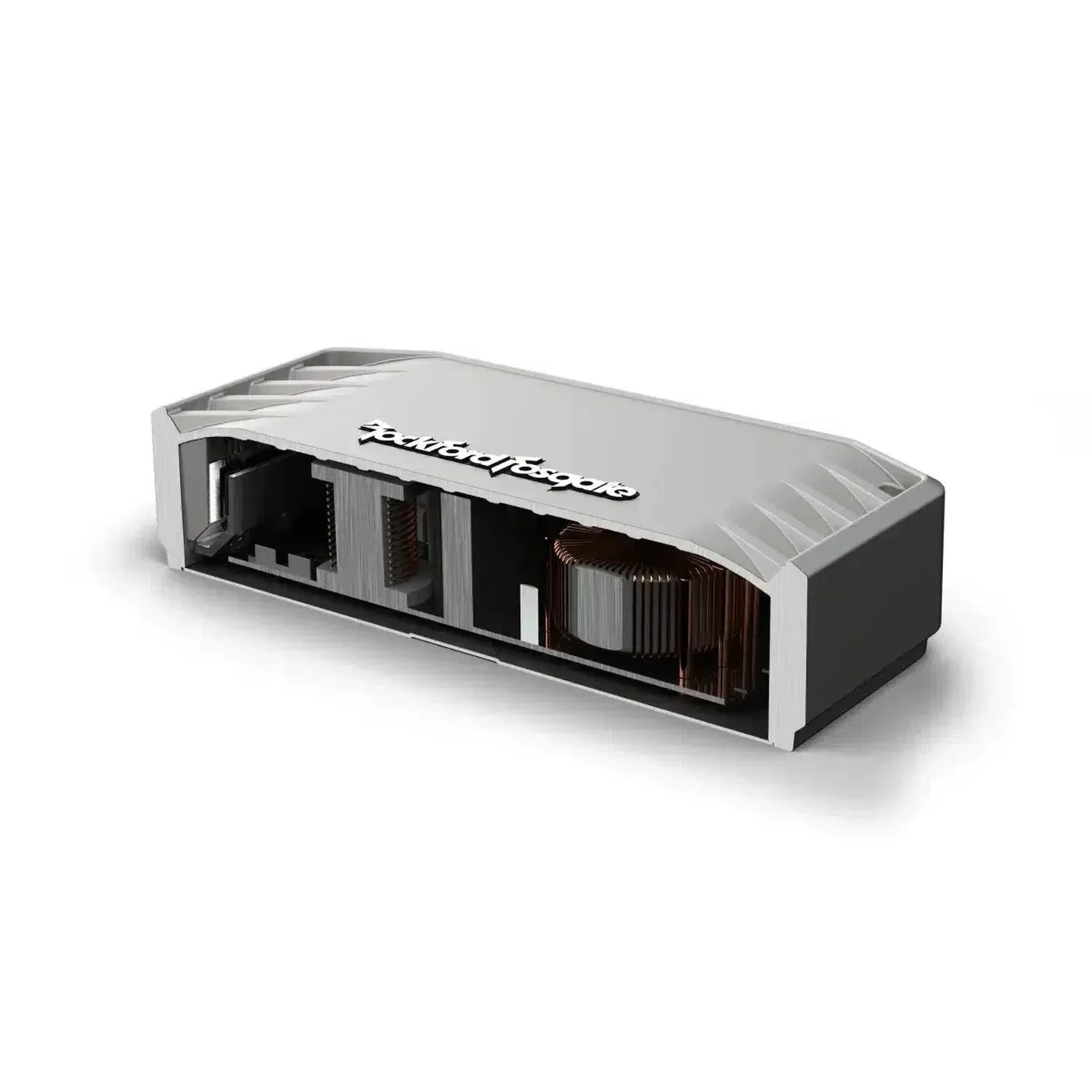

• Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.
• Fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters

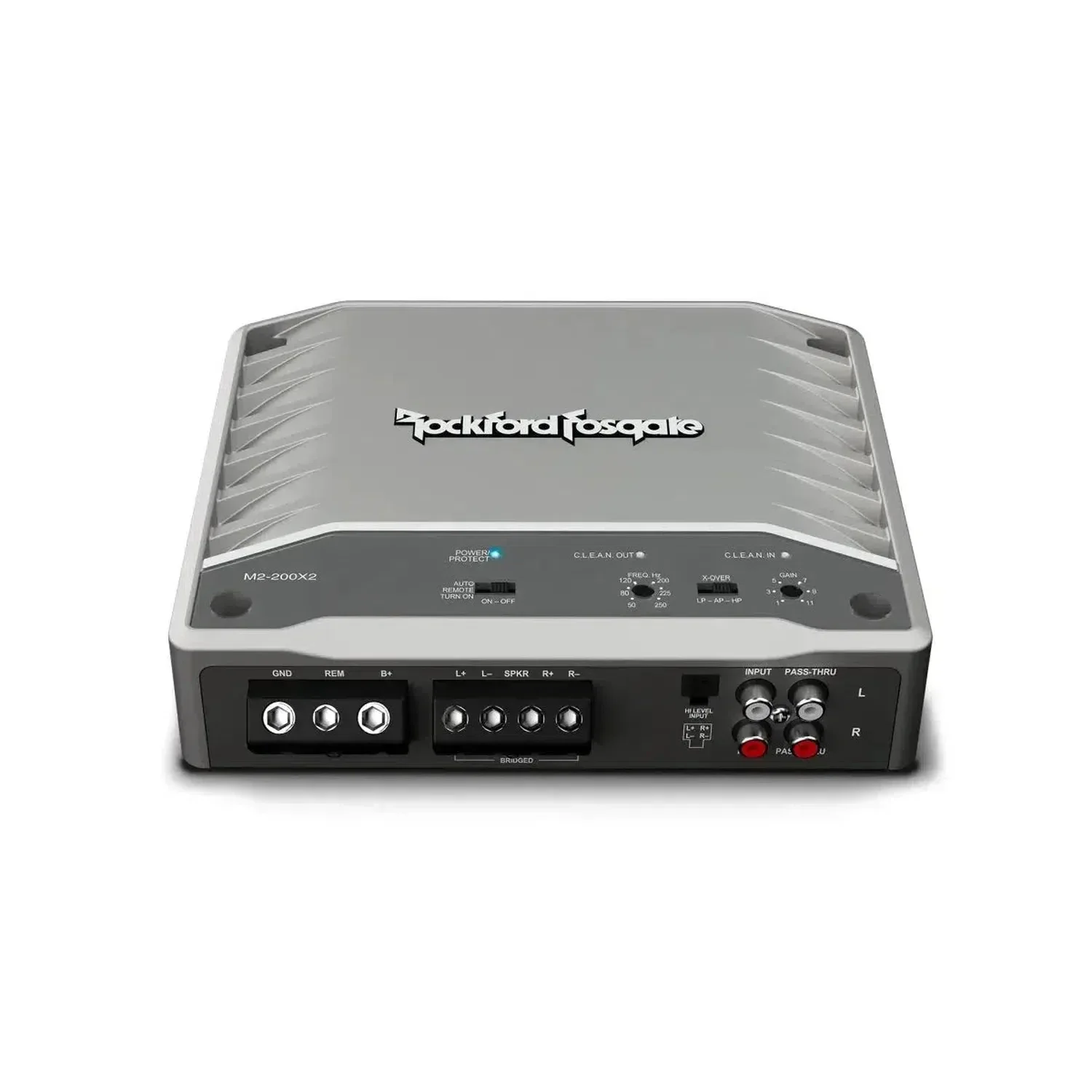

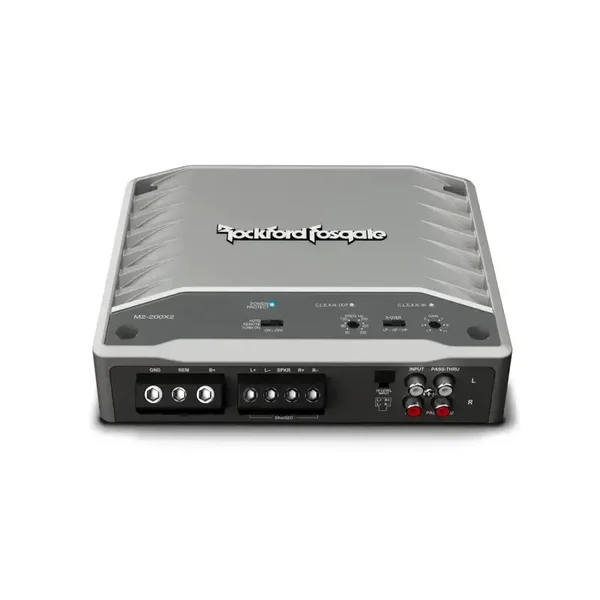

• Integrated power and speaker connections
• Symmetrical differential inputs eliminate noise that is picked up by signal cables.
• Protection against short circuit and overcurrent
• Variable Infrasound Filter
• RCA Pass-Through Outputs
• Integration with OEM and aftermarket radios
• "Auto-Sense" activation with Remote-Out (high-level input)
• Auto-Sense-Bypass Switch for Vehicles with RAP (Retained Accessory Power)
• Low impedance stability
• "Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
• CEA-2006 compliant & CE compliant

Technical Data

• Cta-2006-compliant
• Number of channels 2
• Total output (sum of rated power)
• 200 Watt
• Rated power (RMS continuous power)
• 50 Watt x 2 @ 4Ω
• 100 Watts x 2 @ 2Ω
• 200 Watt x 1 @ 4Ω Bridged/Mono
• Dynamic Performance (PVC/PowerCube®)
• 60 Watt x 2 @ 4Ω
• 107 Watts x 2 @ 2Ω
• 215 Watts x 1 @ 4Ω Bridged/Mono
• Bridgable Yes
• Frequency response 20 Hz - 20 kHz
• Input sensitivity Low-Level: 150 mV - 4 V
• High level: 450 mV - 12 V
• Class D circuit topology
• Total Harmonic Distortion (THD+Noise)
• 4Ω: <1.0%
• 2Ω: <1.0%
• Signal input Low-Level: 2 RCA
• High-Pegel: 4-Pin Molex
• Signal output Low-Level: 2 RCA
• (Pass-THru active with RCA or Hi-Level input)
• High-pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
• Low-pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
• All-Pass: Yes
• Remote controls No
• Optical Displays Power/Protect
• C.L.E.A.N. Entrance
• C.L.E.A.N.-Exit
• Power cable cross-section 25mm²
• Current input connection compression terminal block
• Speaker cable cross-section 10mm²
• Speaker output connection compression terminal block
• heat sink
• Operating voltage 9 - 16 VDC
• Recommended fuse (not included) 30 A
• Max. current consumption (13.8 V sine wave) 18 A
• Dimensions (H x W x D) 4.9 cm x 17.3 cm x 20.5 cm
