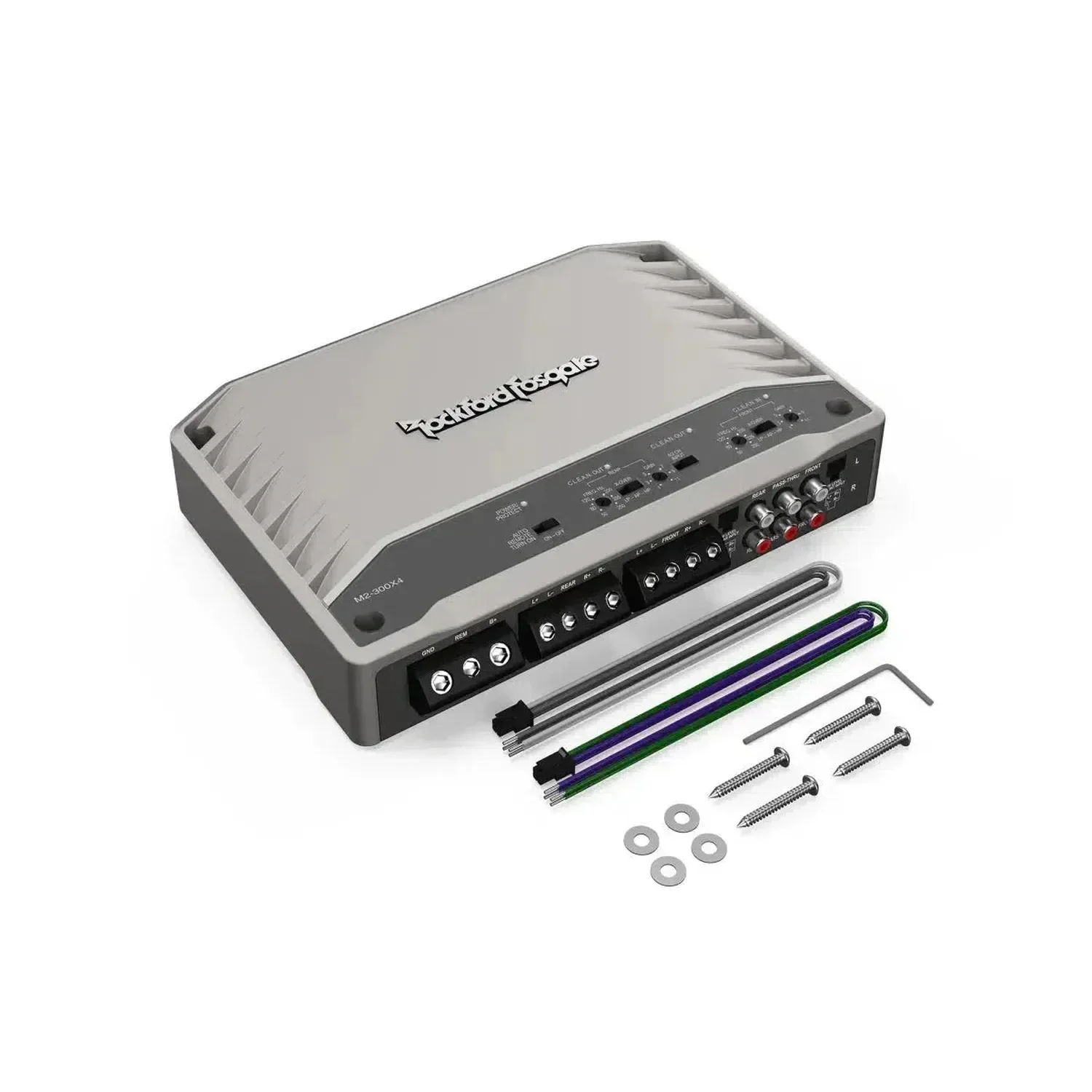

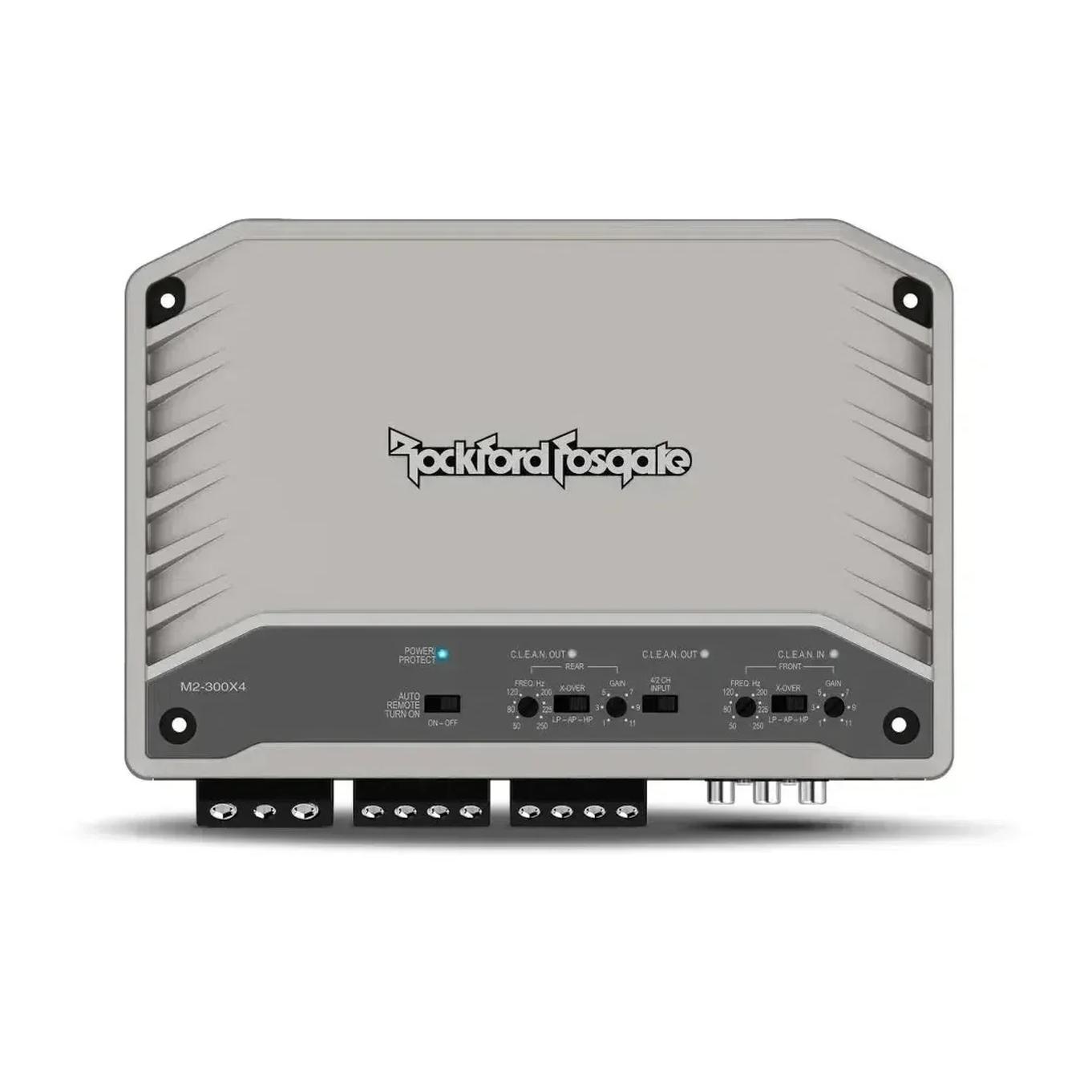

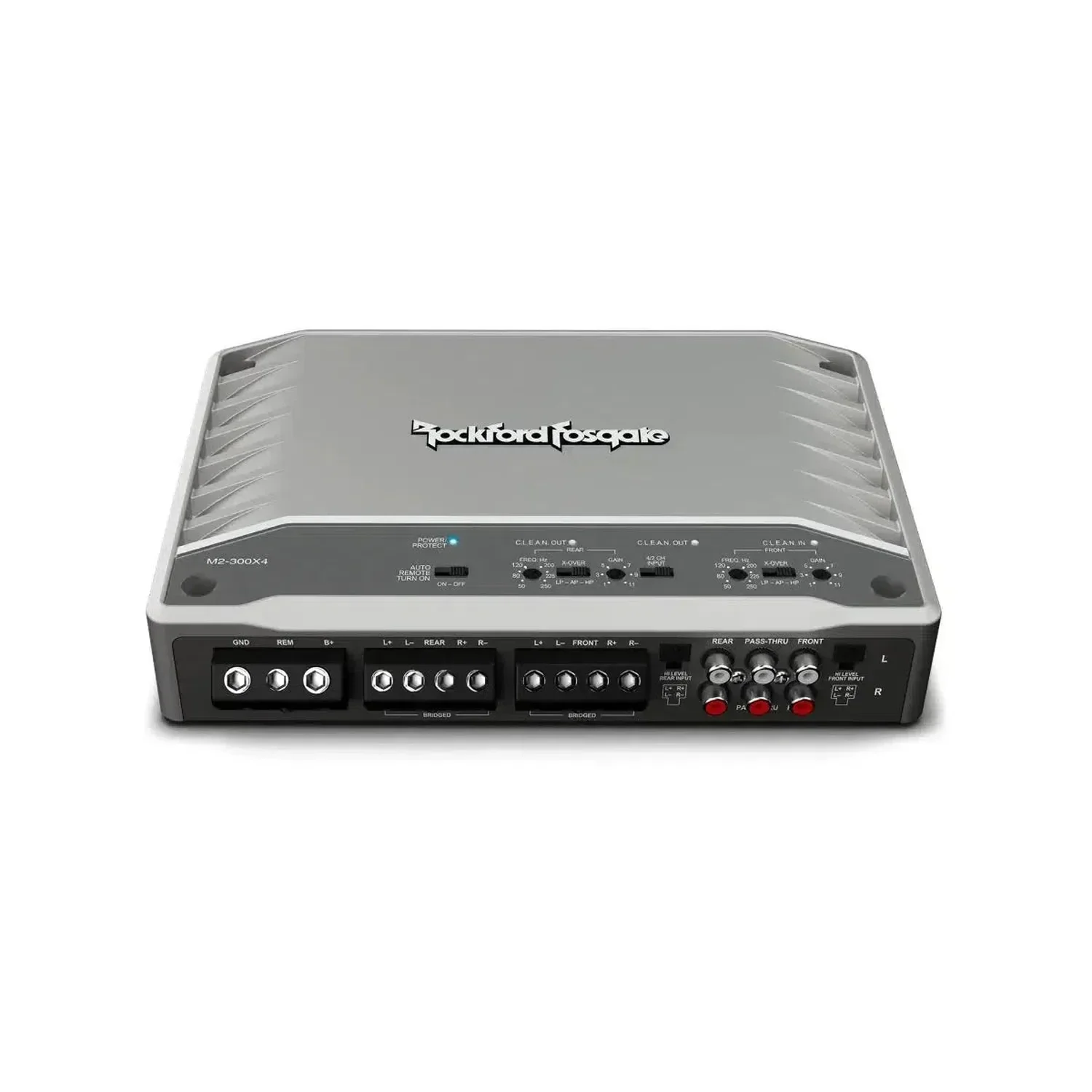

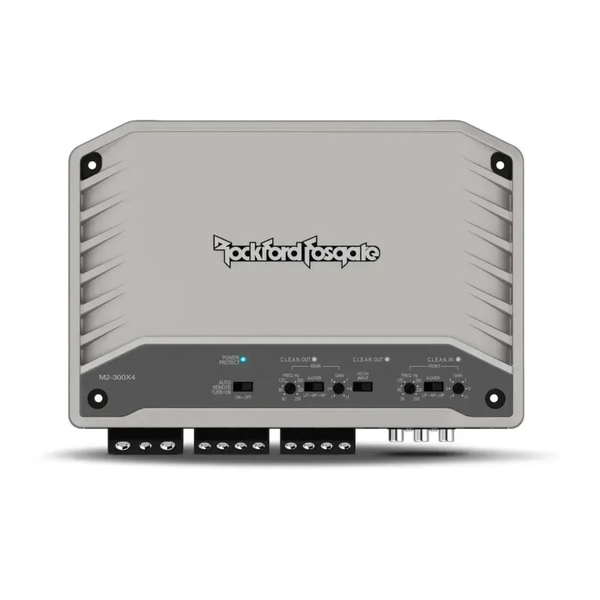

Rockford Fosgate M2-300X4 4 channel amplifier Marine

Rockford Fosgate M2-300X4 4 channel amplifier Marine
€329.00

Rockford Fosgate M2-300X4 4 channel amplifier Marine



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

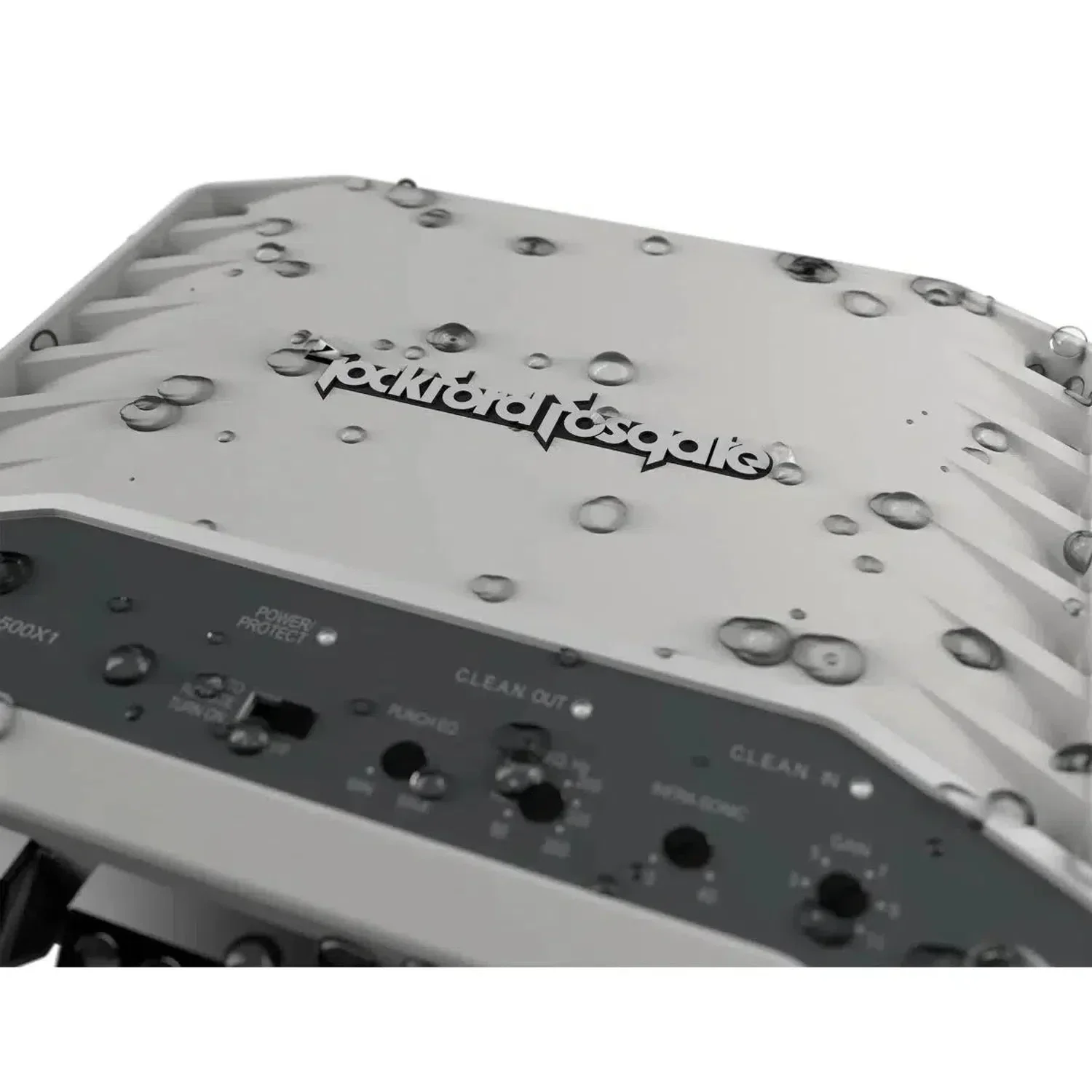

  • Element Ready™ Design protects against external influences
  • UV-stabilized, powder-coated aluminum die-cast heat sink
  • Conformal coated circuit board protects against dust and water
  • C.L.E.A.N. Input/Output Clip Detection and Display LEDs
  • Zinc-nickel coated brass connectors in marine quality
  • Optimized with the AudioGraph PowerCube measurement tool
  • Top-mounted control panel

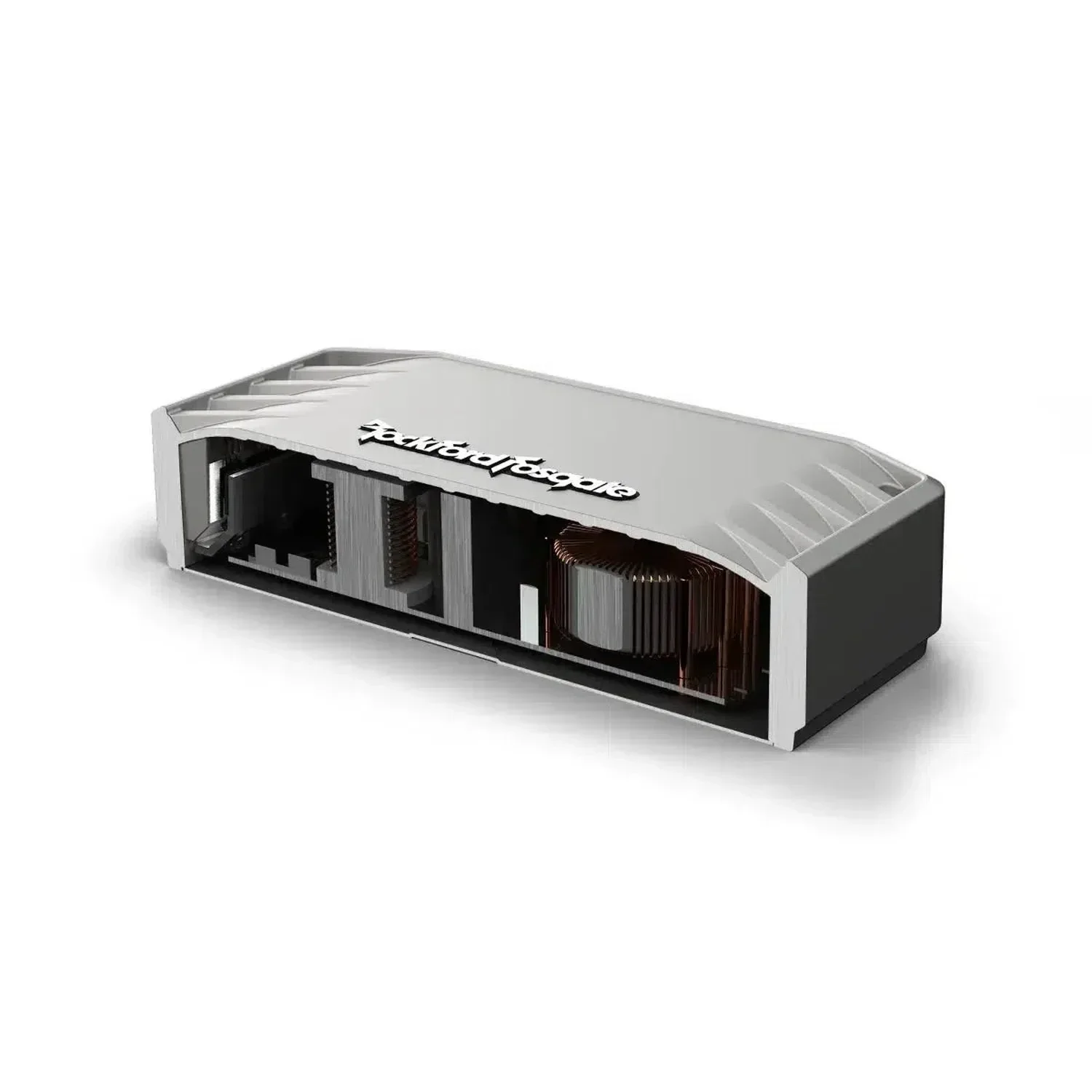

  • Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.
  • Fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters
  • Integrated power and speaker connections
  • Protection against short circuit and overcurrent
  • Symmetrical difference inputs eliminate noise picked up by signal cables.
  • 2/4 Kanal Entrance Switch
  • RCA Pass-Through Outputs
  • Integration with OEM and aftermarket radios
  • "Auto-Sense" activation with Remote-Out (high-level input)
  • Auto-Sense-Bypass Switch for Vehicles with RAP (Retained Accessory Power)
  • Low impedance stability
  • "Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
  • CEA-2006 compliant & CE compliant

Technical Data

  • Cta-2006-compliant
  • Number of channels 4
  • Total output (sum of rated power)
  • 300 Watt
  • Rated power (RMS continuous power)
  • 50 Watt x 4 @ 4Ω
  • 75 Watts x 4 @ 2Ω
  • 150 Watt x 2 @ 4Ω Bridged/Mono
  • Dynamic Performance (PVC/PowerCube®)
  • 70 Watt x 4 @ 4Ω
  • 115 Watts x 4 @ 2Ω
  • 230 Watts x 2 @ 4Ω Bridged/Mono
  • Bridgable Yes
  • Frequency response 20 Hz - 20 kHz
  • Input sensitivity Low-Level: 150 mV - 4 V
  • High level: 450 mV - 12 V
  • Class D circuit topology
  • Total Harmonic Distortion (THD+Noise)
  • 4Ω: <1.0%
  • 2Ω: <1.0%
  • Signal input Front Low-Level: 2 RCA
  • High level front: 4-Pin Molex
  • Back Low-Level: 2 RCA
  • Back High Level: 4-Pin Molex
  • Input switch: 2/4 input (works for RCA/High-Level inputs)
  • Signal output Low-Level: 2 RCA (Pass-Thru active with RCA or Hi-Level input)
  • Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • High-pass rear: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Lowpass rear: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • All-Pass: Yes
  • Remote controls No
  • Optical Displays Power/Protect
  • C.L.E.A.N. Entrance
  • C.L.E.A.N. exit (front)
  • C.L.E.A.N. Exit (back)
  • Power cable 25mm²
  • Current input connection compression terminal block
  • Speaker cable cross-section 10mm²
  • Speaker output connection compression terminal block
  • heat sink
  • Operating voltage 9 - 16 VDC
  • Recommended fuse (not included) 60 A
  • Max. current consumption (13.8 V sine wave) 39 A
  • Dimensions (H x W x D) 4.9 cm x 17.3 cm x 25.5 cm
