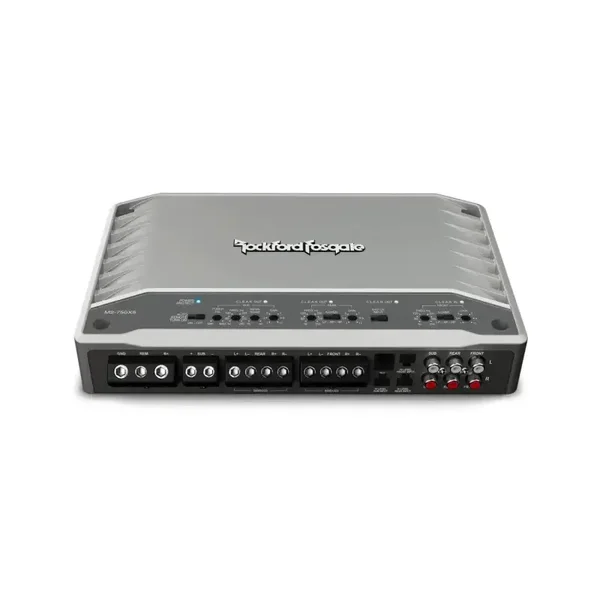

Rockford Fosgate M2-750X5 5 channel amplifier Marine

Rockford Fosgate M2-750X5 5 channel amplifier Marine
€529.00

Rockford Fosgate M2-750X5 5 channel amplifier Marine



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Technical Features

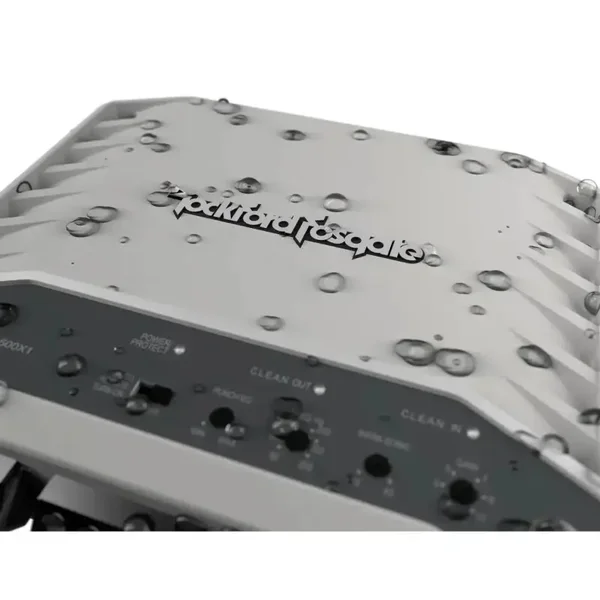

  • Element Ready™ Design protects against external influences
  • Zinc-nickel coated brass connection terminals in marine quality
  • Conformal coated circuit board protects against dust and water
  • UV-resistant powder-coated aluminum die-cast heat sink
  • C.L.E.A.N. Input/Output Clip Detection and Display LEDs
  • Optimized with the AudioGraph PowerCube measurement tool
  • Continuously variable on-board punch EQ

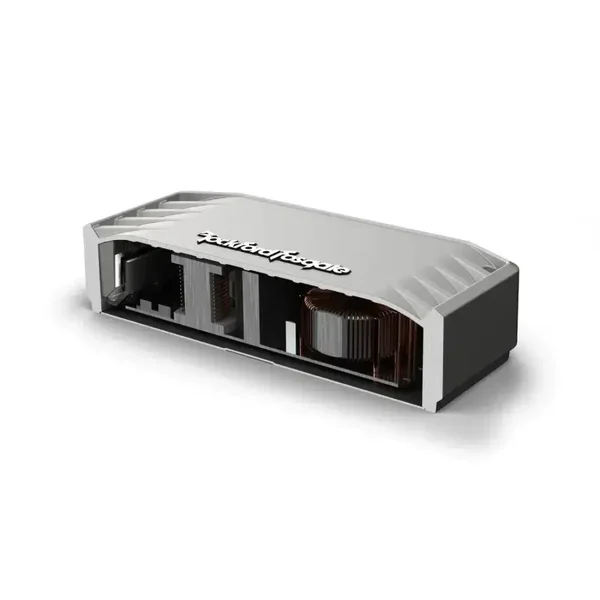

  • Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.

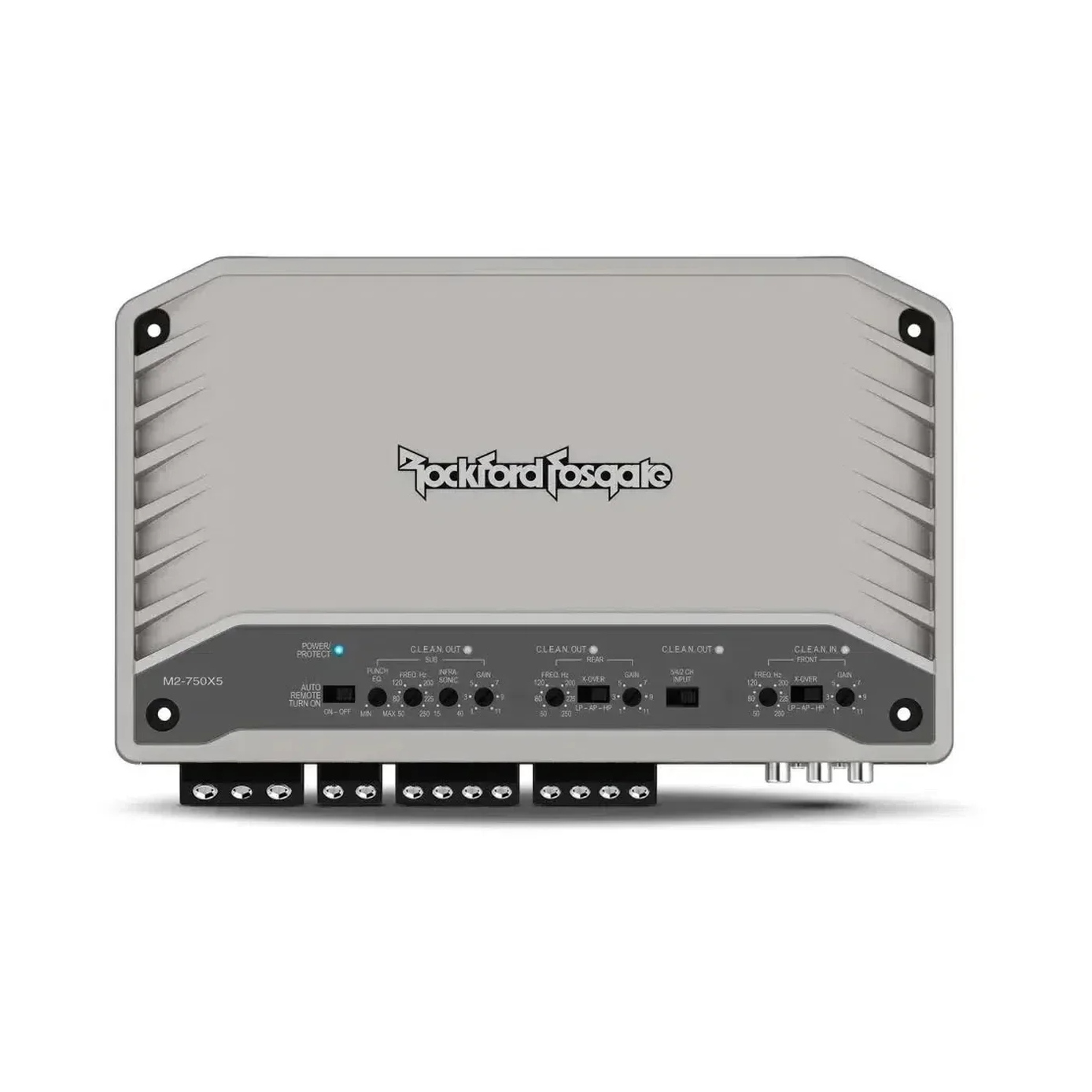

  • Top-mounted control panel

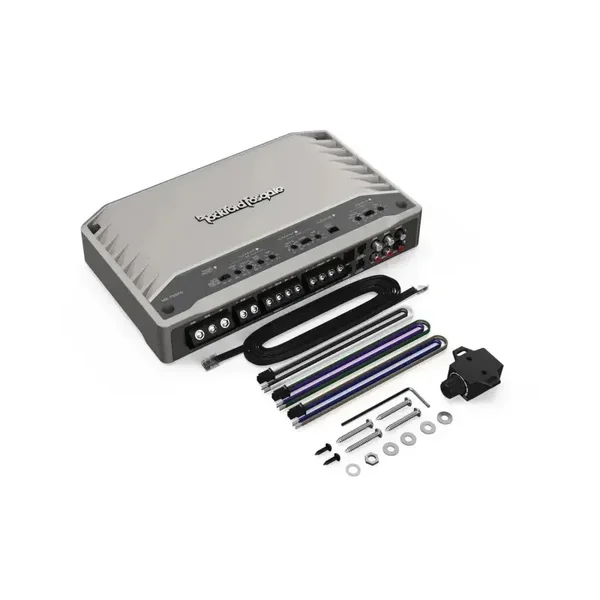

  • Including RLC remote control
  • 2/4/5-Channel Input Selector Switch
  • Variable Infrasound Filter
  • Fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters
  • Short-circuit and overcurrent protection

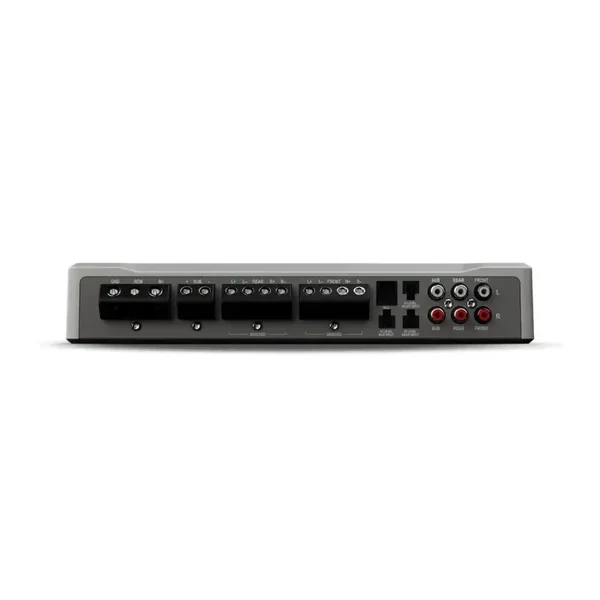

  • Integrated power and speaker connections
  • Symmetrical difference inputs eliminate noise picked up by signal cables.
  • Integration with OEM and aftermarket radios
  • "Auto-Sense" activation with Remote-Out (High Level In)
  • Auto-Sense-Bypass Switch for Vehicles with RAP (Retained Accessory Power)
  • Low impedance stability
  • "Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
  • CEA-2006 compliant & CE compliant
  • Rollback protection

Technical Data

  • Cta-2006-compliant
  • Number of channels: 5
  • Total power (sum of rated power): 750 watts
  • Rated power (RMS continuous power): 50 Watts x 4 + 200 Watts x 1 @ 4Ω
  • 100 Watts x 4 + 350 Watts x 1 @ 2Ω
  • 200 Watt x 2 + N/A @ 4Ω Bridging/Mono
  • Dynamic power (PVC/PowerCube®): 70 Watts x 4 + 241 Watts x 1 @ 4Ω
  • 114 Watts x 4 + 426 Watts x 1 @ 2Ω
  • 234 Watts x 2 + N/A @ 4Ω Bridging/Mono
  • Bridgable: Yes
  • Frequency response: 20 Hz - 20 kHz
  • Input sensitivity Low-Level: 150 mV - 4 V
  • High level: 450 mV - 12 V
  • Circuit topology: Class D
  • Total Harmonic Distortion (THD+Noise): 4Ω: <1.0%, 2Ω: <1.0%
  • Signal input Front Low-Level: 2 RCA
  • High level front: 4-Pin Molex
  • Back Low-Level: 2 RCA
  • Back High Level: 4-Pin Molex
  • Sub Low-Level: 2 RCA
  • Sub-high level: 4-pin Molex
  • BassBoost: 0 to +18 dB @ 45 Hz
  • Front High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Front Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Rear High-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Rear Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Sub-Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
  • Sub Infrasound: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
  • Remote controls: Yes
  • Optical Displays: Power/Protect
  • C.L.E.A.N. Entrance
  • C.L.E.A.N. Output (front, rear, sub)
  • Power cable thickness: 25mm²
  • Current input connection: Compression terminal block
  • Speaker cable cross-section: 10mm²
  • Speaker output connection: compression terminal block
  • heat sink
  • Operating voltage: 9 - 16 VDC
  • Recommended fuse (not included): 120 A
  • Max. current consumption (13.8 V sine wave): 71 A
  • Dimensions (H x W x D): 4.9 cm x 17.3 cm x 28.5 cm
