Rockford Fosgate M2-500X1 Monoblock amplifier Marine
€329.00
Rockford Fosgate M2-500X1 Monoblock amplifier Marine
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Technical Features

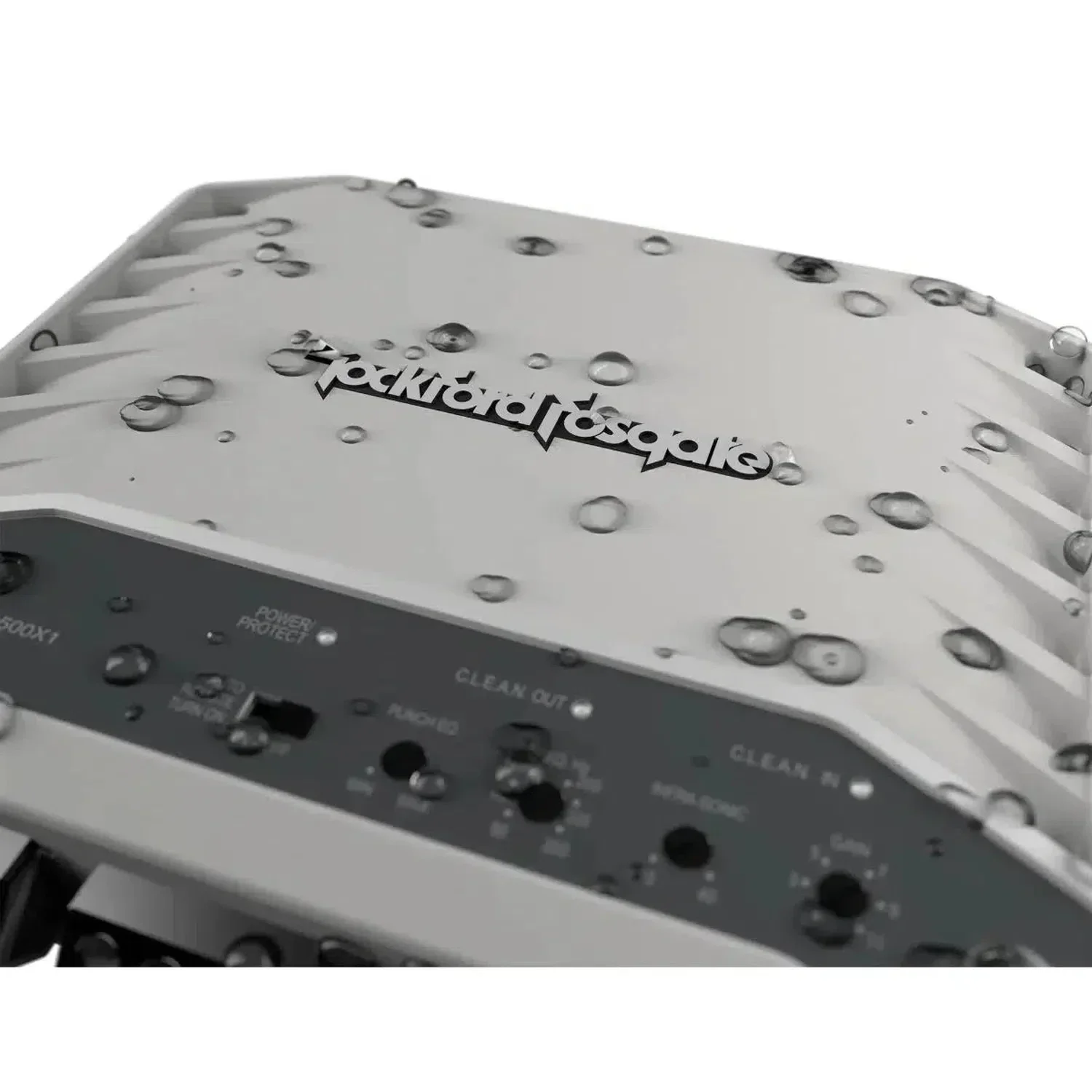

- Element Ready™ Design protects against external influences
- Zinc-nickel coated connection terminals made of marine-grade brass
- UV-resistant powder-coated aluminum die-cast heat sink
- Conformal coated circuit board protects against dust and water
- C.L.E.A.N. Input/Output Clip Detection and Display LEDs
- Optimized with the AudioGraph PowerCube measurement tool

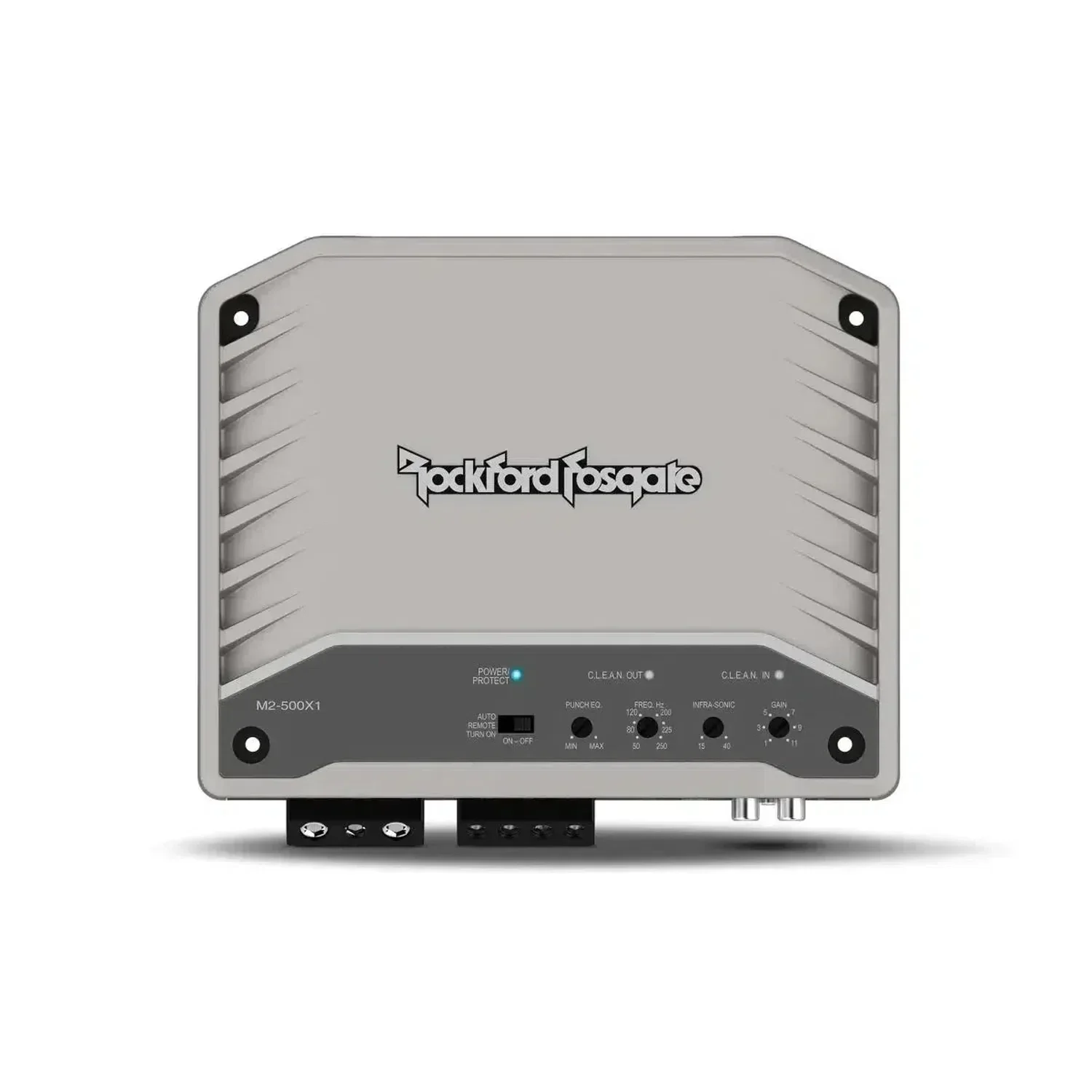

- Top-mounted control panel
- Continuously adjustable on-board punch EQ
- Including RLC remote control

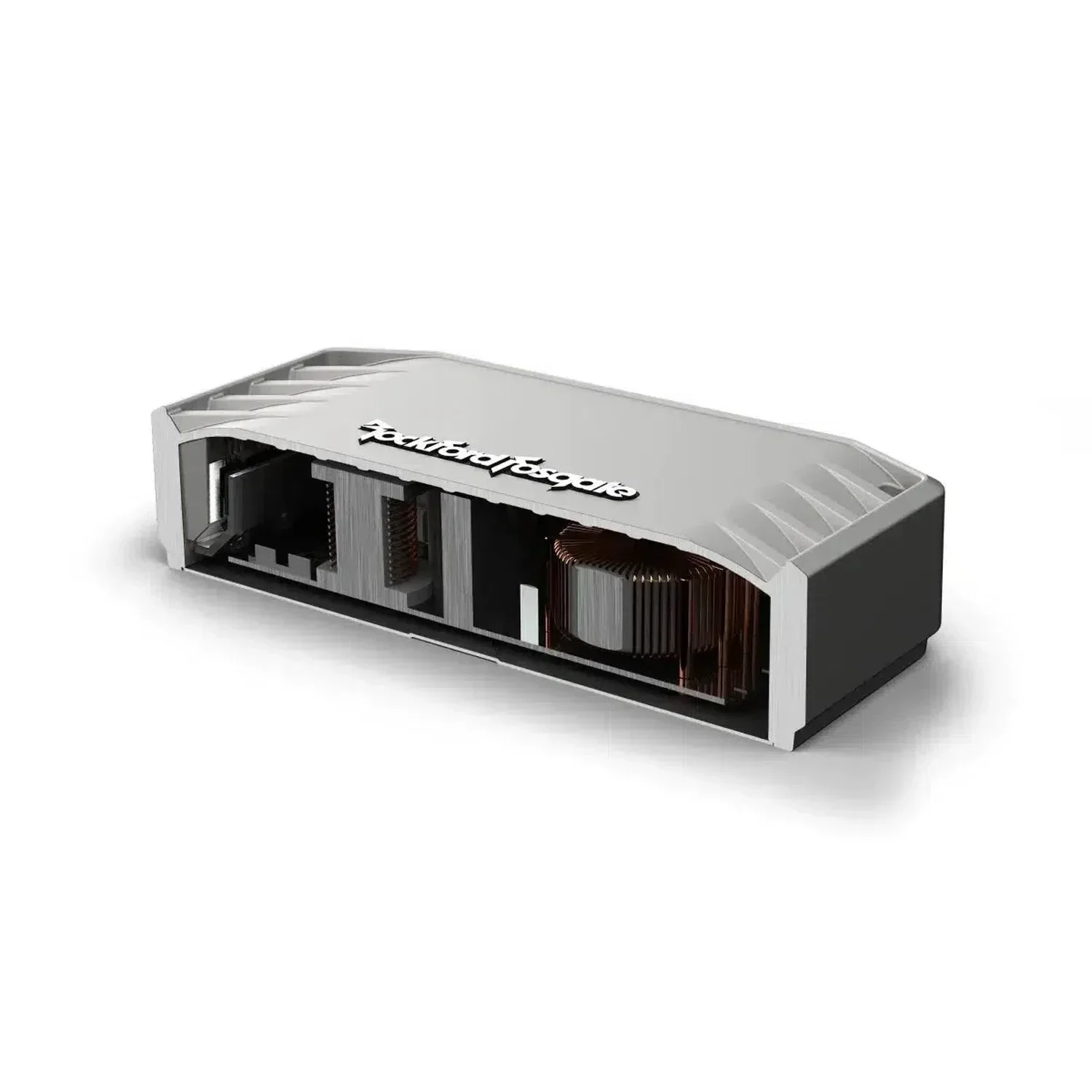

- Focused mass heatsink enables the placement of critical aluminum material around the hottest internal components.
- Protection against short circuit and overcurrent

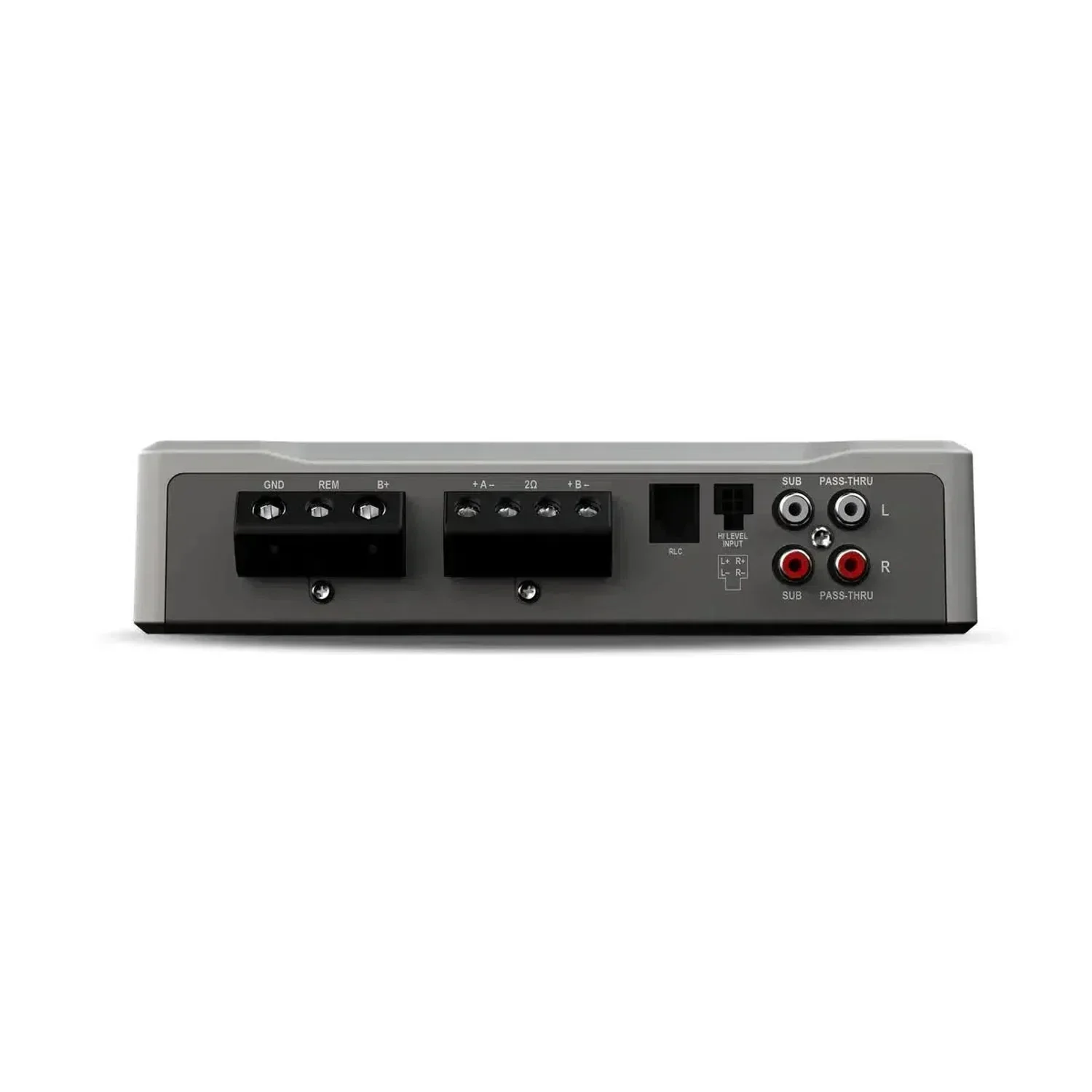

- Integrated power and speaker connections
- Variable Infrasound Filter
- Fully adjustable 12 dB/octave high-pass and low-pass Butterworth filters
- Symmetrical difference inputs eliminate noise picked up by signal cables.
- RCA Pass-Through Outputs
- Integration with OEM and aftermarket radios
- "Auto-Sense" activation with Remote-Out (high-level input)
- Auto-Sense-Bypass Switch for Vehicles with RAP (Retained Accessory Power)
- Low impedance stability
- "Quality and performance are tested with the company's own RATS (Rockford Automated Testing System)."
- CEA-2006 compliant & CE compliant
- Rollback protection
Technical Data
- Cta-2006-compliant
- Number of channels 1
- Total output (sum of rated power)
- 500 Watt
- Rated power (RMS continuous power)
- 300 Watt x 1 @ 4Ω
- 500 Watts x 1 @ 2Ω
- Dynamic Performance (PVC/PowerCube®)
- 350 Watt x 1 @ 4Ω
- 590 Watts x 1 @ 2Ω
- Frequency response 20 Hz - 250 Hz
- Input sensitivity Low-Level: 150 mV - 4 V
- High level: 450 mV - 12 V
- Class D circuit topology
- Total Harmonic Distortion (THD+Noise)
- 4Ω: <1.0%
- 2Ω: <1.0%
- Signal input Low-Level: 2 RCA
- High-Pegel: 4-Pin Molex
- Signal output Low-Level: 2 RCA
- (Pass-Thru active at RCA or High-Level input)
- Equalizer 0 to +18 dB @ 45 Hz
- Low-Pass: 50 Hz - 250 Hz @ 12dB/Octave Butterworth
- Infrasound: 15 Hz - 40 Hz @ 12dB/Octave Butterworth
- Remote controls Yes
- Optical Displays Power/Protect
- C.L.E.A.N.-Entrance
- C.L.E.A.N.-Exit
- Power supply wire strength 25mm²
- Current input connection compression terminal block
- Speaker cable cross-section 10mm²
- Speaker output connection compression terminal block
- heat sink
- Operating voltage 9 - 16 VDC
- Recommended fuse (not included) 80 A
- Max. current consumption (13.8 V sine wave) 52 A
- Dimensions (H x W x D) 4.9 cm x 17.3 cm x 21.5 cm
