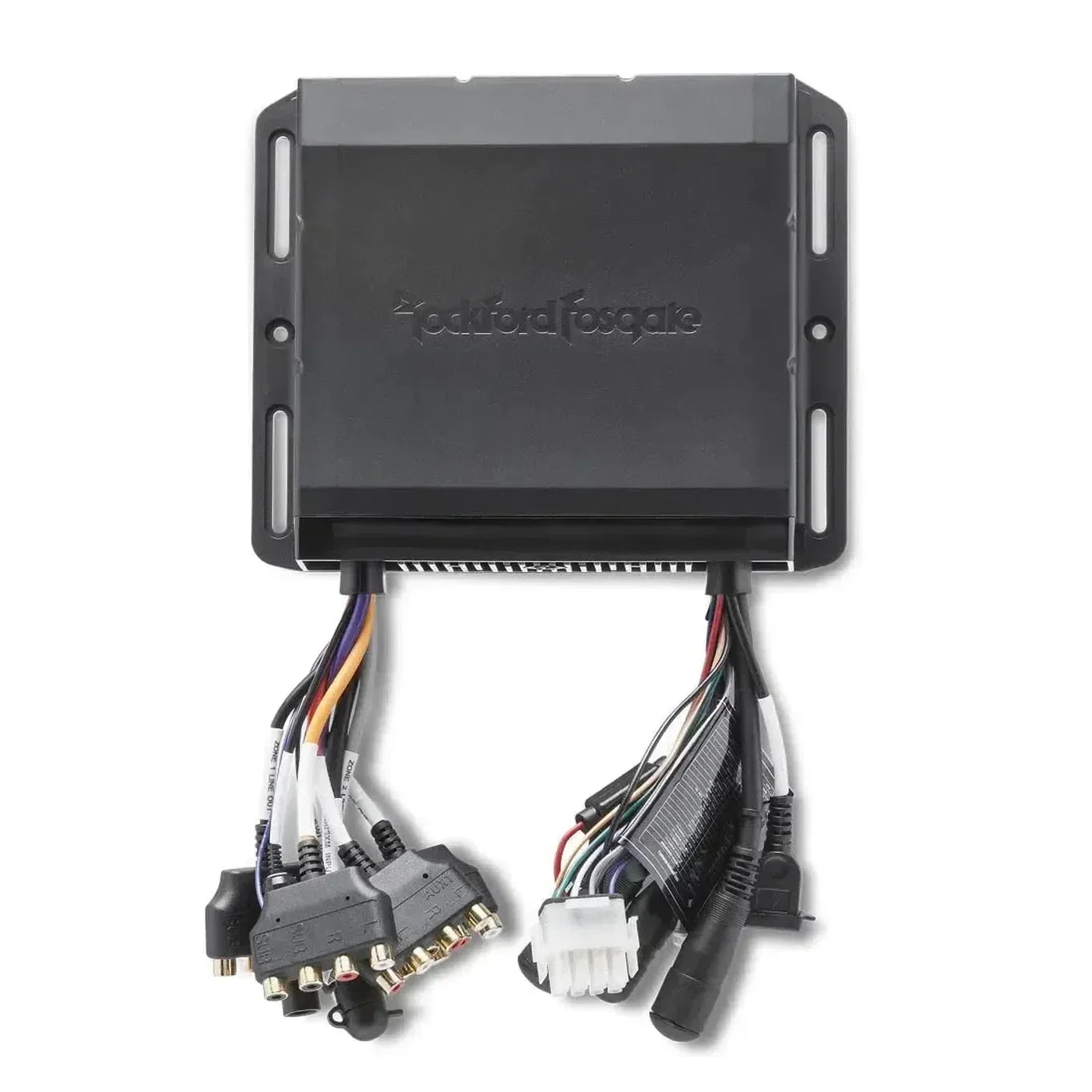

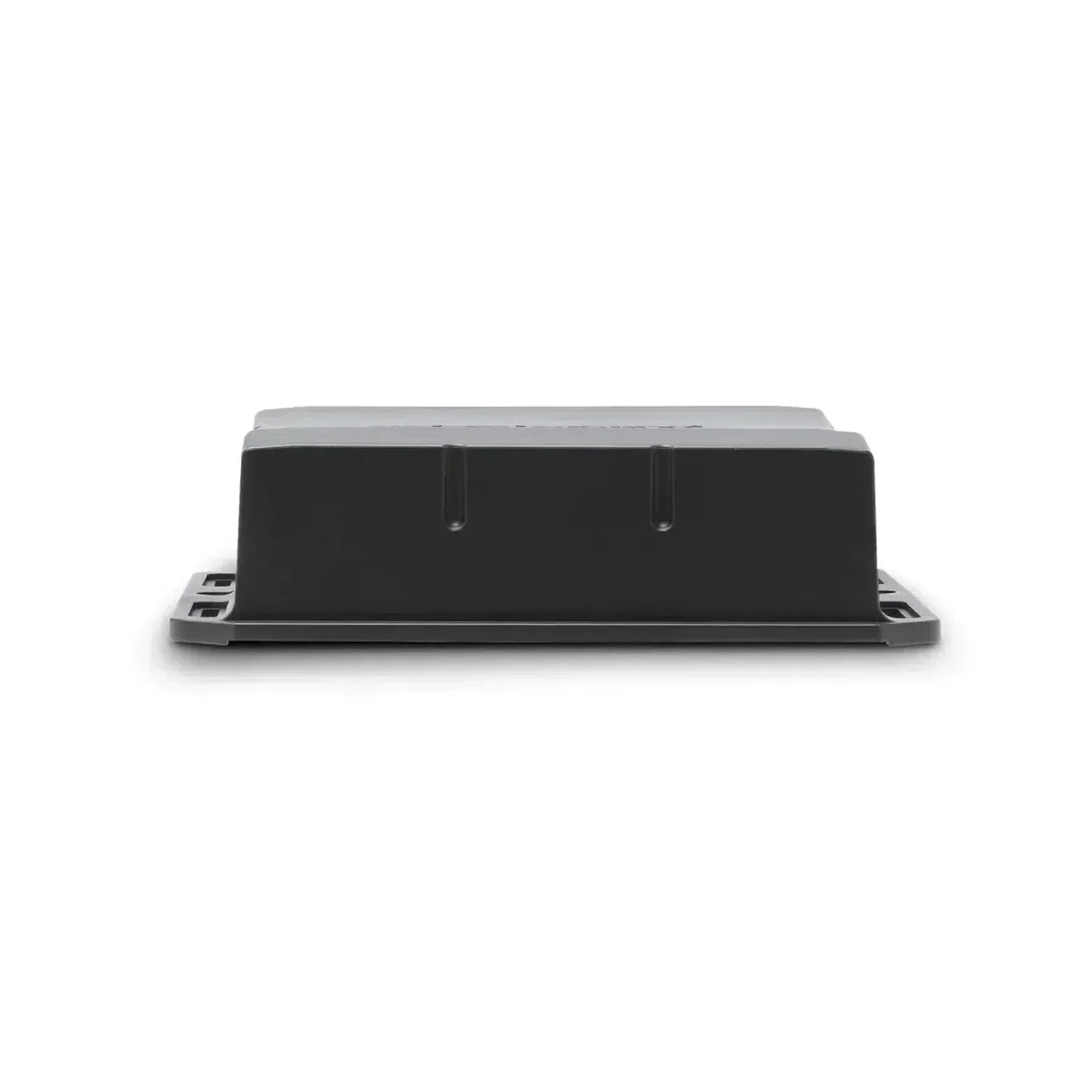

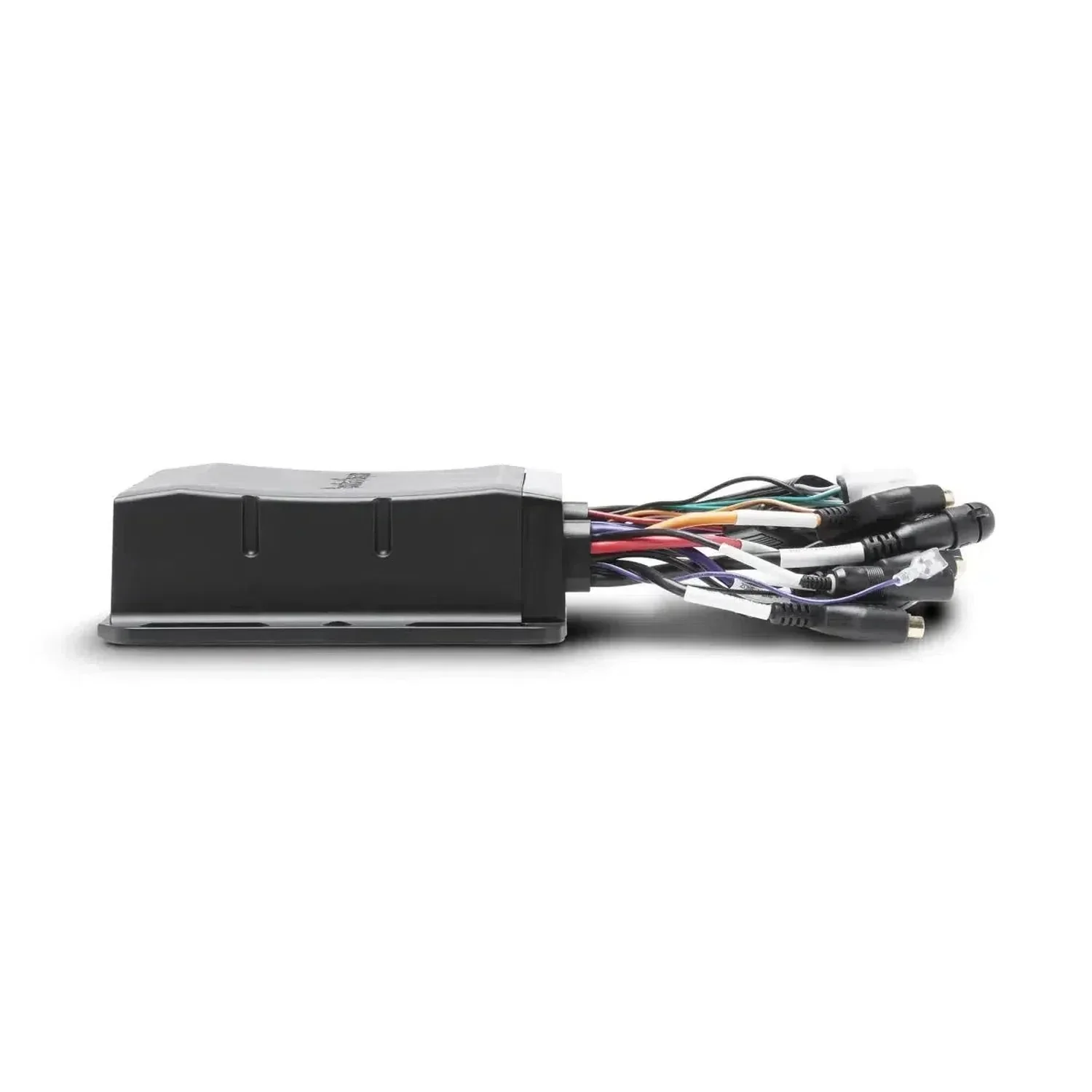

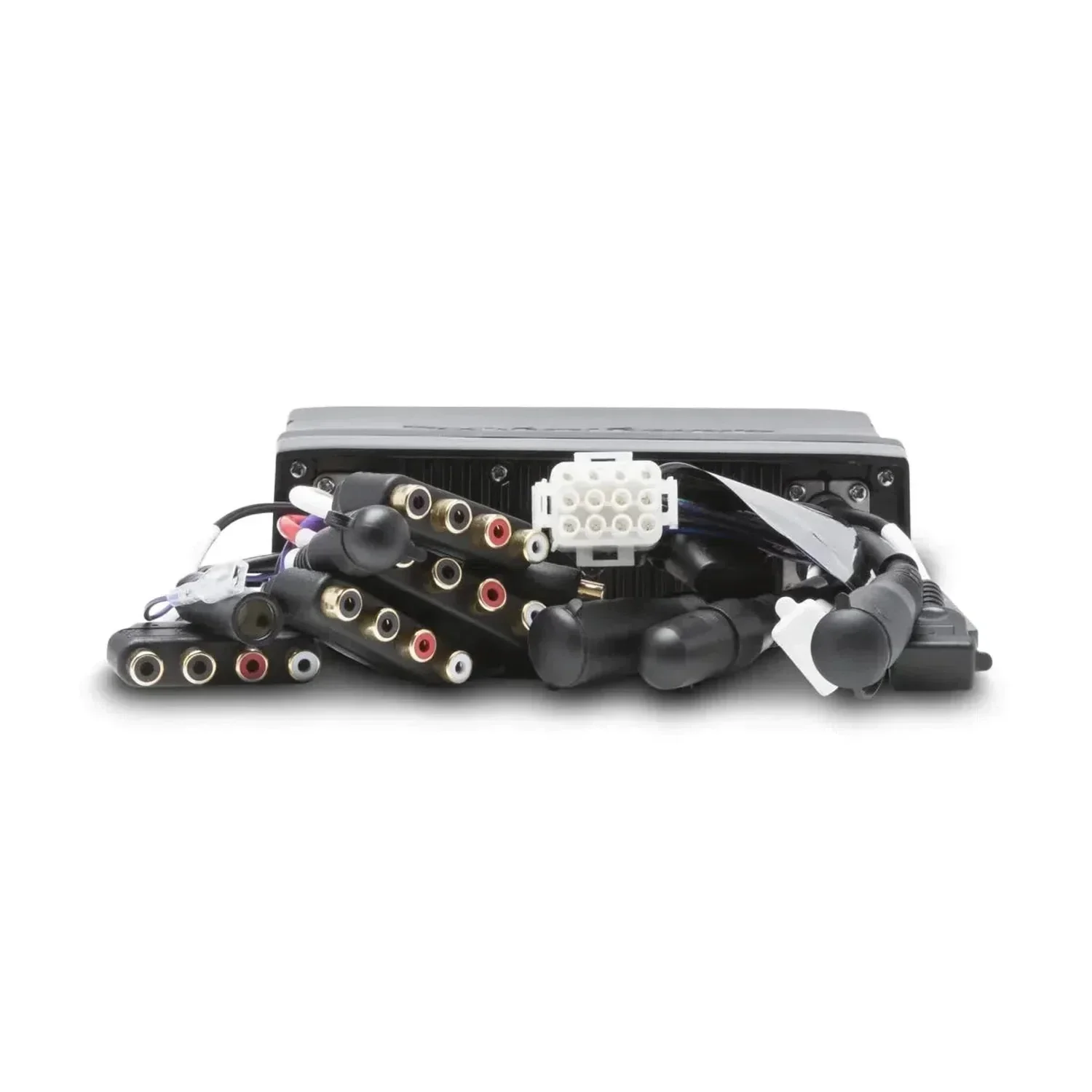

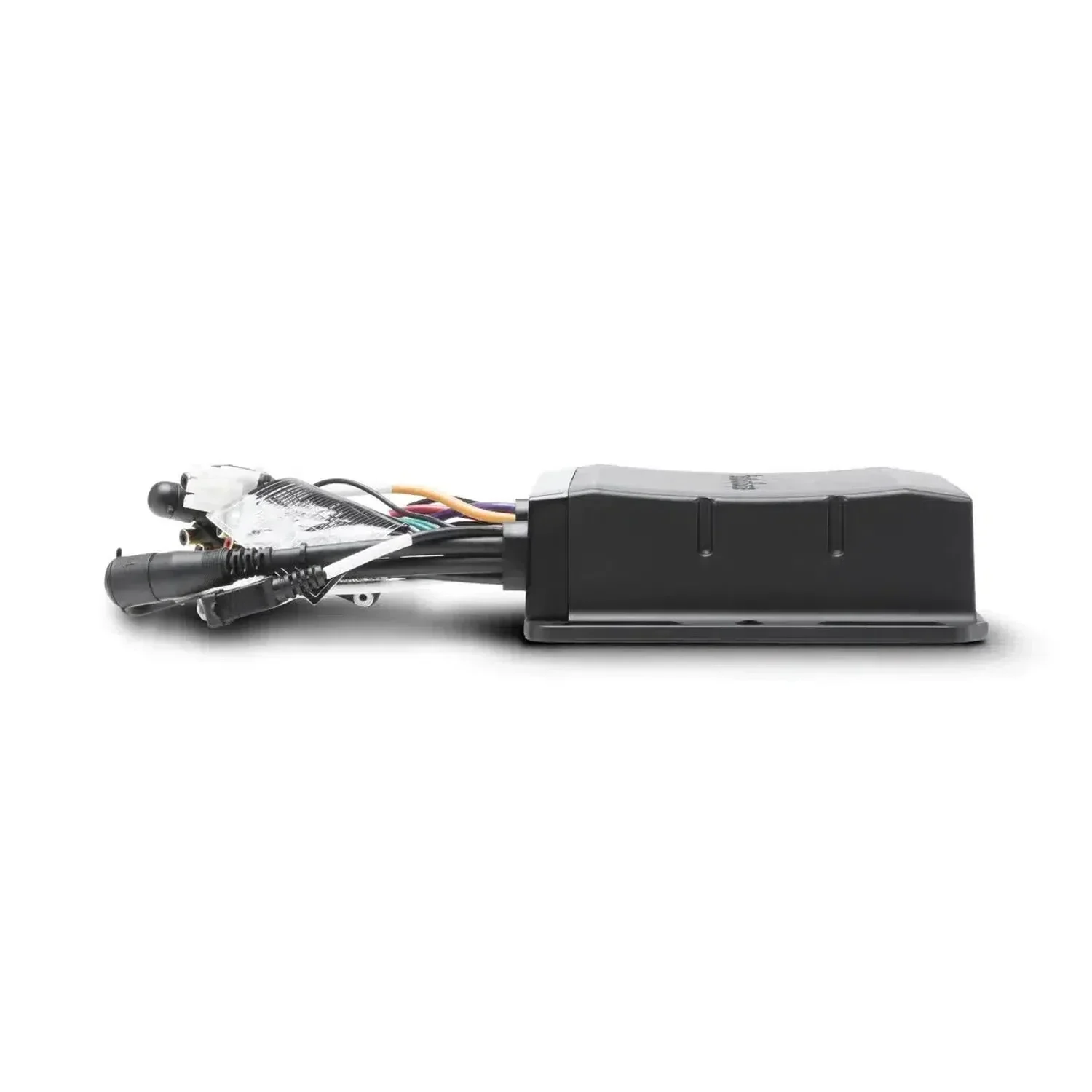

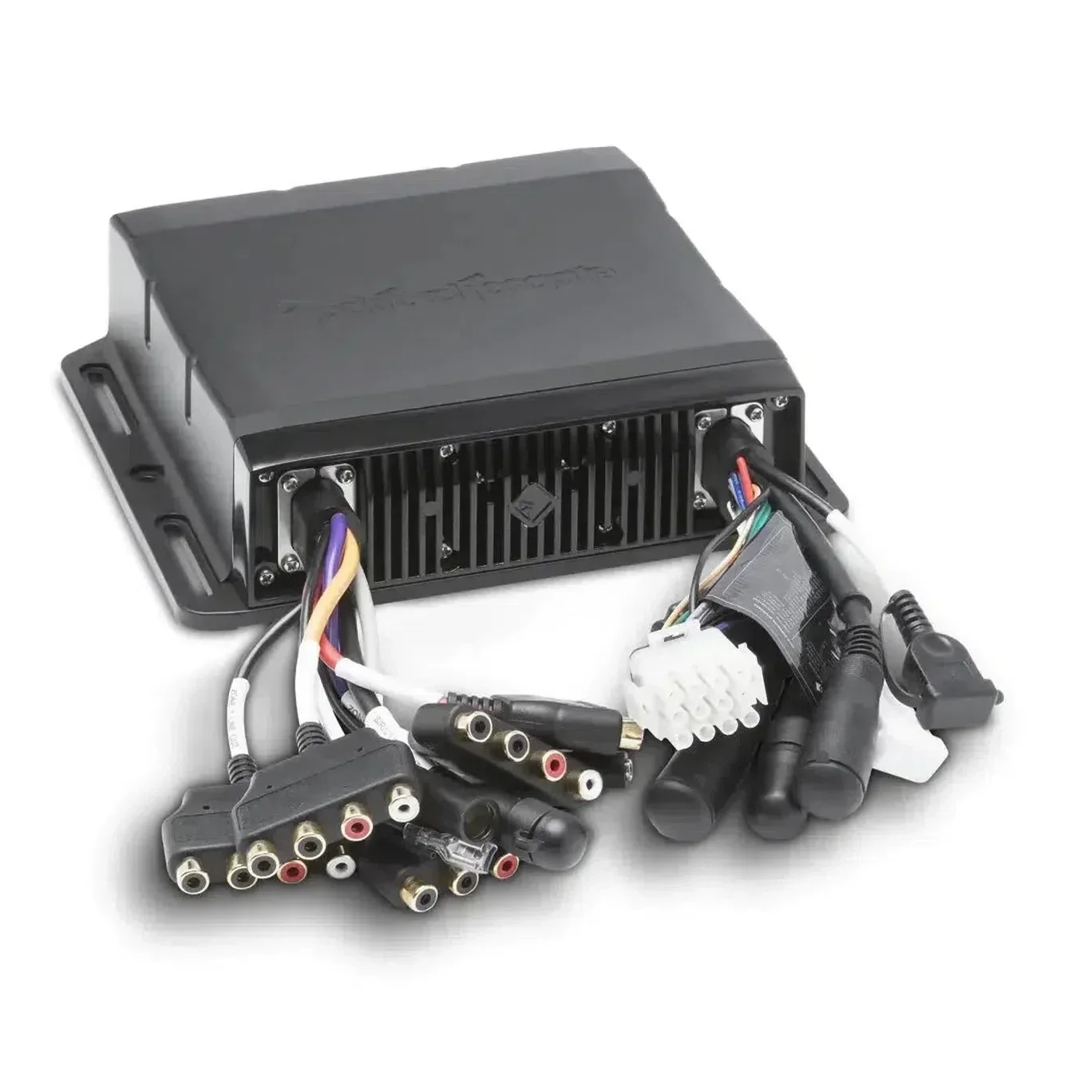

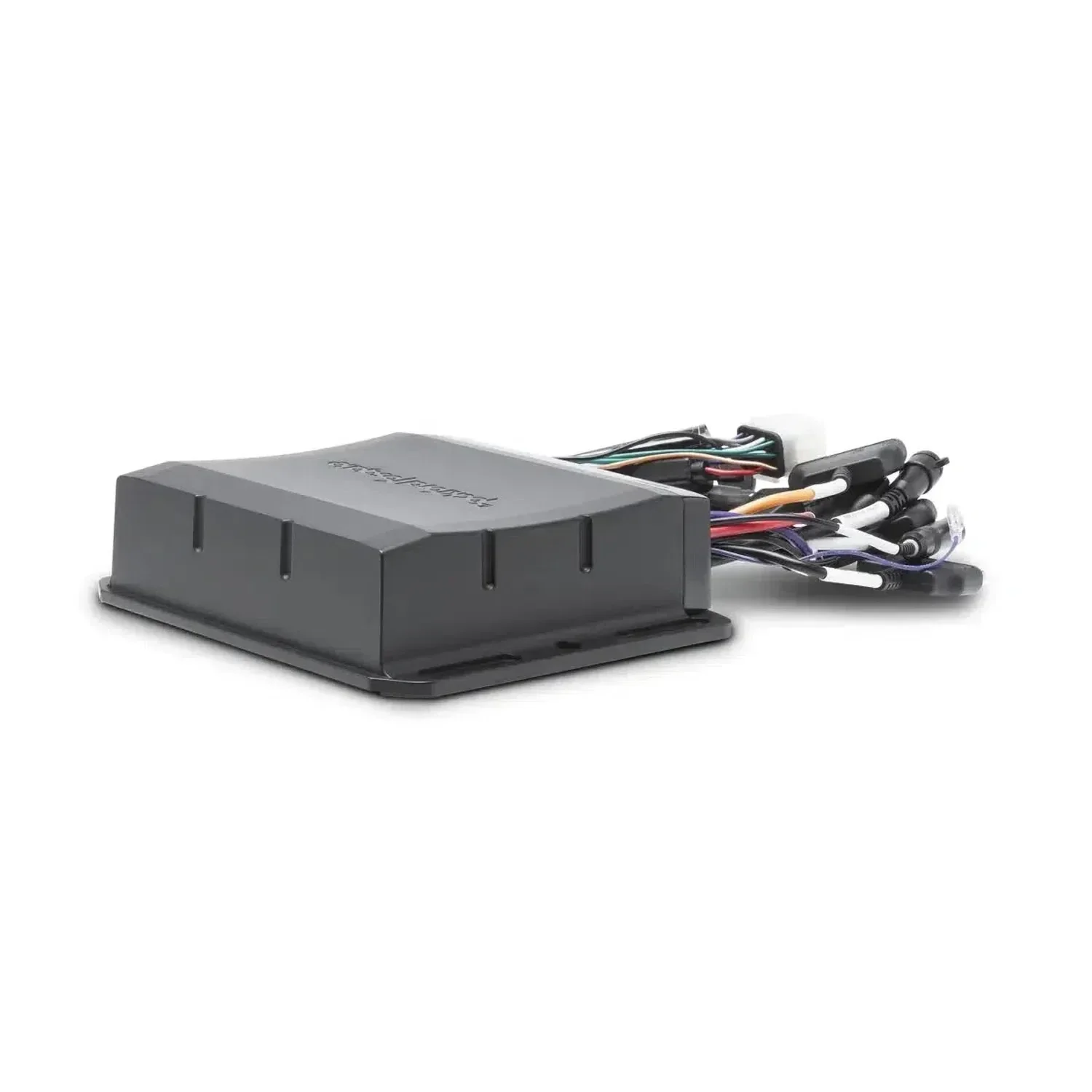

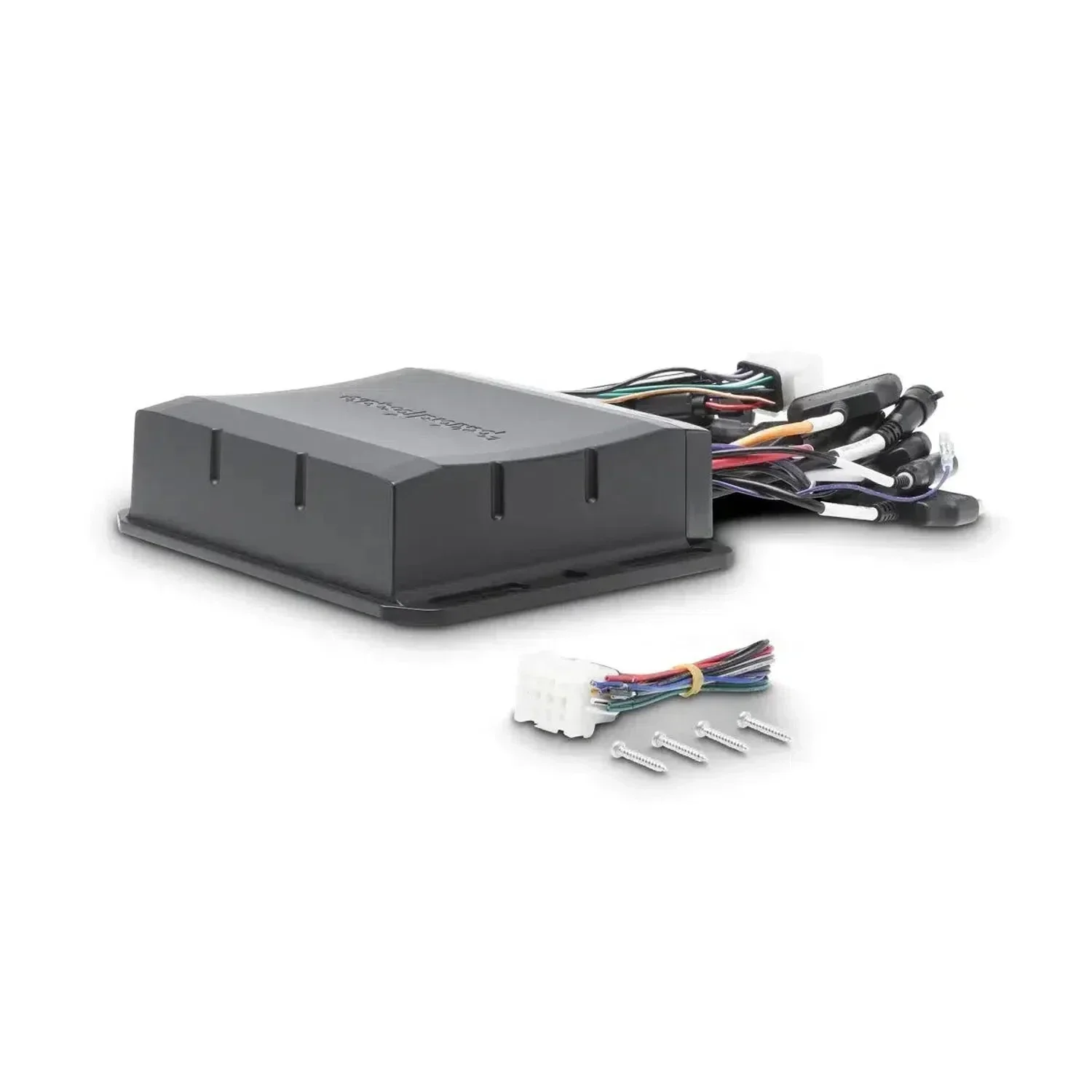

Rockford Fosgate PMX-8BB Media-Receiver / Black Box

The PMX-8BB is a hidden digital media receiver designed for use with the PMX-8DH controller. It features CAN bus functionality for connection to Raymarine MFD systems (Multi-Function Display) with PMX-CAN.

• AM/FM radio in automotive quality, digital weather radio tuner. Supports Radio Data System (RDS) for receiving and displaying broadcast information.
• Bluetooth, only A2DP, AVRCP 1.4
• Made for iPhone Apple certified
• Licensed Pandora control (Apple directly via USB or BT/Android via Bluetooth)
• Simple, secure Bluetooth profile for Android and iOS
• Internal power amplifier 4x50w 2 Ohm stable
• Display of album covers from connected iPhones on the radio's display
• 4 Sets (Zones) RCA Output; 4 active with 4 channels per zone (2 Full Range + 2 Sub) 4V signal output
• Searching folders on BT-connected iPhones
• Dedicated DSP audio processors for each zone with independent 7 band EQ + Punch EQ
• Adjustable input gain for each source
• Selectable high-pass and low-pass crossover points for each independent zone
• Selectable crossover slopes of 12 dB or 24 dB for each independent zone
• EEPROM (Electrically Erasable Programmable Read-Only Memory) is a non-volatile memory used in electronic devices to store data that must be retained after the power is turned off.
• Integrated voltage display with undervoltage alarm
• Wired remote control (up to 3 remotes)
• Aux input rear (L/R)
• Interface for external steering wheel remote controls compatible
• External trigger input for activating the reverse camera mode
• Wired lighting control
• Optional CAN-BUS transceiver available (PMX-CAN)
• Rear USB port with 1A charging function (supports album cover on iPhones connected via USB)
• Epoxy-coated circuit board
• Updatable firmware and Bluetooth software via USB
• Protection class IPX5 against ingress of water: Water projected from any direction from the nozzles must not have harmful effects.
• CANbus (Controller Area Network) compatible. Requires PMX-CAN accessories.
• Compatible with a multi-function display that uses the NMEA2K entertainment standard. See our MFD compatibility chart.
• *Antenna not included

• Compatible with a multi-function display in conjunction with an NMEA2K network

• Device Type Digital Media Black Box
• Frequency response 20 Hz - 20 kHz
• Operating voltage 10.5V - 16V
• Remote control capacity (see compatibility table)
• Performance Delivery CEA-2006 Guidelines CEA-2006 Performance Assessment
• 25W x 4 @ 4Ω RMS
• ≤1.0% THD+N
• Speaker impedance 2-ohm
• Dimensions (HxWxD) 108mm x 211mm x 56mm
• Fuse rating 15A
• Bluetooth® 3.0+EDR, A2DP 1.3
• SiriusXM-ready® Requires SXV300
• Apple®/Android™ compatible
• Steering wheel control ready
• Pandora® Internet Radio
• AUX input
• USB charging
• FM TUNER frequency range 87.5 MHz - 107.9 MHz
• Number of presets 18 FM / 12 AM / 6 WB
• AM TUNER frequency range 530 kHz - 1710 kHz
• WB-TUNER frequency range 162.40 - 162.55
• Audio format compatibility MP3 / WMA / FLAC
• USB Version 2.0
• USB capacity 32Gb max
• 999 directories max
• 999 title max.
• USB output current 1A
• Suitable for iPod models
• iPod Touch (5th Generation)
• iPod Touch (4th Generation)
• iPod Nano (7th Generation)
• iPod Nano (6th Generation)
• Android Compatibility Only Bluetooth®
• Made for iPhone models
• iPhone XS (in preparation)
• iPhone XS Max
• iPhone XR (pending)
• iPhone X
• iPhone 8
• iPhone 8 Plus
• iPhone 7
• iPhone 7 Plus
• iPhone 6s
• iPhone 6s Plus
• iPhone 6
• iPhone 6 Plus
• iPhone 5S
• iPhone 5C
• iPhone 5
• iPhone 4
• iPhone 4S
• iPhone 3GS
• RCA output voltage 4V
• RCA output impedance 500Ω
