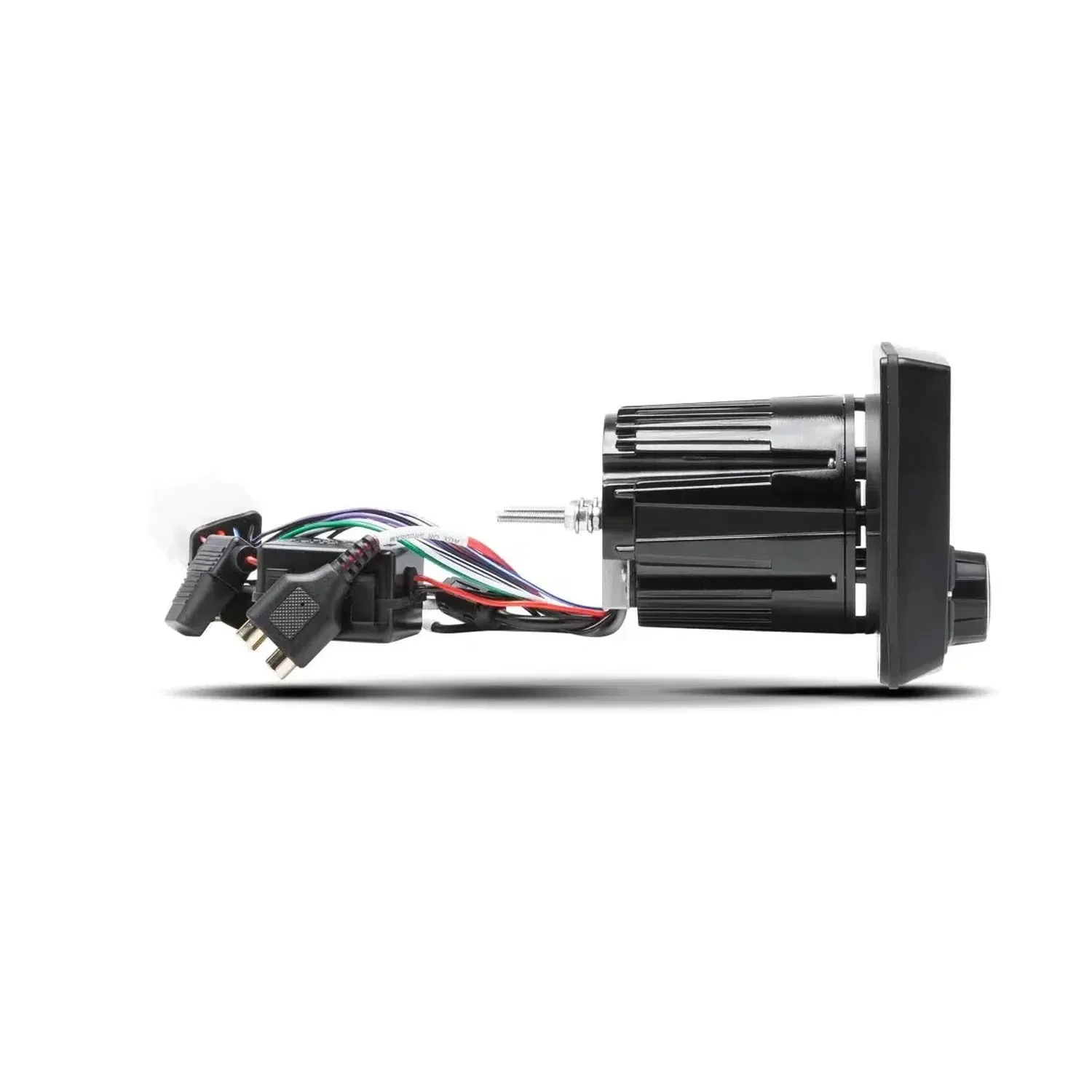

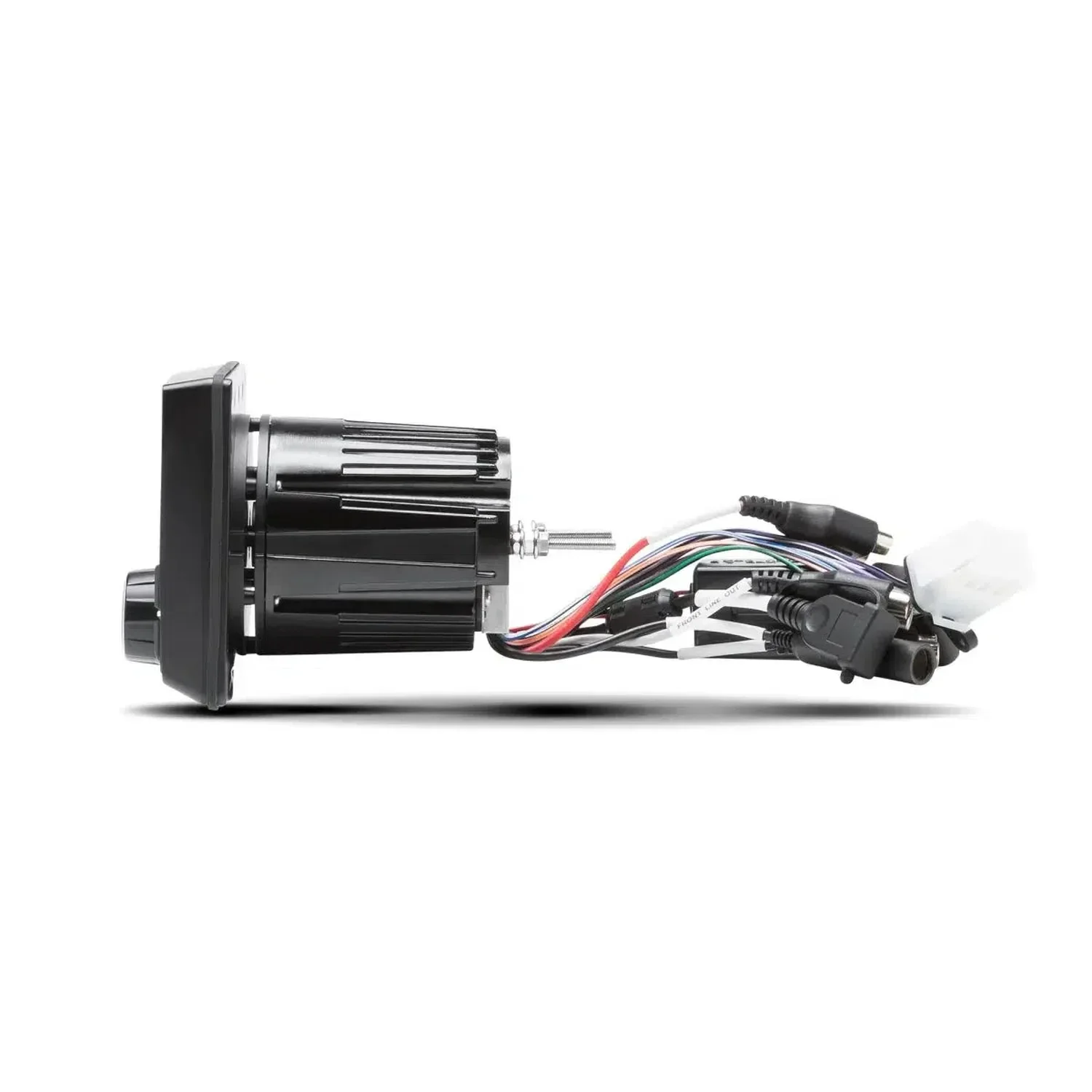

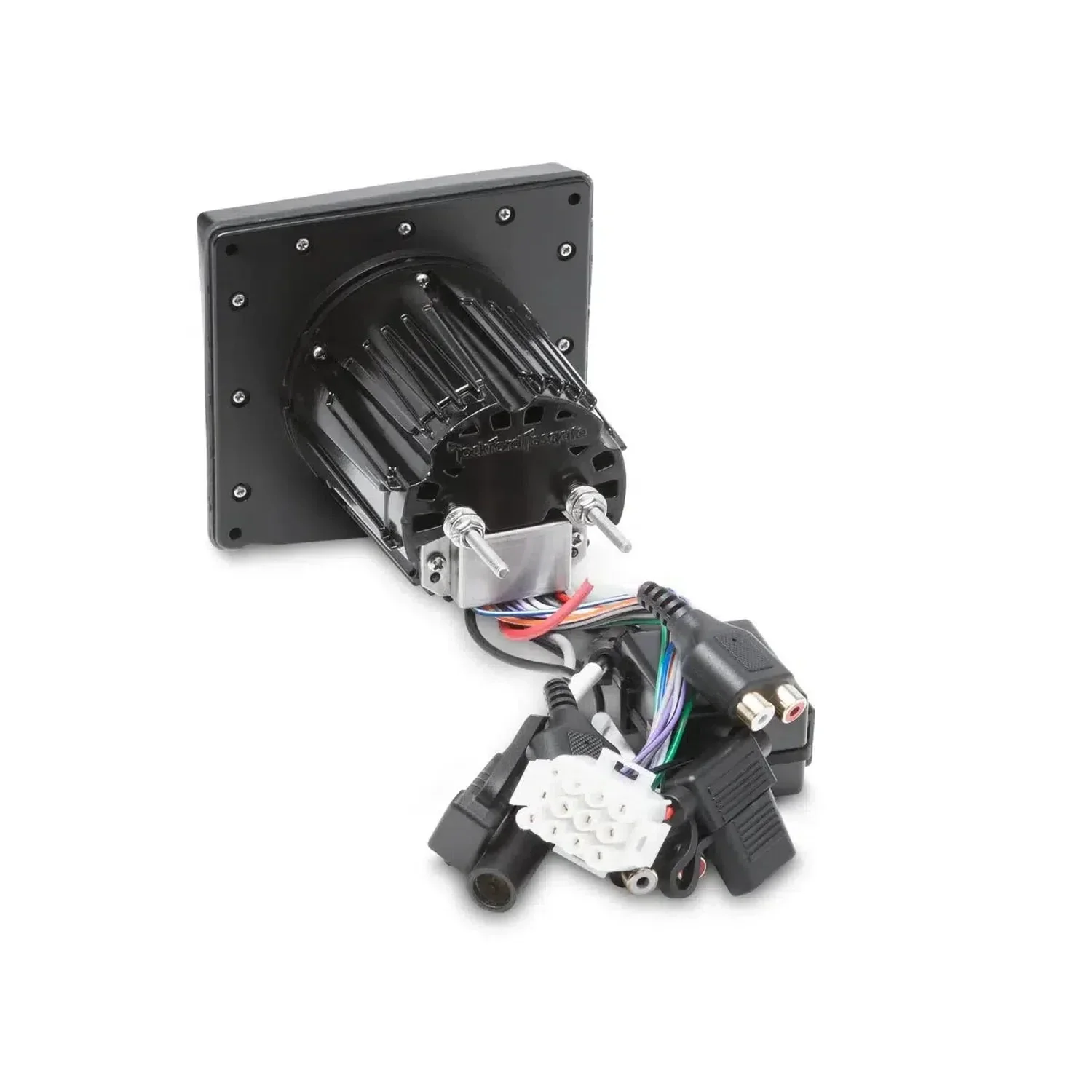

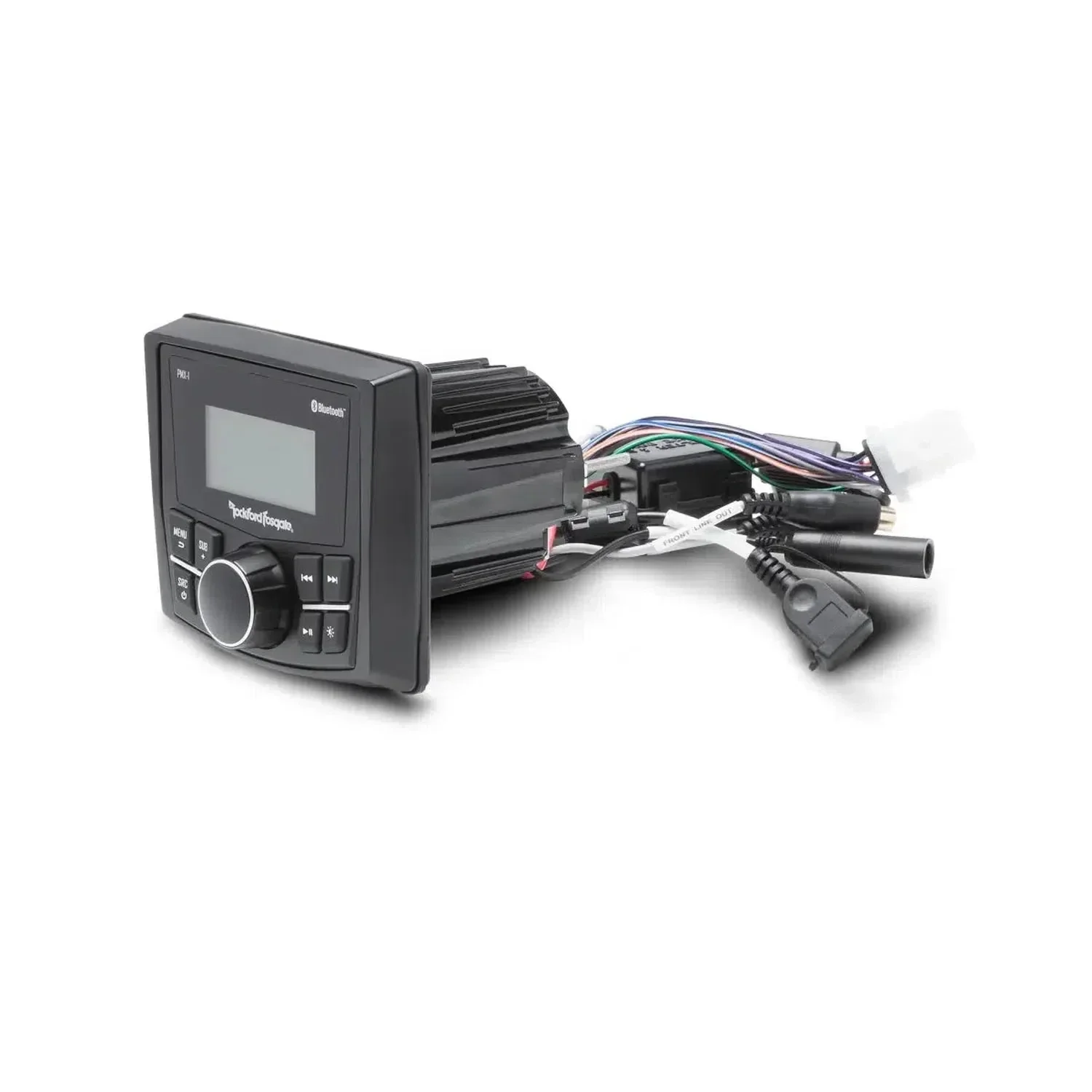

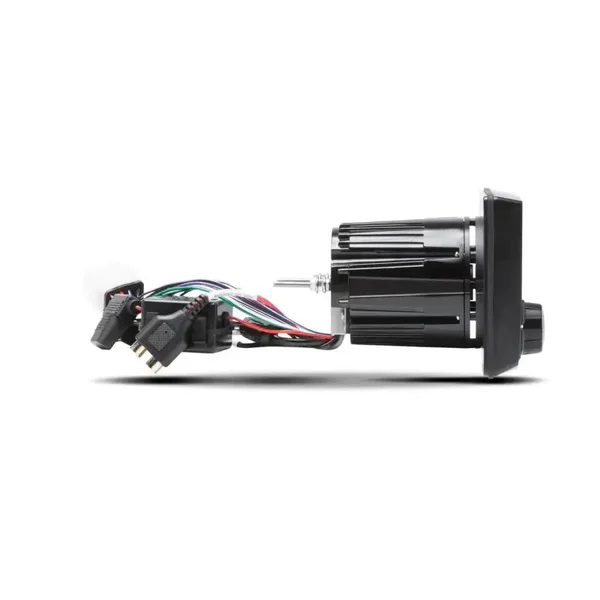

Rockford Fosgate PMX-1 2.3'' Headunit Marine
€299.00
Rockford Fosgate PMX-1 2.3'' Headunit Marine
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Technical Features

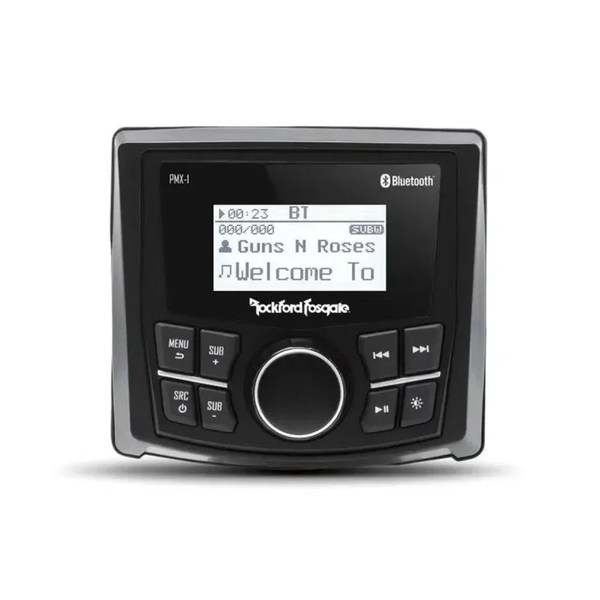

- Bonded 2.3-inch full dot matrix LCD display
- Screen made of hardened 9H glass
- Compatible with the PMX-BTUR steering wheel remote control
- AUX and USB inputs with USB charging function
- Independent subwoofer level control
- A2DP and AVRCP Bluetooth® for wireless streaming
- Voltage display with undervoltage warning
- AM/FM/WB Tuner
- Graphic 7-band EQ + PEQ
- Selectable HP / LP / AP crossovers with selectable slope 12 / 24 dB/oct.
- Multiregional Radio Frequencies
- IP6 Marine Grade Front Plate
- FCC, CE and EN60945 certified
Technical Data
- Multi-Zone/Multi-Source No
- Device type Digital Media Receiver
- Speaker outputs Yes
- Pandora® Internet Radio No
- Bluetooth® Yes
- 3.0+EDR, A2DP 1.3
- SiriusXM-ready® No
- AUX input Yes (1 RCA pair)
- USB Charging Yes
- Steering wheel control ready No
- AM Tuner Range: 530 - 1710 kHz
- Sensitivity: 40 dB
- Frequency response: 45 to 2.4 kHz
- TUNER Number of presets 18 FM / 12 AM / 6 WB
- Frequency response RCA: 20 Hz - 20 kHz
- High level: 20 Hz - 20 kHz
- Output power (max) CEA-2006 guidelines CEA-2006 power rating
- 25W x 4 @ 4Ω RMS
- 50W x 4 @ 2Ω MAX
- ≤1.0% THD+N
- FM Tuner Range: 87.9 - 107.9 MHz
- Sensitivity: 8 dB
- Frequency response: 20 - 15 kHz
- Output impedance <500 Ω
- Min. Speaker Impedance 2Ω
- Media formats MP3 / WMA
- Maximum output voltage RCA: 2 V
- RCA Back/Sub: 2 V
- Signal-to-noise ratio RCA 2V: >85 dB
- High level CEA-2006: >75 dB
- High Level Max Watts: >85 dB
- Compatible remote controls N/A
- Channel separation RCA: >70 dB
- High level: >50 dB
- Max THD+N High-Level: <1.0 @ 4-Ohm
- USB output current 1A
- Operating voltage 9 - 16 V (DC)
- USB Version 2.0
- Idle current <2 A
- Protection value 20 A
- Dimensions Width: (11.5 cm)
- Depth: 3.8 cm
- Installation depth: 7.4 cm
- Height: 10.6 cm
- Shipping weight: 0.55 kg
- Rear window cutout 3" (77 mm)
