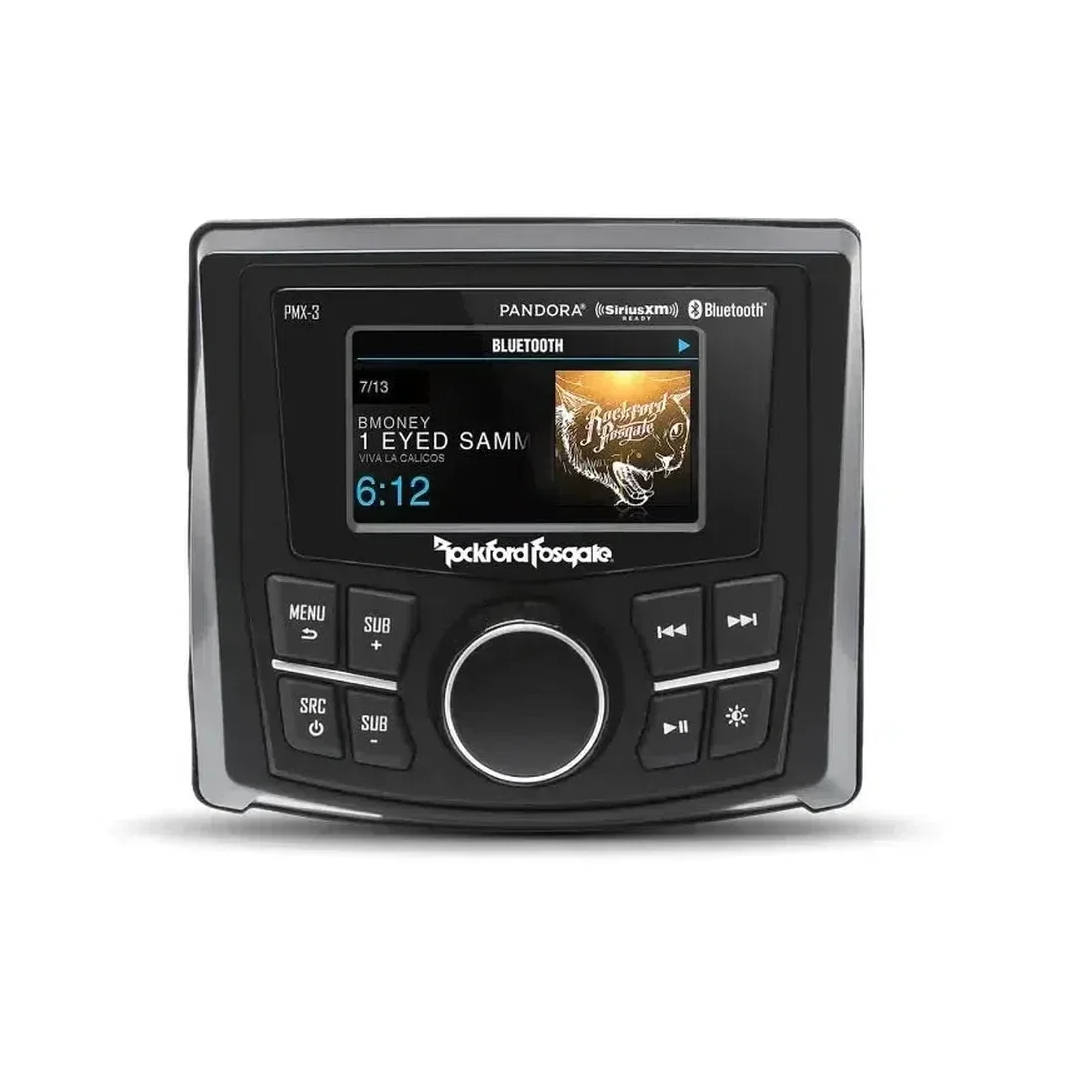

Rockford Fosgate PMX-3 2.7'' Headunit Marine
€479.00
Rockford Fosgate PMX-3 2.7'' Headunit Marine
- Condition: New
- Sale type: BTW/21%
- Stock : 2 -4 days extra delivery time
Technical Features
- 2.7-inch thin-film transistor color display
- SiriusXM-Ready™ (SXV300 Module) with colored station logos (18 station presets)
- Wired remote control (up to 3 remotes)
- EEPROM (Electrically Erasable Programmable Read-Only Memory) is a non-volatile memory used in electronic devices to store data that must be retained when the power is turned off.

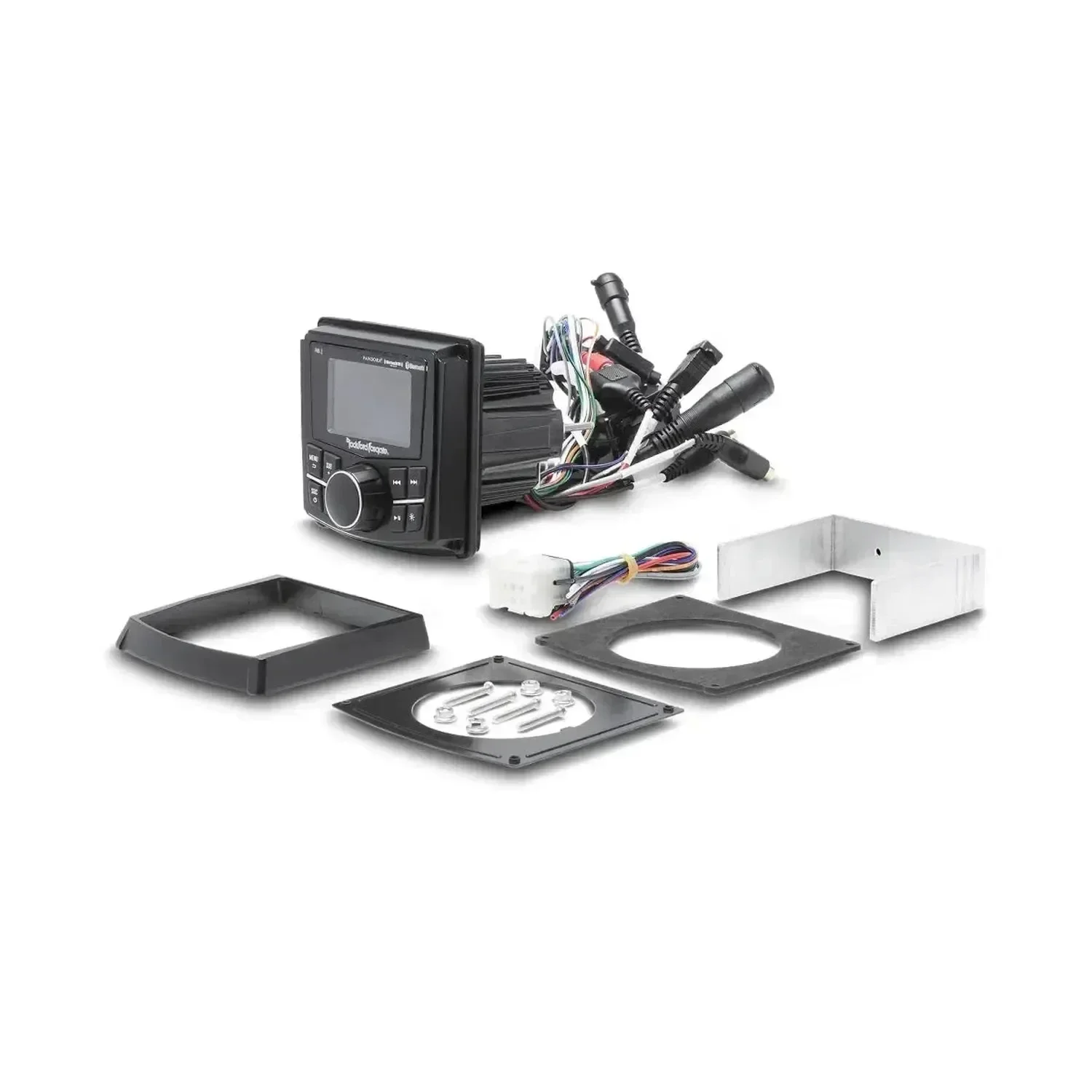

- Two-part mounting system for securing the panel to the mounting surface
- Integrated voltage measuring device with undervoltage warning
- Updatable firmware and Bluetooth software via USB
- Sub-control on the front side
- IPX6 Marine Grade to prevent water ingress
- ASTM: B117 Salt Spray & D4329 UV Exposure tested
- Internal power amplifier 4x45W 2Ω stable
- Single-zone output with 2 channels in the front across the entire frequency range and 2 channels in the back / subwoofer selectable at 2 volts.
- AM/FM radio in automotive quality, digital weather radio tuner. Supports Radio Data System (RDS) for receiving broadcast information.
- Licensed Pandora control (Apple directly via USB or BT/Android via Bluetooth)
- Certified for Apple iPhone
- Bluetooth Streaming Audio (A2DP) Protocol Version 1.4 installed
- Rear USB port with 1A charging function
- AUX input rear (L/R)
- Simple Secure Pairing (SSP)
- Display of album covers from connected iPhones on the radio display
- Searching folders on BT-connected iPhones
- Dedicated DSP audio processors for each zone with independent 7 band EQ + Punch EQ
- Selectable high-pass and low-pass crossover points for each zone
- Selectable crossover slopes of 12 dB or 24 dB for each zone
- Adjustable input gain for each source
- Waterproof rotary encoder for volume control
- Tactile, curved keys for easy identification
- White LED key lighting
- Wired and front-side lighting control
- Nass-adhesive advertisement
- Epoxy-coated circuit board for water resistance
- Direct composite video input connection
- External trigger input for activating the reverse camera mode
- Day/Night Display Mode
Technical Data
- Pandora® Internet Radio
- SiriusXM-Ready®
- USB charging function
- Bluetooth® 3.0+EDR, A2DP 1.3
- Apple®/Android™ compatible
- Limited functionality on Android. See user manual.
- Speaker outputs
- AUX input 1 pair
- FM TUNER frequency range 87.5 MHz - 107.9 MHz
- Number of presets 18 FM / 12 AM / 6 WB
- AM TUNER frequency range 530 kHz - 1710 kHz
- FM TUNER Sensitivity 8 dB
- AM-TUNER Usable Sensitivity 40 dB
- RCA output voltage 2V RMS
- No overdrive at full power
- RCA-OUTPUTS Front & Rear/Sub
- WB TUNER Frequency Range 162.40 - 162.55
- RCA output impedance 500Ω
- Speaker impedance 2-ohm
- Output power CEA-2006 guidelines CEA-2006 rated power
- 25W x 4 @ 4Ω RMS
- 50W x 4 @ 2Ω peak power
- ≤1.0% THD+N
- Device Type Digital Media Receiver
- Frequency response 20 Hz - 20 kHz
- Audio format compatibility MP3 / WMA / FLAC
- Suitable for iPod models
- iPod Touch (5th Generation)
- iPod Touch (4th Generation)
- iPod Nano (7th Generation)
- iPod Nano (6th Generation)
- Suitable for iPhone models iPhone XS (in preparation)
- iPhone XS Max
- iPhone XR (pending)
- iPhone X
- iPhone 8
- iPhone 8 Plus
- iPhone 7
- iPhone 7 Plus
- iPhone 6s
- iPhone 6s Plus
- iPhone 6
- iPhone 6 Plus
- iPhone 5S
- iPhone 5C
- iPhone 5
- iPhone 4
- iPhone 4S
- iPhone 3GS
- Android Compatibility Only Bluetooth®
- USB capacity 32Gb max
- 999 folders max.
- 999 title max.
- USB Version 2.0
- USB output current 1A
- Compatible remote controls PMX-1R / PMX-0R
- (3 remote control limits, 30M total distance via cable)
- Operating voltage 10.5 V - 16 V
- Display size 2.7" color TFT
- Rear window cutout 77mm
- Protection value 20 A
- Dimensions (HxWxD) 10.6x11.5x7.4 cm
- Depth of the front 3.8 cm
- Shipping weight 1.41 Kg
