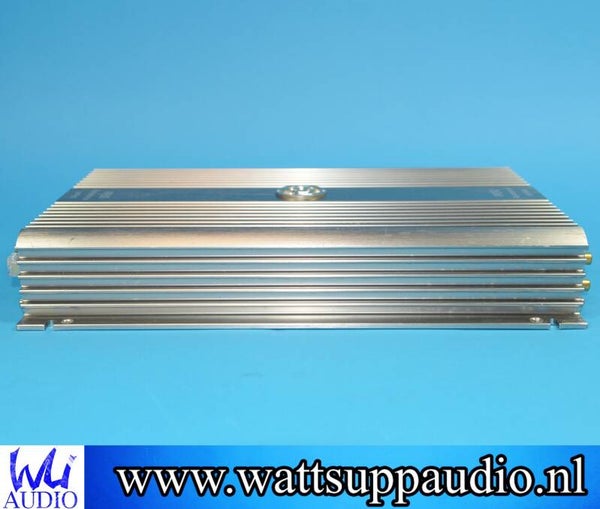

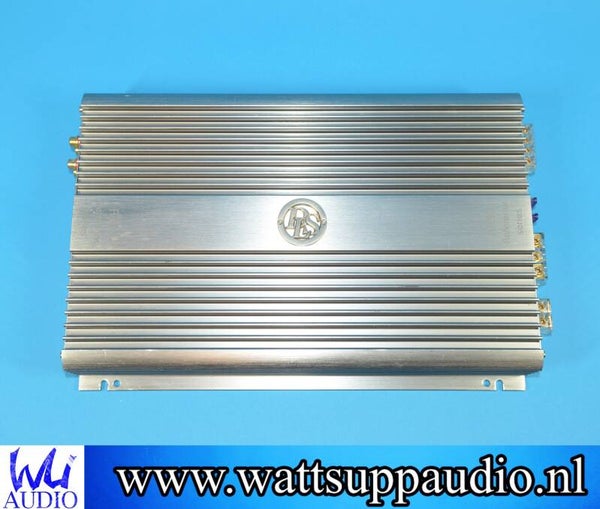

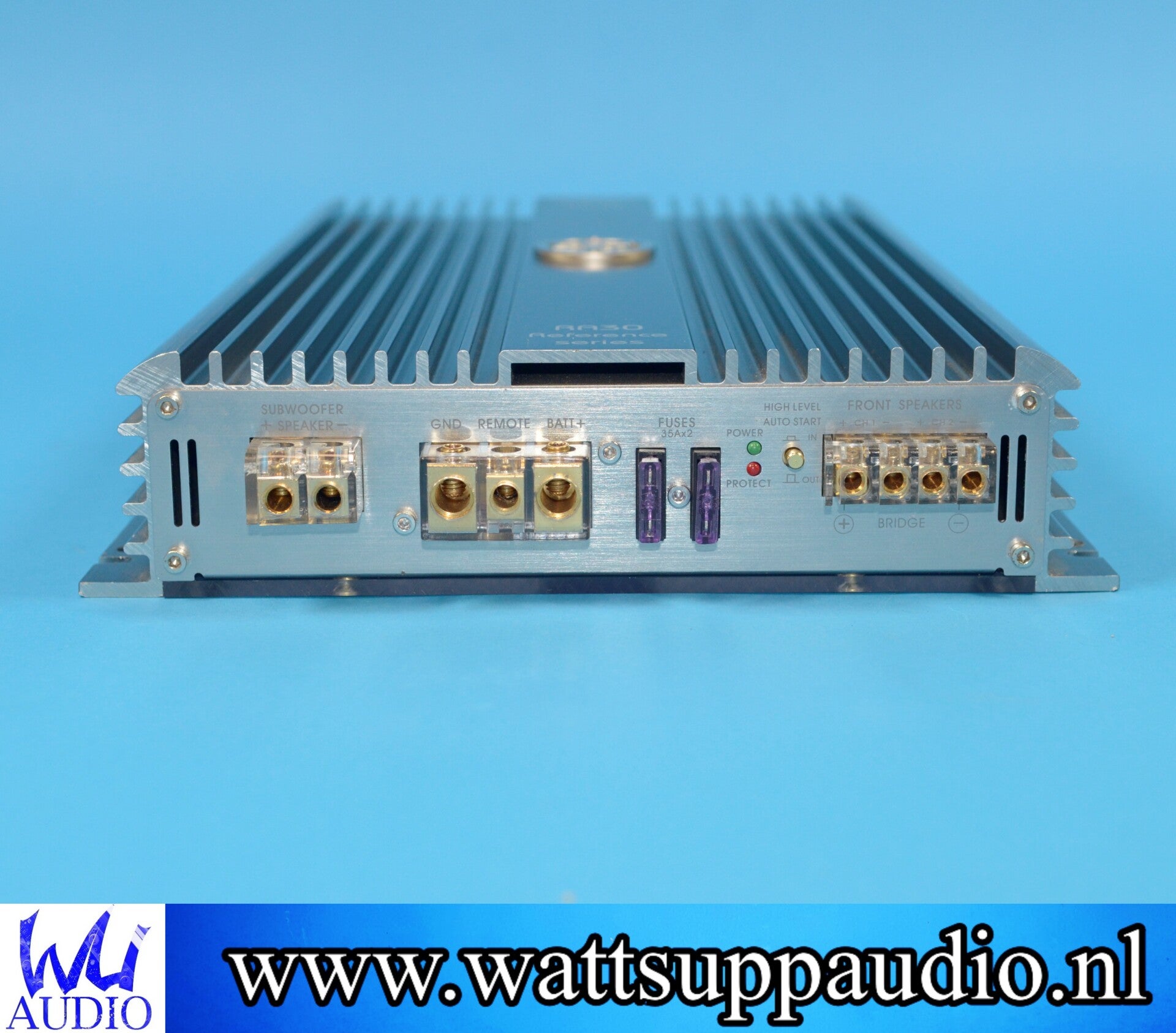

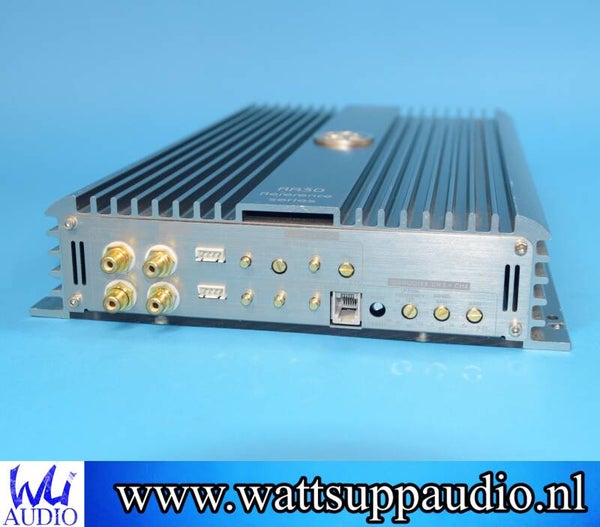

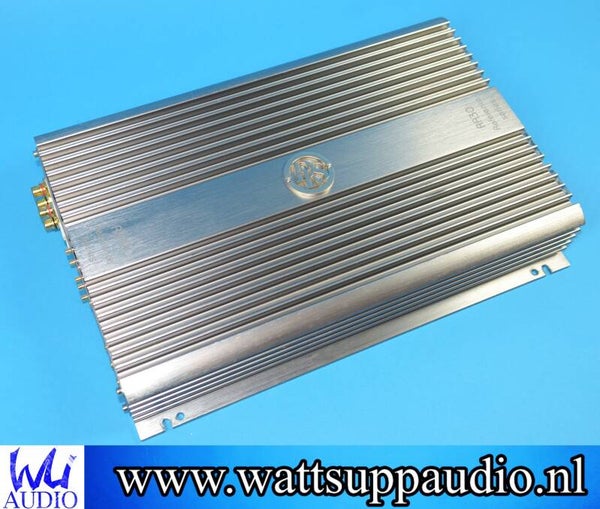

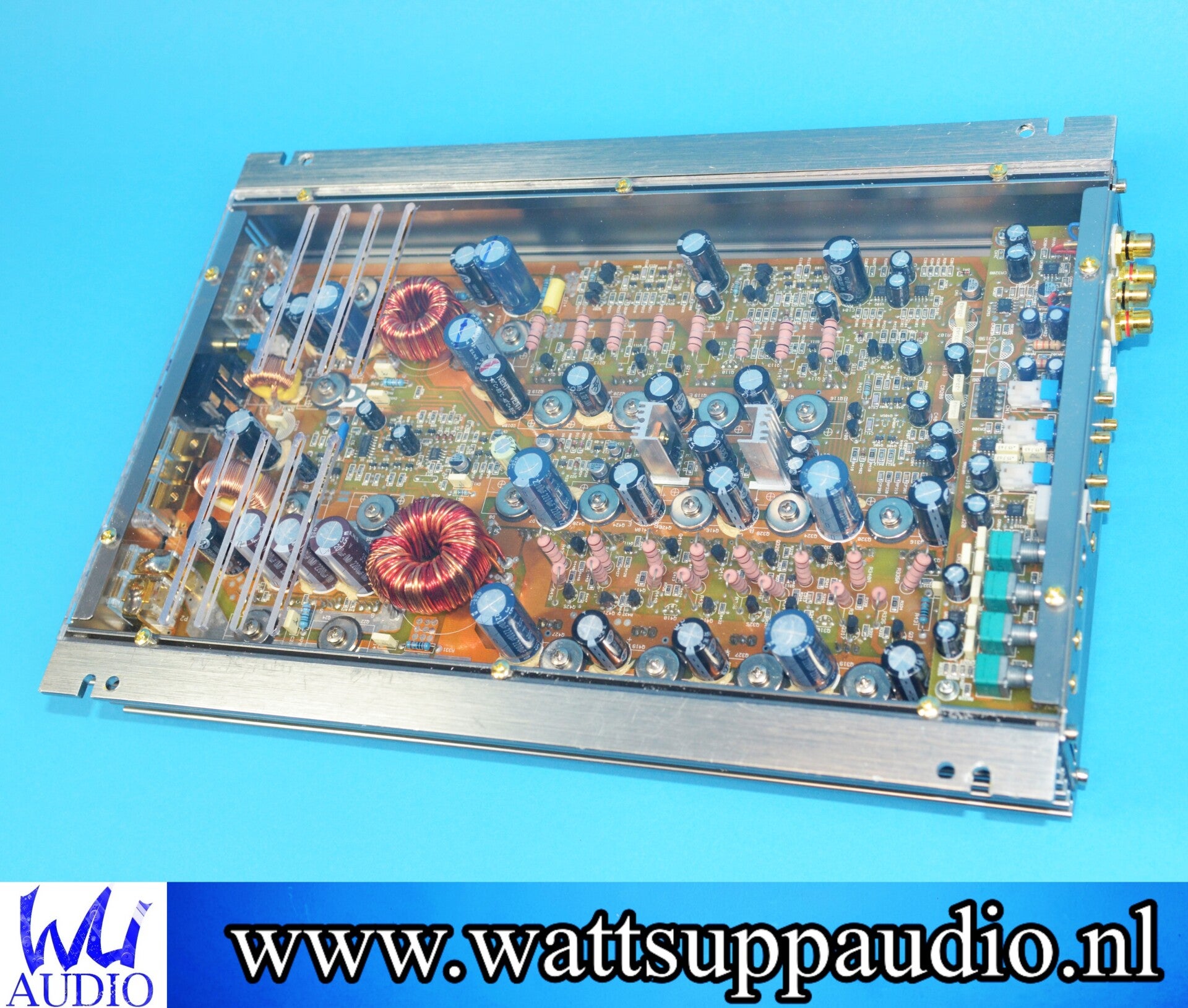

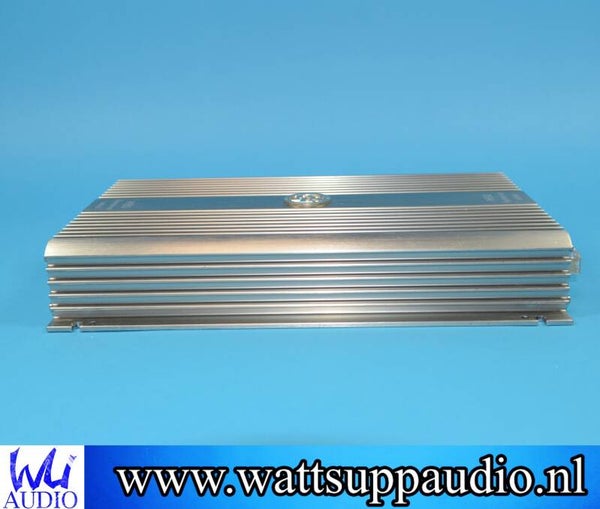

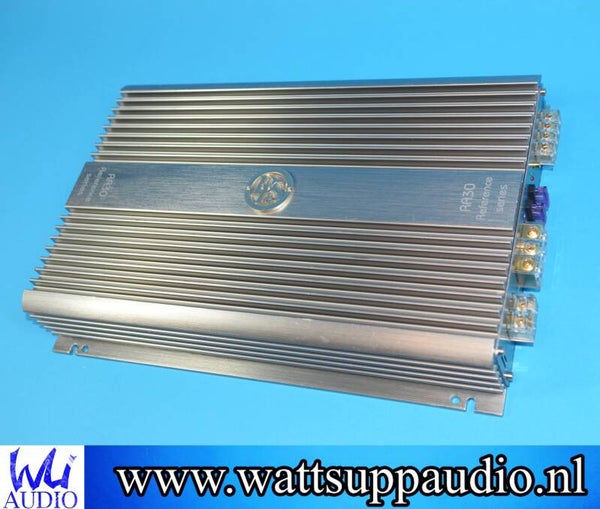

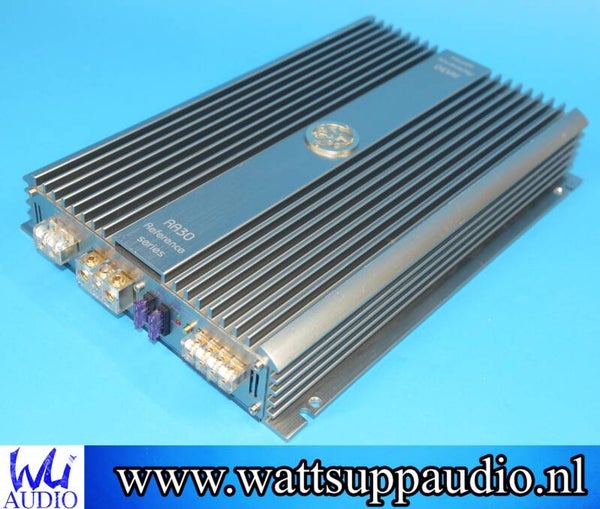

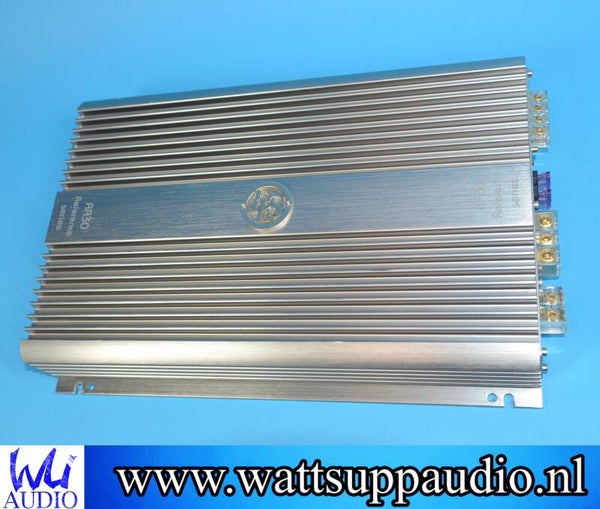

DLS RA30 REFERENCE 3 channel amplifier

DLS RA30 REFERENCE

Sale info

• Condition: used ( tested / inspected )
• sale type: margin
• Stock: shipped within 24 hours

Productinfo

• Amplifier class AB
• Output power in 2 ohm 2 x 100 W RMS
• Output power in 4 ohm 2 x 70 W RMS
• Mono sub channel 2 ohm 365 W RMS
• Mono sub channel 4 ohm 265 W RMS
• Damping factor > 200
• S/N ratio, A-weighted > 100 dB
• Frequency range 10 Hz – 50 kHz
• Input sensitivity 0,2 – 7 V
• Input impedance < 10 kohm Input impedance, high level 330 ohm
• High level input with auto start Yes
• Low level output No
• Remote phase shift control Yes
• Filters channel A & B HP: 45 – 125 Hz
• Phase control for subwoofers 0-180 degrees variable
• Filter sub channel LP: 40 – 125 Hz
• Grand bass filter 0-18 dB @40 Hz
• Power consumption (idle) 0,9 A
• Power consumption (max) 70 A Rec.
• Power cable Minimum 4AWG / 21 mm2
• Fuses 2 x 35 A
• Dimension (W x D x H) 385 x 245 x 59 mm (15,15 x 9,65 x 2,33 inch)

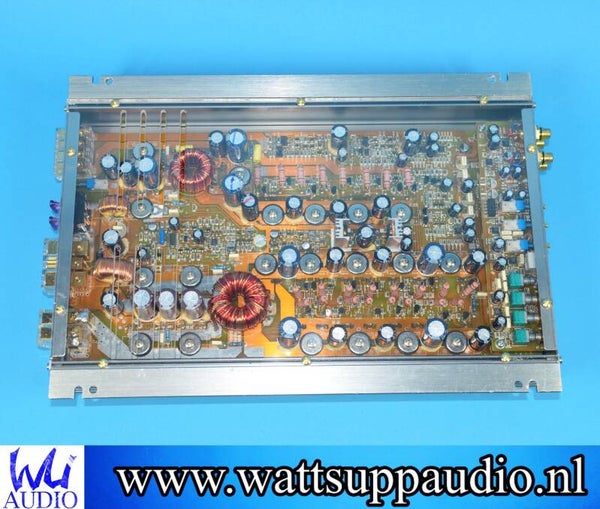

Incl Custom Plexiglass bottom plate

1. Every used product is tested again before shipment. ( send a whatsapp message if you want to receive a test video)

2. Do you have questions ? use the whatsapp chatbox for your audio advice  or send e-mail (Contact info page)

3. Info page > Shipping /  Payment / Warranty<
