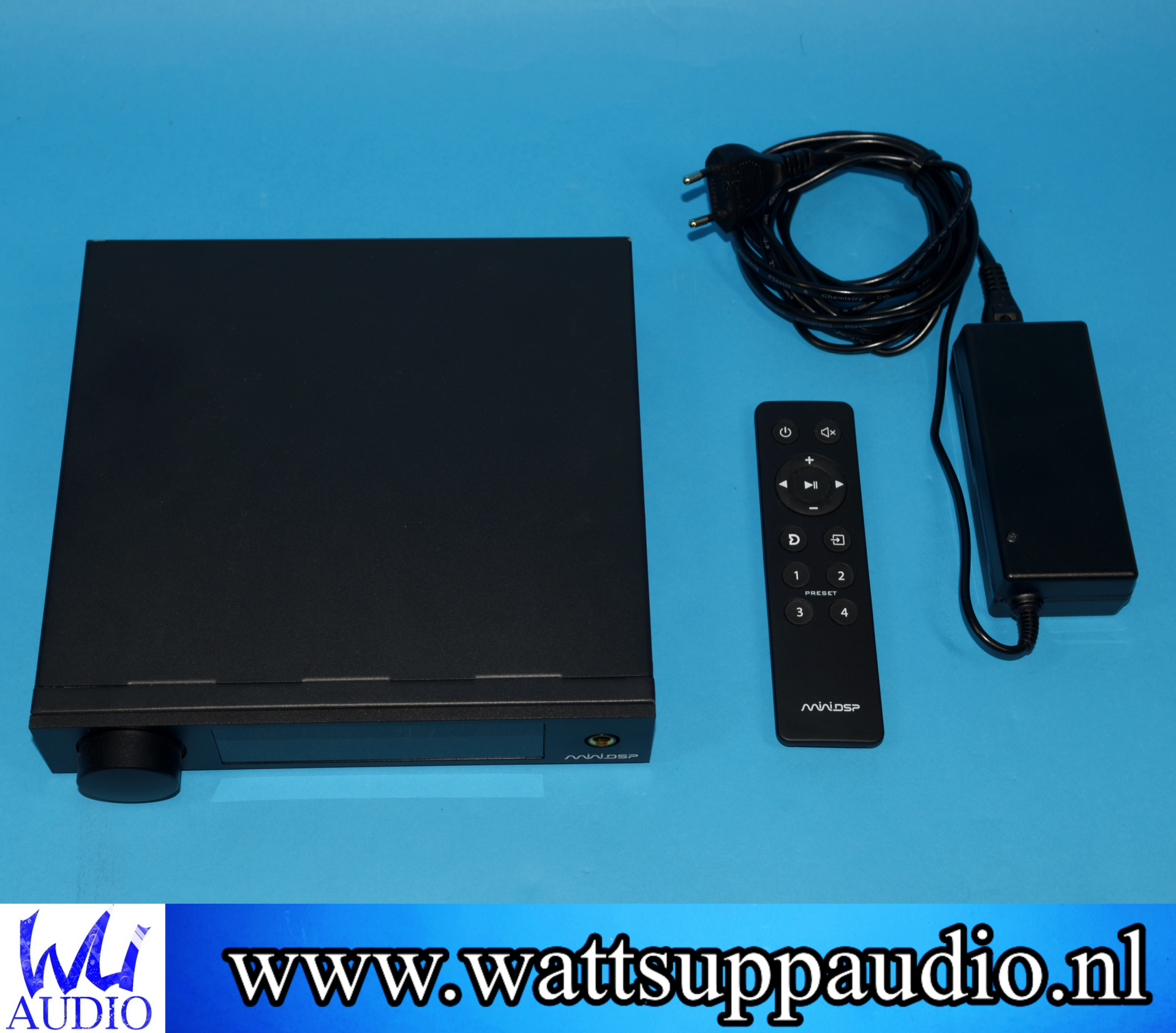

MiniDSP SHD Studio All Digital Dirac Live 2x4 Processor / Streamer

MiniDSP SHD Studio

Sale info

• Condition: used ( tested / inspected )
• sale type: margin
• Stock: shipped within 24 hours

Productinfo:

• 32-bit Floating point Analog Devices SHARC ADSP21489 / 450MHz, Internal sample rate: 96kHz
• Driverless USB 2.0 control interface for Windows environments

• A computer is only required for the initial configuration and for USB audio streaming
• Quad Core ARM processor, Gb Ethernet, USB 2.0 for external Hard drive
  Preloaded with Volumio Audiophile player

• XMOS asynchronous USB audio up to 192 kHz, USB Audio Class 2 compliant
  ASIO drivers for Windows
  Driverless for Mac OS X
• Digital audio source selectable from IR remote or Front panel, up to 216 kHz sample rate

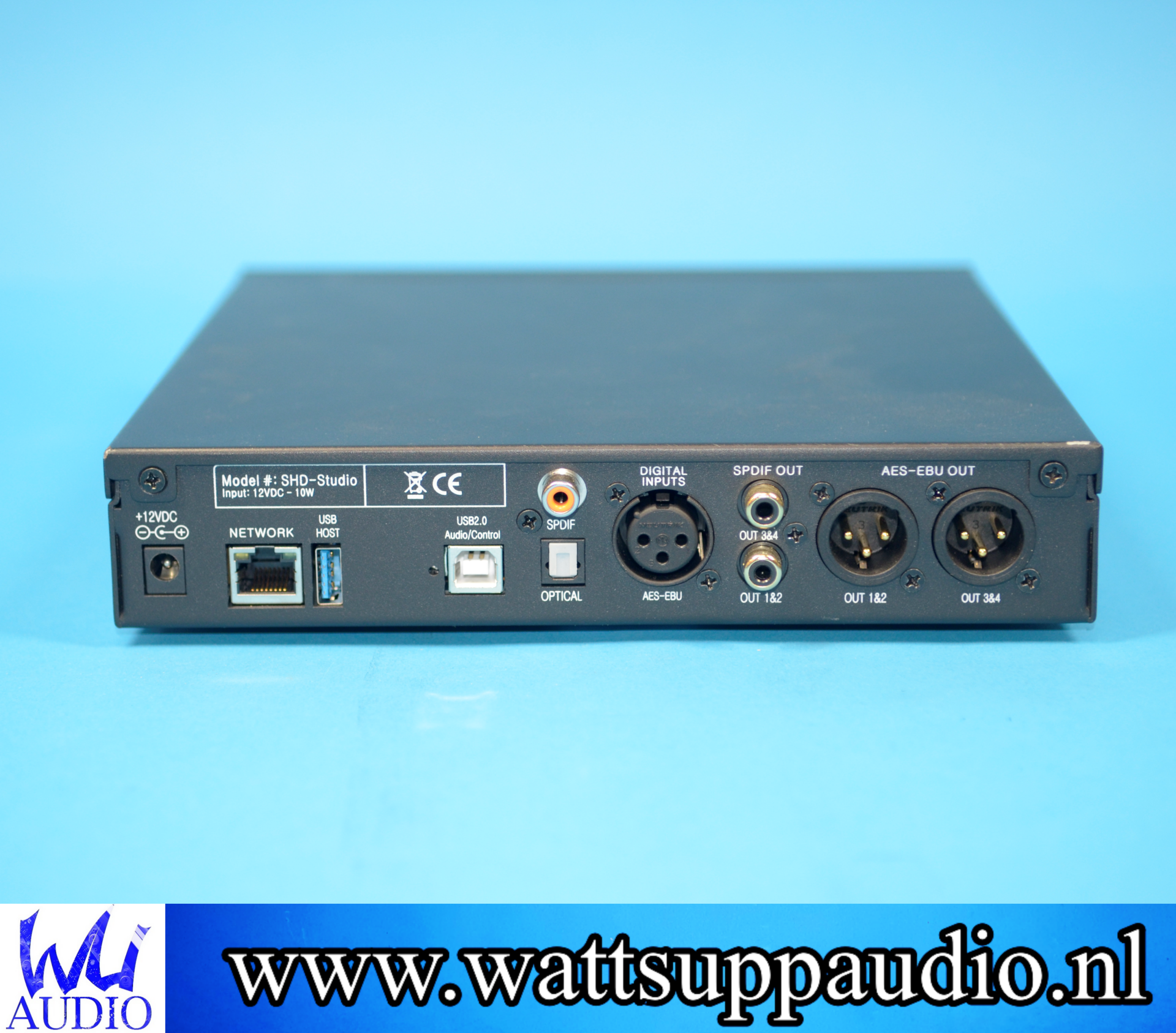

• AES/EBU on Neutrik 3-pin female XLR / Isolated with digital audio transformer

• SPDIF on RCA connector / Isolated with digital audio transformer

• TOSLINK on Optical connector

• Four channels of digital output. Both sets are active simultaneously.

• 2 x AES/EBU on Neutrik 3-pin male XLR / Isolated with digital audio transformer

• 2 x SPDIF on RCA connector / Isolated with digital audio transformer.

• Stereo headphone output follows channels 3 and 4. 6.35mm jack.

• ASIO drivers for Windows

• Frequency response: 20 Hz to 20 kHz +/- 0.2 dB

• Signal-to-noise ratio: 112 dB (32 Ω load, 1 kHz, A-weighted, digital in 0 dB)

• THD+N: 0.001% (32 Ω, 1 kHz, 65 mW + 65 mW, mid gain)

• Supported headphone impedance: 16 – 600 Ω)

• Volume, Parametric Equalizer banks, Crossovers, Matrix mixer, Compressor/Limiter, Mute

• Plug&Play control and configuration from Dirac Live Correction Suite

• Up to 4 filter configuration filters stored on unit

• USB port type B for audio streaming, real time control and firmware upgrade

• 12V DC external supply, EU/US/AU/UK plug adaptors provided

• 1.5 x 214.5 x 206 mm / 1RU half size / Optional full rack mount adaptor available
