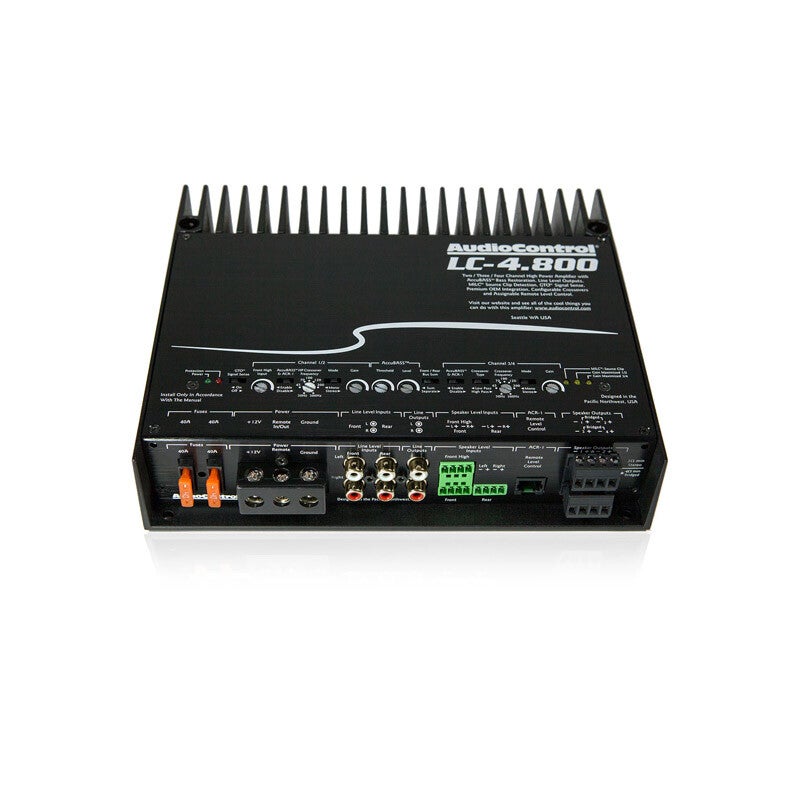

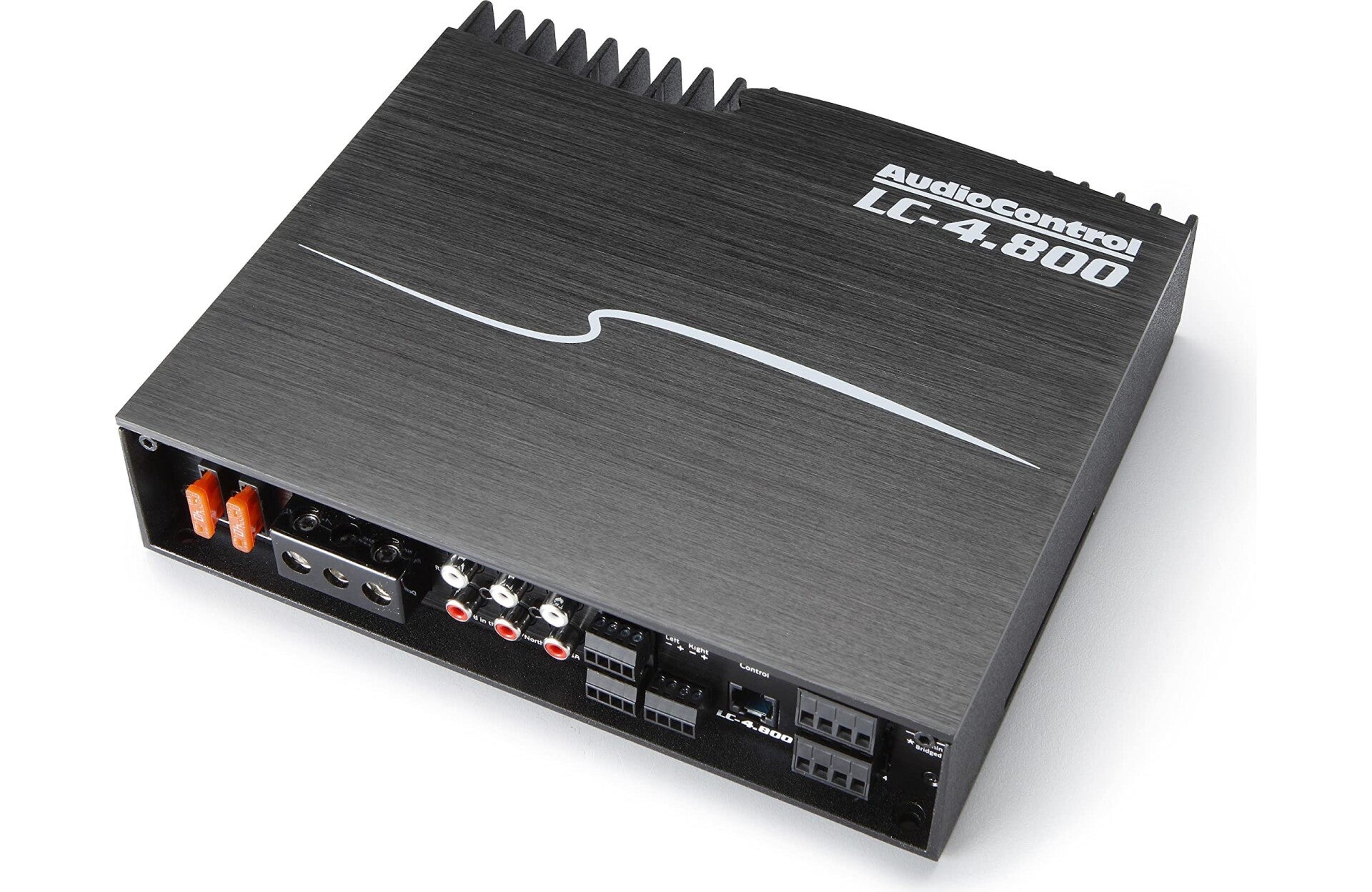

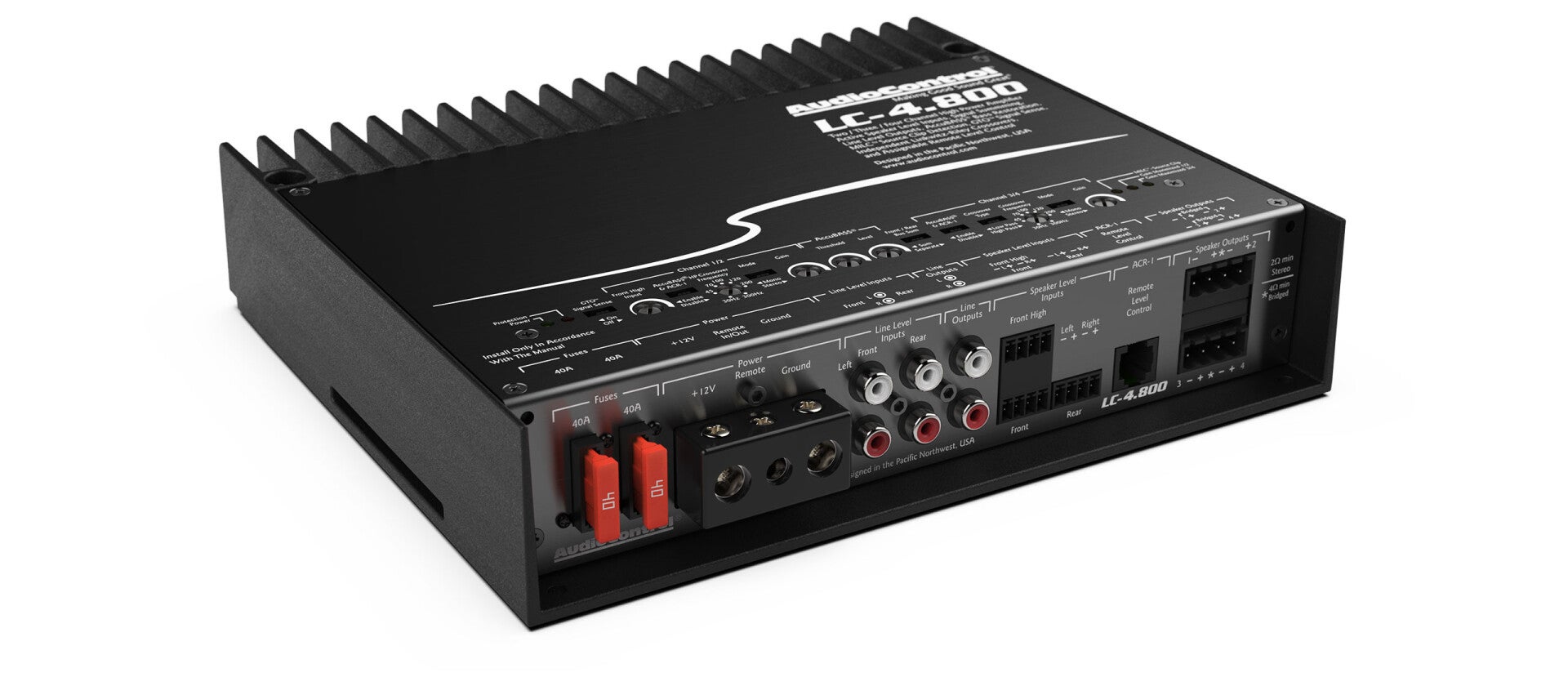

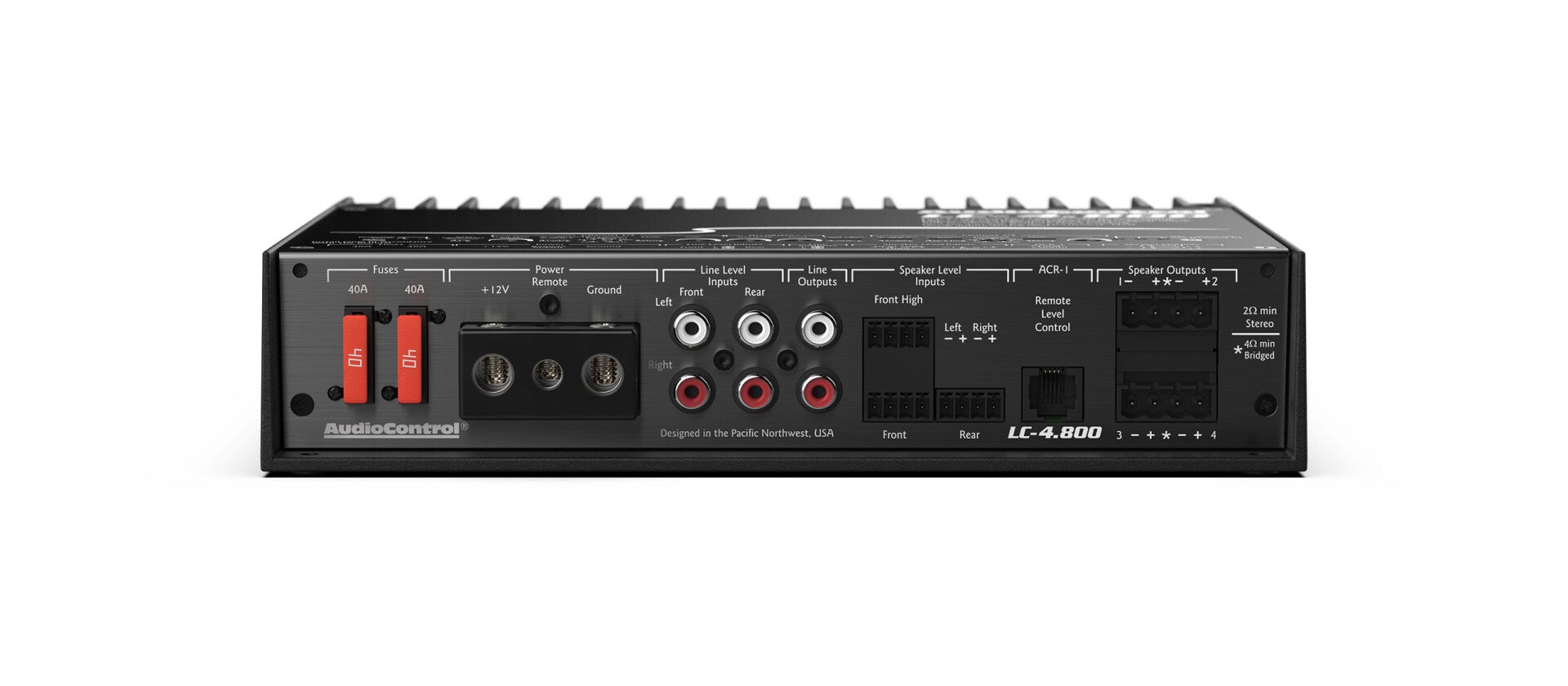

Audiocontrol LC-4.800 4 channel amplifier

Audiocontrol LC-4.800

Sale info

• Condition: New
• Sale type: BTW/21%
• Stock : 3 - 4 days extra delivery time

info:

• Configurable as 4/3/2-channel amplifier
• 4 x 200 watts into 2 ohms
• 4 x 125 watts into 4 ohms
• 400 watts bridged to 4 ohms
• AccuBASS® processing
• MILC™ Maximum Input Level Control (Patent Pending)
• GTO™ signal sampling
• Independent Linkwitz-Riley alignment crossovers
• Summable active speaker level inputs (6 channels) for OEM integration
• 4 preamplifier inputs
• 2 assignable preamplifier outputs
• PFM Subsonic Filter
• Optional assignable ACR-1 remote control
• Solid one-piece aluminum housing

SPECIFICATIONS
INPUTS

• Preamplifier inputs: 4 balanced
• Input voltage range: 250 mV - 8 Vrms
• Speaker level inputs: 6
• Speaker level input voltage range: 3 V - 40 Vrms

OUTPUTS

• Continuous (RMS) rated power at 14.4 V:
• 4 Ω - 125 W x 4 RMS
• 2 Ω - 200 W x 4 RMS
• Bridged 4 Ω - 400 W RMS
• Preamplifier outputs: 2
• Maximum preamplifier output: 8.5 V RMS

PERFORMANCE

• Frequency response: 10 Hz - 30 kHz
• Signal-to-noise ratio: 102 dBa, Ref 200 W @ 2 Ohm
• THD+N: < 0.1%
• Minimum thickness of the mains/earthing wire: 25mm²
• Fuse rating: 2 x 40 A
• Crossover: Linkwitz-Riley, adjustable from 30 Hz - 300 Hz

WEIGHT & DIMENSIONS

• Dimensions: 22.5 x 20 x 5.3cm
• Weight: 2.0kg
