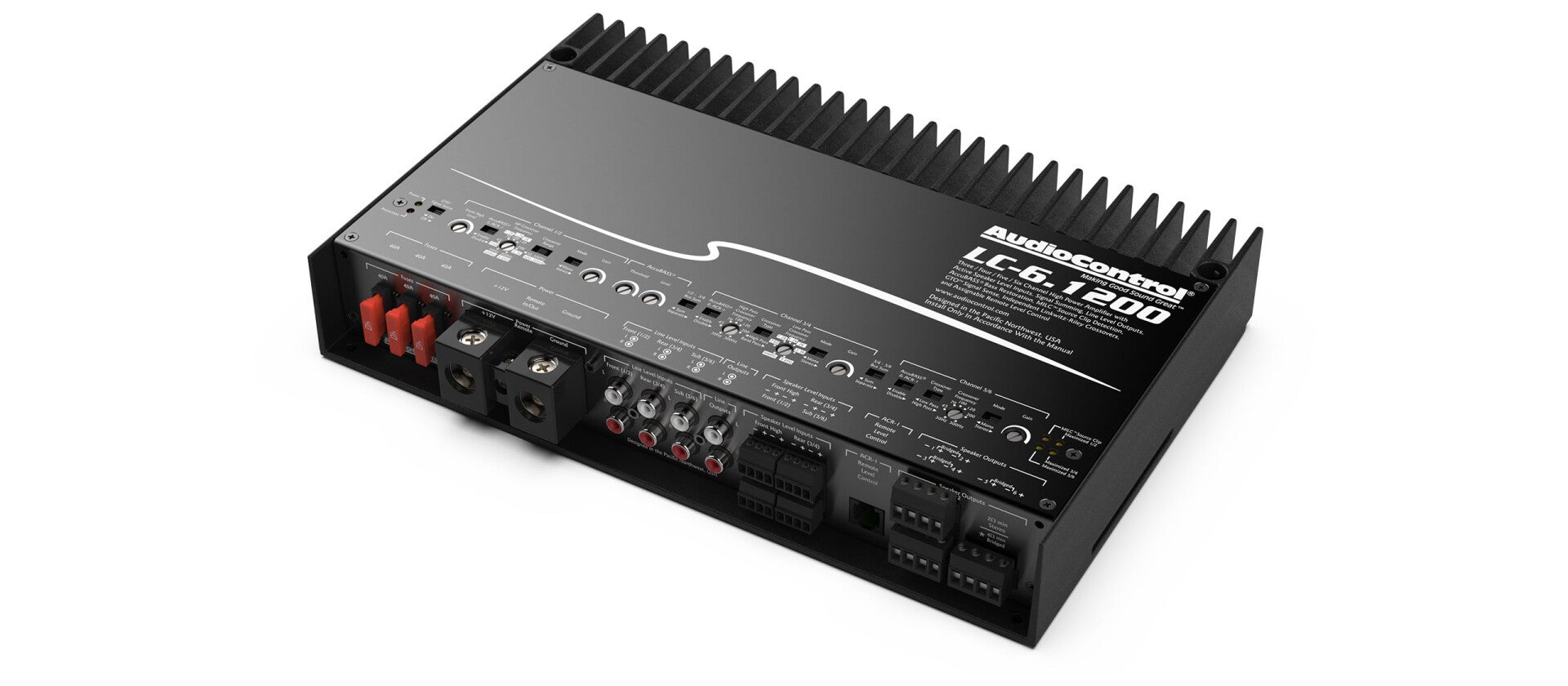

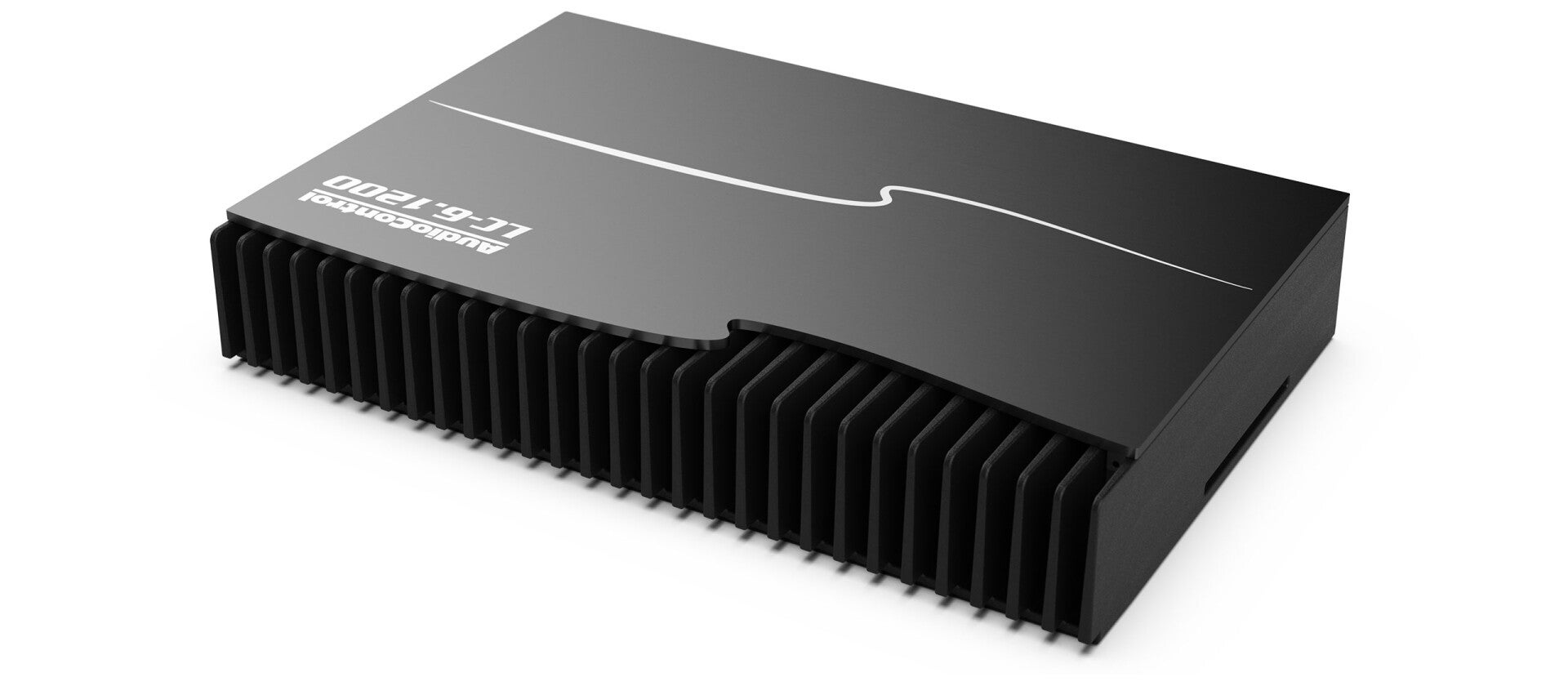

Audiocontrol LC-6.1200 6 channel amplifier

€999.00

Audiocontrol LC-6.1200



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 3 - 4 days extra delivery time

info:

  • Configurable as 6/5/4/3/2-channel amplifier
  • 6 x 200 watts into 2 ohms
  • 6 x 125 watts into 4 ohms
  • 400 watts bridged to 4 ohms
  • AccuBASS® processing
  • MILCTM Maximum Input Level Control (Patent Pending)
  • GTOTM Signal Sense
  • Independent 3-way Linkwitz-Riley switches
  • Summable active speaker level inputs (8 channels) for OEM integration
  • 6 preamplifier inputs
  • 2 assignable preamplifier outputs
  • PFM Subsonic Filter
  • Optional assignable ACR-1 remote control
  • Solid one-piece aluminum housing

SPECIFICATIONS
INPUTS

  • Preamplifier inputs: 6 balanced
  • Preamplifier input voltage range: 250 mV - 8 Vrms
  • Speaker level inputs: 8
  • Input voltage range for speaker level: 3 V - 40 Vrms

OUTPUTS

  • Continuous (RMS) rated power at 14.4 V:
  • 4 Ω - 125 W x 6 RMS
  • 2 Ω - 200 W x 6 RMS
  • Bridged 4 Ω - 400 W RMS
  • Preamplifier outputs: 2
  • Maximum preamplifier output: 8.5 V RMS

PERFORMANCE

  • Frequency response: 10 Hz - 30 kHz
  • Signal-to-noise ratio: 102 dBa, Ref 200 W @ 2 Ohm
  • THD+N: < 0.1%
  • Minimum cable diameter for power and earth: 25mm²
  • Fuse rating: 3 x 40 A
  • Crossover: 3-way Linkwitz-Riley, adjustable from 30 Hz - 5000 Hz

WEIGHTS & DIMENSIONS

  • Dimensions: 30 x 20 x 5.5cm
  • Weight: 3.3 kg

SCOPE OF DELIVERY

  • LC-6.1200
  • Speaker connections
  • Fuses
  • Manual
  • Warranty card
