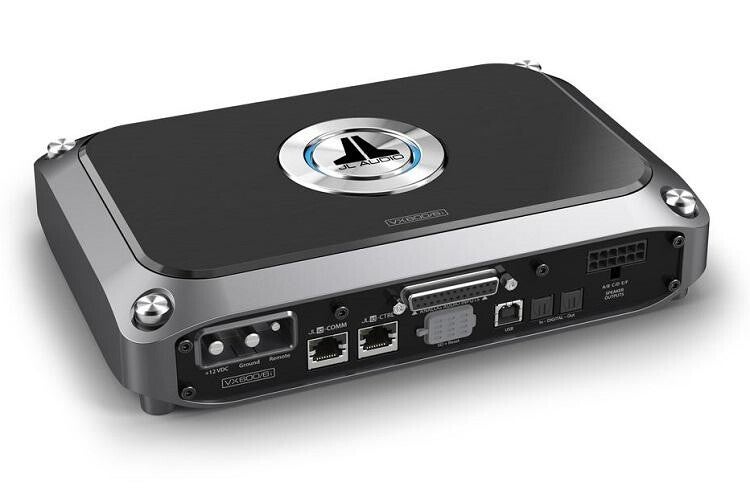

JL Audio VX600/6I 6 channel DSP amplifier

€1,499.00

Quantity

JL Audio VX600/6I

Sale info

Productinfo:

6-channel full-range Class D amplifier with integrated DSP, 100 W x 6 @ 2 Ω / 75 W x 6 @ 4 Ω - 14.4V
Designed to simplify great audio reproduction, each VXi amplifier combines JL's advanced NexD2™ switching amplifier technology with an integrated, full-featured digital signal processor.
With JL's second-generation NexD2™ technology, the VX600/6i full-range amplifier outputs up to 75 watts per channel into 4 ohms or 100 watts into 2 ohms. It can also be bridged at 4 ohms, resulting in an output of 200 W x 3.

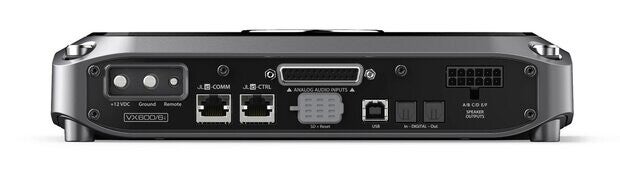

The NexD2™ full-range technology in this amplifier is DSP-driven and features a reduced loop area design that utilizes DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency. The amplifier chassis is ultra-compact, with all connections on one side, making installation in tight spaces much easier.
Instead of the conventional control knobs and switches, all amplifier settings and DSP functions are configured via a compatible external device (PC, tablet or smartphone), with the corresponding JL
Audio TüN™ software application is installed.

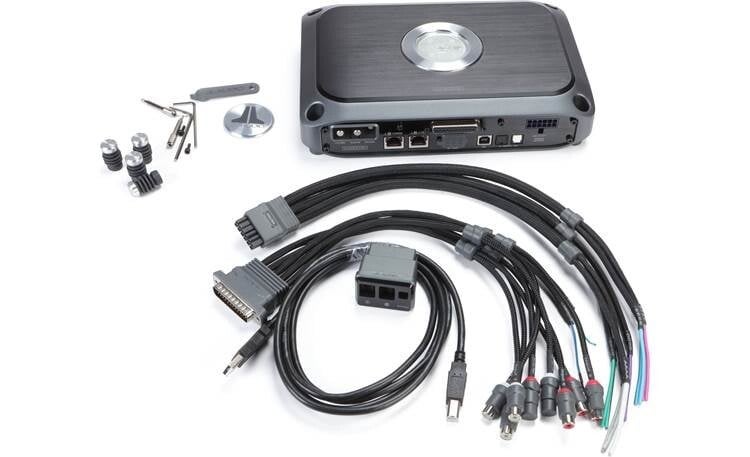

Amplifier included: power connection (for 25mm²), analog input/pre-output wiring harness, speaker output wiring harness, 1.8m A/B USB cable

Continuous rated power (RMS) at 14.4 V

Continuous rated power (RMS) at 12.5 V

General specifications

Frequency response : 12 Hz - 24 kHz (+0, -1dB)
S/N ratio, relative to the highest rated power (analog inputs) : 99 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
Attenuation factor @ 4 Ω : >100 / 50 Hz
Attenuation factor @ 2 Ω : >50 / 50 Hz
THD+N @ Nennleistung : <1% @ 2 Ω pro Ch.
Input voltage range @ RCA inputs : 200 mV - 16 V RMS
Minimum cable diameter : 25mm²
Fuse rating : 50 A (AFS, AGU or MaxiFuse™)

Dimensions
