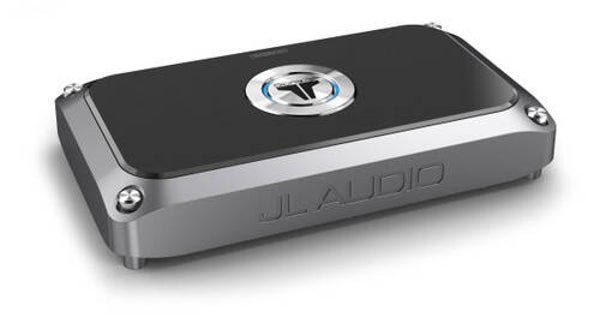

JL Audio VX1000/5I 5 channel DSP amplifier

JL Audio VX1000/5I 5 channel DSP amplifier
€1,699.00

JL Audio VX1000/5I



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • 5-channel Class D system amplifier with integrated DSP, 100 W x 4 @ 2 Ω + 600 W x 1 @ 2 Ω - 14.4V
  • Utilizing JL's second generation NexD2™ amplifier technology, the VX1000/5i efficiently powers a complete audio system. It can drive four main speakers with 75 W x 4 into 4 ohms and simultaneously power a subwoofer with up to 600 W into 2 ohms. By bridging the main channels, it becomes a very powerful 3-channel system amplifier with up to 200 W x 2 into 4 ohms on the main channels and 600 W into 2 ohms on the subwoofer channel.
    The NexD2™ full-range technology in the main channels of this amplifier is DSP-driven and features a reduced loop area design with DirectFET™ outputs for outstanding fidelity, very low noise and exceptional efficiency.
  • The subwoofer channel features an optimized low-frequency version of NexD2™ technology.

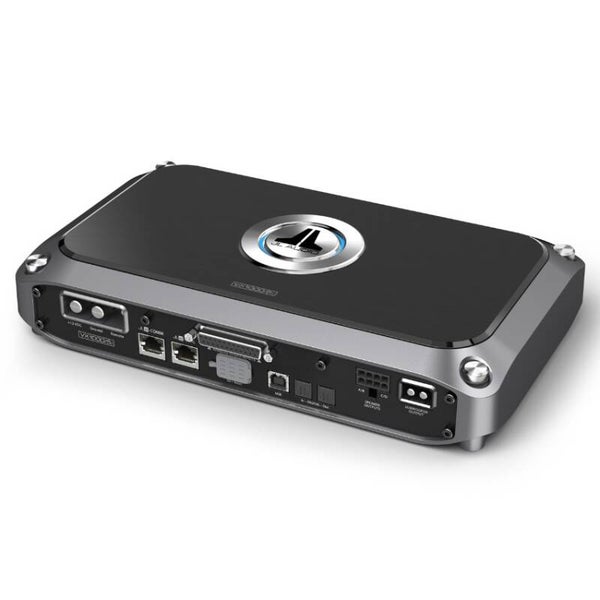

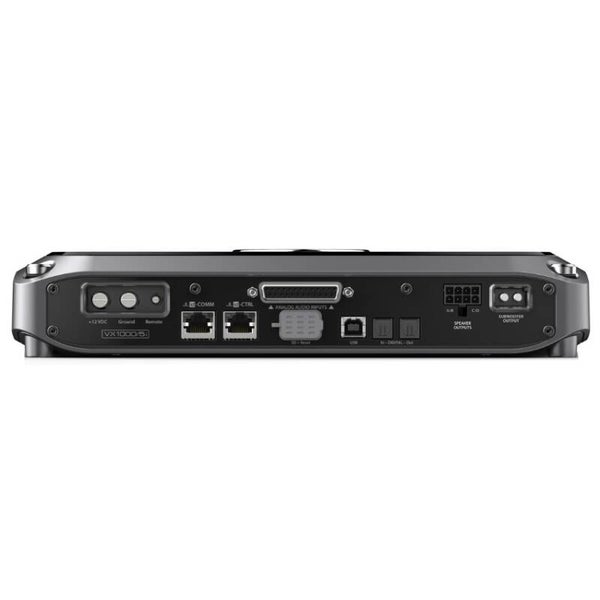

  • The amplifier chassis is ultra-compact, with all connections on one side, making installation in tight spaces much easier.
    Instead of traditional control knobs and switches, all amplifier settings and DSP functionality are configured via a compatible external device (PC, tablet or smartphone), with the appropriate JL Audio TüN™ software application installed.
  • Amplifier included: power connection (for 35mm²), analog input/pre-output wiring harness, speaker output wiring harness, subwoofer output connection, 1.8m A/B USB cable

Continuous rated power (RMS) at 14.4 V

  • Main channels @ 4 Ω : 75 W RMS x 4
  • Main channels @ 2 Ω : 100 W RMS x 4
  • Main channels - bridged @ 4Ω : 200 W RMS x 2
  • Subwoofer channel @ 4 Ω : 400 W RMS x 1
  • Subwoofer channel @ 3 Ω : 500 W RMS x 1
  • Subwoofer channel @ 2 Ω : 600 W RMS x 1

Continuous rated power (RMS) at 12.5 V

  • Main channels @ 4 Ω : 60 W RMS x 4
  • Main channels @ 2 Ω : 90 W RMS x 4
  • Main channels - bridged @ 4Ω : 180 W RMS x 2
  • Subwoofer channel @ 4 Ω : 360 W RMS x 1
  • Subwoofer channel @ 3 Ω : 480 W RMS x 1
  • Subwoofer channel @ 2 Ω : 600 W RMS x 1

General specifications

  • Frequency response (main channels) : 12 Hz - 24 kHz (+0, -1dB)
  • Frequency response (subwoofer channel) : 12 Hz - 1 kHz (+0, -1dB)
  • S/N ratio, related to the highest rated power (digital inputs -
  • main channels) : 100 dB (A-weighted, 20 Hz - 20 kHz noise bandwidth)
  • Attenuation factor @ 2 Ω : >50 / 50 Hz
  • Attenuation factor @ 4 Ω : >150 / 50 Hz
  • THD+N @ Nennleistung (Hauptkanäle) : <1% @ 2 Ω pro Ch.
  • THD+N @ Nennleistung (Subwoofer-Kanäle) :<1% @ 2 Ω pro Ch.
  • Input voltage range @ RCA inputs : 200 mV - 16 V RMS
  • Minimum cable diameter : 25mm²
  • Fuse rating : 80 A (AFS, AGU or MaxiFuse™)

Dimensions

  • Height (H): 54 mm (2.12 inches)
  • Width (W): 287 mm (11.32 inches)
  • Depth (D) : 6.62 in / 168 mm
