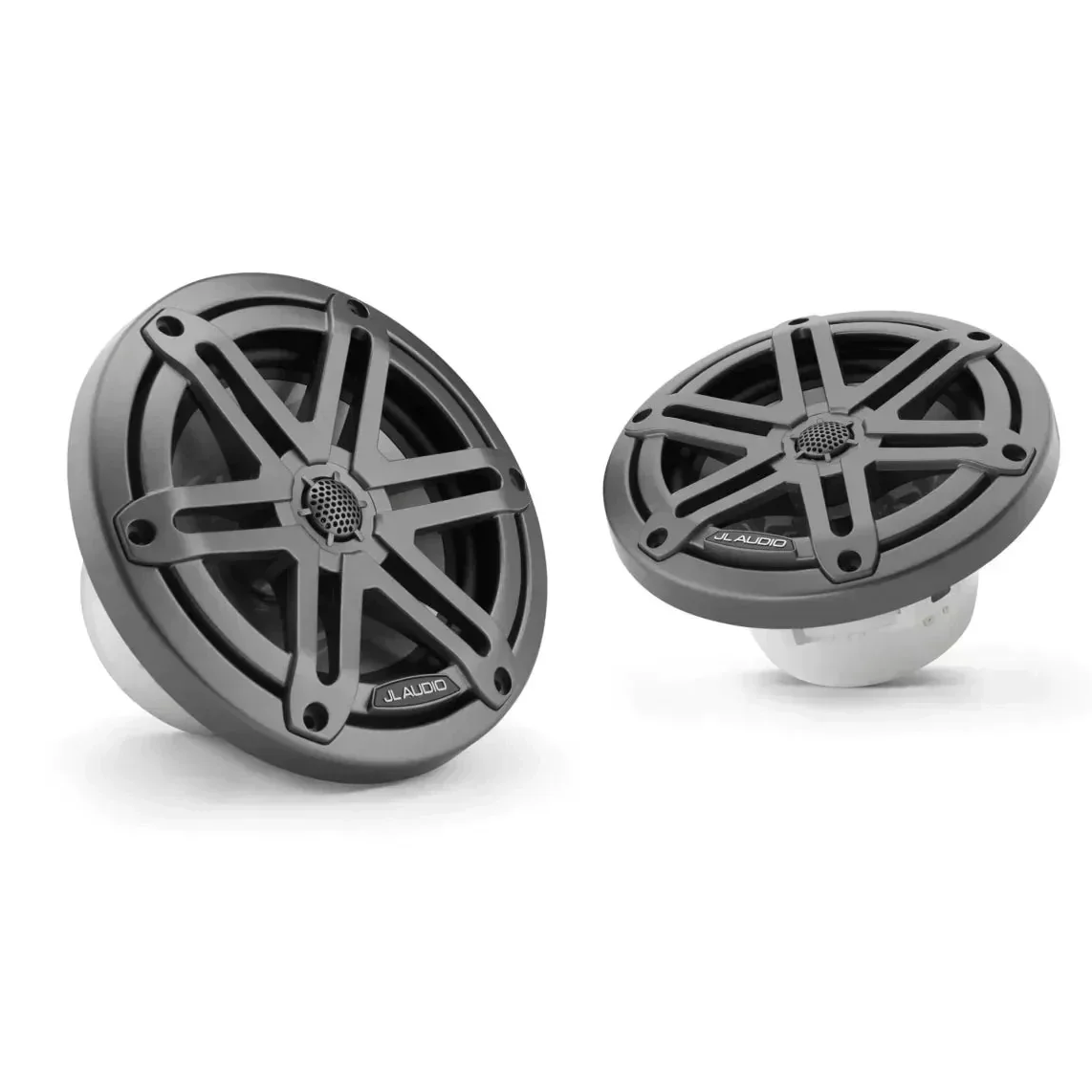

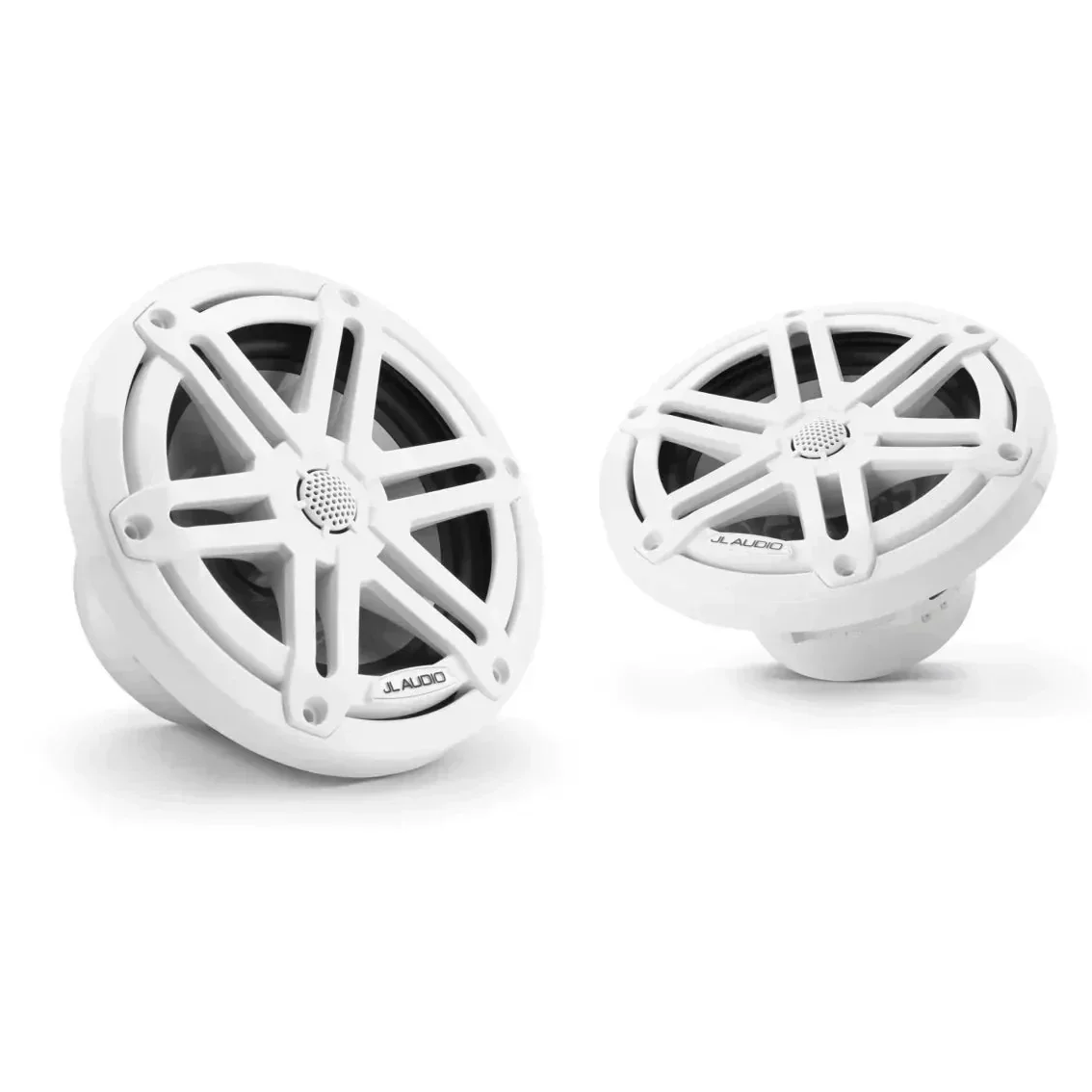

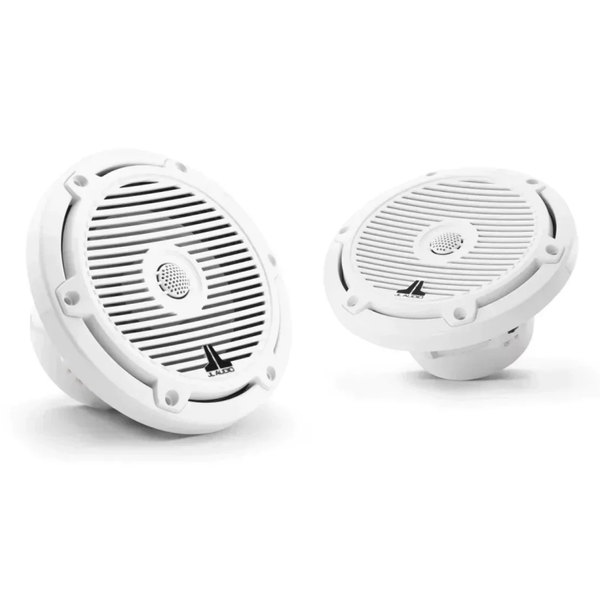

JL Audio M3-650X 6.5-inch marine coaxial speakers


JL Audio M3-650X 6.5-inch


Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2 -3 days extra delivery time


  • M3 standard flange 6.5-inch marine coaxial system (60 W, 4 Ω) - Classic radiator grille in glossy white
  • Designed and built specifically for marine use, the M3 coaxial systems offer excellent performance at a more affordable price than our maximum power M6 models.
  • The 3.650-inch M6-5X coaxial speaker is based on the standard 6.5-inch speaker format and features a wide mounting flange with a six-hole mounting pattern.
  • The long-throw woofer design and excellent power handling ensure that your music comes through loud and clear at high speed or at anchor. The woofer design is optimized for operation with a large volume of air behind it (at least 2 l / 57 cu. ft.). Operating this coaxial system in less space compromises its low frequency performance.
  • A 0.75-inch pure silk dome tweeter, specially treated for resistance to the marine environment, handles the high-frequency duties. Silk was chosen for its lightness, excellent damping properties and smooth response.
  • Although M3-650X coaxial systems can be used with as little as 20W per channel, we recommend amplifiers with a continuous output of between 75 and 100W per channel for optimum audio performance.
  • Sold as a pair.

Power rating

  • Continuous power handling (RMS) 60 W
  • Recommended amplifier power (RMS) 20 - 120 W / channel
  • System efficiency 89.5 dB @ 1 W / 1 m
  • Nominal system impedance 4 Ω
  • System frequency response 55 Hz - 25 KHz ± 3 dB


  • Outer frame diameter (A) 175 mm
  • Bolt hole circle diameter (B) 156 mm
  • Projection of the front grille* (C) 0.97 25 mm
  • Mounting hole diameter (D) 127 - 133 mm
  • Installation depth (E) 71 mm
