JL Audio C2-525 130 mm (5.25-inch) componentset ( composet )

JL Audio C2-525 130 mm (5.25-inch) componentset ( composet )
€249.00

JL Audio C2-525



Sale info

  • Condition: New
  • Sale type: BTW/21%
  • Stock : 2-3 days extra days

Productinfo:



  • 2-way component system with 130 mm (5.25-inch) woofer and 19 mm (0.75-inch) silk dome tweeter
  • Evolution C2 systems deliver sparkling high frequency detail, smooth midrange and powerful midrange thanks to true silk dome tweeters and long linear excursion woofers.

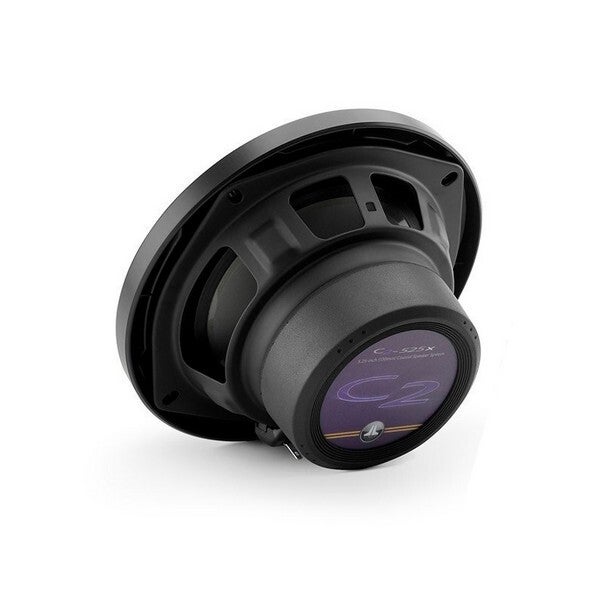

  • The C2-525 system features 130 mm (5.25 inch) component woofers with mineral-filled polypropylene cone, long excursion capability and embossed steel frame. The woofer design benefits from JL Audio's extensive experience in woofer design and advanced modeling systems.

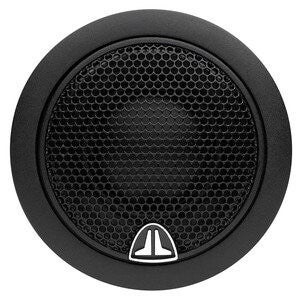

  • The C2 component tweeters are built with 0.75-inch silk dome cones that deliver smooth, extended on- and off-axis response. Under- and surface-mount brackets are included to accommodate a variety of installation requirements.
  • The C2 crossovers are compact and made from high quality components including Mylar® capacitors and segmented air core coils. The tweeter is damped in three stages and fitted with a tweeter protection.
  • Woofer grilles are included, each consisting of a black grille surround with satin silver accents and a black steel grille with an electroformed JL Audio logo.
  • Sonic character: Clean and dynamic
    Sold as a pair.

General specifications

  • Continuous power handling (RMS) : 60 W
  • Recommended amplifier power (RMS) : 15 - 100 W / Ch.
  • System efficiency : 89.0 dB at 1 W / 1 m
  • Nominal system impedance : 4 Ω
  • System frequency response : 63 Hz - 22 KHz ± 3 dB
  • Frame outer diameter (A) : 132 mm / 5.20 inch
  • Outer diameter of the grille channel (B) : 153 mm / 6.01 inches
  • Motor outer diameter (C) : 2.76 inch / 70 mm
  • Front coaxial tweeter projection (D) : N/A
  • Front grille projection (E) : 0.72 inch / 18 mm
  • Mounting hole diameter (F) : 116 mm (4.56 inches)
  • Mounting depth (G) : 64 mm / 2.50 inches
