Powerus PW3500 Monoblock amplifier

Pre-order
€699.00

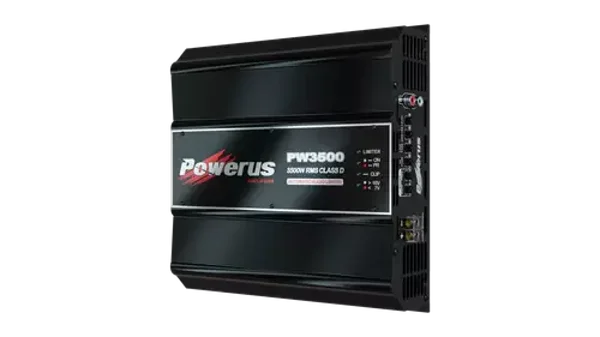

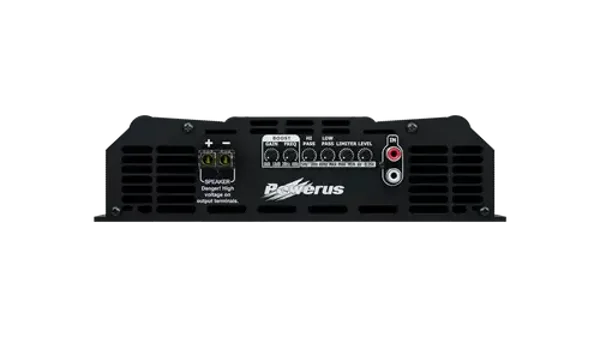

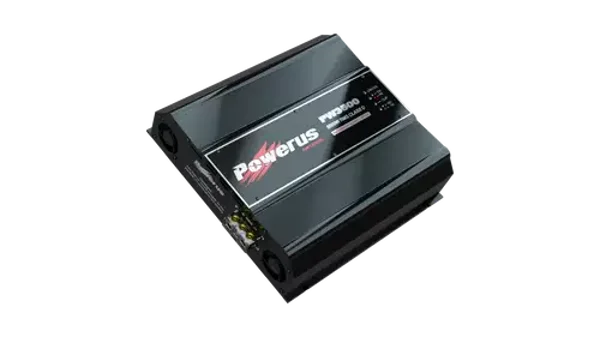

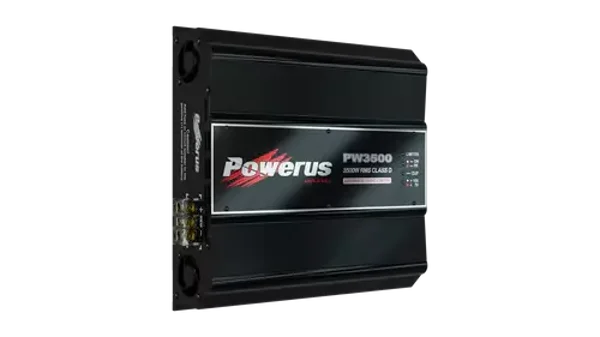

Powerus PW3500



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : This product has a longer delivery time. Ask for the current delivery time
  • This product can be ordered as a pre-order when sold out. Please take a long delivery time into account.

Product info:

  • Supply Voltage / Power Supply 7Vdc ~ 16V dc
  • Consumption at Rest / Consumption at Rest 1.5A
  • Musical Consumption / Music Consumption 170A
  • Cons. Max. Sinusoidal Signal 40Hz / Max. Consump. in
  • Sinusoidal Signal 40Hz 388A
  • Efficiency / Efficiency 75%
  • Input Impedance / Input Impedance 22K Ohms
  • Input Sensitivity / Input Sensitivity 0.25V ~ 6V
  • Total Harmonic Distortion / THD 0.1%
  • SNR> 90dB
  • Damping Factor / Damping Factor 40Hz (12.6V 2 Ω)> 1000
  • Frequency Response / Frequency Response 5Hz ~ 45KHz (- 3dB)
  • 80Hz ~ 20KHz Low Pass Crossover
  • Crossover High Pass 5Hz ~ 200Hz
  • Boost Gain / Boost Gain 0dB ~ 18dB
  • Variable Boost Frequency / Frequency of Variable
  • Reinforcement. 28Hz ~ 400Hz
  • Variable Threshold Limiter / Variable Threshold Limiter Exclusivvo
  • Dimensions / Dimensions (DxWxH) mm 70x280x260

Powerus PW3500 - 1Ω

  • Power @ 12.6V @ 1Ω: 1 X 3670 WRMS
  • Power @ 12.6V @ 2Ω: 1 X 2540 WRMS
  • Power @ 14,4V @ 1Ω: 1 X 4740 WRMS
  • Power @ 14,4V @ 2Ω: 1 X 3310 WRMS

Powerus PW3500 - 2Ω

  • Power @ 12.6V @ 2Ω: 1 X 3670 WRMS
  • Power @ 12.6V @ 4Ω: 1 X 2540 WRMS
  • Power @ 14,4V @ 2Ω: 1 X 4740 WRMS
  • Power @ 14,4V @ 4Ω: 1 X 3310 WRMS

Installation note:

  • Use cables with a cross-section of 35mm² or more for power supply installation. The positive cable must come directly from the battery, with a fuse or circuit breaker 30cm away from the battery. The negative cable must have the same cross-section as the positive cable.
