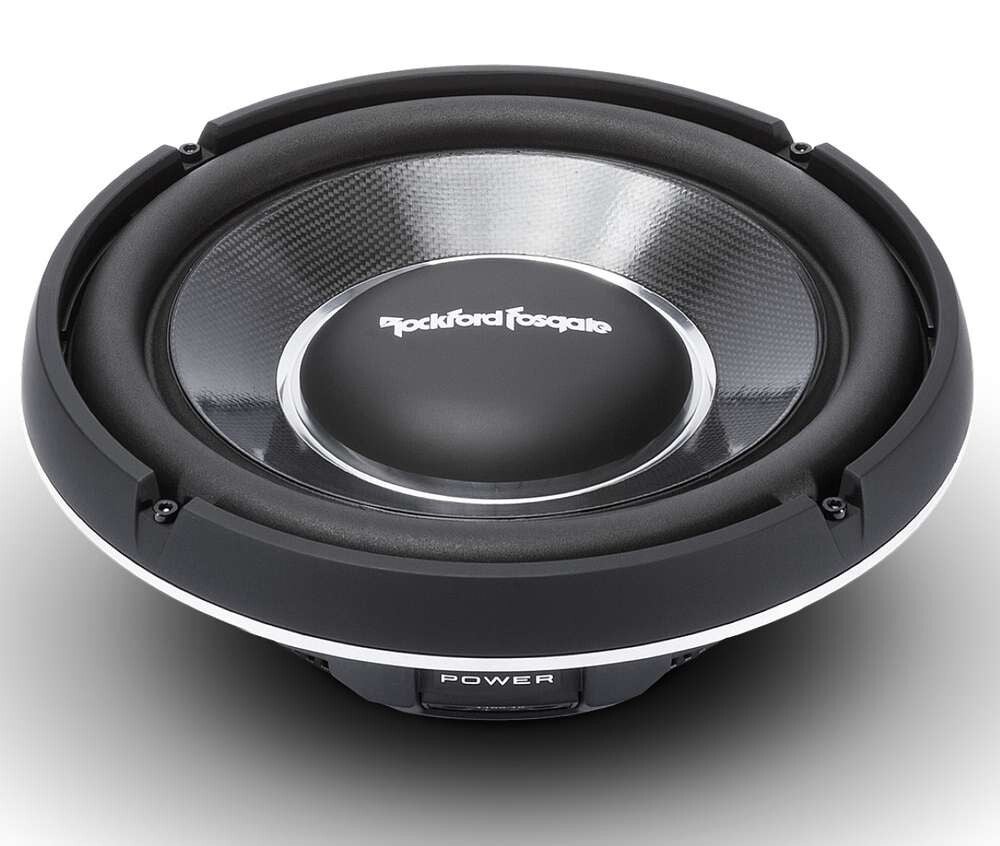

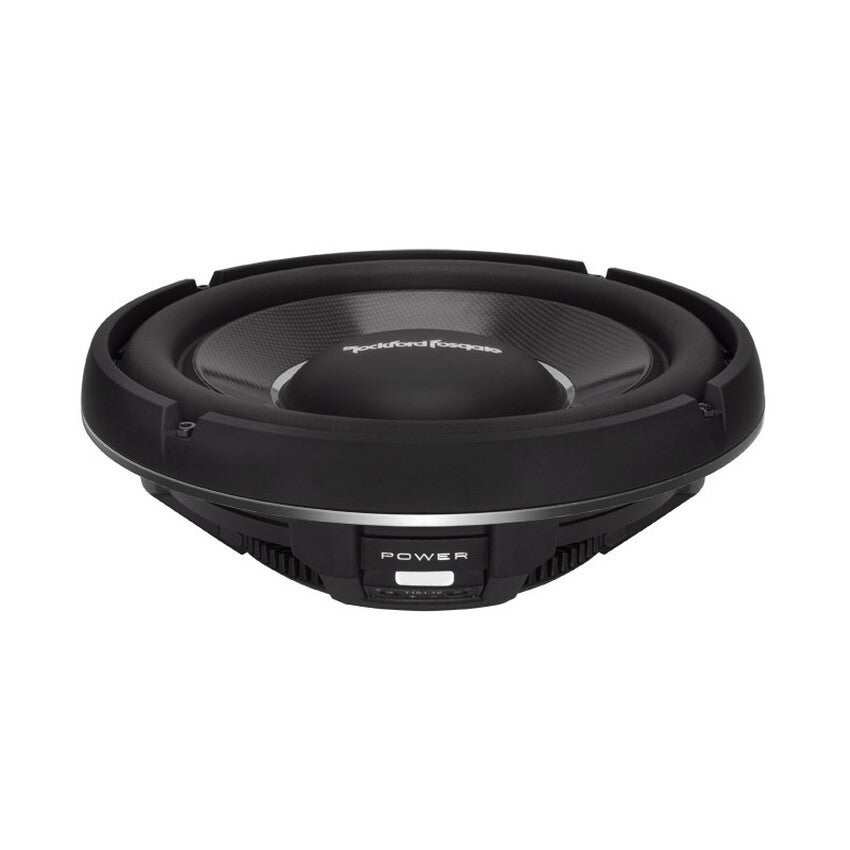

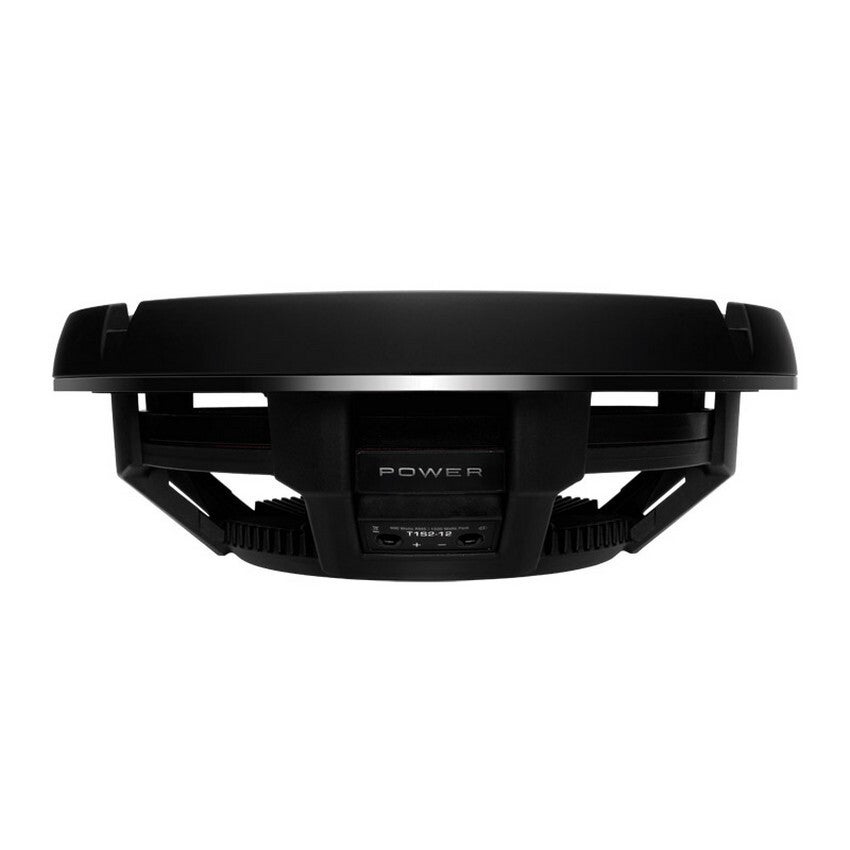

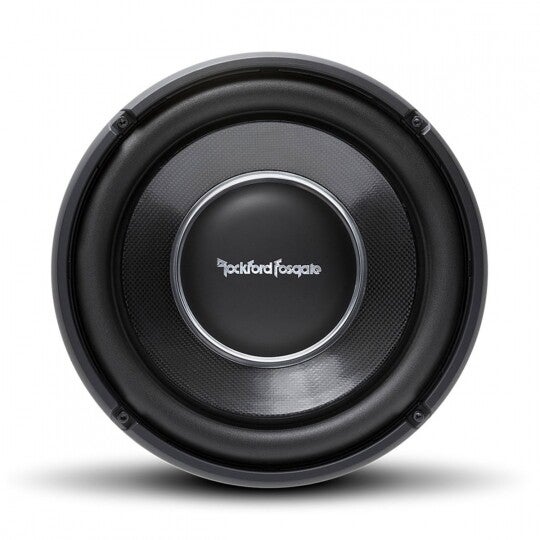

Rockford Fosgate POWER T1S2-12 / T1S1-12

Rockford Fosgate POWER T1S2-12 / T1S1-12

• Condition: New
• Sale type: BTW/21%
• Warranty: Factory warranty
• Stock : 2 -4 days extra delivery time

Productinfo:

• Carbon fiber/PMI/fiberglass cone with aluminum dust cap.
• Injection-molded foam surround with VAST™
• Two progressive Nomex sprockets with integrated lead wires
• Die-cast aluminum frame with integrated cooling fins
• Custom insulated 6mm² compression spring terminals
• Double wound 2.5" voice coil with inner/outer windings
• Encapsulated voice coil to former coupling technology (patented
• pending)
• Removable die-cast aluminum trim ring
• Ventilated pole shoe
• High temperature high energy neodymium motor structure
• Proprietary split yoke pass-through motor technology (patent
• pending)
• Integrated copper cap shorting ring (IDHS)
• Optional grid insert available
• Optimized for sealed enclosures

Specifications:

• 12" (30cm) flat subwoofer
• Power handling : 600 Watt
• Power handling Max : 1200 Watt
• Voice coil diameter : 3"
• Magnet Weight : 0.41 Kg
• Cutout diameter : 285 mm
• Installation depth : 76.5 mm
• Woofer displacement : 1.2 liters
• Shipping weight : 7.3 Kg
• Available in single 1-Ohm, or single 2-Ohm
• 2 Ohm variant:
  • Nominal impedance : 2-Ohm
  • Voice coil type : Single voice coil
  • Fs (Hz) : 37
  • Qts : 1.06
  • Qms : 11.22
  • Sd (cm2) : 560
  • Qes :1.17
  • Re (Ohm) : 1.7
  • Vas (Liter) : 32.4
  • Xmax (mm) : 15
  • SPL (dB @ 1w/1m) : 85
  • Le (mH) : 0.45
  • SPL (dB @ 2.8v/1m) : 88
  • Closed cabinet volume (Vb) 31.1 liters
  • Bass reflex cabinet volume (Vb) 56.6 liters
• 1 Ohm variant:
  • Nominal impedance 1 ohm
  • Voice coil type single voice coil
  • Xmax (mm) 15
  • Fs (Hz) 36
  • Qes 1.17
  • Qts 1.06
  • Qms 11.22
  • Sd (cm2) 560
  • Re (Ohm) 0.9
  • Le (mH) 0.31
  • Vas (liter) 32.4
  • SPL (dB @ 1w/1m) 85
  • SPL (dB @ 2.8v/1m) 88
  • Closed cabinet volume (Vb) 31.1 liters
  • Bass reflex enclosure volume (Vb) 56.6 liters
