Rockford Fosgate Punch PBR300X2 Mini 2 channel / mono amplfier

Rockford Fosgate Punch PBR300X2 Mini 2 channel / mono amplfier
€299.00

Rockford Fosgate Punch PBR300X2



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • Ultra compact package
  • High level inputs
  • MOSFET output stage
  • Variable 4-6 volt high level DC offset voltage control for power up
  • 12dB/octave Butterworth crossover

Specifications:

  • 2-channel amplifier
  • RMS power:
    • 100 Watt x 2 @ 4-Ohm
    • 150 Watt x 2 @ 2-Ohm
    • 300 Watt x 1 @ 4-Ohm bridged
  • Dynamic power
    • 114 Watt x 2 @ 4-Ohm
    • 160 Watt x 2 @ 2-Ohm
    • 387 Watt x 1 @ 4-Ohm bridged
  • Bridgeable : Yes
  • Frequency response : 20Hz - 20kHz +/-3dB
  • Input sensitivity : 150 mV - 11 V
  • Circuit topology class : Class BR
  • Efficiency (average) : 68%
  • Signal input : High/Low level input: 4-pin harness
  • Hi level sensitivity : Variable DC offset sensitivity
  • Tone control : Optional remote punch EQ
  • High Pass: 50Hz - 500Hz @ 12dB/Octave Butterworth
  • Low pass: 50Hz - 500Hz @ 12dB/octave Butterworth
  • Remotes : Optional PEQ provides 0 dB to +18 dB at 45 Hz.
  • Visual Indicators : Power/Protection, BRT (Gain).
  • Cable diameter : 6mm²
  • Loudspeaker cable diameter : 1,5mm²

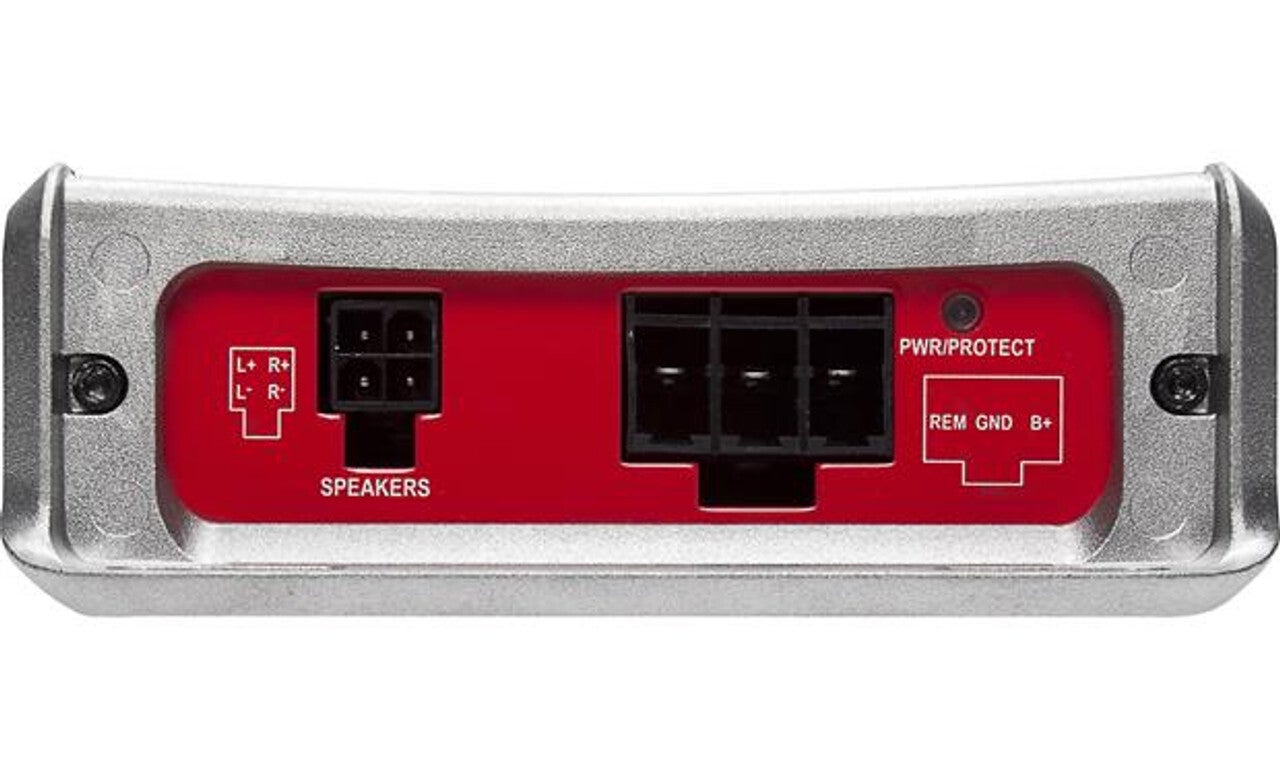

  • Speaker output connector : 4 pole harness
  • Cooling : Convection
  • Operating voltage : 9 - 16 VDC
  • Recommended fuse 50 A
  • Average current consumption (13.8 V music) : 23 A
  • Max. Current consumption (13.8 V sine) : 45 A
  • Dimensions (H x W x D) : 3.90 x 10.8 x 17.2 cm
