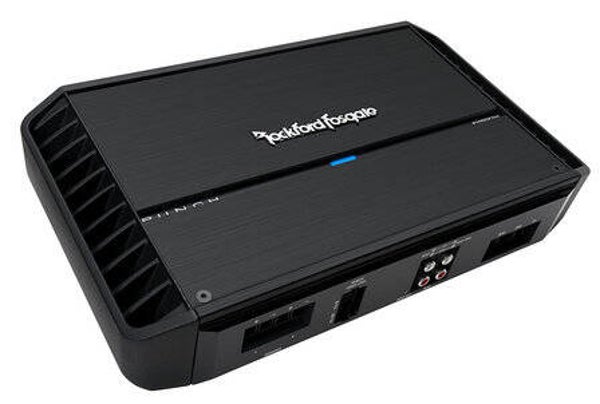

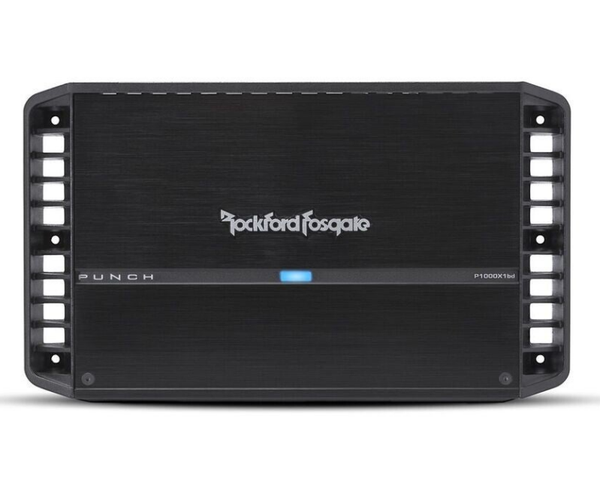

Rockford Fosgate Punch P1000X1bd monoblock amplifier

€529.00

Rockford Fosgate Punch P1000X1bd



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -4 days extra delivery time

Productinfo:

  • High level input with auto turn-on circuit.
  • With C.L.E.A.N. facility
  • RCA pass-thru outputs
  • 12dB/Octave Butterworth Crossover
  • Optional remote Punch Level Control (PLC2) (with input clip-
  • display)
  • Built-in punch EQ with +18 dB boost at 45 Hz
  • Mute on power up
  • Stealth control panel on the top side
  • Cast aluminum heat sink
  • Short circuit protection
  • Overcurrent protection
  • Infrasonic filter

Specifications:

  • 1-channel amplifier
  • RMS power:
    • 300 Watt x 1 @ 4-Ohm
    • 500 Watt x 1 @ 2-Ohm
    • 1000 Watt x 1 @ 1-Ohm
  • Dynamic power
    • 491 Watt x 1 @ 4-Ohm
    • 874 Watt x 1 @ 2-Ohm
    • 1,430 Watt x 1 @ 1-Ohm
  • Frequency response: 20 Hz to 250 Hz +/- 1.0 dB
  • Input sensitivity: 150 mV - 12 V
  • Circuit topology class : Class BD
  • Efficiency (average) : 86% @ 4-Ohm
  • Signal input : Hi/Low level : 1 RCA pair
  • Signal output: High/Low level: 1 RCA pair
  • Tone control : Punch EQ2 Bass: 0dB to +18dB @ 45Hz
  • Crossover control : Low Pass (LP): 50-250Hz @ 12dB/octave Butterworth
  • Infrasonic filter (IF): 28Hz @ 12dB/octave Butterworth
  • Remote controls : Optional punch level control (PLC2) ready
  • Visual indicators : Power/Protection/Thermal LED
  • Cable diameter : 20mm²
  • Speaker cable diameter : 8mm²
  • Cooling : convection
  • Operating voltage : 9 - 16 VDC
  • Recommended fuse 140 A
  • Average current consumption (13.8 V music) : 65 A
  • Max. Current consumption (13.8 V sine) : 130 A
  • Dimensions (H x W x D) : 6.05 x 19.71 x 33.73 cm
