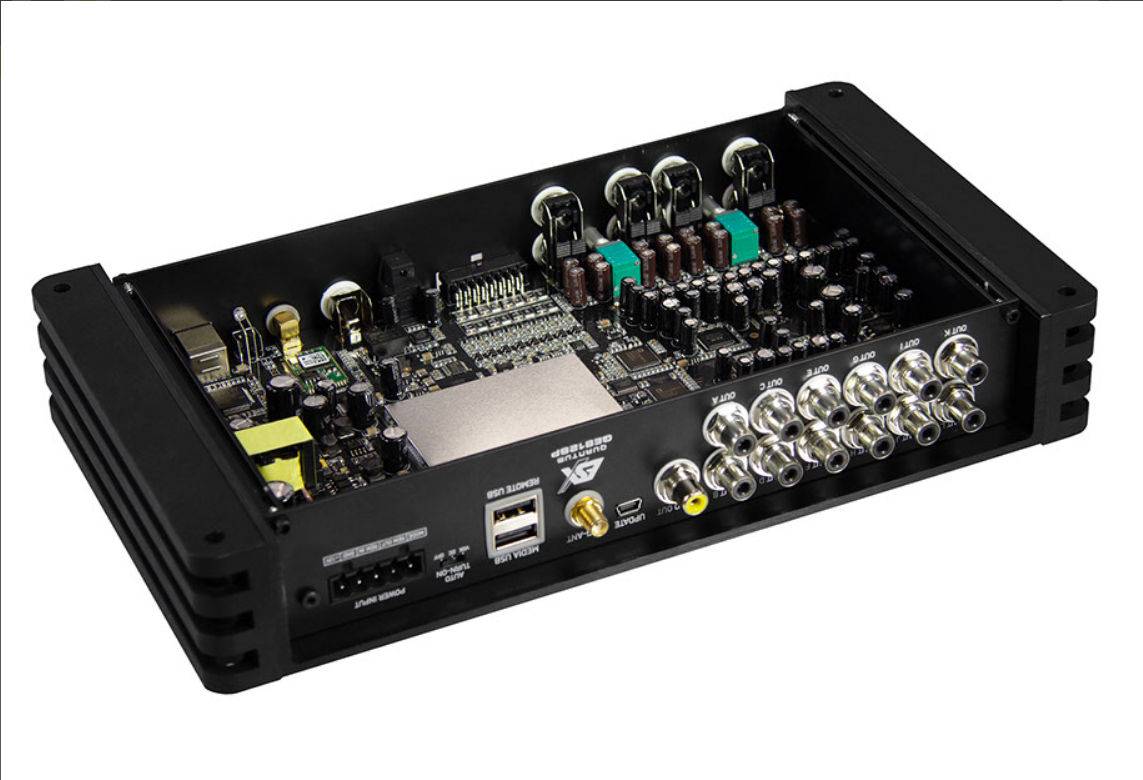

ESX Quantum QE812SP 12 channel High-end DSP

ESX Quantum QE812SP 12 channel High-end DSP
€1,499.00

ESX Quantum QE812SP



  • Condition: New
  • Sale type: BTW/21%
  • Warranty: Factory warranty
  • Stock : 2 -3 days extra delivery time

Productinfo:

  • Full HD digital audio player with 12-channel sound processor
  • 8 x RCA input
  • 8 x high level input with EPS PRO up to 40 V/RMS (via Molex)
  • 1 x optical stereo input, S/PDIF 192 kHz, 24 bit
  • 1 x coaxial stereo input, S/PDIF 192 kHz, 24 bit
  • 1 x Bluetooth® stereo input via audio streaming
  • 1 x USB socket for PC software
  • 1 x USB socket for remote control
  • 1 x USB socket for media
  • 12 x RCA output @ 6 V RMS (THD+N <0.0004%)
  • 1 x RCA video output
  • Dimensions 277 x 43 x 155 mm
  • Compatible file formats:
    • HD Audio: DFF / DSF / DSD (up to 24 bit/256 kHz)
    • Uncompressed: WAV / FLAC / APE / AIFF
    • Compressed: MP3 / AAC / OGG / WMA / MV
    • Storable on optional USB media (FAT32, NTFS)
  • Controllable per:

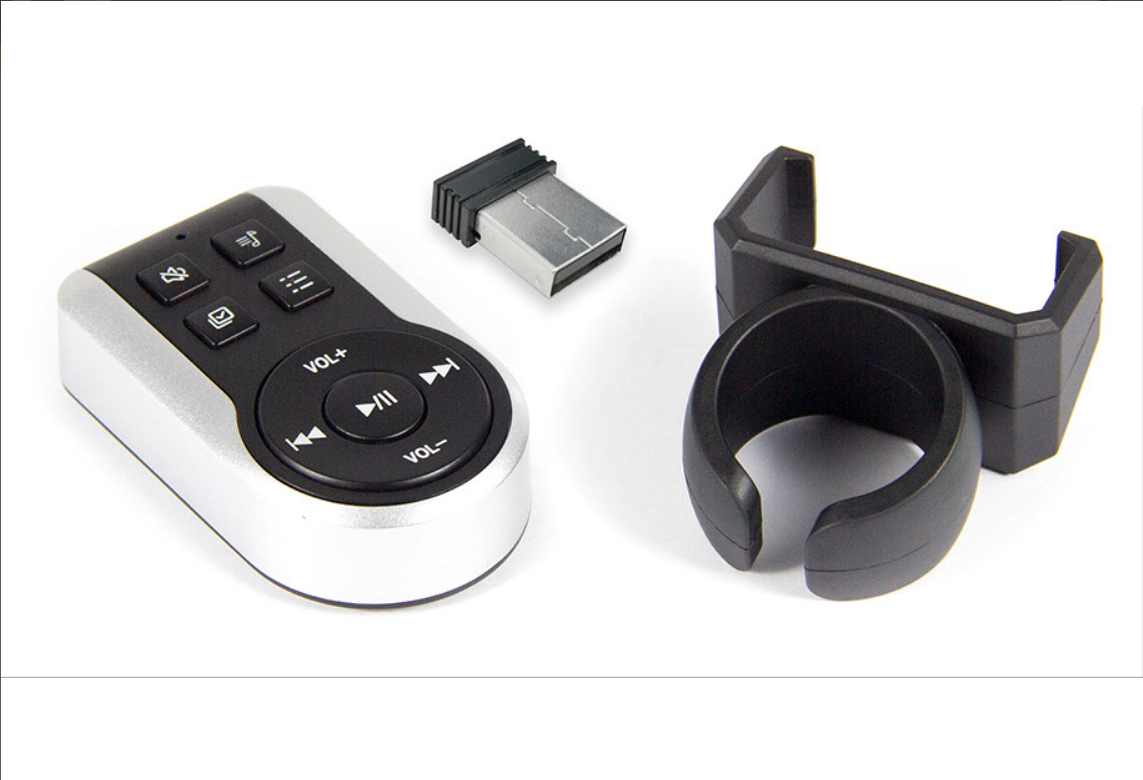

    • Included RC-BT steering wheel remote control via Bluetooth®.
    • ESX Music App for iOS/Android via Bluetooth®.
    • Optional RC-QE wired remote control with large LCD color display

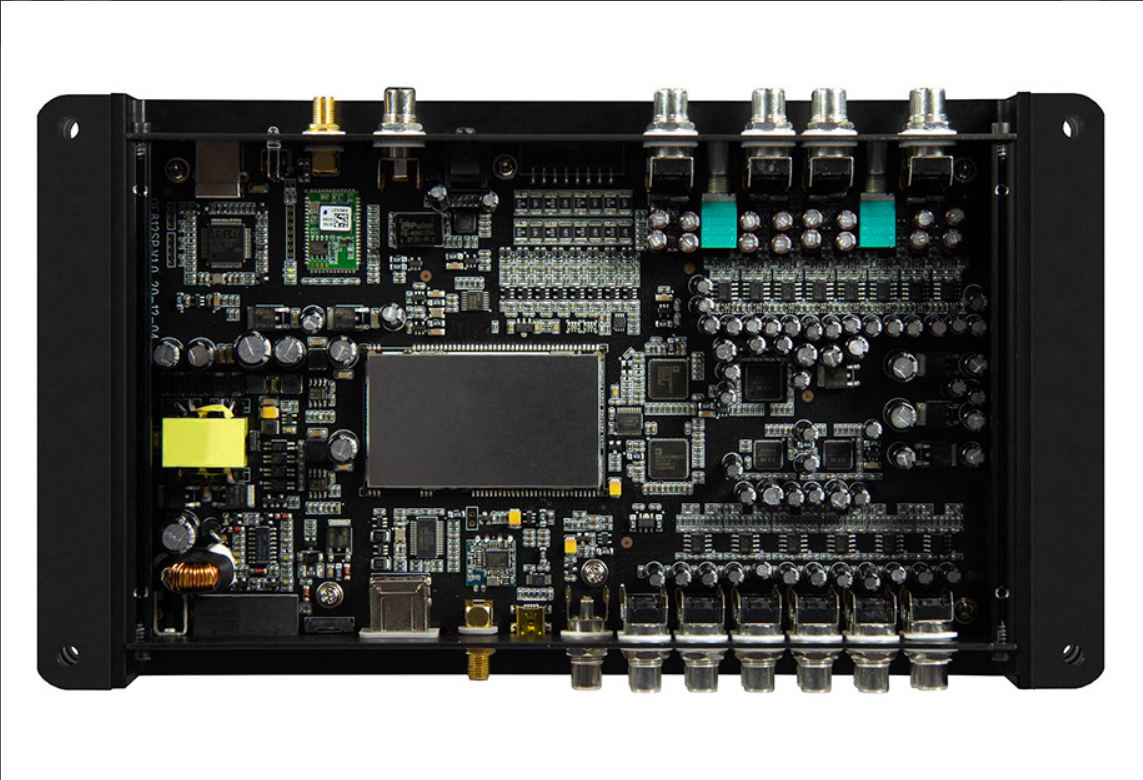

  • Analog Devices™ DSP chip, ADAU1452 dual 2 x 32 bit processor, 294 MHz, full HD audio 96 kHz.
  • AKM Velvet Sound™ Series 5 signal converter, A/D 32 bit, D/A 32 bit
  • HP/LP/BP @ 6-48 dB, phase shift, delay correction 0 ~ 20 ms / 0.01 ms steps
  • Input mixer, subwoofer control, priority input mode for digital input signals
  • Input sensitivity: low level 1~6 V/RMS, high level 1~15 or 15~45 V/RMS
  • Signal-to-noise ratio (A-weighted): Analog input 111 dB, Digital input 117 dB
  • Distortion factor: analog input <0.001%, digital input <0.0004%
  • Integrated Bluetooth® receiver incl. antenna for controlling the DSP via app and full HD audio streaming
  • Bluetooth version 5.0, profiles: A2DP/AVRCP, Codecs: aptX, aptx LL, aptX HD, AAC, SBC
  • REM OUT function for external devices, MODE switch input for e.g. convertible top (preset auto switch)
  • Controllable per:
    • ESX Toolkit App for iOS/Android via Bluetooth®.
    • Optional RC-QE remote control with large LCD color display
